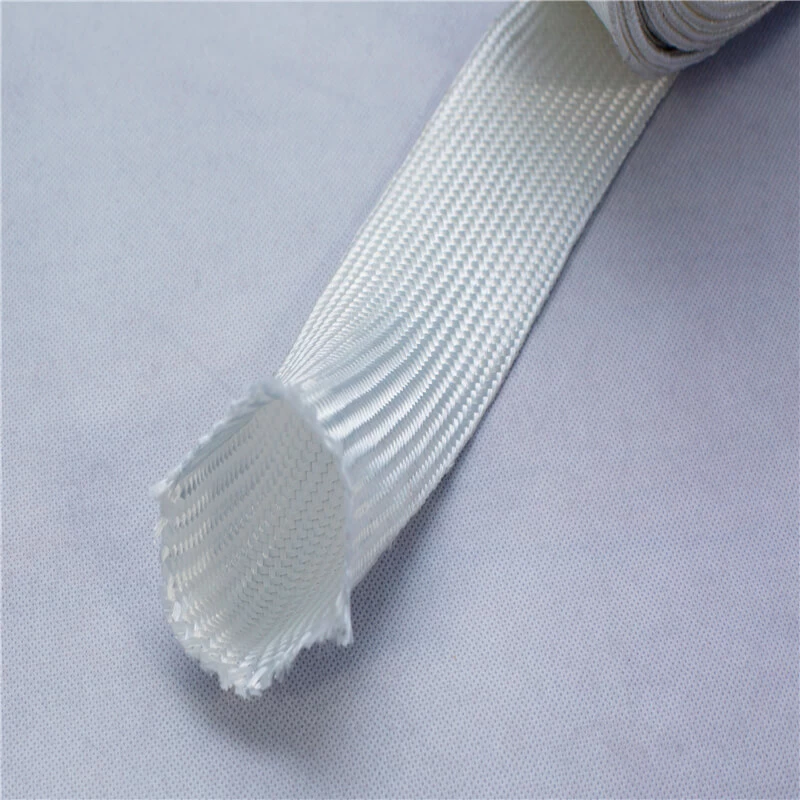

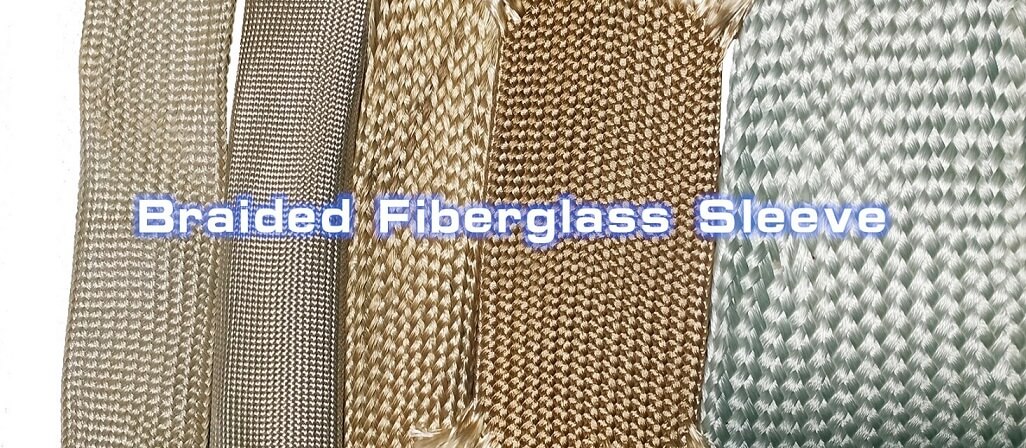

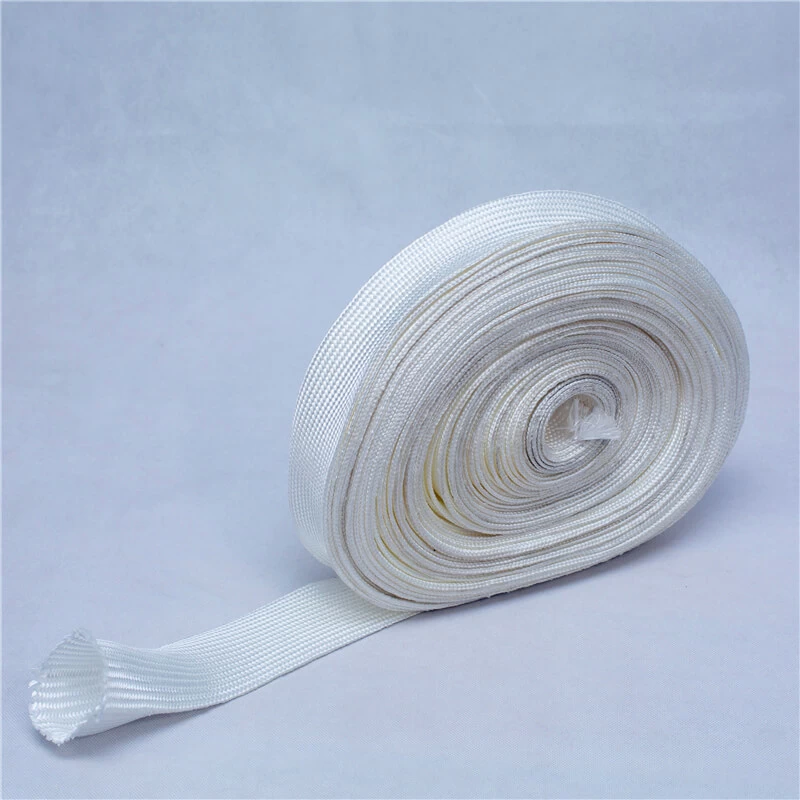

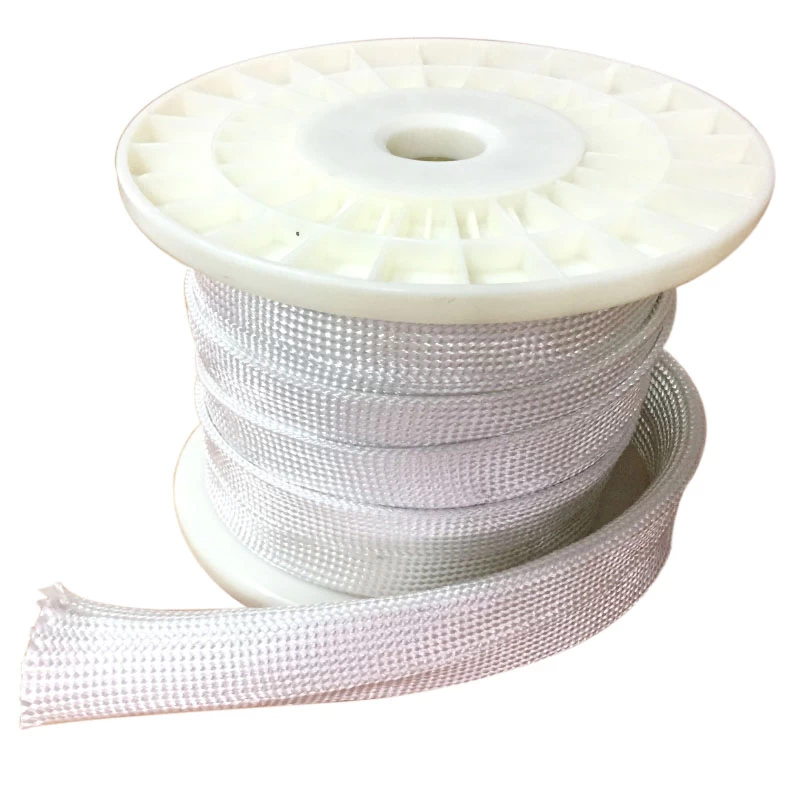

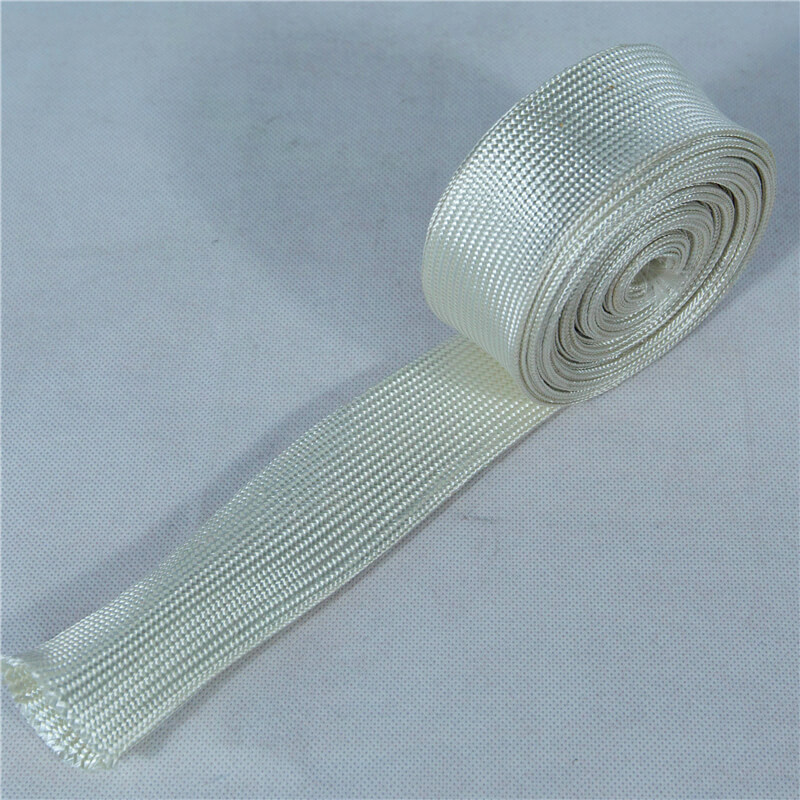

Heat Resistant Fiberglass Braided Sleeve
1.Product Introduction
ZBAO Braided Fiberglass Sleeve is braided by high quality E grade fiberglass yarns. It can be continuous exposure to high temperature of 550℃. Braided Fiberglas sleeve resists most acids and alkalis and not affected by most bleaches and solvents.
Braided Fiberglass Sleeve provide thermal insulation and fire proof from high temperature and occasional flame, also affording personal protection.
2.Product Characters
|
Size/Inner diameter
|
2mm-100mm
|
|
Colour
|
White
|
|
Working temperature
|
≤550℃
|
|
Flammability
|
VW-1
|
|
Character
|
Excellent heat & flame resistant. Thermal insulation. Highly flexible and conformable.
|
3.Standard Specifications
|
ZBAO Part No.
|
Inner Dia./mm
|
Wall Thickness/mm
|
Roll Length/m
|
|
Nominal
|
Tolerance
|
|
ZBFS-2
|
2
|
+0.5
|
0.4
|
200
|
|
ZBFS-3
|
3
|
+0.5
|
0.4
|
200
|
|
ZBFS-4
|
4
|
+0.5
|
0.4
|
200
|
|
ZBFS-5
|
5
|
+0.5
|
0.5
|
200
|
|
ZBFS-6
|
6
|
+1
|
0.6
|
200
|
|
ZBFS-8
|
8
|
+1
|
0.6
|
200
|
|
ZBFS-10
|
10
|
+1
|
0.8
|
100
|
|
ZBFS-12
|
12
|
+1
|
0.8
|
100
|
|
ZBFS-15
|
15
|
+2
|
0.9
|
100
|
|
ZBFS-20
|
20
|
+2
|
0.9
|
100
|
|
ZBFS-25
|
25
|
+2
|
0.9
|
100
|
|
ZBFS-30
|
30
|
+3
|
0.9
|
50
|
|
ZBFS-40
|
40
|
+3
|
1
|
50
|
|
ZBFS-50
|
50
|
+3
|
1
|
50
|
|
ZBFS-60
|
60
|
+5
|
1.1
|
25
|
|
ZBFS-70
|
70
|
+5
|
1.2
|
25
|
|
ZBFS-80
|
80
|
+5
|
1.3
|
25
|
|
ZBFS-90
|
90
|
+5
|
1.4
|
25
|
|
ZBFS-100
|
100
|
+5
|
1.5
|
25
|
