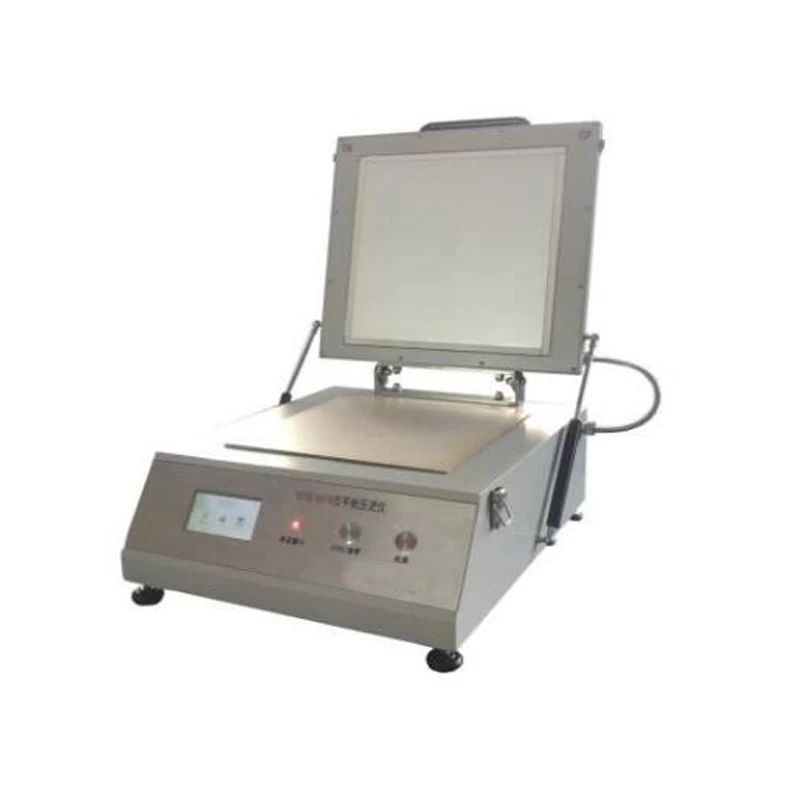

Heat Shrinkage Testing Machine GT-D60
Product Introduction
|
Application:
The Heat Shrinkage Testing Machine GT-D60 is used for measure the dimensional stability and other performance after dry heat treatment of fabrics and fusible interlinings.
|
Key Specifications
Model
|
GT-D60A
|
GT-D60B (Customized)
|
Work Mode
|
Microcomputer control, color touch screen display, report printing.
|
Temperature Range
|
RT.~220℃±2℃
|
RT.~300℃±2℃
|
Test Time
|
0~9999s
|
0~999s
|
Heating Plate Size
|
330*330mm
|
500 * 500mm
|
Test Pressure
|
0.3Kpa±10%
|
0.3~0.4Kpa
|
Power Supply
|
AC220V±10% 50Hz
|
AC220V±10% 50Hz 3KW
|
Standards
|
GB/T17031.1-2, GB/8632,
FZ/T01076/01082/01085, ISO9866-1-2
|
