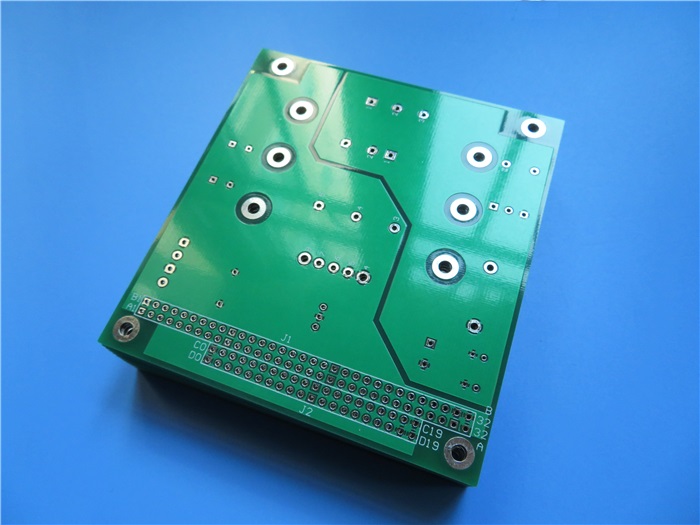

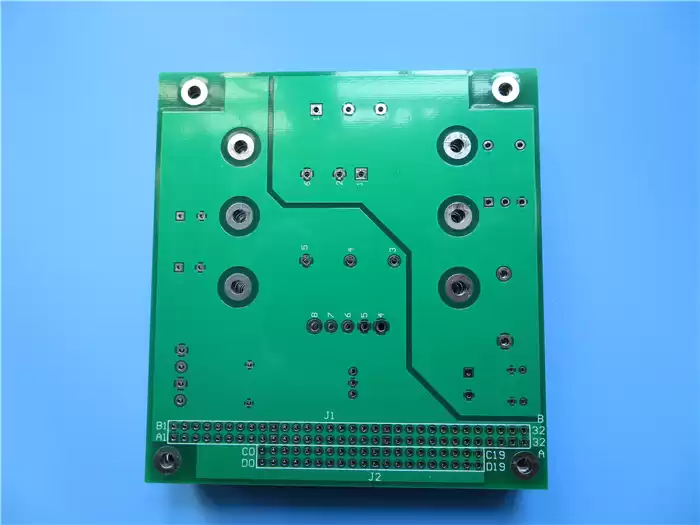

Heavy
Copper PCB High Power Circuit Board Built On FR-4 With 3 Oz Copper
(Printed
circuits boards are custom-made products, the picture and parameters shown are
just for reference)
1.1
General description
It's 1.6 mm thick with white silkscreen(Taiyo) on
green solder mask (Taiyo) and HASL on pads. The base material is from ITEQ
supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using
supplied Gerber data. Each 25 panels are packed for shipment.
1.2
Features and benefits
1. It's
Lead free compatible.
2. Excellent
wetting during component soldering and it can avoid copper corrosion.
3. Better
heat dissipation of high heat generated by large current
4. UL,
ISO14001, IATF16949 certified
5. Reliability
test, insulation resistance test and ionic contamination test
6. Quick
Lead time: 3-5 days
7. Customer
complaint rate: <1%
1.3
PCB Specifications
|
PCB SIZE
|
97 x 99 mm=1PCS
|
|
BOARD TYPE
|
Double
Sided PCB
|
|
Number
of Layers
|
2 Layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
YES
|
|
LAYER STACKUP
|
copper
------- 105 um (3 oz)
|
|
FR-4 1.5 mm
|
|
copper ------- 105 um (3 oz)
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
12
mil / 8 mil
|
|
Minimum
/ Maximum Holes:
|
0.65mm
/ 3.175mm
|
|
Number
of Different Holes:
|
9
|
|
Number
of Drill Holes:
|
87
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control:
|
0
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
FR-4 Tg 135℃, er<5.4.IT-140,
ITEQ
|
|
Final
foil external:
|
3
oz
|
|
Final
foil internal:
|
3
oz
|
|
Final
height of PCB:
|
1.6mm
±0.16
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
HASL 6.25um
|
|
Solder
Mask Apply To:
|
TOP and Bottom,
12micron Minimum
|
|
Solder
Mask Color:
|
Green,
PSR-2000 GT600D, Taiyo Supplied.
|
|
Solder
Mask Type:
|
LPSM
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
TOP
and Bottom.
|
|
Colour
of Component Legend
|
White, IJR-4000
MW300, Taiyo Supplied.
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
plated
through hole(PTH)
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
1.4
Applications
Power
Inverters
AC
to DC Power Converter
UPS
Uninterruptible Power Supply
RACk
Mount Power Supply
Cosel
Power Supply
AC/DC
Switching Power Supply
Power
Supply Inverter
HVAC
systems
DC
To DC Converters
5000
Watt Inverter
1.5
Heavy Copper
Generally, the PCB copper foil with a nominal
thickness of 105 μm or over is collectively referred to as a thick copper foil
(including the surface-treated electrolytic copper foil and rolled copper
foil). The PCB and copper foil manufacturing industry domestically and abroad
are more accustomed to specifically divide the thick copper foil into three
varieties based on its nominal thickness, the one with thickness of 105μm (≥
3oz) ~ 240μm or over is called thick copper foil; the one with thickness of 300μm or over is called super-thick copper foil; the one with thickness of
600μm and above is referred to as super MAX copper foil.
The thick copper foil and super-thick copper
foilbelong to a kind of special PCB copper foil.
In addition to its conventional electrolytic copper foil (or rolled copper
foil) performance, it also has such special performance as the conducting layer
of high current board or the inner core cooling metal layer of the high-current
PCB, and other special performance requirements. These special performance
requirements are to meet the application conditions, processing conditions and
other aspects from its downstream products. The application performance
requirements of it is mostly expressed in the characteristics that the
conducting circuit of thick copper can stably carry high current, and can
better distribute high heat generated by the loaded high current in a
substrate.
In recent years, with the
expansion of application field of heavy copper printed circuit board, and the
increase of production and sales, the production and sales of thick copper foil has also been significantly improved. According to statistics, its production
and sales have accounted for 5 ~ 6% of the world's production and sales of
electronic copper foil, which is 17,000 ~ 20,000 tons / year.
1.6

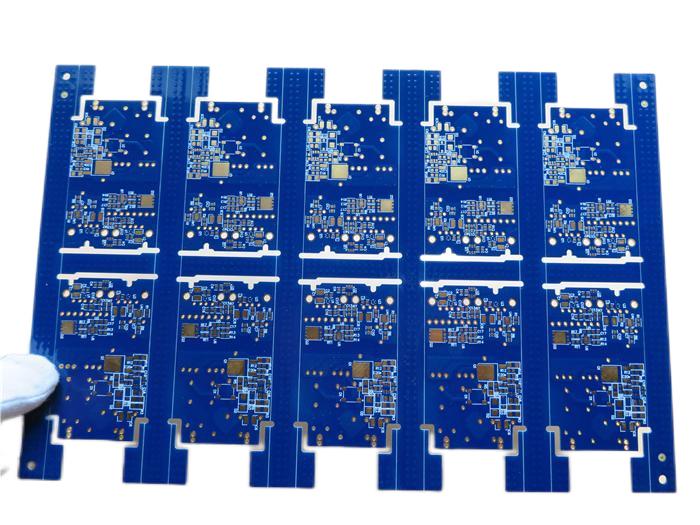

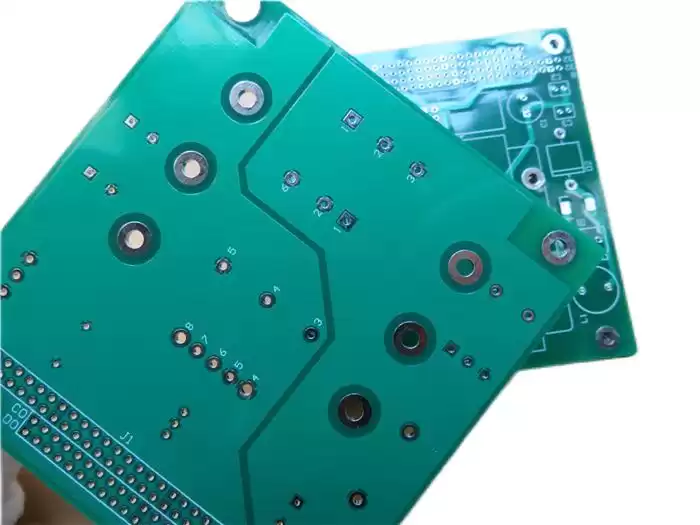

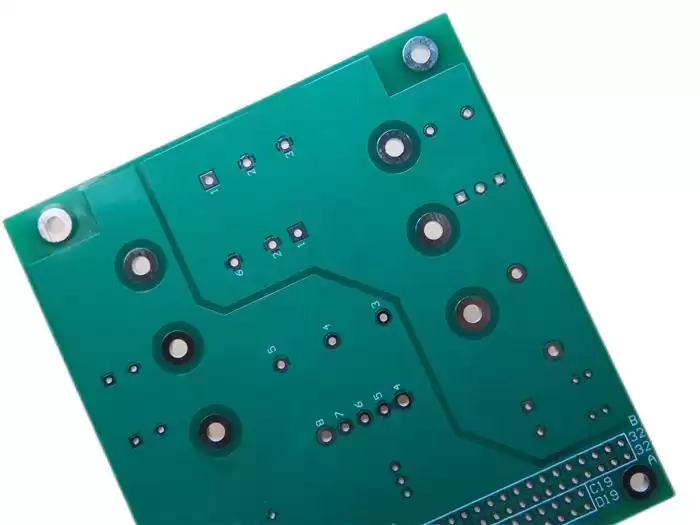

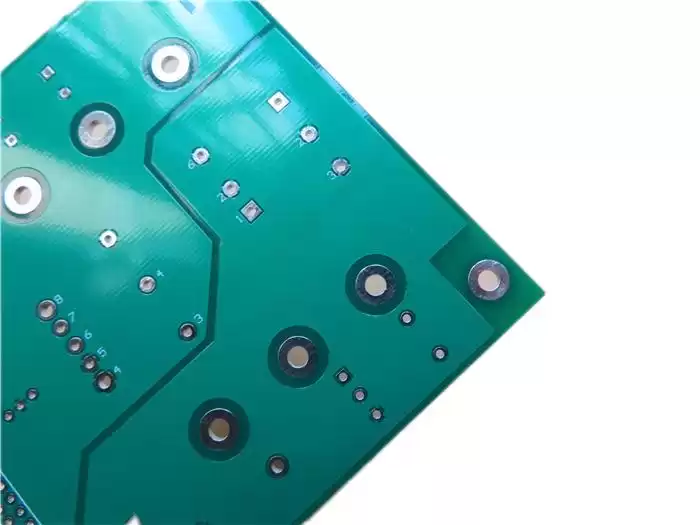

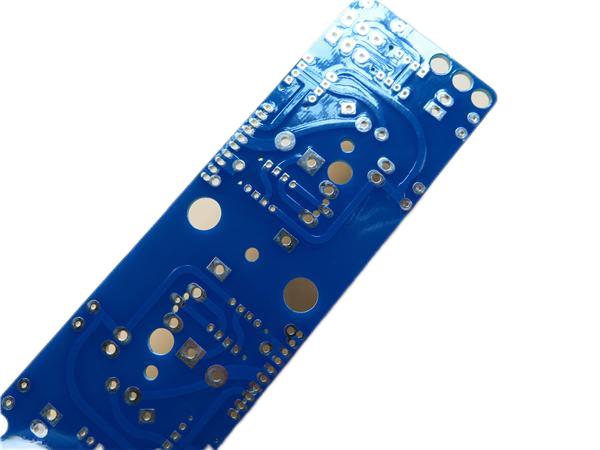

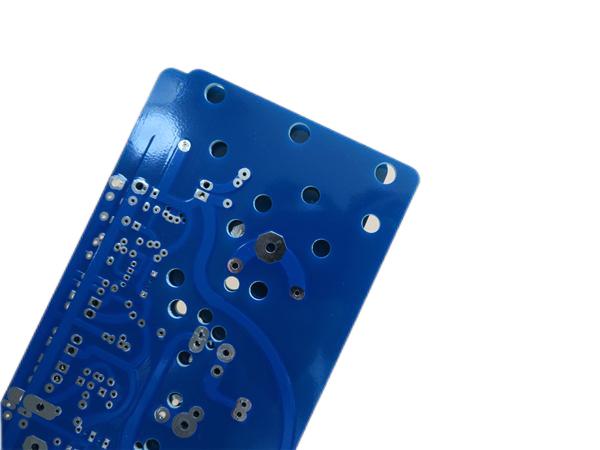

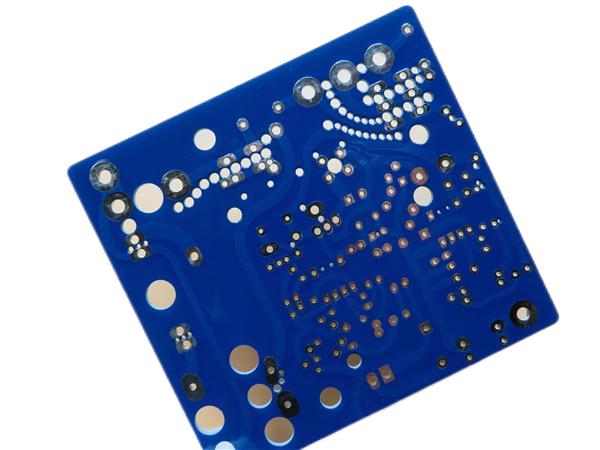

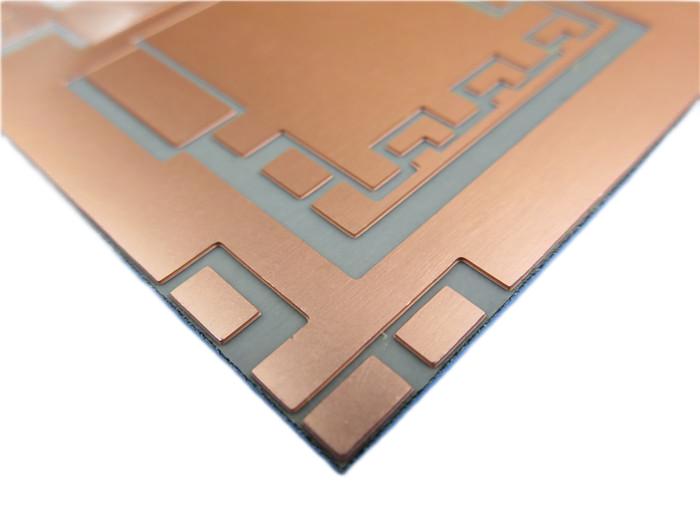

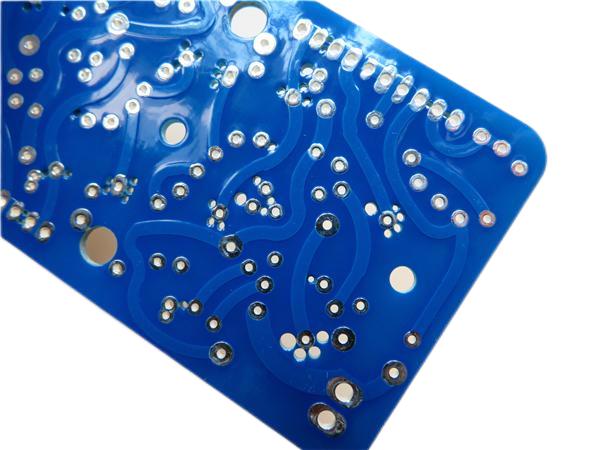

More Displays of Heavy Copper PCB
