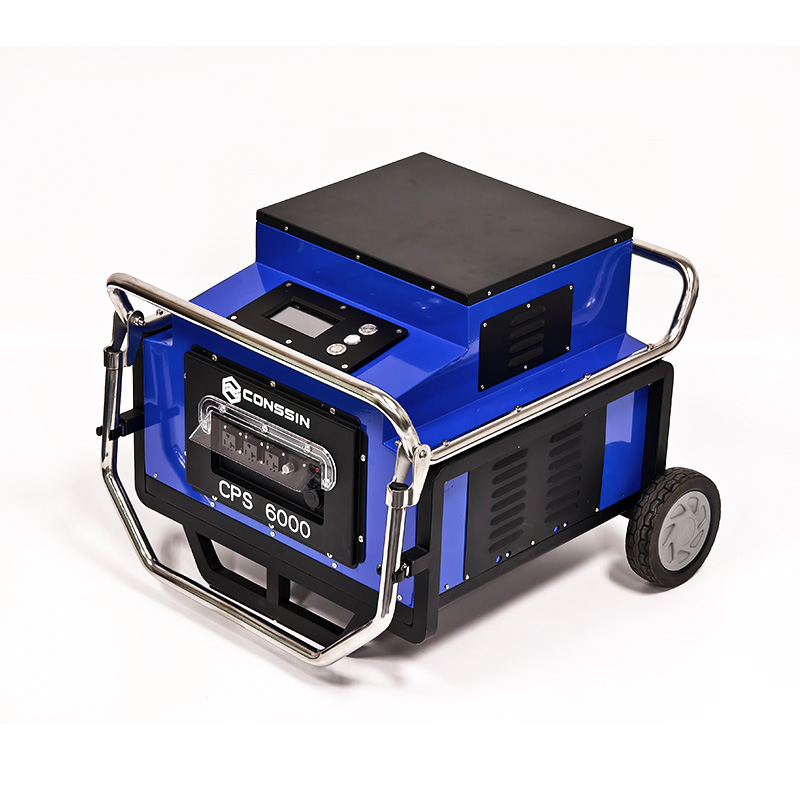

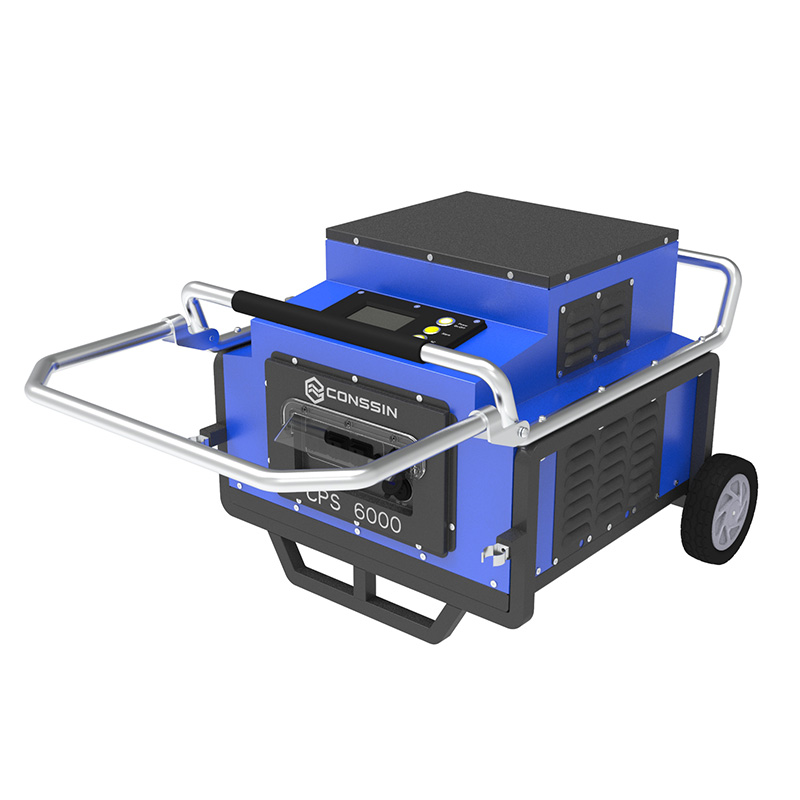

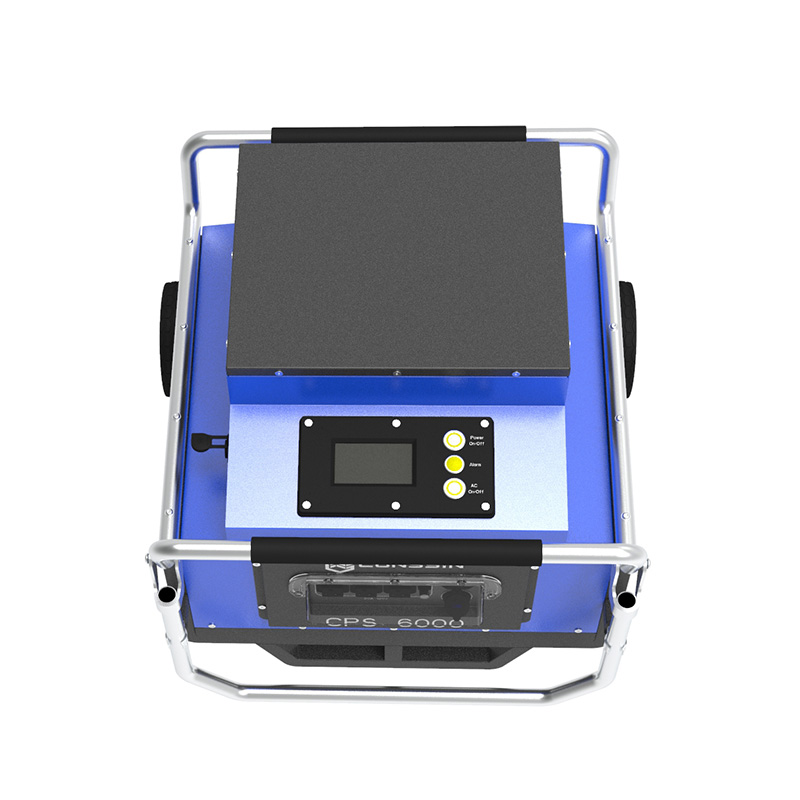

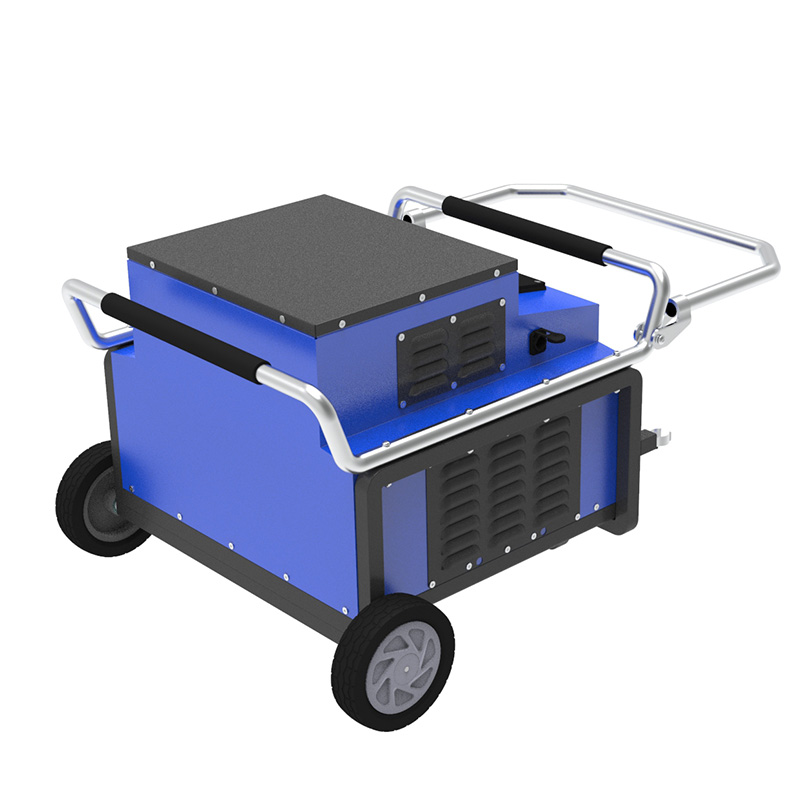

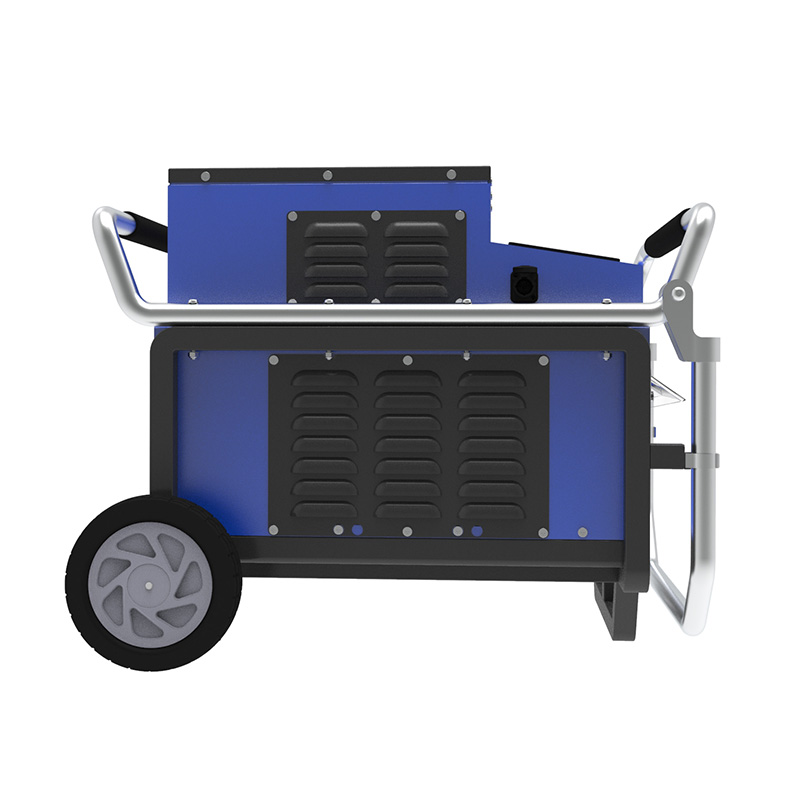

Heavyduty Power Station CPS-6000

This IP54-rated industrial heavyduty power supply (CPS-6000) focuses on high-capacity endurance and strong environmental adaptability.

It utilizes lithium iron phosphate (LFP) cells, boasting a long cycle life, and is paired with an IP54 dust and water-resistant casing, making it suitable for complex scenarios such as outdoor engineering, industrial equipment inspections, and backup power supply for large-scale events.

The 6400Wh large capacity supports long-duration operation of high-power equipment (such as power tools and small water pumps), providing a stable solution for industrial-grade mobile power supply.

Rated capacity: 6400Wh

Power: 6000W

Overload power: 7200W

AC outlet: 100V grounded 2P x 2

DC outlet: USB-A x 1, USB-C x 1

AC charging time: 3.5 hours

Solar charging: up to 800W

Expansion 1: Use parallel cord to enable parallel operation with two units.

Expansion 2: Using the expansion connector, parallel operation with 3 to 5 units is possible.

Cycle life: Capacity ≥80% after 4000 charge-discharge cycles (under the condition of 25℃ ambient temperature)

Fire extinguishing device: Aerosol type (oxygen cutoff)

UPS (Uninterruptible Power Supply): Operation switching time ≤10ms (milliseconds)







Application scenarios

•

  Daily power supply
•

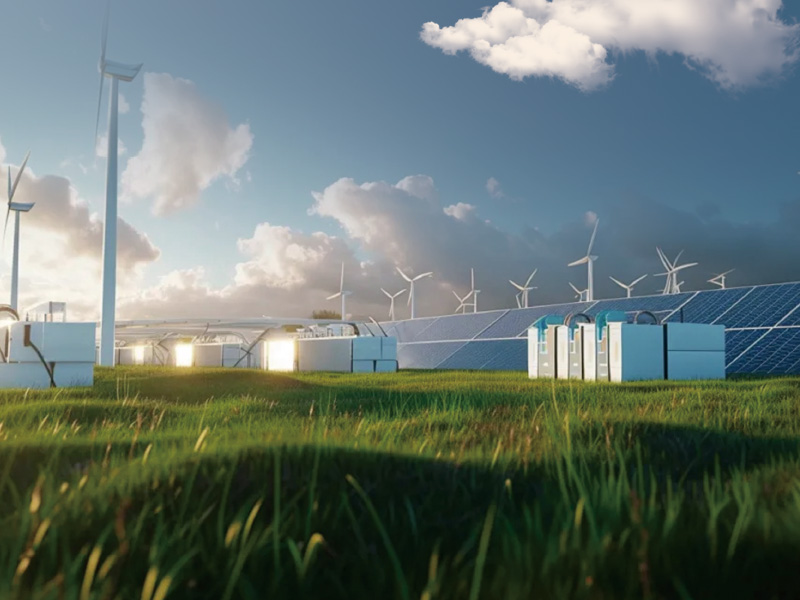

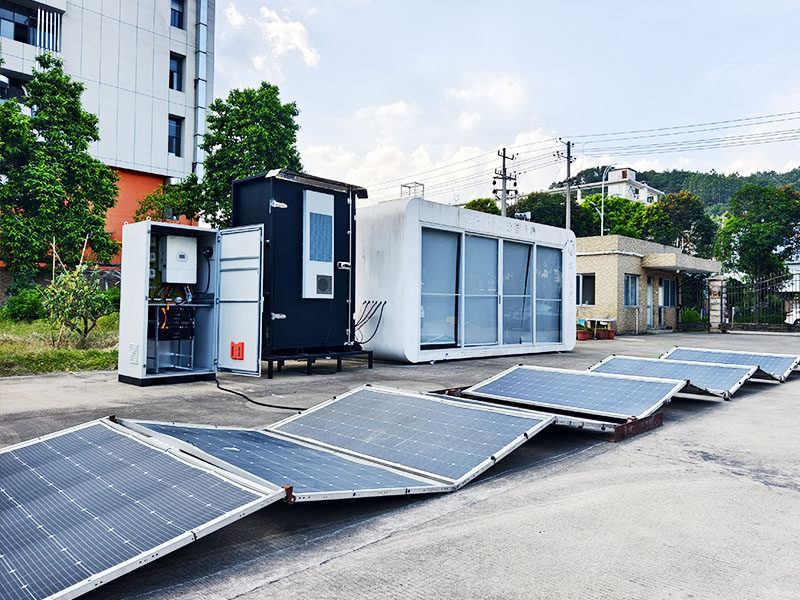

  Solar power storage system
•

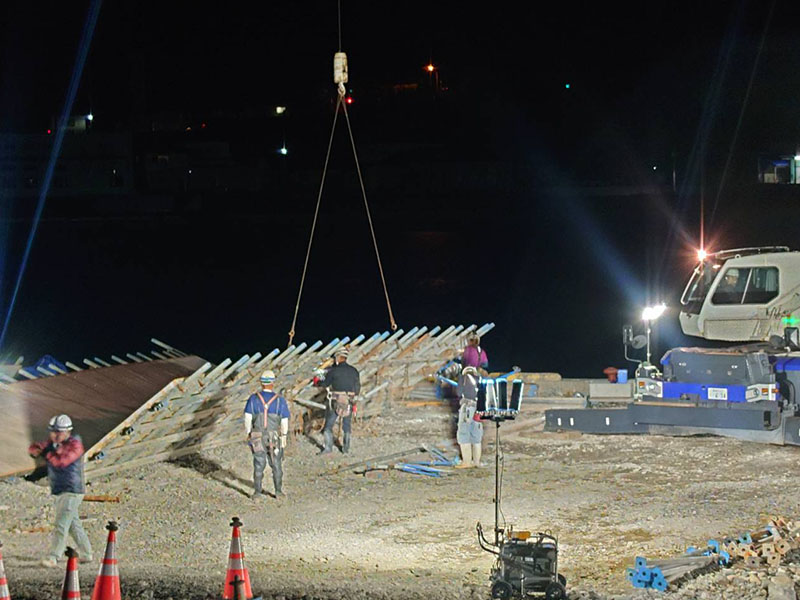

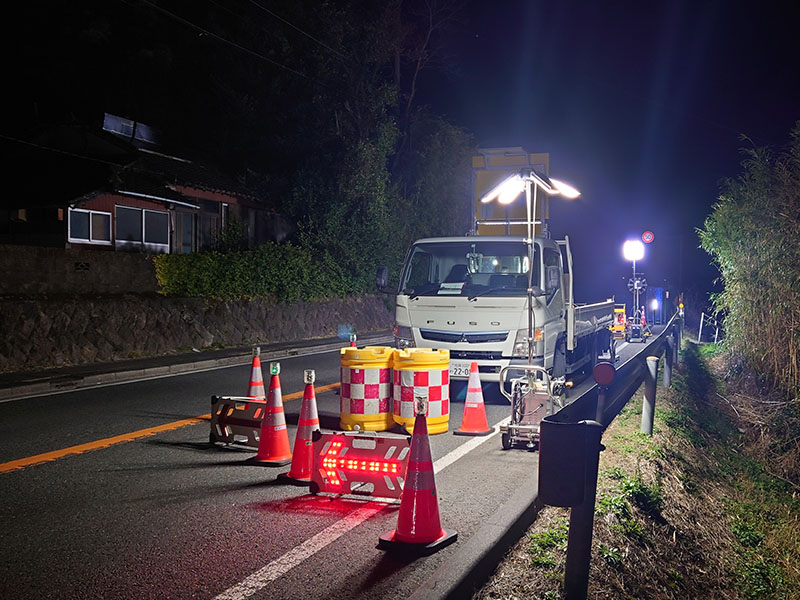

  Construction power supply
•

  Power supply under disaster



Spec sheet

Model	CPS-6000
Rated capacity	6400 Wh
Rated power	6000 W
Charging time	≈3.5 hours (under the condition of 25℃ ambient temperature)
Weight	≈85kg
Dimension	L668 x W708 x H531 mm
Battery type	Lithium iron phosphate ion(LFP)
IP rating	IP54
IK rating	IK09
Rated voltage	100VAC ±4%
Rated current	60A
Frequency	50Hz/60Hz
Outlet type	125V・grounded 2P × 3 port
