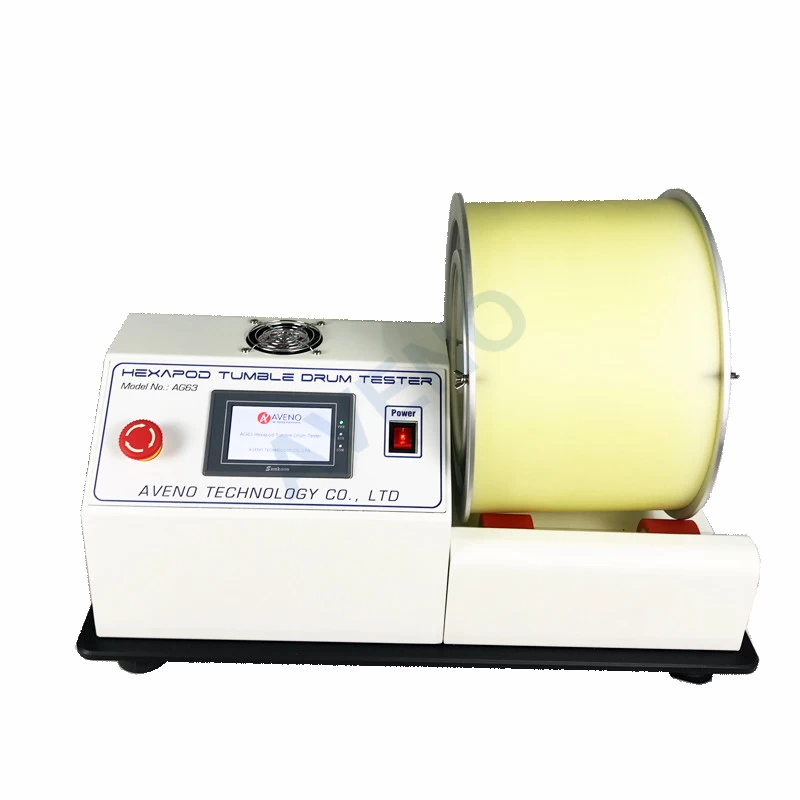

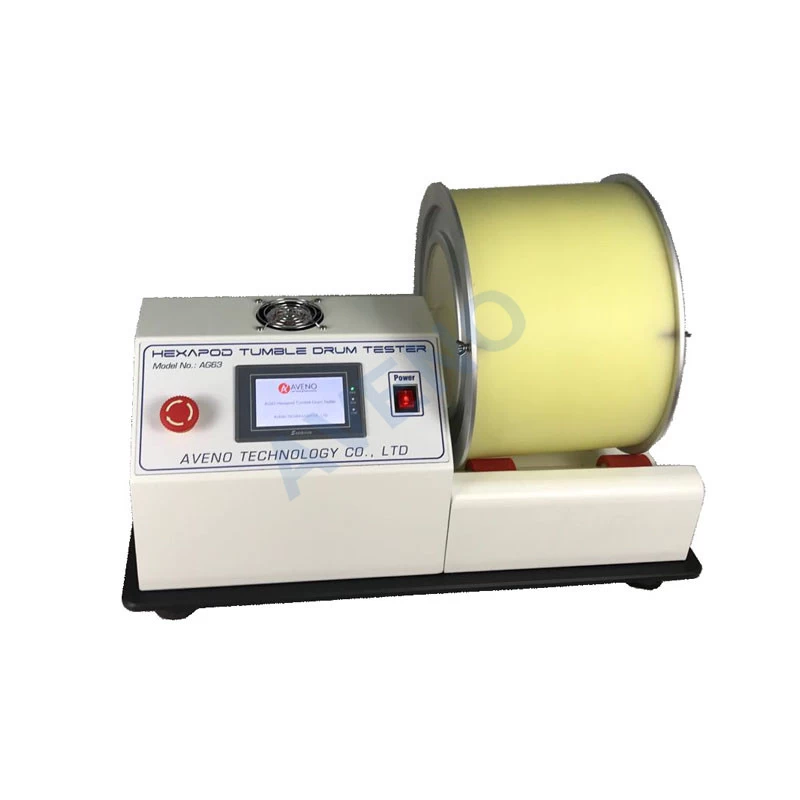

AG63-Hexapod Tumble Drum Tester
Application Of Hexapod Tumble Drum Tester
Hexapod Tumble Drum Tester is used to test carpet products under the action of hexapod mechanical mode carpet surface structure changes and color changes.
Test Principle Of Hexapod Tumble Drum Tester

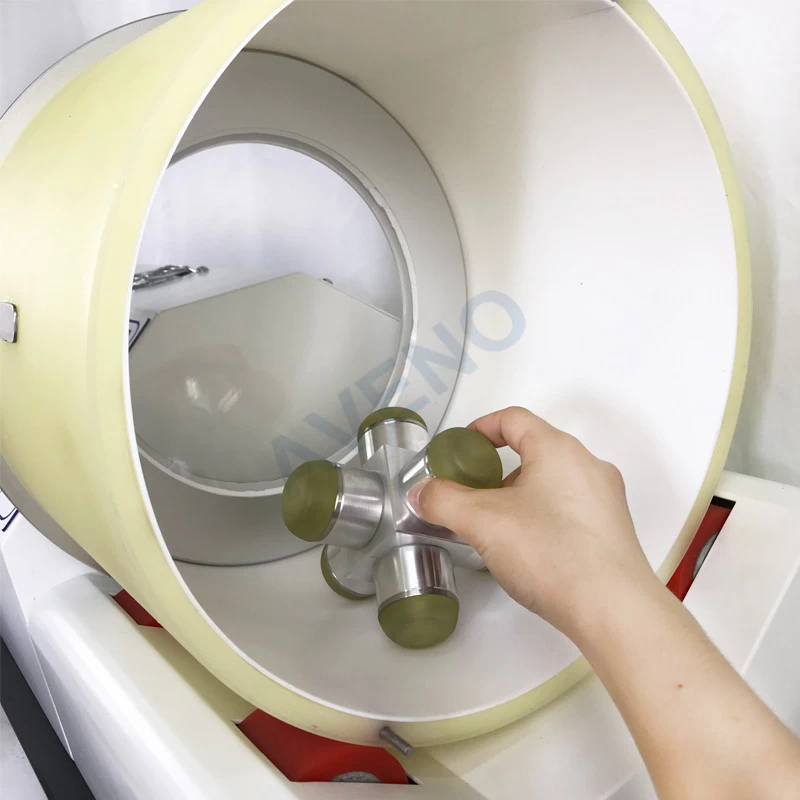

The carpet sample is affixed to the inner wall of the drum, and a hexapod test block is placed to make the drum rotate and the six feet roll on the surface of the sample. After a certain number of times, evaluate the change of the surface structure and color of the carpet.
Standards Of Hexapod Tumble Drum Tester
GB/T 26844, ISO 10361, ASTM D5252
Key Specification Of Hexapod Tumble Drum Tester
|
Model
|
AG63 Hexapod Tumble
Drum Tester
|
|

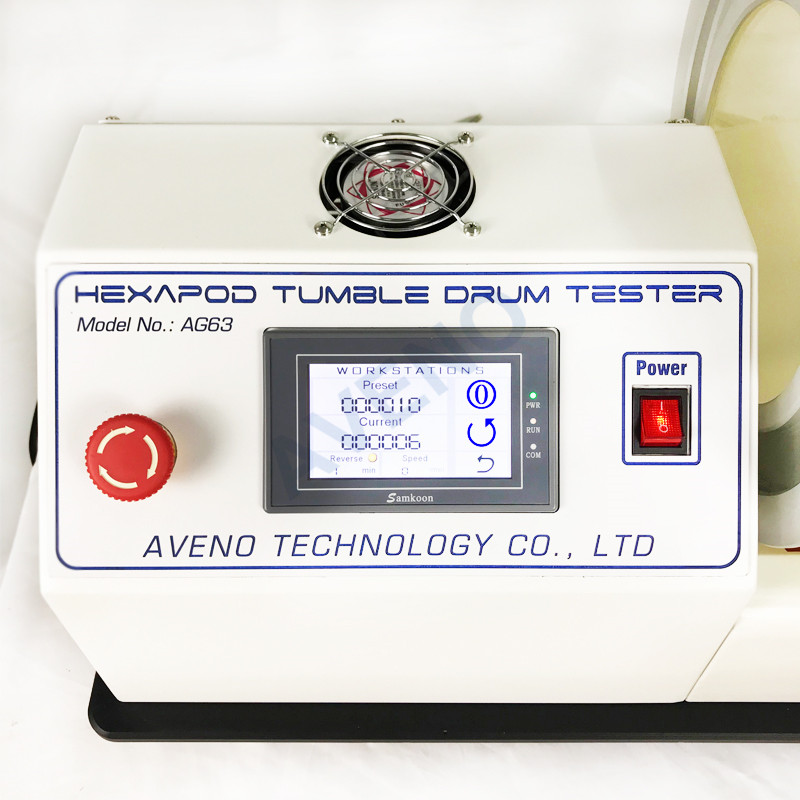

Control mode
|
Touch screen control
|
|
Rotation rate
|
35±2 r/min, can be
set
|
|

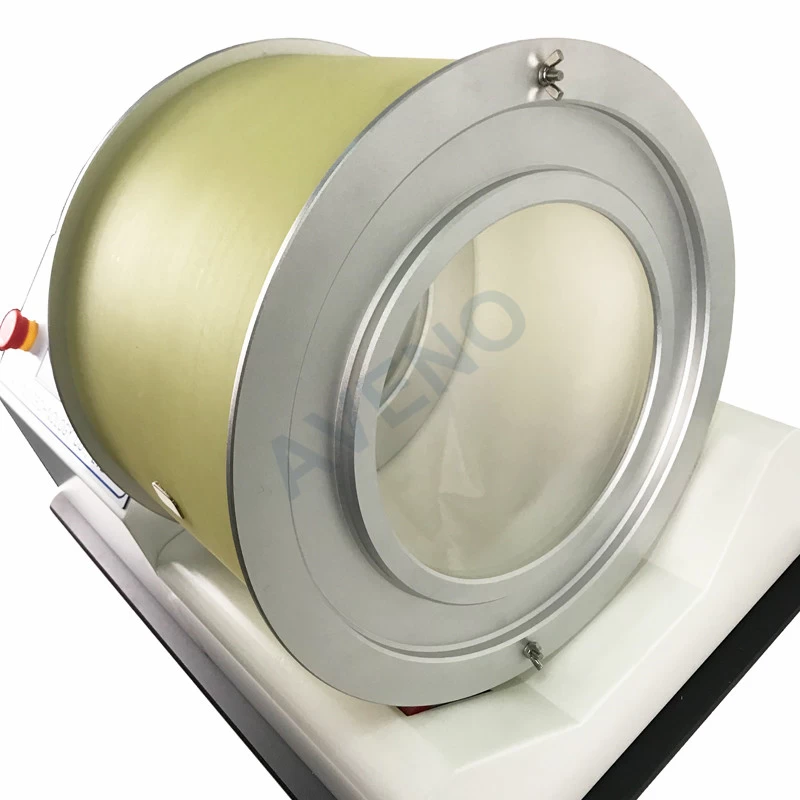

Drum dimension
|
Inner
diameter: 305mm ±1 mm,
Internal depth: 200mm
±1 mm
|
|
Reversing time
|
15min
|
|
Hexapod weight
|
3.8kg ±0.1kg
|
|
Sample Dimension
|
940mmx200mm
|
|
Sample backing gasket
|
Polyethylene, size
950mmx215mmx2mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
68x39x45cm
|
|
Weight
|
65kg
|
Accessories Of Hexapod Tumble Drum Tester
|
Standard Accessories
|
Test drum
|
1 set
|
|

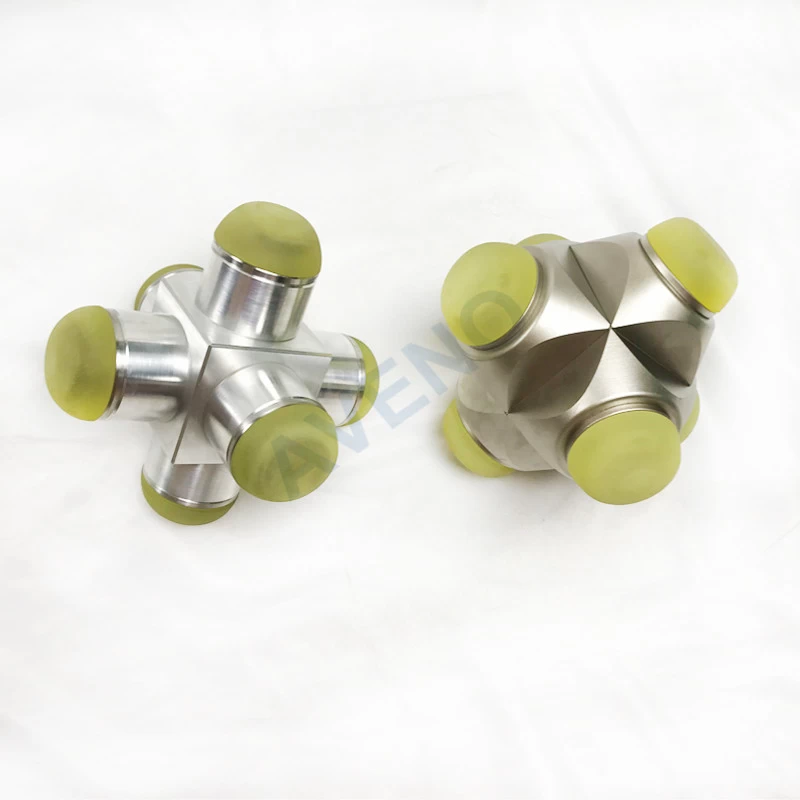

Hexapod
|
1set
|
|
Power line
|
1pc
|
