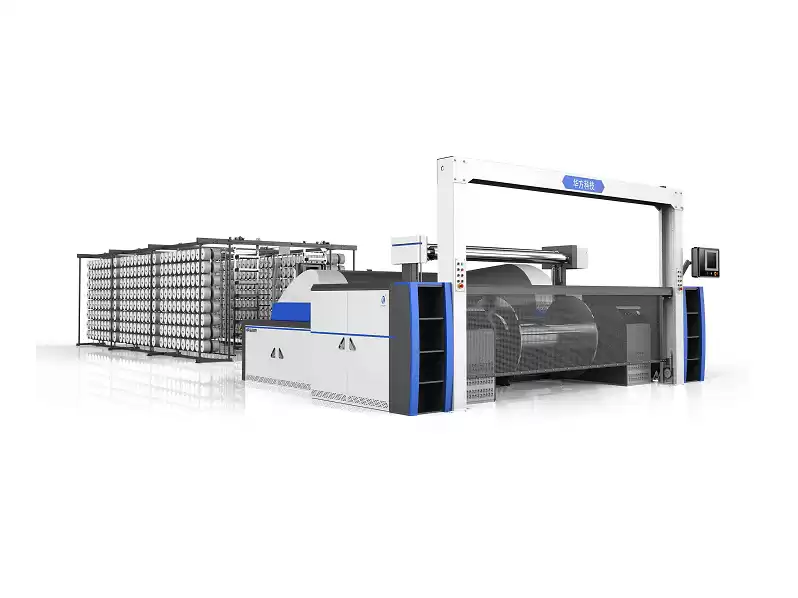

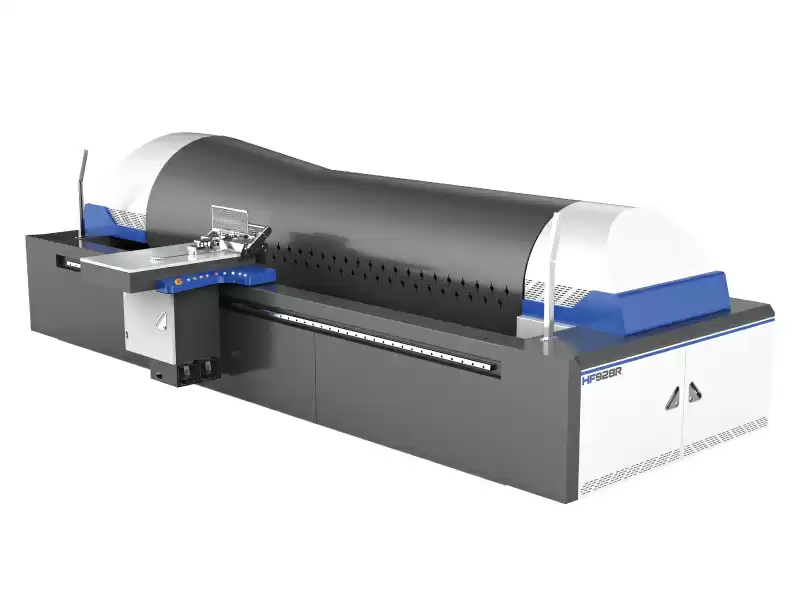

HF928R Sectional Warping Machine

HF928R High Speed Automatic Sectional Warping Machine can warp any staple yarn and filament.



The 928R sectional warping machine, as H-FANG's high-end high speed sectional warping machine, boasts numerous unique advantages: The large cage reverse winding design enhances warping quality while making operation more convenient; the beaming part adopts hydraulic control, offering superior stability. In addition, practical functions such as the visual yarn break self-stop system are available as options.

For more details about this sectional warping macher, please feel free to contact us for an in-depth understanding.



Drum Anti-clockwise Direction Rotation

- Clockwise direction rotation reduces spreading angle for better warping quality.

- Fixed guide roller ensures even yarn alignment, enabling smoother operation and higher efficiency.

- An air jet nozzle mounted ahead of the guide roller enables scheduled reed cleaning.

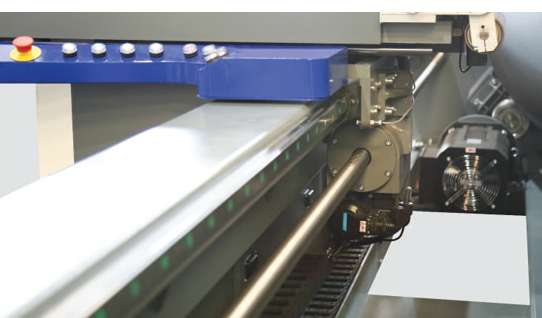

More Stable & Compact Drive Mechanism

- Automatic thickness detection for the first section.

- Dual linear guiderail, opposing linear guide configuration significantly enhances stability and reduces vibration.

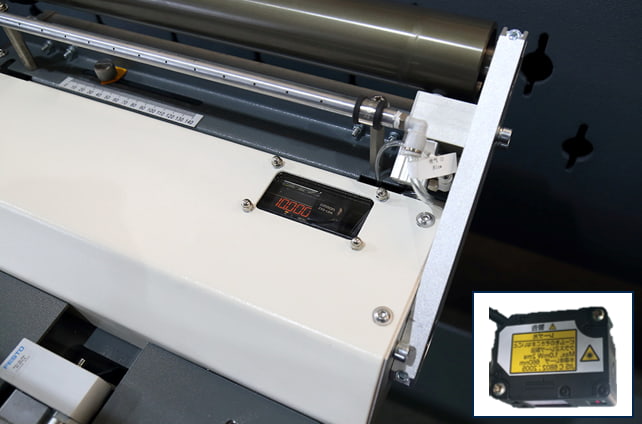

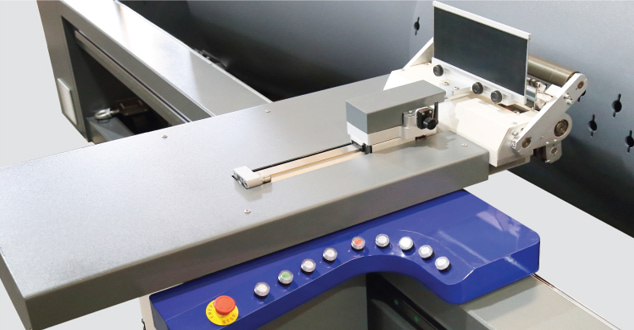

Density Monitoring System

An intelligent control system ensuring uniform section thickness.

- Automatic thickness detection for the first section.

- Automatic displacement replication for subsequent sections.

- High-precision laser sensor measurement.

- Real-time data feedback.

- Adjustable visual detection positioning.

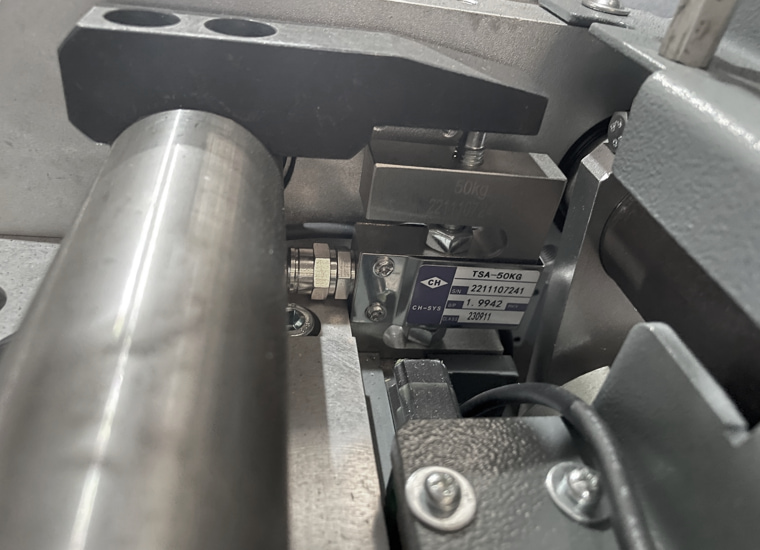

Tension Monitoring System

An intelligent control system ensuring uniform section tension

- Automatic tension detection for strand yarn.

- Real-time tension auto-adjustment.

- Instant tension data feedback.

- Synchronized winding flatness control.

- Unaffected by spool size/warping speed.

  •
  •

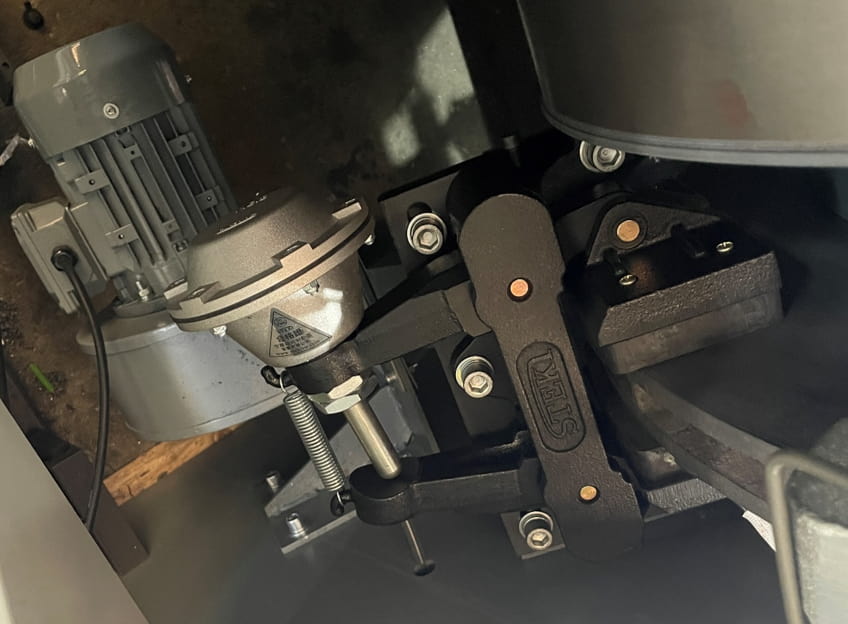

Beaming Tension Control System

Proportional valve precision brake control.

- Auto-tensioning (inner-tight/outer-loose).

- Integrated cooling system.

- Dual-range tension switching.

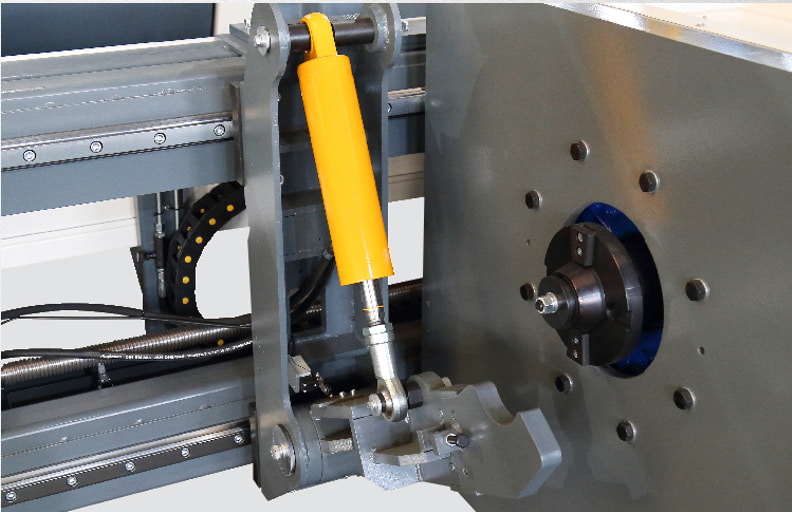

Hydraulic Load/unload Device

- Independent hydraulic unit control.

- Higher load-bearing capacity.

- Smoother vertical movement.

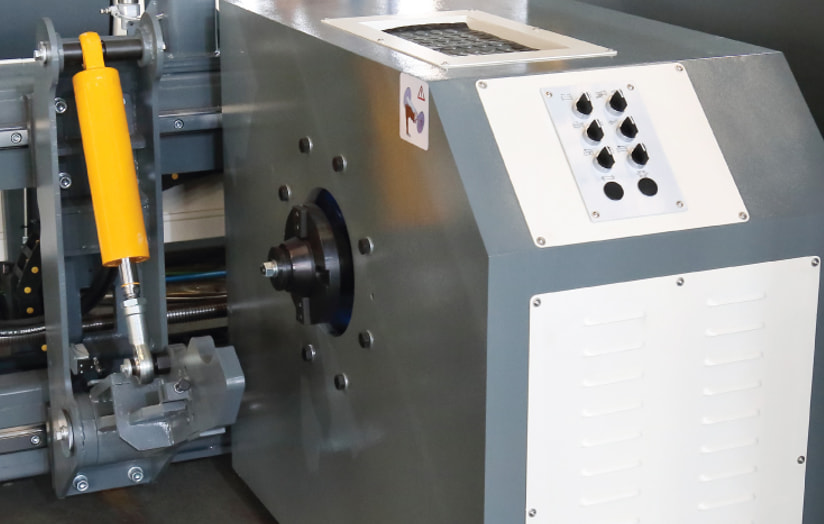

Clap/ Unclap

- Independent electric control.

- Left/right individually or simultaneously controllable.

- Clamping position detection.

- Clap-open ejection device.

- High-precision linear guide guidance.
