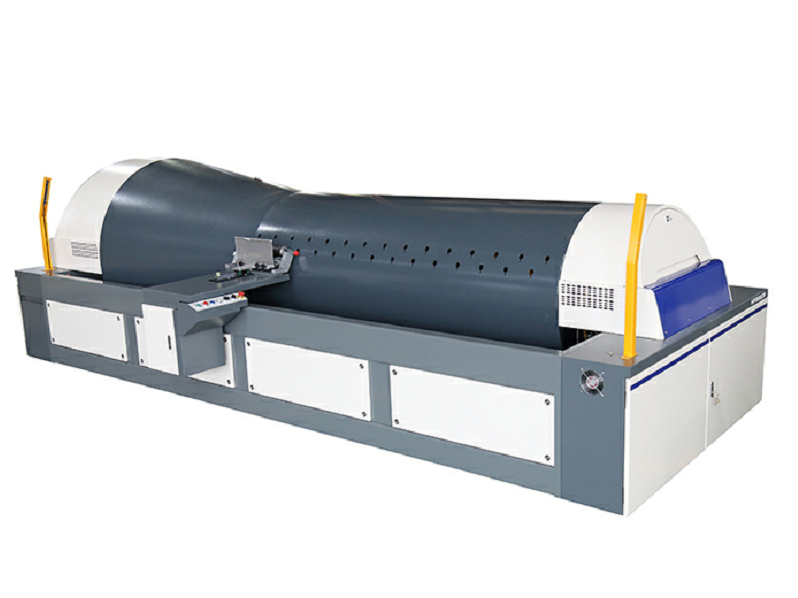

HF988D-Plus Sectional Warping Machine

Workable for worsted fabric, trademark, strong twisted polyester filament fabric,

dyed yarn fabric, silk, terry towel and special industrial fabric.





As market demands for fabric quality continue to rise and enterprise production costs keep increasing, H-FANG has launched the HF988D-PLUS sectional warping machine—featuring an all-new design and advanced functions—based on its first-generation 988C sectional warper. This upgrade aims to reduce waste in production and development while lessening reliance on workers' skills. Marking H-FANG's 30th anniversary, this new model fully replaces the original 988C section warp, offering ease of operation and minimizing strip marks, making it ideal for woven users working with sizing-free yarns to support both new and existing customers.



Structural Optimization

- Better look, operator-friendly frame, 80mm lower, easier to operate.

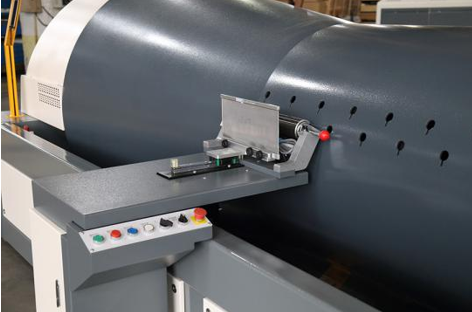

- Press roller near drum: prevents yarn spread, fewer section marks.

- Fewer buttons: less false stops, higher efficiency.

- Two high-precision linear guide rails: no oil stains, longer slider life, solves table shake/misalignment.

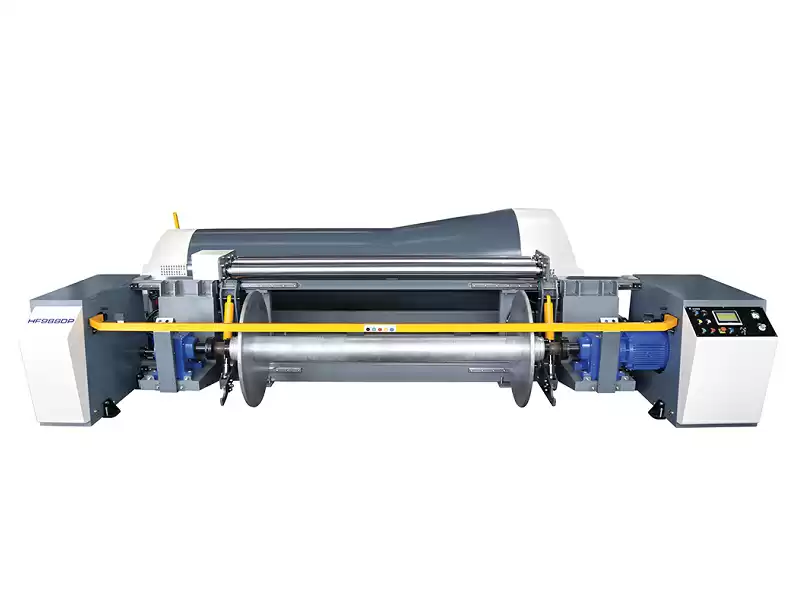

Better Beaming Design

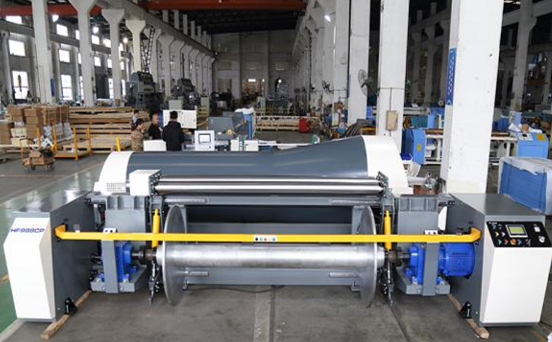

- Hydraulic load/unload: safe, stable, max load up to 3000KG.

- Beam centering mode ensures uniform yarn tension.

- Direct-connected reducer:  over 10% lower energy consumption, reduces stop-induced yarn loosening, stable tension.



Higher speed

- Max warping speed up to 800m/min.

- Max beaming speed up to 250m/min.

- Two-stage transmission: reduce belt wear vs single-stage, extending belt life by 3-5x.

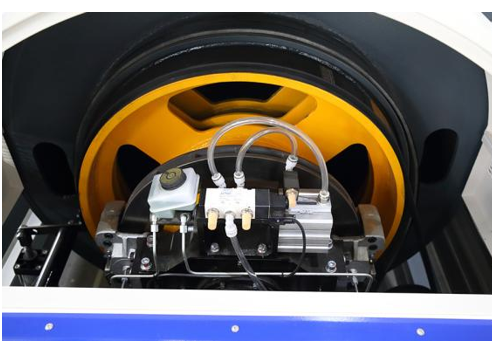

- H-FANG’s patented braking design: better braking effect.

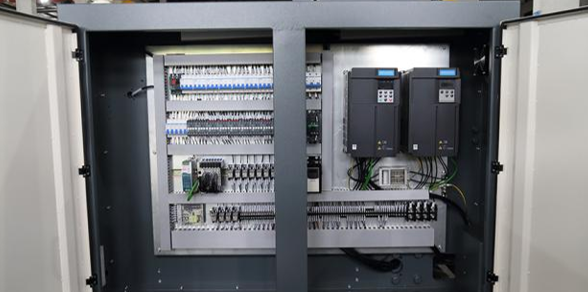

Intelligent Electrical Control System

- INOVANCE system: bus control, reducing failure rate and simplifying maintenance,

- ERP integrable: supporting remote monitoring of equipment status and fault diagnosis.
