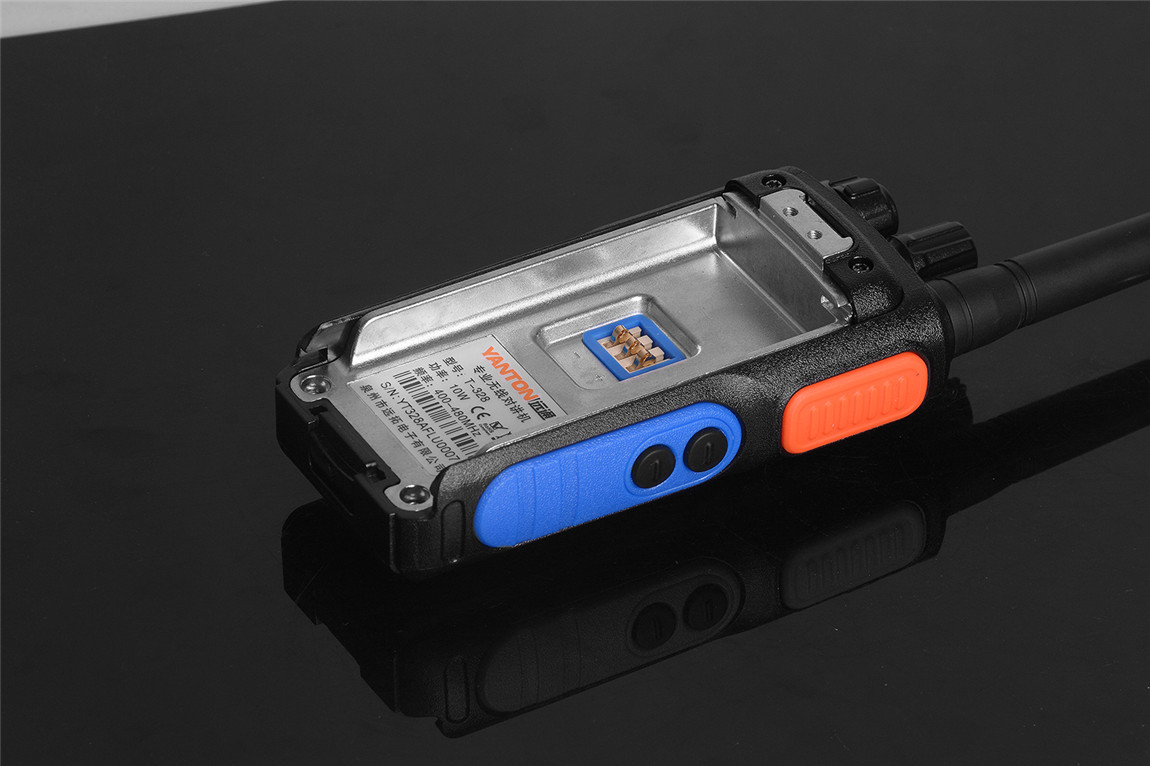

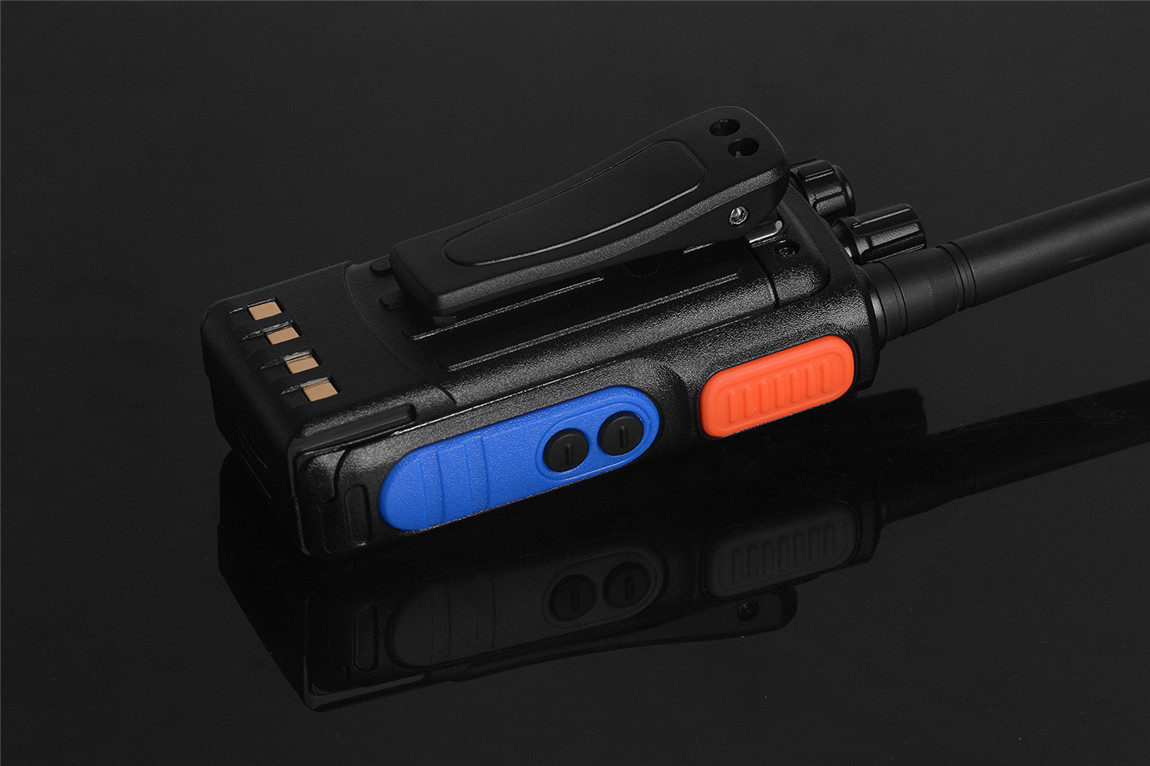

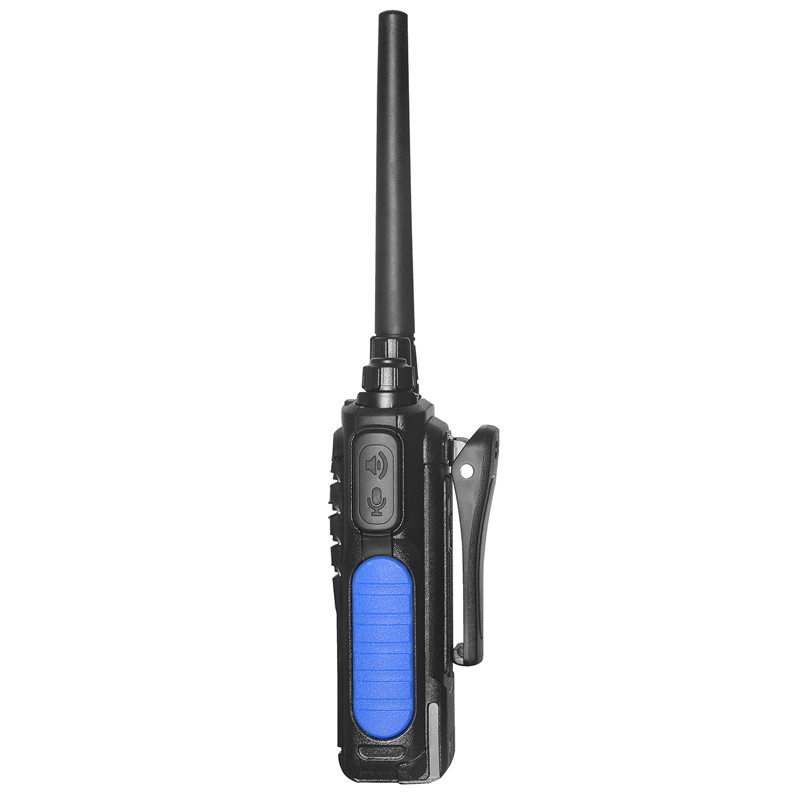

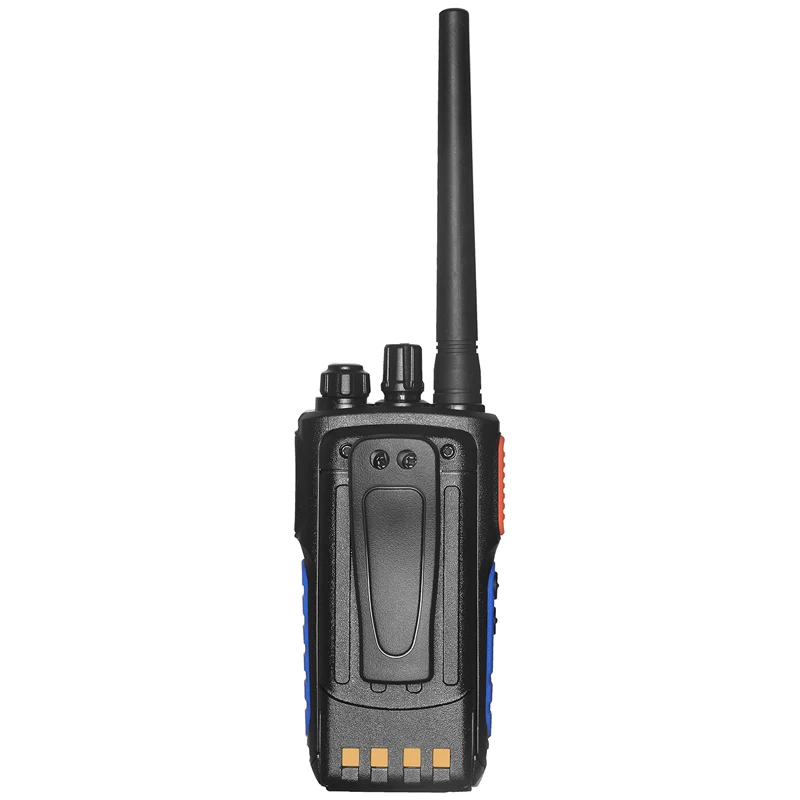

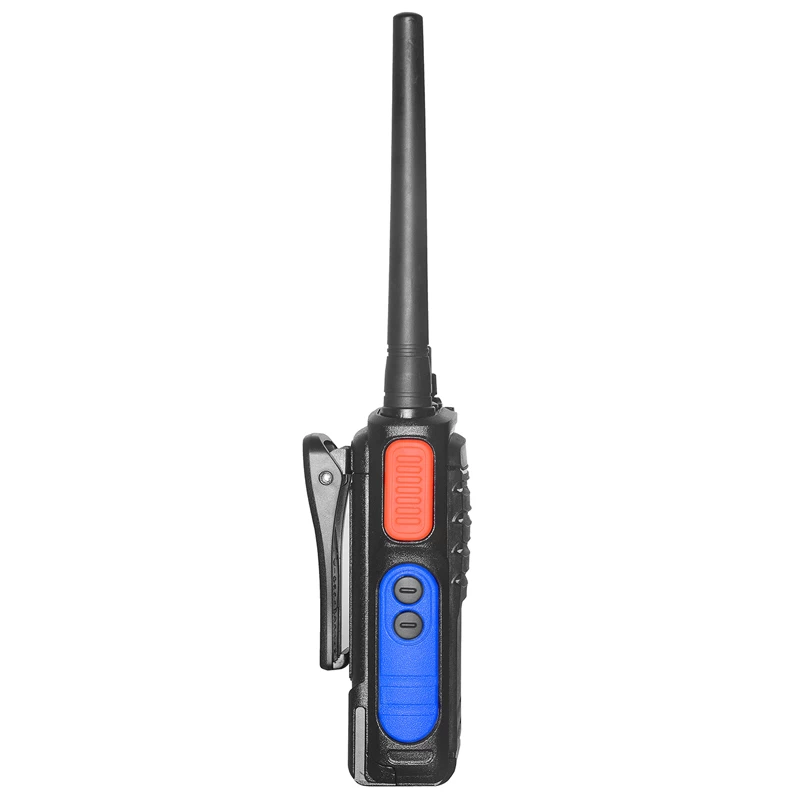

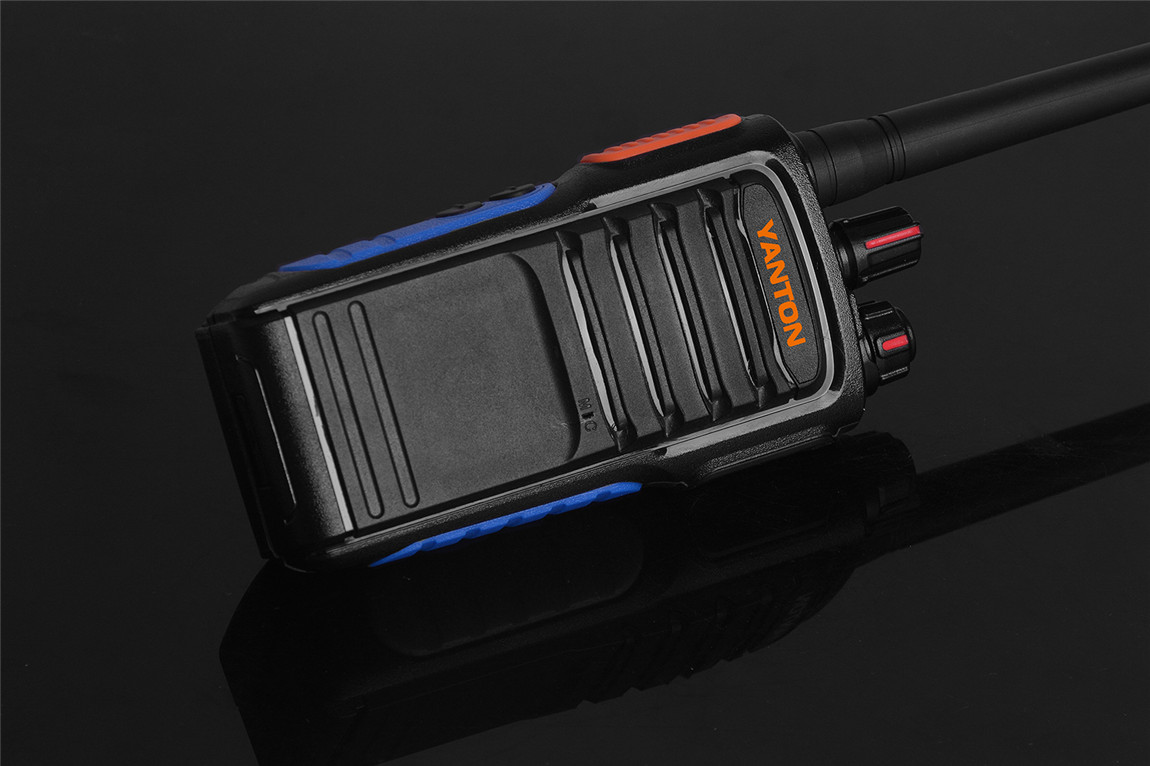

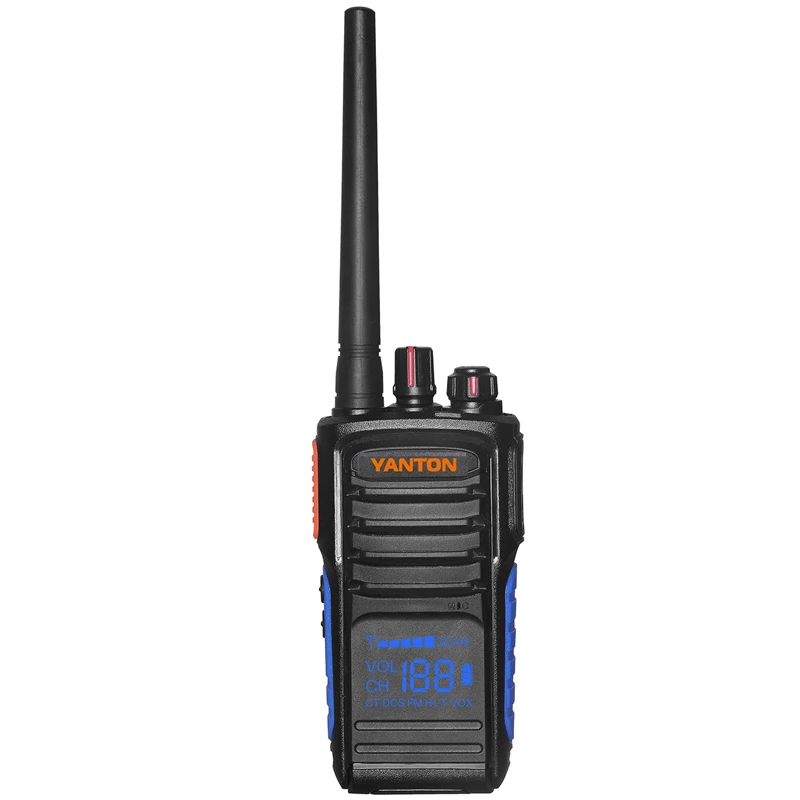

Hidden display 5W 199 Channels UHF CB Radio

T-328, Hidden display License Free CB Radio, is an edge to your productivity and management efficiency. With compact design and hidden display, this tough radio is an ideal choice for management in facilities, hospitality, manufacturing, retail, education and construction.



Hidden display 5W 199 Channels UHF CB Radio

T-328, Hidden display License Free CB Radio, is an edge to your productivity and management efficiency. With compact design and hidden display, this tough radio is an ideal choice for management in facilities, hospitality, manufacturing, retail, education and construction.

Quick Details

1.Frequency Range: 136-174MHz/400-480MHz
2.199 Memory Channels

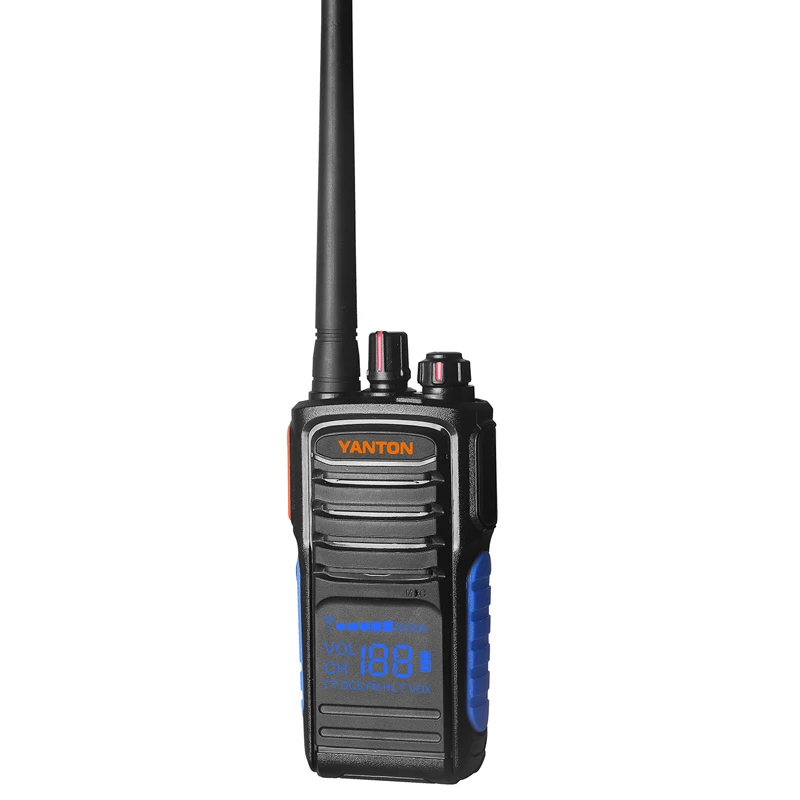

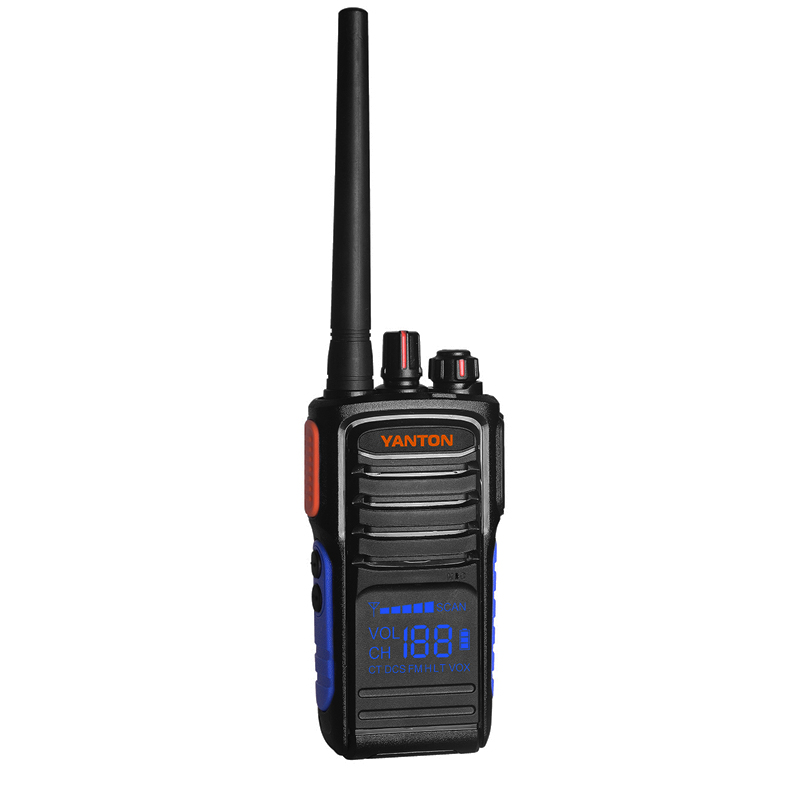

3.Hidden Display
4.Beep Setting
5.Reverse Frequency
6.Scan
7.Output Power: 4W
8.VOX Function
9.CTCSS/DCS
10.Chinese and English Voice Prompt
11.Power Saving Function, Low Power Warning
12.High/Low Power Selective  5W/1W
13.Wide/Narrow Bandwidth 12.5KHZ/25KHZ
14.Emergency Alarm
15.Busy Channel Lock
16.Transmitter Time-out Timer(TOT)
17.Side Key Assignment
18.0-9 Grades Squelch Level Setting
19.ANI and DTMF Function
20. 2-tone
21.Remote Kill , Stun, Activate & Revive
22.FM radio (87-108MHZ)
23.1750HZ
24.High Li-ion Battery Capacity:1500Mah

Specification

GENERAL

Frequency Range

 136-174MHz/400-480MHz

Operating Temperature

 -20℃to +55℃

Frequency Combination

 please lock frequency synthesize

Frequency Stability

 ±2.5ppm

Memory Channel

 199

Working voltage

 7.4v

Antenna Impedance

 50Ω

Operating Mode

 simplex of co-frequency or alien

Dimensions

 115*55*30mm

Weight

 220g

TRANSMIT PART

RF power

 4w

Modulate Mode

 F3E

Max.Freq.Deviation

 ≤5KHz

Remain Wave Radiation

 <-60dB

Transmitting Current

 ≤1000mA

RECEIVER PART

Sensitivity

 <0.20uV (12dB SINAD)

Squeich Sensitivity

 <0.20uV

Intermodulation Antijamming

 50dB

Audio Power output

 500mW

Receiving Current

 ≤100mA

Squelch Stangby

 20mA


Hidden display License Free CB Radio

Hidden display RadioCB Radio5W UHF Radio


Service


Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping



Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
