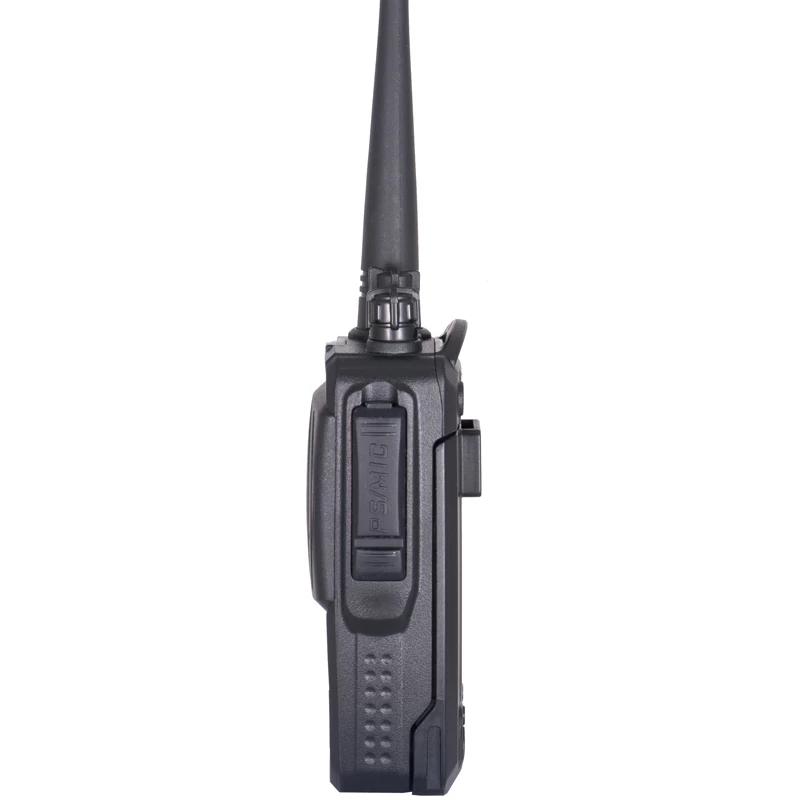

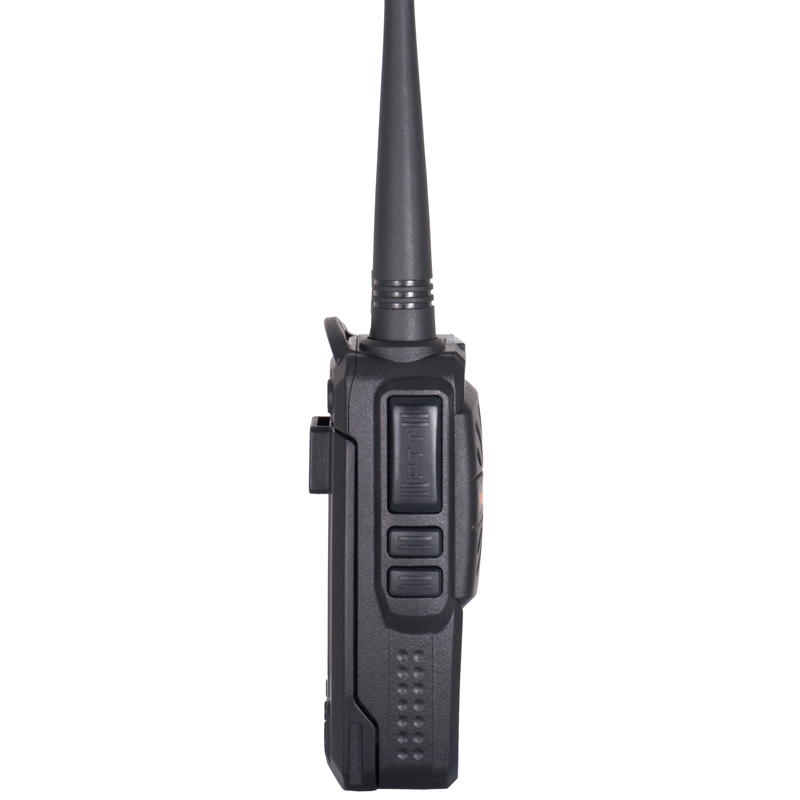

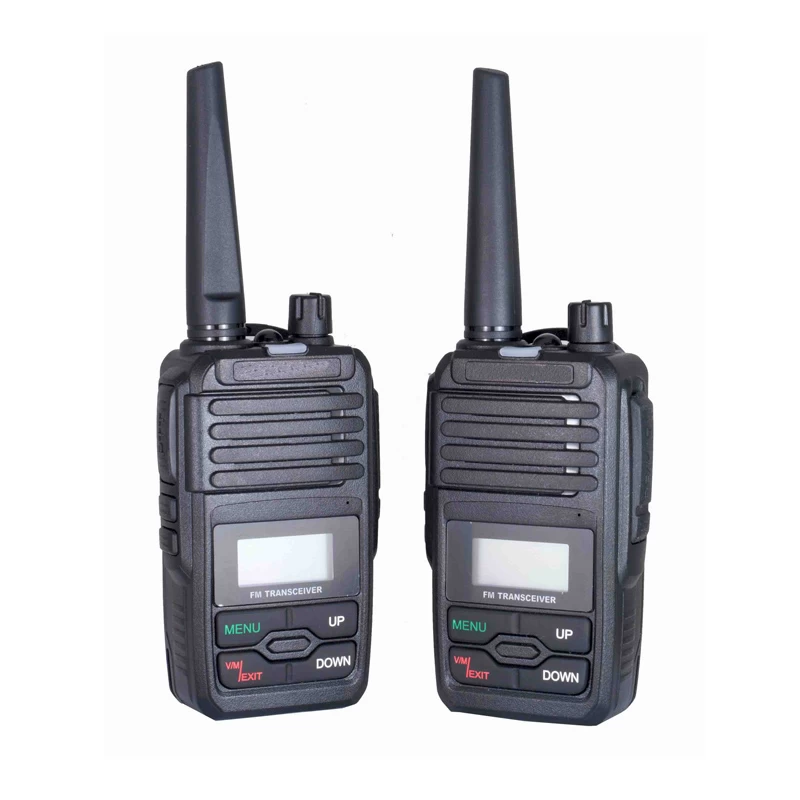

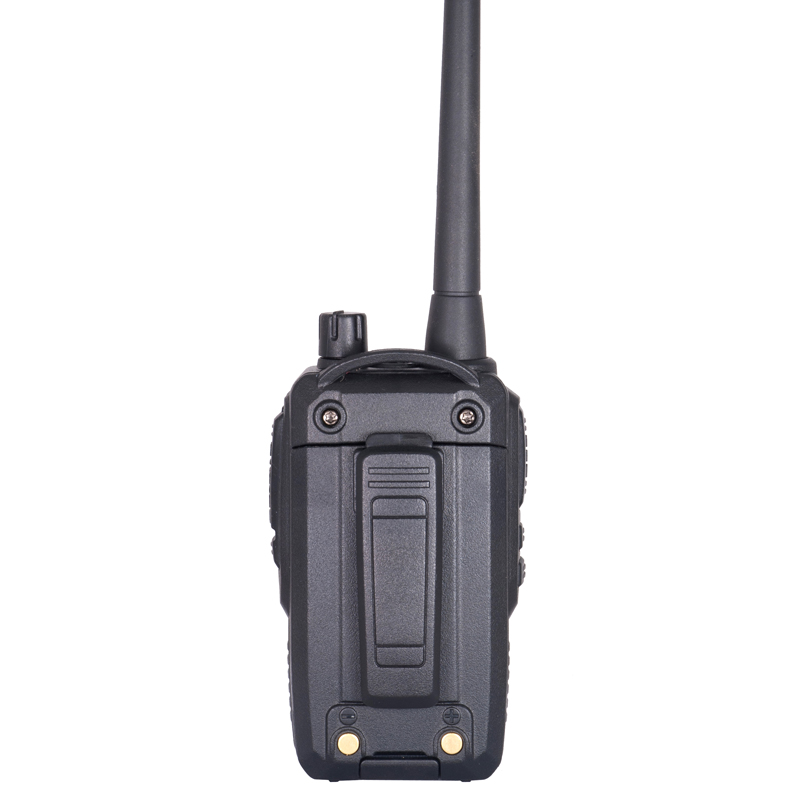

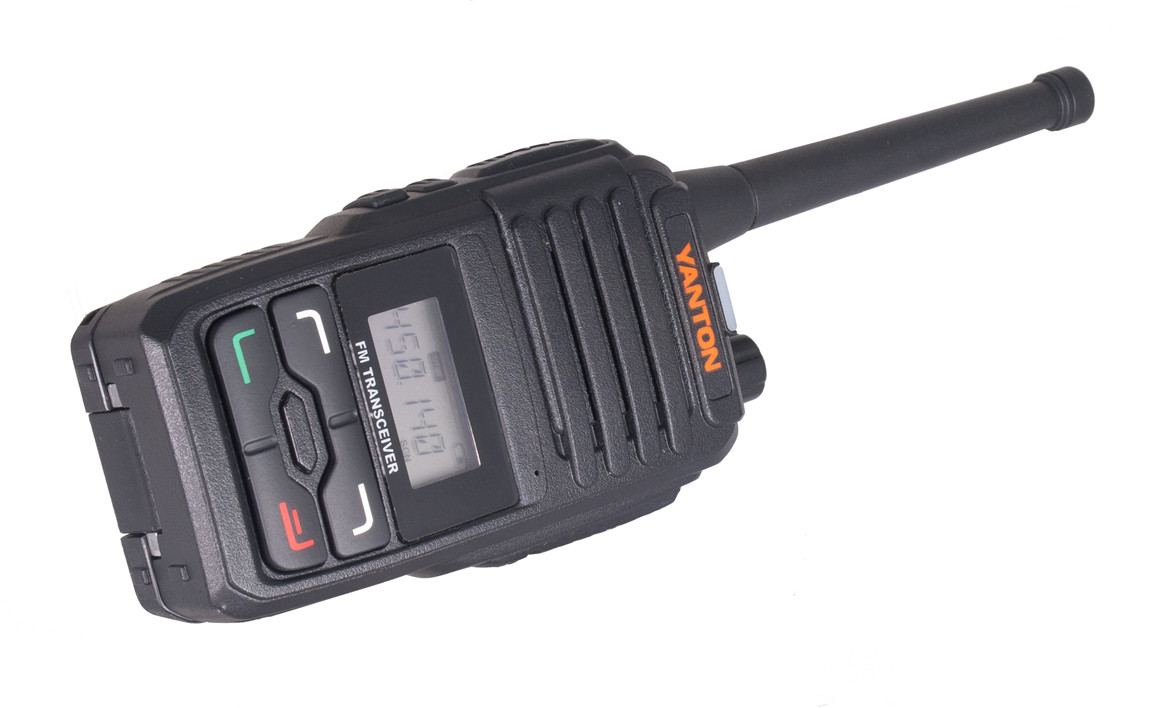

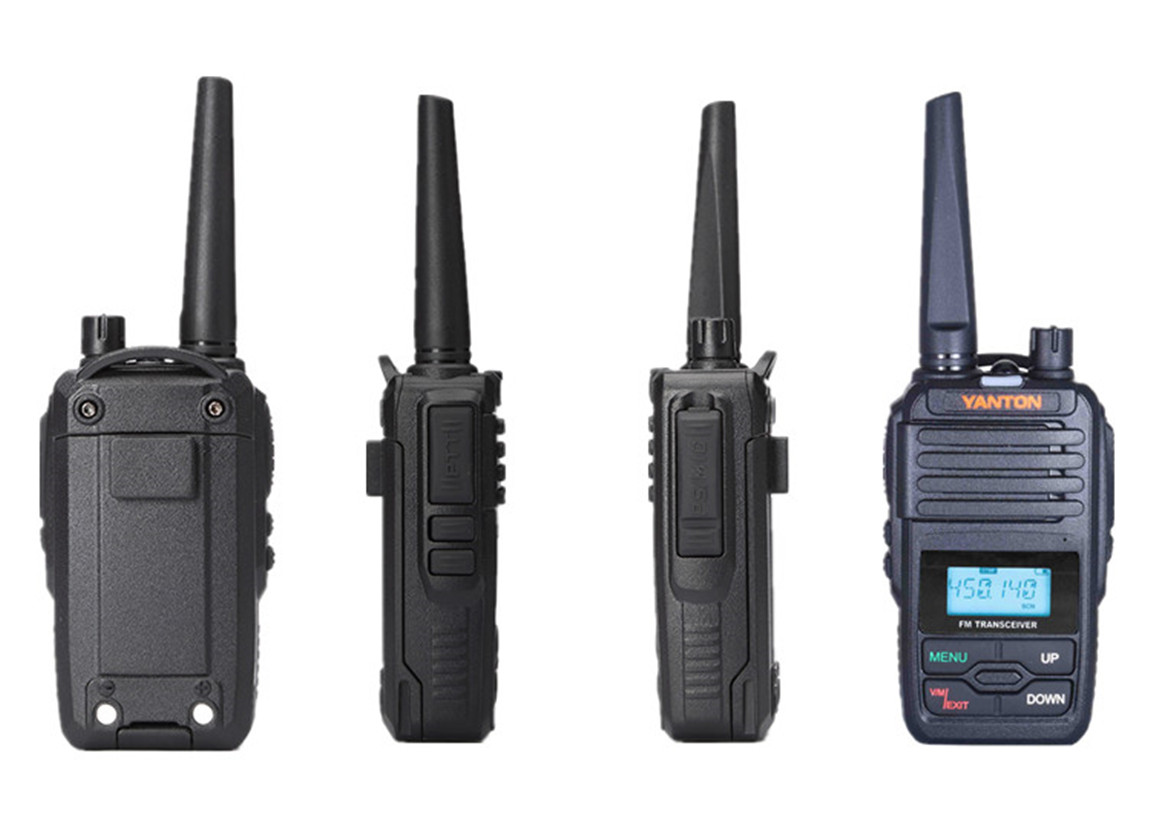

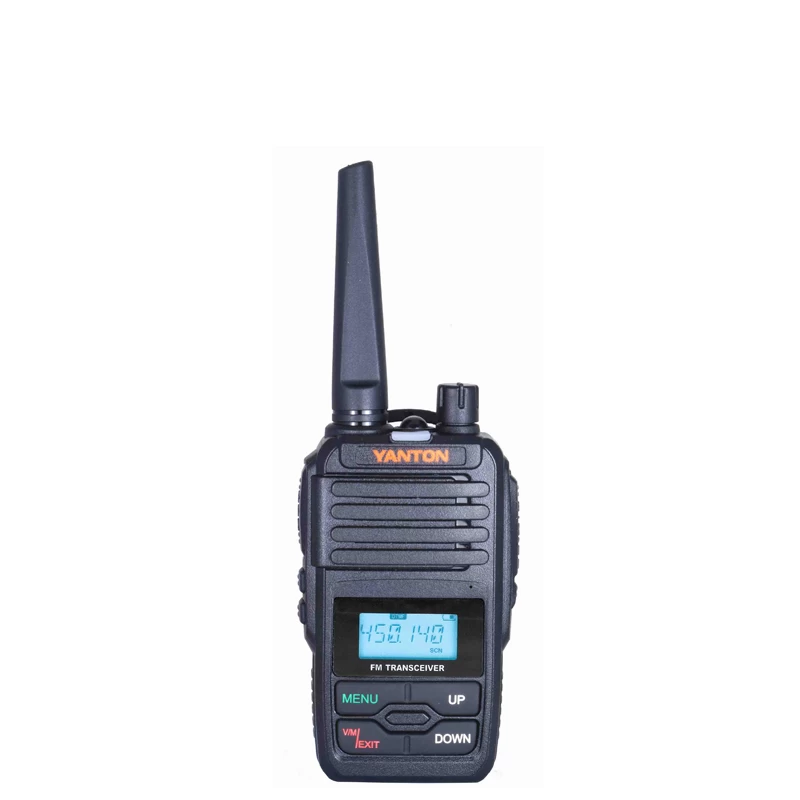

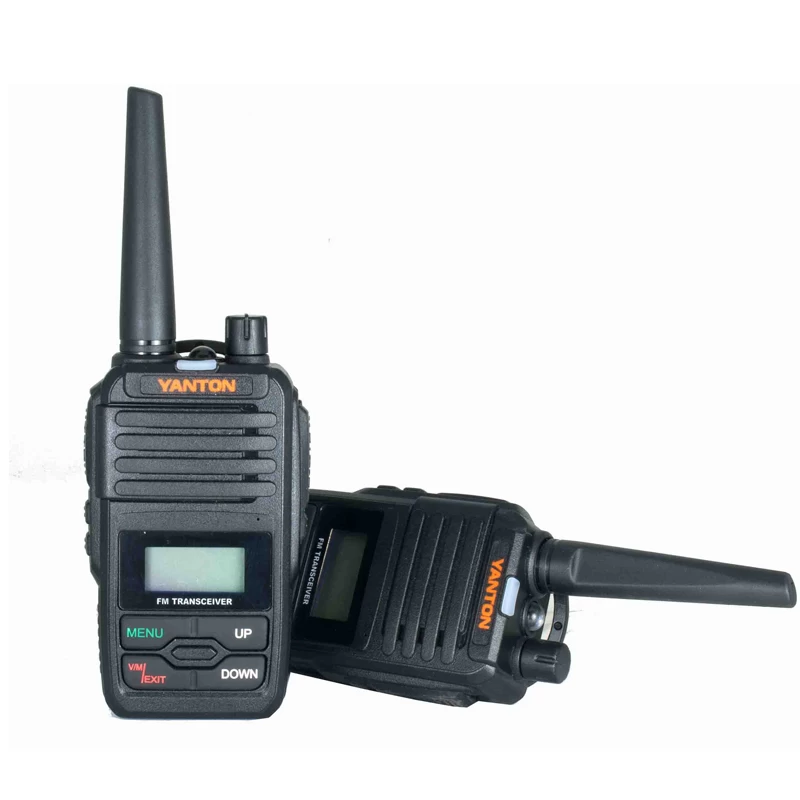

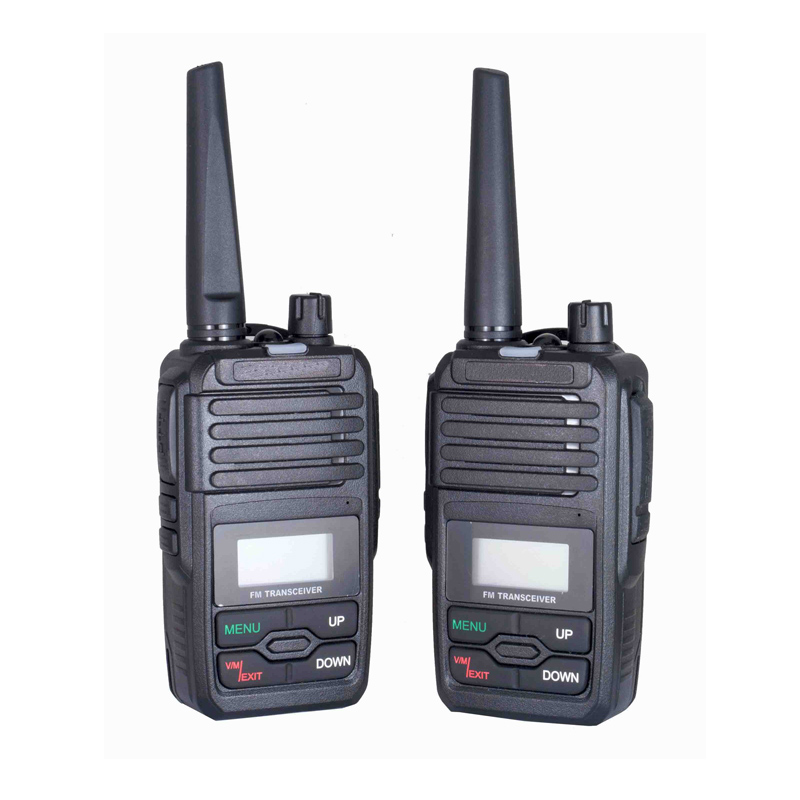

Mini Portable 3W VHF UHF Two-way Radio
T-320,3W Two-way Radio Systems, with innovative LCD design, wide band coverage, change frequency by keypad and clear audio quality, which makes it ideal for most commercial applications.
Quick Details
1.Output Power:3W
2.Frequency Range: 136-174MHz/400-480MHz
3.199 Memory Channels
4.Scan
5.PC Software Programmable,Manual Programming,Wire Copy
6.VOX Function
7.CTCSS/DCS
8.Monitor, Reverse Frequency
9.Power Saving Function, Low Power Warning
10.High/Low Power Selective
11.Emergency Alarm
12.Whispering Function
13.Busy Channel Lock
14.Transmitter Time-out Timer(TOT)
15.Side Key Assignment
16.0-9 Grades Squelch Level Setting
17.Group Calls
18.Calling Remind
19.LCD Display
20.Chinese and English Voice Prompt
21.FM Radio (87.5-108MHz)
22.1200mAH Li-ion Battery
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174MHz/400-480MHz
|
|
Operating
Temperature
|
-20℃to +55℃
|
|
Frequency
Combination
|
please
lock frequency synthesize
|
|
Frequency
Stability
|
±2.5ppm
|
|
Memory
Channel
|
199
|
|
Working
voltage
|
3.7V
|
|
Antenna
Impedance
|
50Ω
|
|
Operating
Mode
|
simplex
of co-frequency or alien
|
|
Dimensions
|
85*38*25mm
|
|
Weight
|
232g
|
|
TRANSMIT PART
|
|
RF
power
|
3W
|
|
Modulate
Mode
|
F3E
|
|
Max.Freq.Deviation
|
≤5KHz
|
|
Remain
Wave Radiation
|
＜-60dB
|
|
Transmitting
Current
|
≤1000mA
|
|
RECEIVER PART
|
|
Sensitivity
|
＜0.20uV
(12dB SINAD)
|
|
Squeich
Sensitivity
|
＜0.20uV
|
|
Intermodulation
Antijamming
|
50dB
|
|
Audio
Power output
|
500mW
|
|
Receiving
Current
|
≤100mA
|
|
Squelch
Stangby
|
20mA
|
3W Two-way Radio Systems
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
