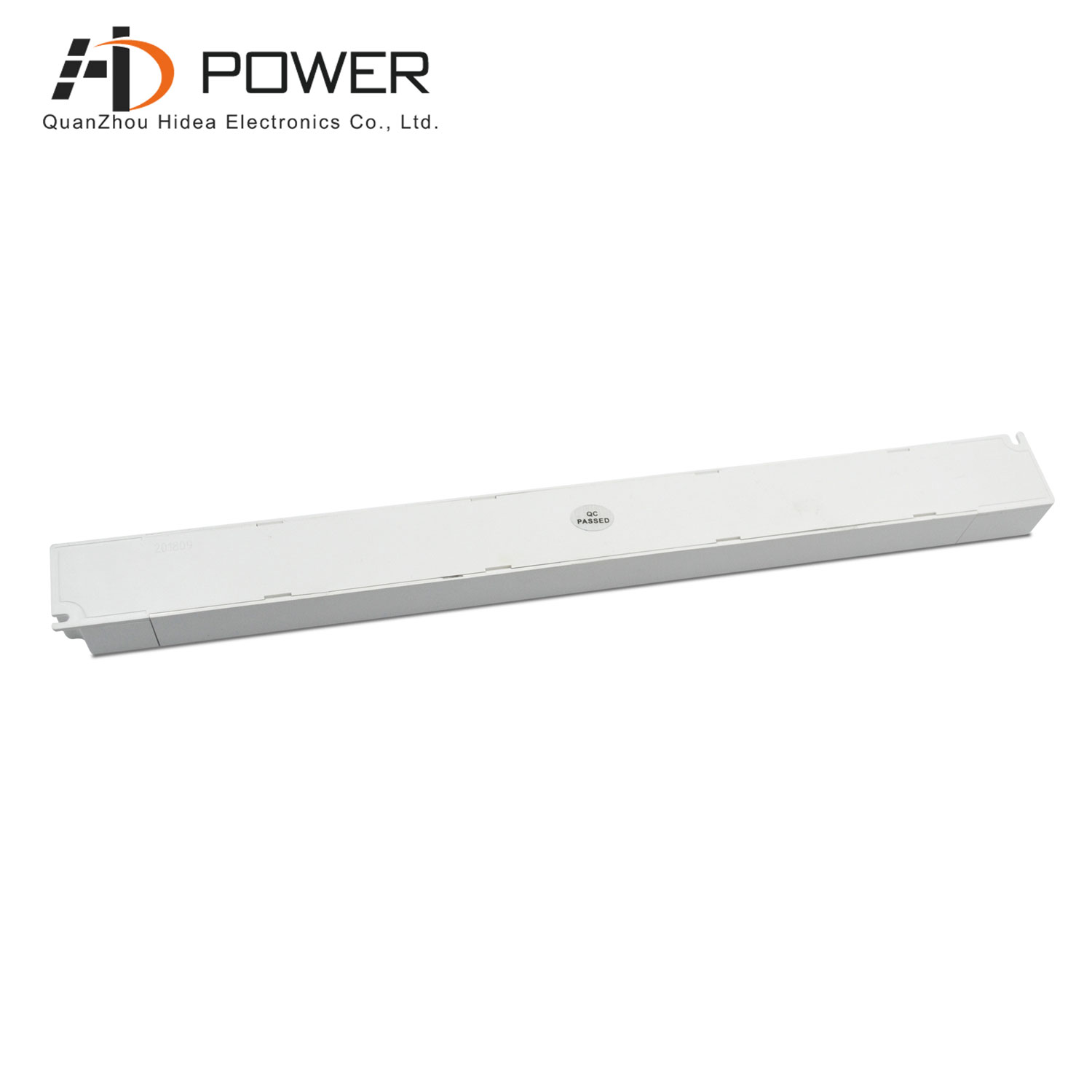

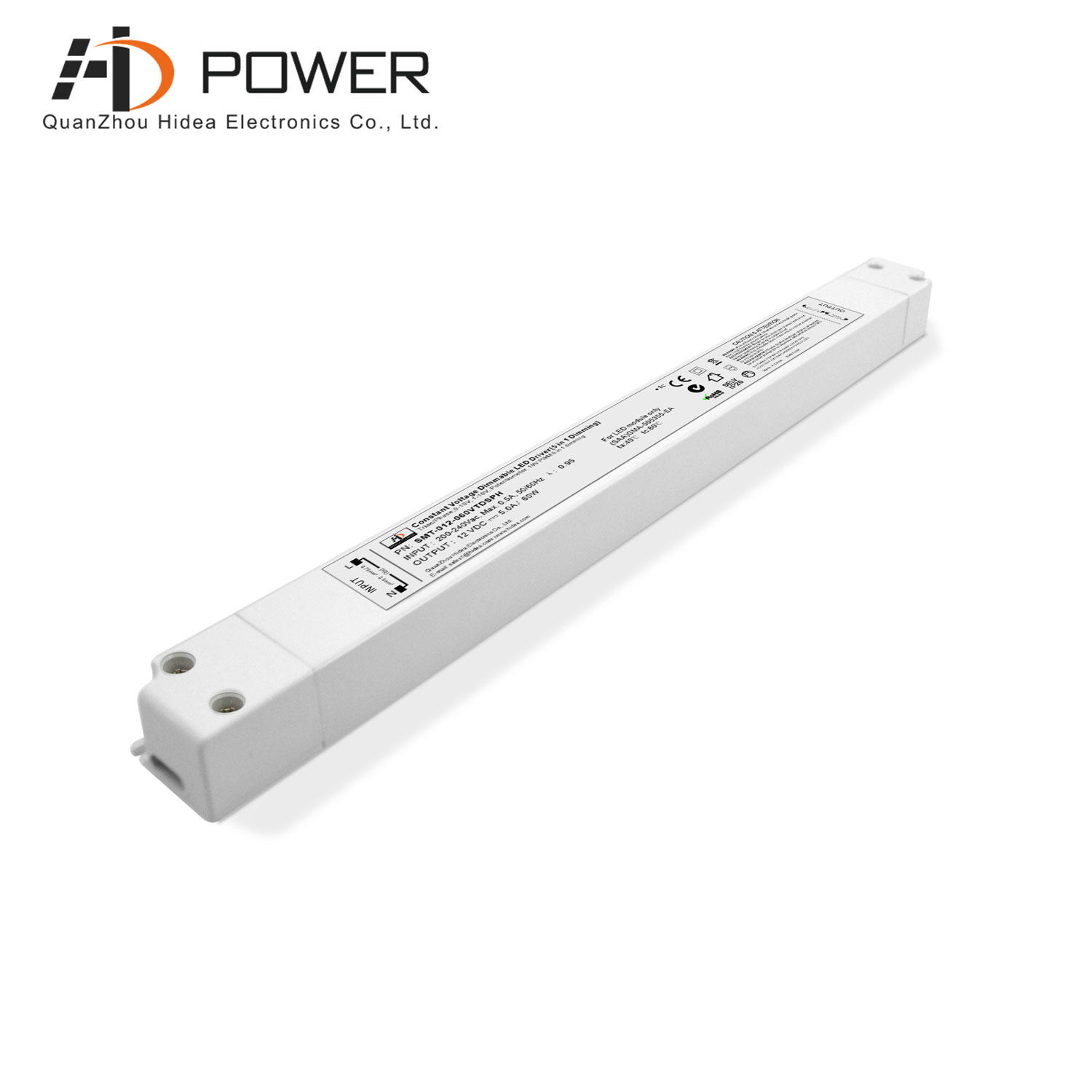

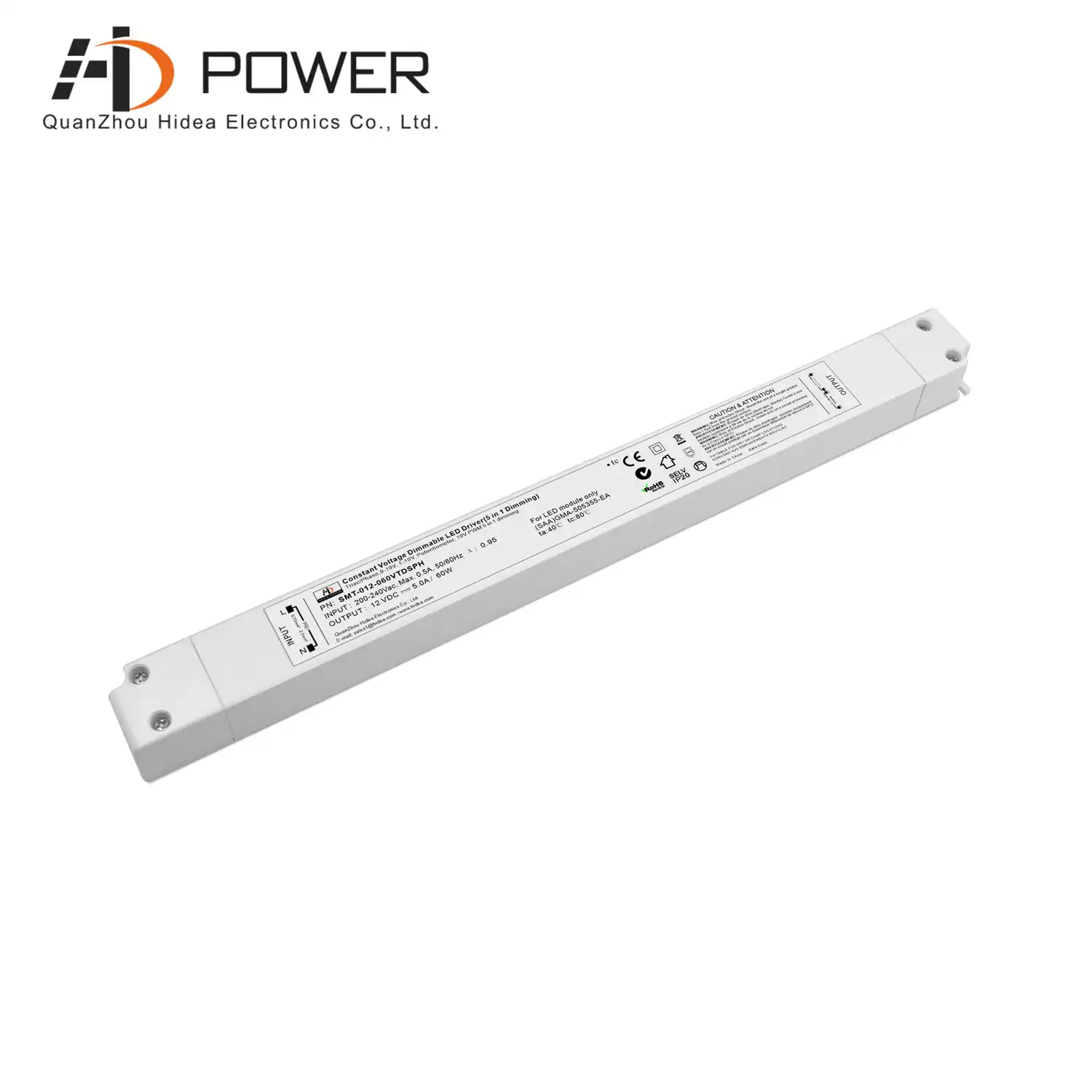

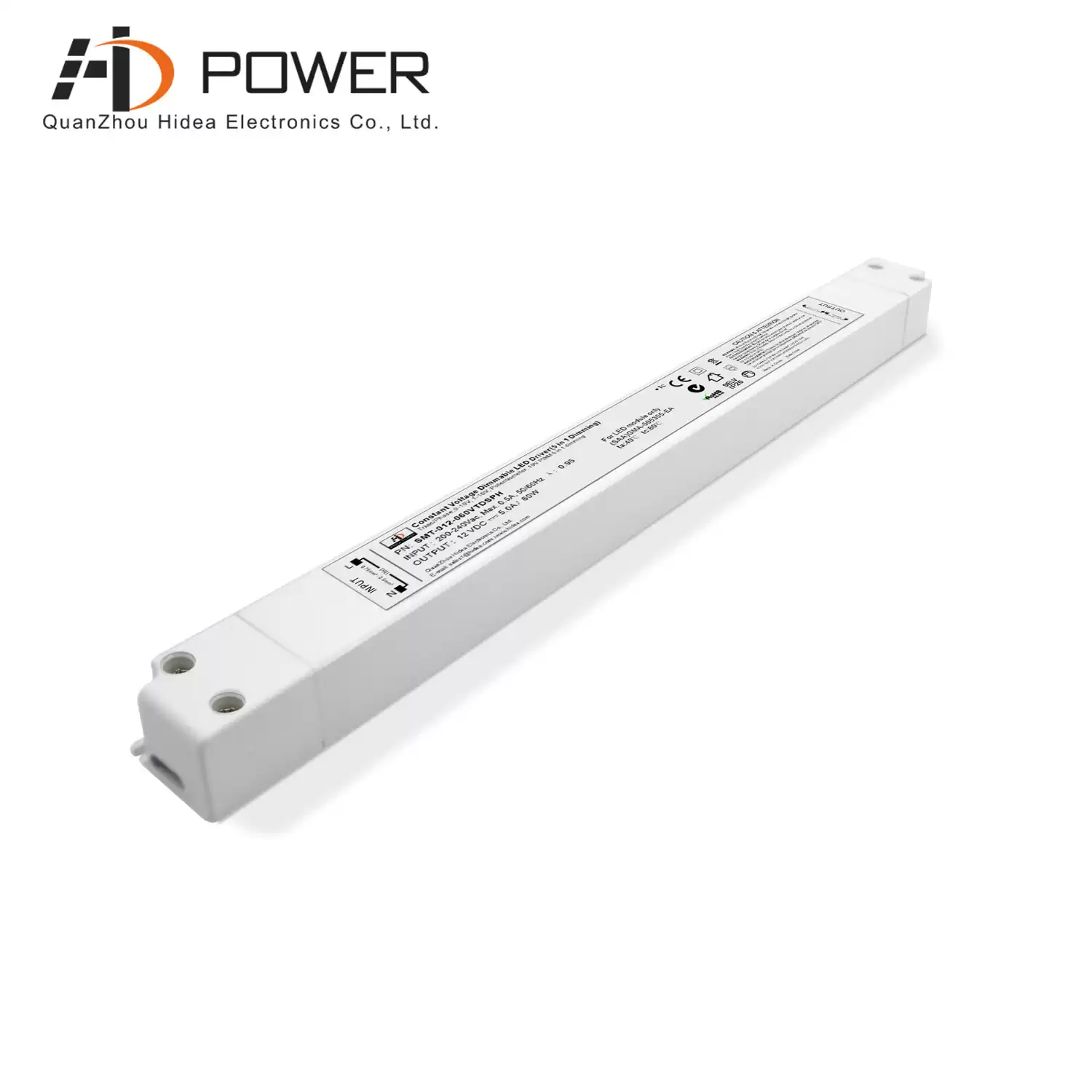

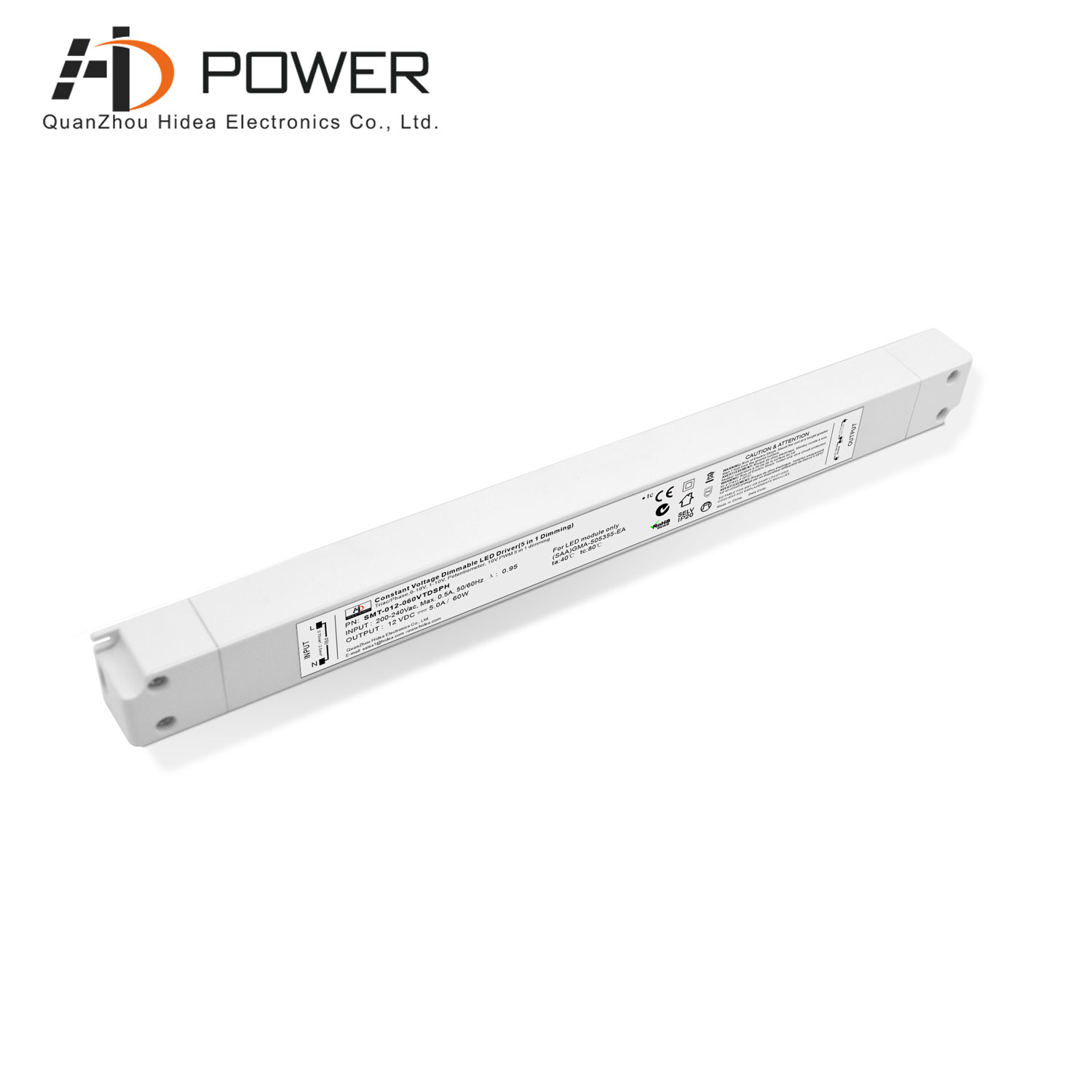

hidea power slim size 12v 60 watt rgb triac dimmable led strip driver 12v power supply
hidea power 60W dimming led driver with built-in PFC function, constant voltage mode, efficiency up to 83%, with short circuit, overload, overheating protection
Specification
|
model
|
SMT-012-060VTDSPH
|
SMT-024-060VTDSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
THD(Typ. ) @ full load
|
<20%
|
|
Full Load Efficiency
|
83%
|
86%
|
|
AC Current(Typ.)
|
0.5A
|
|
Inrush Current(Typ.)
|
57.6A,50%,128us
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃
|
|
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P : 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.3Kg
|
|
Size
|
300*30*18.5mm(L*W*H)
|
|
packing
|
330*330*130mm/ 50pcs /CTN G.W.: 16KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Related Products
|

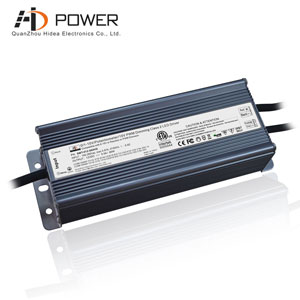

Waterproof constant voltage 60W 0-10v LED driver ETL certification, in line with the global lighting safety laws, 5-year warranty, safe and reliable
