High-accuracy Automatic Pouch Cell Single Work Station Automatic Stacking Machine


1.1 Equipment Overview

TMAX-YS-BZP200 is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.

Operation video:https://www.youtube.com/watch?v=VJtov4vkZFs


1.2 Workflow

The separator takes the initiative to unwind and is led into the stacking table through the tension mechanism; the stacking table drives the separator to move back and forth to place the electrodes; the positive and negative electrodes are taken out from the left two material boxes by two sets of suction cups of the manipulator respectively, and then stacked on the stacking table after accurate positioning; after stacking, the battery core is transferred to the tail roll gluing station by the manipulator, and the tail roll is automatic ; the separator is cut off and automatically tapped.

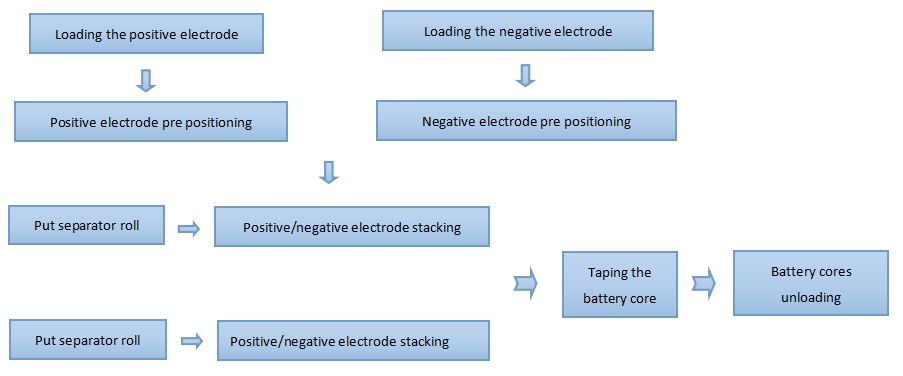

The process flow chart is as follows:

1.3 Equipment features

1.3.1 Separator: active unwinding; tension control;separator deviation correction; separator electrostatic removal; separator alignment accuracy±0.5mm;

1.3.2 High precision: through the precise positioning of the electrode, the overall precision of the electrode in the stacking is guaranteed to be±0.3mm;

1.3.3 High efficiency: stacking speed can reach 0.6s~1s/pcs;

1.3.4 Dust protection: the material box and pre positioning are equipped with effective dust protection mechanism;

1.3.5 Reliability: the modules with high precision and constant motion of the equipment are fixed with locating pins;

1.3.6 Accurate electrode stacking number: missing electrode detection protection; anti extra electrode piece mechanism; extra electrode detection mechanism, effectively preventing extra electrodes from stacking into the battery core.

1.3.7 Electrode tab detection: detect the electrode with damaged tab and prevent it from stacking into the battery core mistakenly.

1.3.8 It can be confirmed according to the customer's requirements, realize the switch of the material box through the handling of the manipulator, and cooperate with the automatic production line to automatically load and unload the material box.

1.3.9 It can be confirmed according to the customer's requirements, and the stacked battery cores can be automatically unloading to the next assembly line.

2.Standard composition

No.

Components name

Qty/set

Remark

1

Automatic feeding mechanism of material box

2

Plug-in type special material box, two sets for positive and negative electrodes, size adjustable;

2

Electrode loading auxiliary mechanism

2

Brush and shaker mechanism; air blowing and dust suction device; prevent extra electrode problem

3

Electrode loading and jacking mechanism

2

Guarantee the manipulator to absorb the electrodes reliably; automatic shutdown alarm in case of material shortage

4

Separator tension control mechanism

1

Separator active unwinding, constant tension

4.1

Separator correction system

1

Unwinding and correcting deviation;

5

Mechanical pre positioning module

2

Mechanical precise positioning; dust collection device; and equipped with dust collection mechanism

5.1

Multipieces detection

2

Ultrasonic thickness detection to prevent extra pieces from entering the battery core;

6

Stacking manipulator

2

Servo drive ensures that the manipulator can grasp and place the electrodes reliably

7

Loading suction cup mechanism

4

Two sets of vacuum nozzle type and two sets of suction plate type

8

Stacking table

1

Servo drive stacking table translation and lifting: precise ball screw to realize stacking table reciprocating movement

9

Manipulator clamping module

1

Manipulator realizes the transfer of battery core automatically

10

Separator cut-off mechanism

1

One set of hot knife mechanism, cut off after determining the tail coil length

11

Adhesive tape side sticking mechanism

1

The position and quantity of adhesive on the sides around (including the middle of the tab) can be set

12

Automatic unloading mechanism

1

Automatic stacking and unloading of battery core, batch removal, reducing manual demand

13

Electrical operating system

1

Touch screen operation, with emergency stop, power switch and other buttons

14

Control system

1

Electrical appliances and gas circuits are installed inside the equipment, saving space and easy to maintain

15

Rack substrate

2

Color: computer grey

16

Dust cover

1

1 set of aluminum alloy plexiglass cover, with interlock switch and emergency switch

17

Dust suction mechanism

1

Blower dust collection; pre positioning, material box


3.Suitable battery size range(can be customized)

Item

Specification(mm)

Battery core length L

135-190

Battery core width W

80-150

Battery thickness T

3.5-20

Tab length

6-20

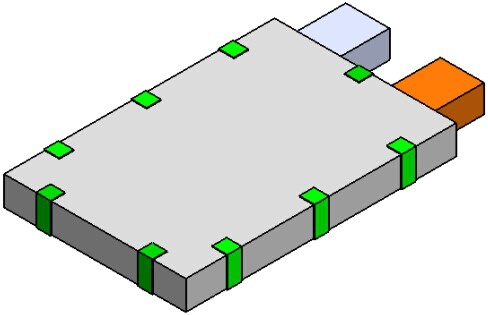

Battery core sketch

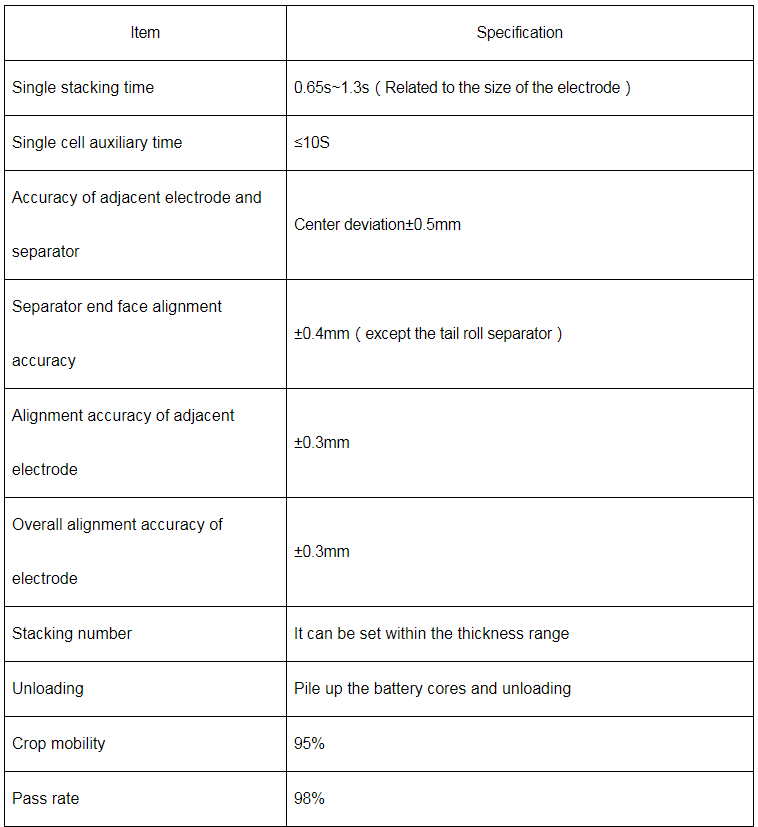

4. Technical parameters

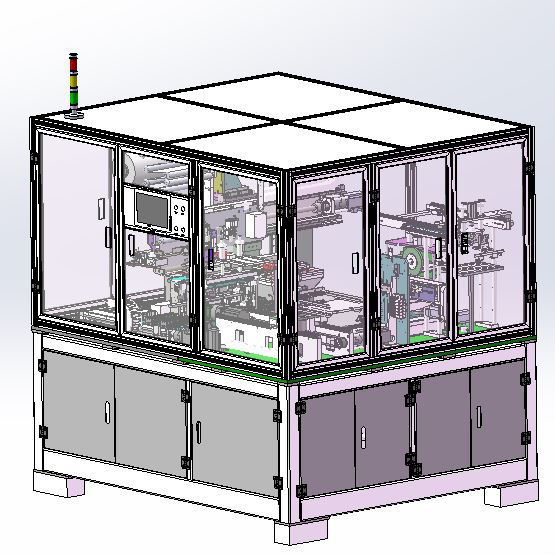

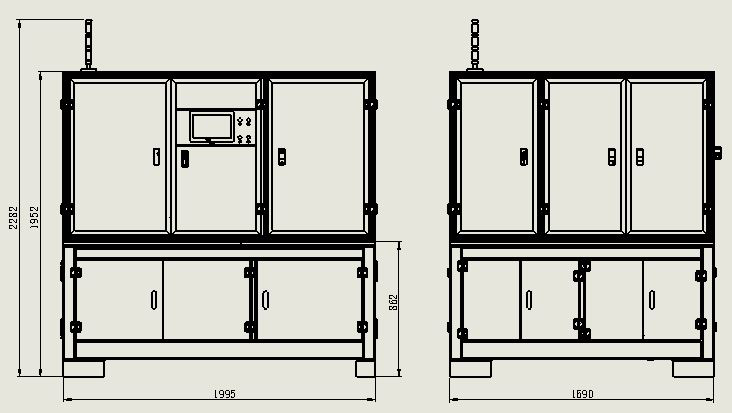

Overview and schematic diagram of the whole machine

Item

Specification

Machine dimensions

1700mmL×2350mmD×1877mmH) (the size shall be subject to the final design)

Machine  weight/bearing

About 1000KG450kg/m2

Power supply

AC220V±10%;single phase

Power3KVAfrequency50Hz

Compressed air

0.5~0.7MPa(5kgf~7kgf/cm2)Consumption200L/mindry air

Temperature/humidity

5~35℃5~55%

Air/dust

No salt gas, toxic and corrosive gas; no conductive dust

Magnetic field and vibration

There shall be no magnetic boundary affecting the device; there shall be no impact and obvious vibration

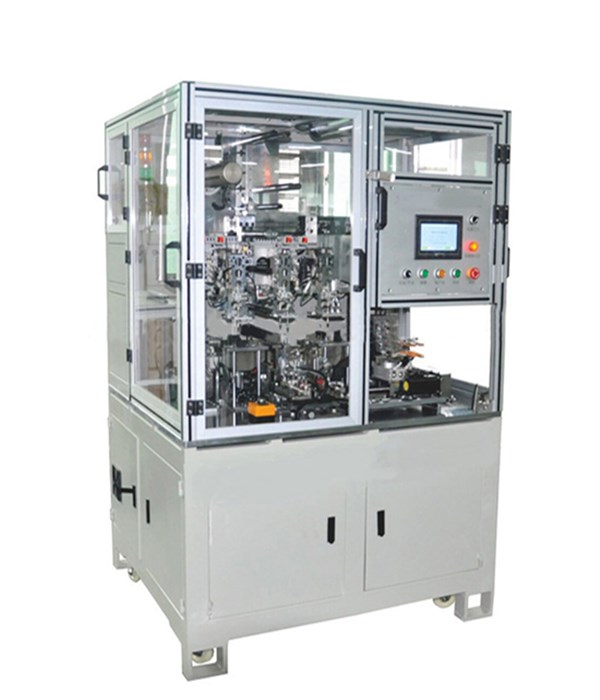

General model diagram






electrode stacking machine
