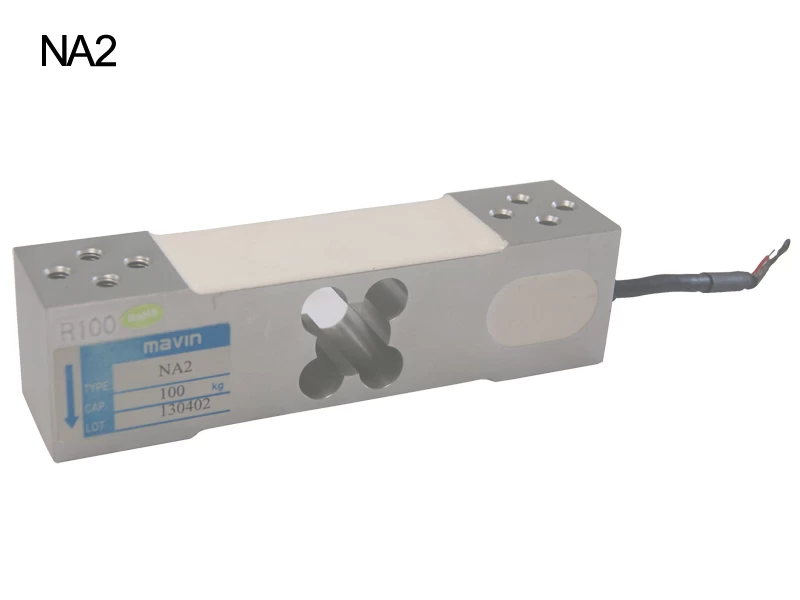

High Precision Load Cell NA2 C3
High Accuracy Weighing Sensor NA2 C3 is environmentally sealed with potting compound to ensure durability. The aluminum alloy load cell is easy to install
Key Features：
Accuracy
class C3
Calibrated
to national standards
Aluminum
alloy material
Special
Sizes and ranges available
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales

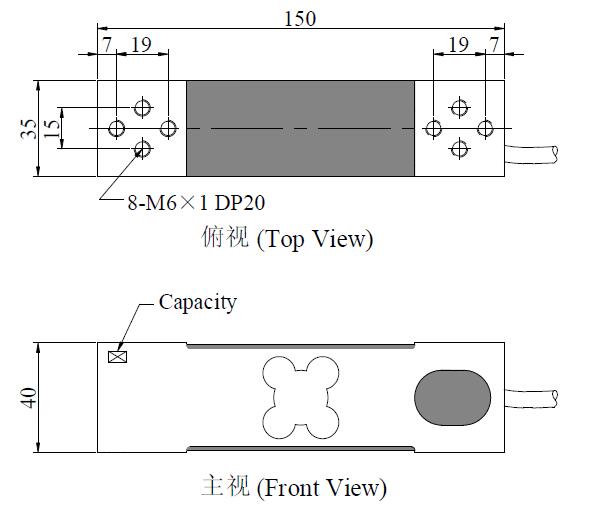

Dimension：
NA2 C3 Specification：
|
Rated Capacities
|
60~500(kg)
|
|
Rated Output
|
2.0 mV/V±5%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Accuracy class
|
OIML C3
|
|
Max No.of
loadcell interval(nmax)
|
3000
|
|
Min No.of
loadcell interval(Vmin)
|
Emax/7000
|
|
Non-linearity
|
0.017 %R.O.
|
|
Hysteresis
|
0.017 %R.O.
|
|
Repeatability
|
0.017 %R.O.
|
|
30mins Creep
|
0.017 %R.O.
|
|
30mins Return
|
0.017 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.0015 %R.O./℃
|
|
Temperature Effect On Zero
|
0.002 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ5×1.5m
|
|
Recommended Platform Size
|
350×450 mm；400×500 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
