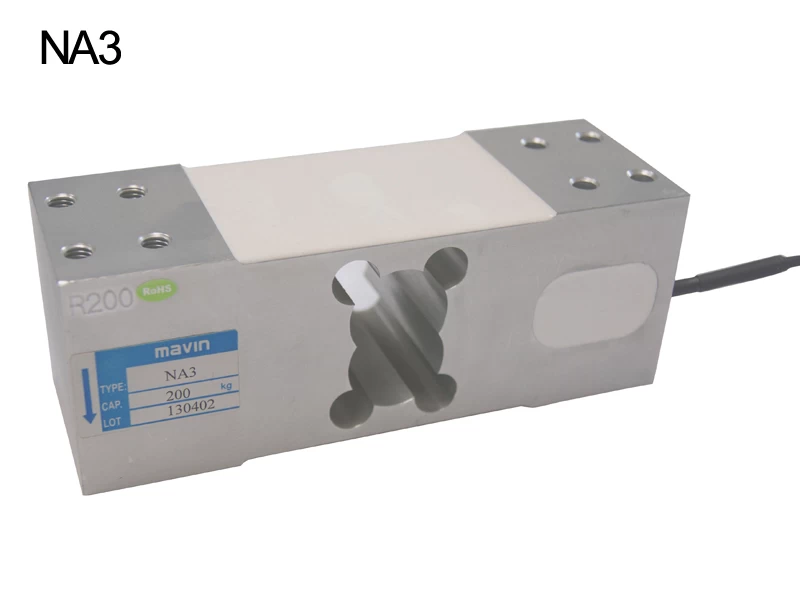

High accuracy sensor NA3 C3 platform single point load cell

NA3 C3 single point load cell is popular for its High accuracy OIML approved with aluminum alloy construction. The High profile platform load cell is widely used in retail scales, bench scales, small platform scales, multi-head weighers, medical scales.



  • Protection ClassPI66/PI67
  • MaterialAluminum Alloy
  • Dimension174*60*64mm
  • Rated Output2.0mV/V
  • Capacities60-1200kg

High Accuracy Load Cell NA3 C3

NA3 C3 single point load cell is popular for its High accuracy OIML approved with aluminum alloy construction. The High profile platform load cell is widely used in retail scales, bench scales, small platform scales, multi-head weighers, medical scales.


Key Features

Accuracy class C3

Calibrated to national standards

Aluminum alloy

Compact Design

Easy to install

Long term, reliable operation


Usage & Applications
Platform scales

Bench scales

Retail scales
Pricing scales

Counting scales

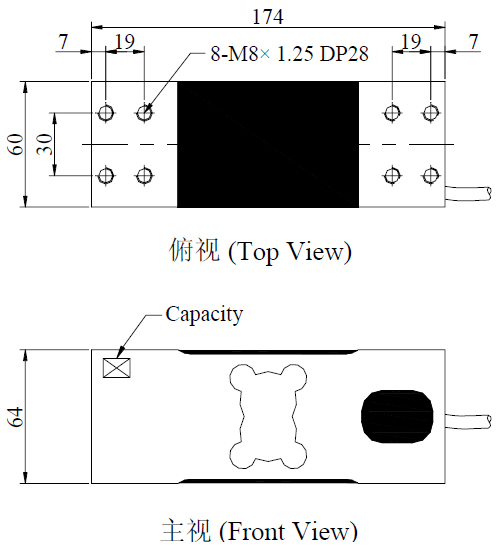

Dimension

OIML C3 load cell

NA3 Specification

Rated Capacities

60~1200(kg)

Rated Output

2.0 mV/V±5%

Zero Balance

±0.0200 mV/V

Accuracy class

OIML C3

Max No.of loadcell interval(nmax)

3000

Min No.of loadcell interval(Vmin)

Emax/7000

Non-linearity

0.017 %R.O.

Hysteresis

0.017 %R.O.

Repeatability

0.017 %R.O.

30mins Creep

0.017 %R.O.

30mins Return

0.017 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.0015 %R.O./

Temperature Effect On Zero

0.002 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ5×2m

Recommended Platform Size

600×600 mm600×800 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
