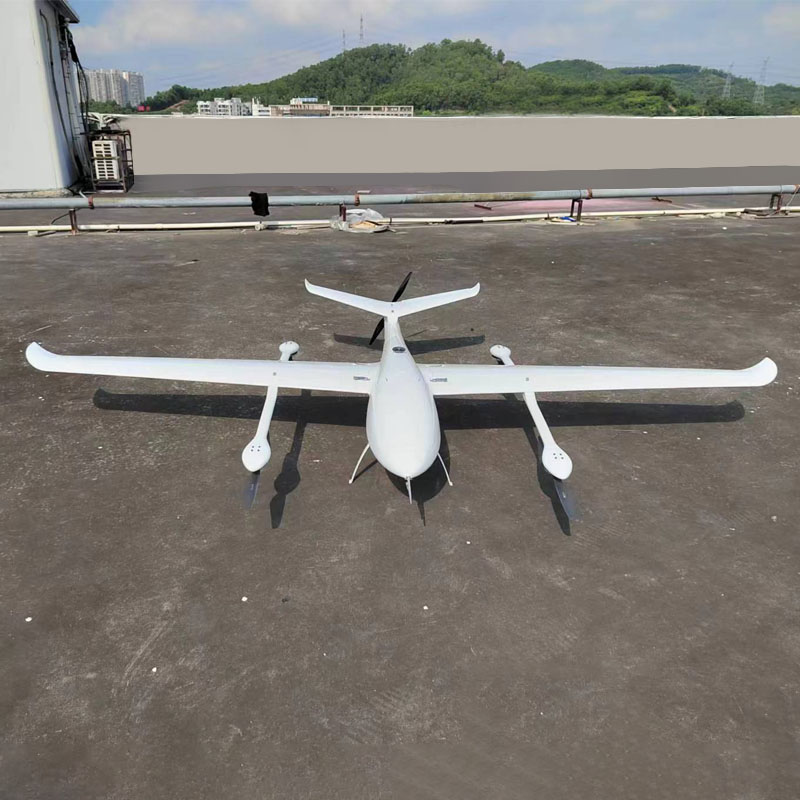

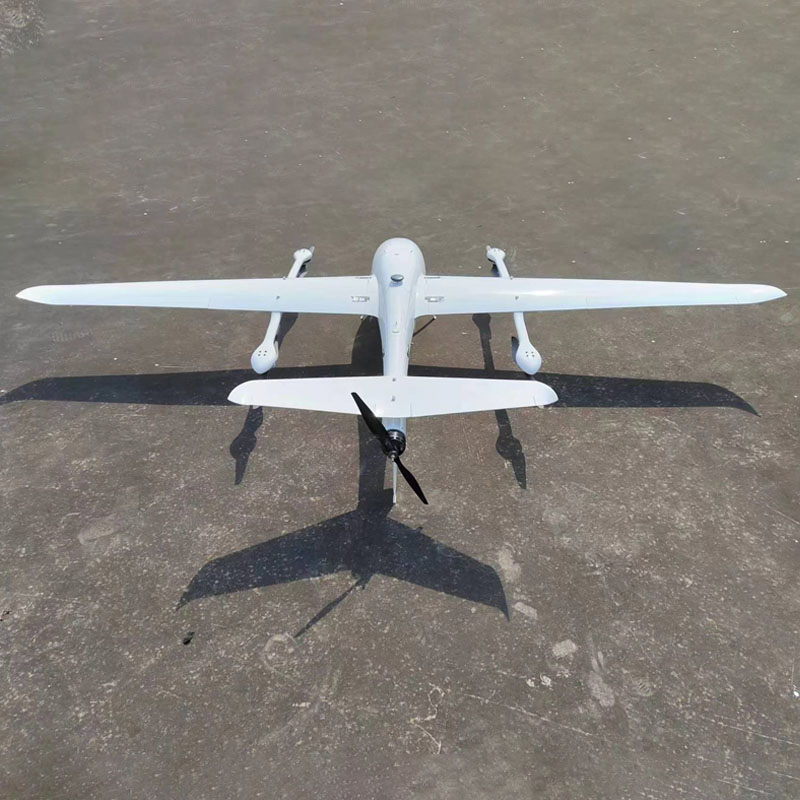

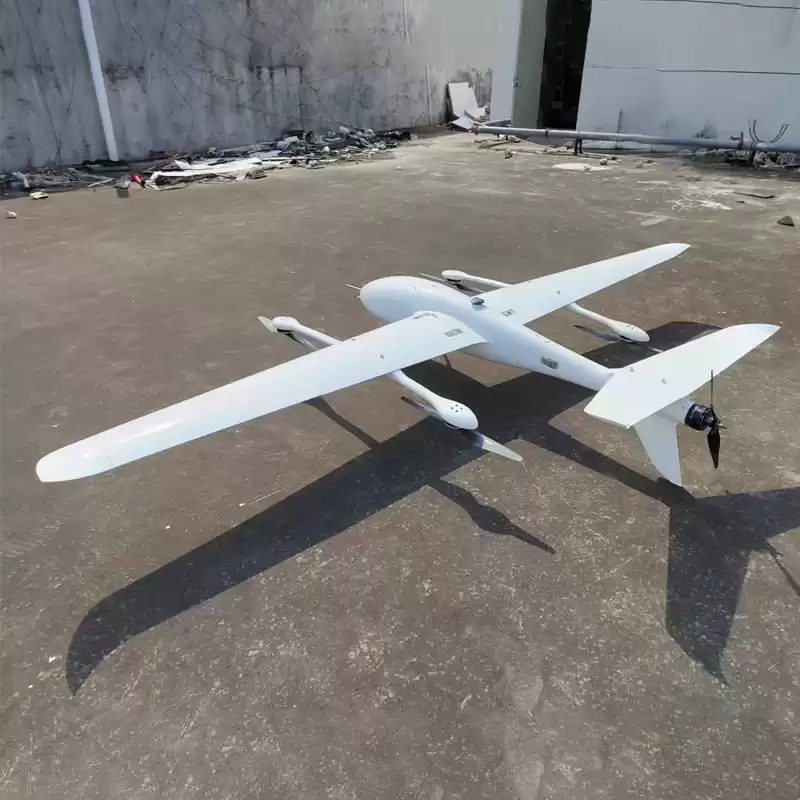

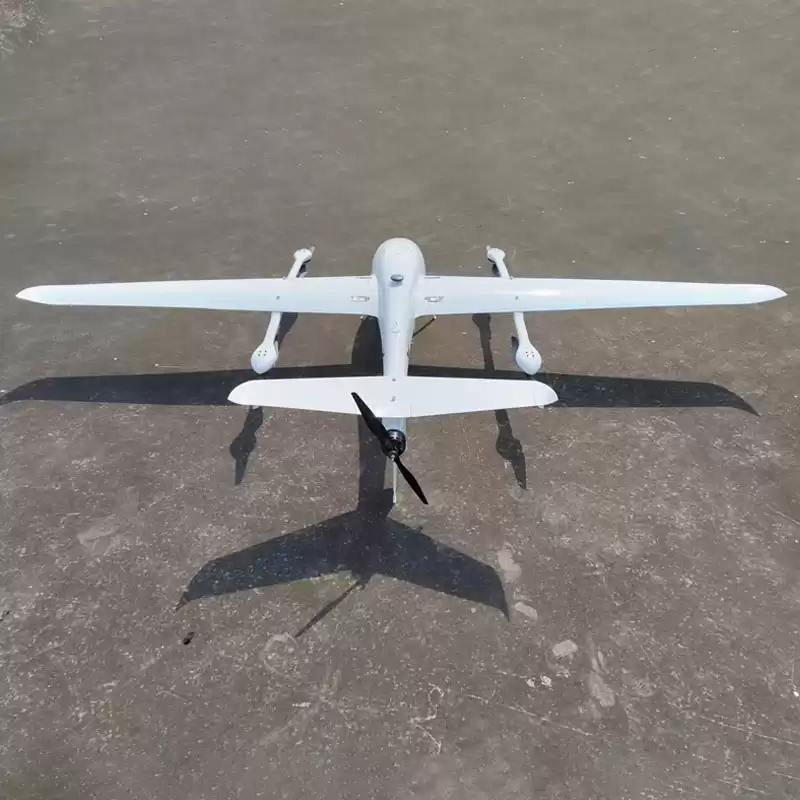

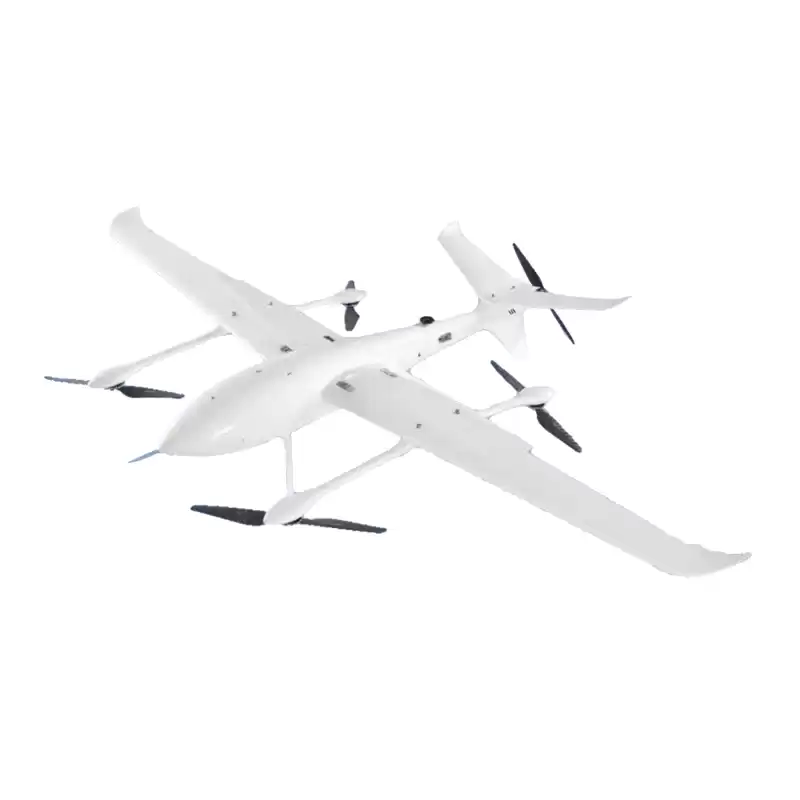

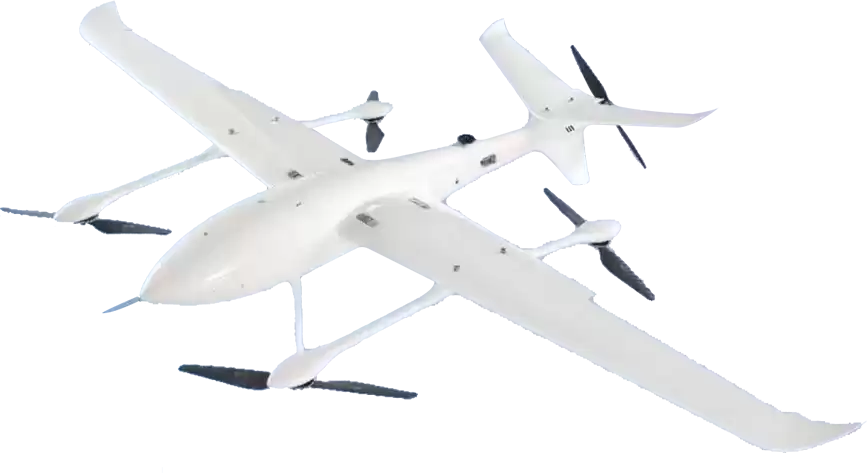

High-Altitude Composite-Wing VTOL Heavy-Payload Cargo Drone

The FY-03 model adopts a composite wing overall layout that combines fixed-wing and multi-rotor wings. It not only possesses the characteristics of fixed-wing drones such as long endurance, high speed and long flight distance, but also has the vertical take-off and landing function o. The vertical take-off and landing mode significantly enhances the environmental adaptability of this unmanned aerial vehicle (UAV) platform, enabling it to smoothly carry out operations in complex terrains such as mountains, hills, and jungles, as well as areas with dense buildings. This greatly expands the application scope of the UAV and makes it an ideal choice for industrial-grade drones.





Product Features

It has fixed wing drone features, such as long flight duration, high speed, long range and large payload capacity

Low usage cost, no need for complex and bulky launch and recovery equipment

The take-off and landing mode significantly reduces the requirements for sites and airspace

No complex auxiliary equipment is required, and transportation, deployment, maintenance and dismantling are simple



Product technical parameters



FY-03 parameters

Size

3.2m*1.83m*0.46m

Wingspan

3.2m

Landing gear height

190mm

Takeoff weight

≤24kg

Load capacity

≤5kg (standard load capacity 3kg)

When sailing without load

240min

Maximum altitude

4,200 meters above sea level

Wind resistance performance

Rotor Mode Level 6

Fixed Wing Mode Level 7

Protection grade

IP54

Take-off and landing mode

Vertical take-off and landing

Power mode

Battery

Battery life



3.8h@1kg load

1.8h@5kg load

Maximum control distance



The remote control can be manually controlled for approximately 0.5 to 1 kilometer

The ground station controls the distance from 5 kilometers to 30 kilometers

Standard cruising speed



20m/s @23.5kg

For mountainous area operations, 21m/s@12.5kg is recommended

Maximum cruising speed

93.6km/h(26m/s)

Standard battery configuration

22.8V/32Ah*2(45.6V)

22.8V/25Ah*4(45.6V)

Never exceed the speed

122km/h(around 34m/s)

Stall speed

17m/s@23.5kg

Minimum circling radius



150m@20m/s





The safe turning radius on the plateau shall not be less than 200 meters

Usage environment



-20℃~45℃

It can fly in light rain (safe operation time > 10 minutes)

Emergency operation time of the rotor



≥6.5min

When the rotor battery is independently powered (non-standard power configuration)

Dimensions of the vertical power paddle blades

22~24inch

Fixed wing tail propeller blades

19~21inch

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
