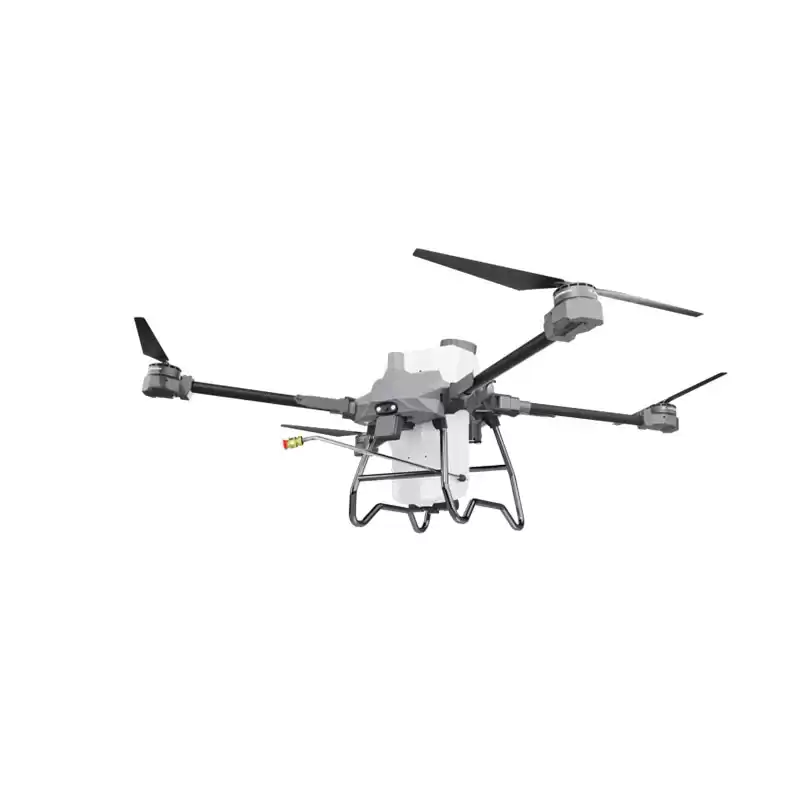

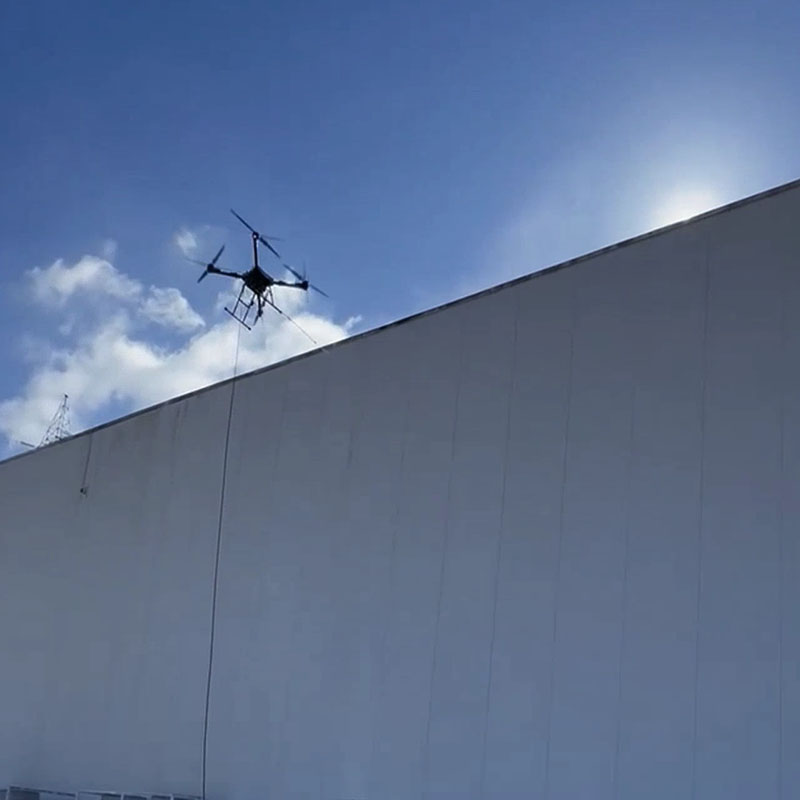

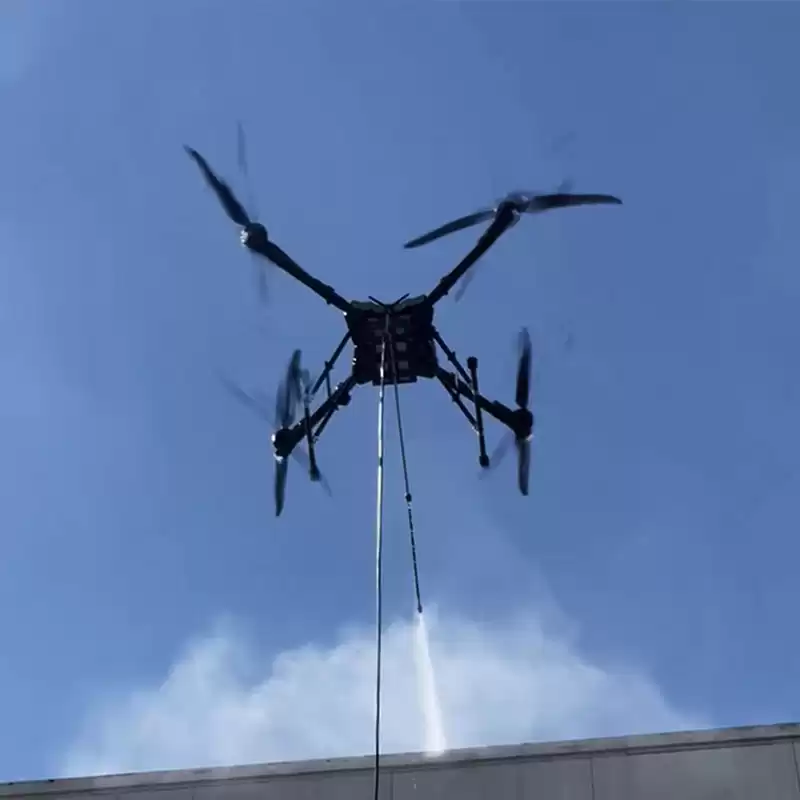

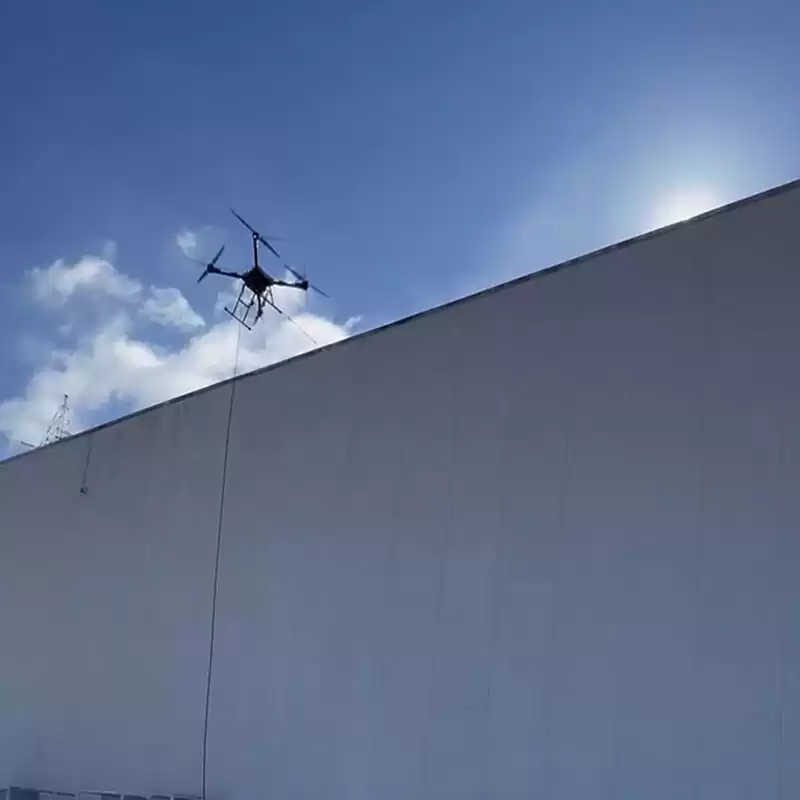

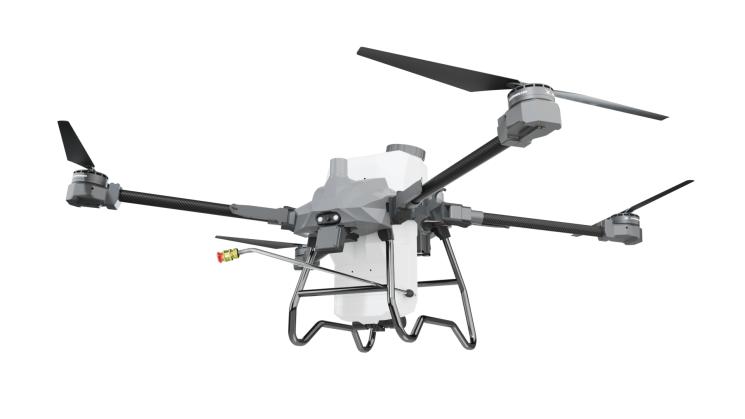

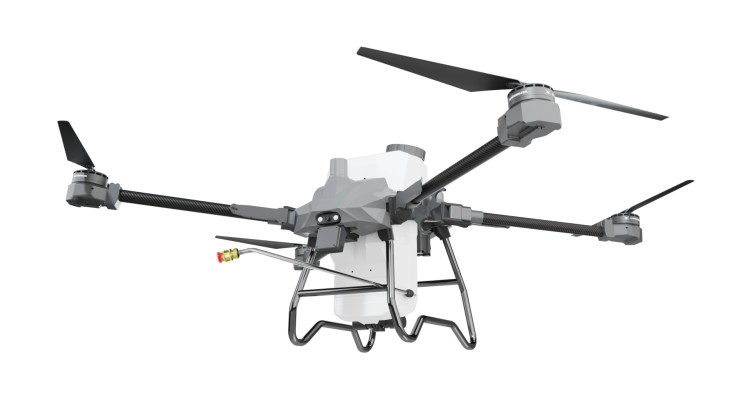

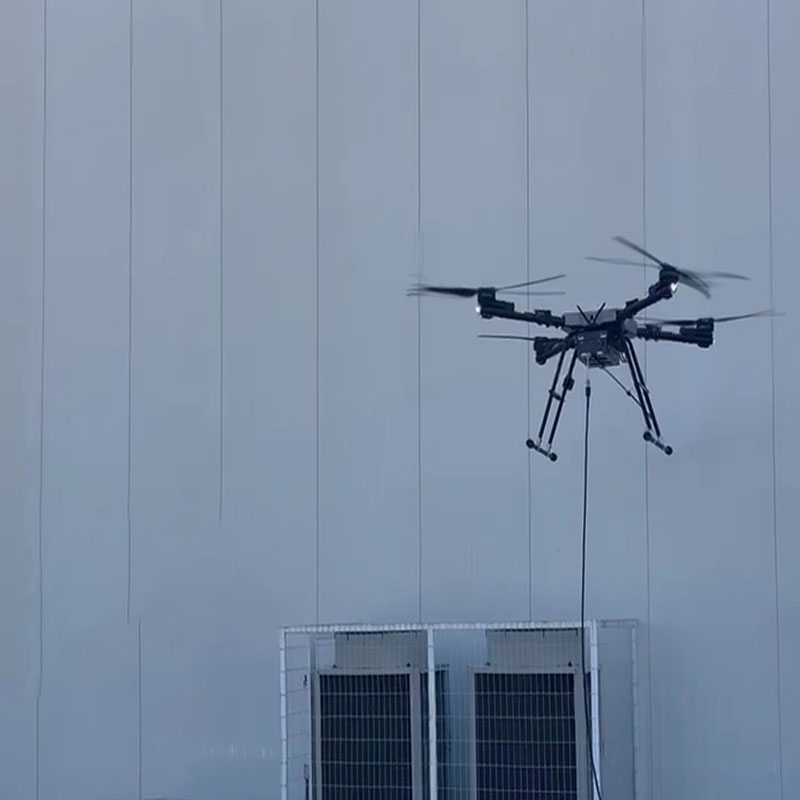

This cleaning drone is made of aviation carbon fiber and aviation aluminum materials. Not only does it significantly enhance the safety of operations, allowing operators to avoid dangerous areas such as high altitudes, but it can also quickly cover large areas, reducing the input of manpower and time. In addition, this drone is highly flexible and can easily reach areas that are difficult for humans to reach. It also has excellent waterproof and wind-resistant performance, making it perfectly suitable for various scenarios such as cleaning the exterior walls of high-rise buildings, wiping building Windows, and maintaining roofs and solar photovoltaic panels. Its operation design also fully takes into account the user experience and is very user-friendly.
Product features
Enhance safety and avoid risks associated with manual high-altitude operations
Efficient and economical, reducing the input of human resources and time
It has wide adaptability and is compatible with multiple types of job scenarios
It has a high tolerance and good adaptability to waterproof and wind-resistant environments
Technical parameters
|
QX-09
|
|
Material
|
Aviation carbon fiber + aviation aluminum
|
|
Size
|
2919*3080*872mm
|
|
Empty drone weight
|
34kg (excluding battery and water tank
|
|
Maximum takeoff weight
|
111kg
|
|
Flight radius
|
≤5000m
|
|
Maximum flight speed
|
15m/s
|
|
Maximum working height
|
100m
|
|
Water tank capacity
|
62L
|
|
Water flow
|
≤16L/min
|
|
Wind resistance grade
|
≤Level 7
|
|
Waterproof grade
|
IP67
|
|
Flight time
|
7 to 28 minutes (standard configuration), 25 to 40 minutes (customization required)
|
|
Standard battery
|
14s 30000mAh smart lithium battery
|
|
Charger
|
100~240V 9000W
|
|
Ground pressurization system
|
|
Size
|
650*590*660mm
|
|
Weight
|
84kg
|
|
Power
|
13kw
|
|
Maximum pressure
|
0.65mpa
|
|
Maximum flow rate
|
1620L/min
|
|
Voltage
|
220V
|
|
Water inlet method
|
Connect the self-priming faucet/pipe
|
|
Nozzle
|
|
Angle
|
45°，90°，180°
|
|
Length
|
1.06m
|
|
Weight
|
1kg
|
|
The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
|
