Product Introduction

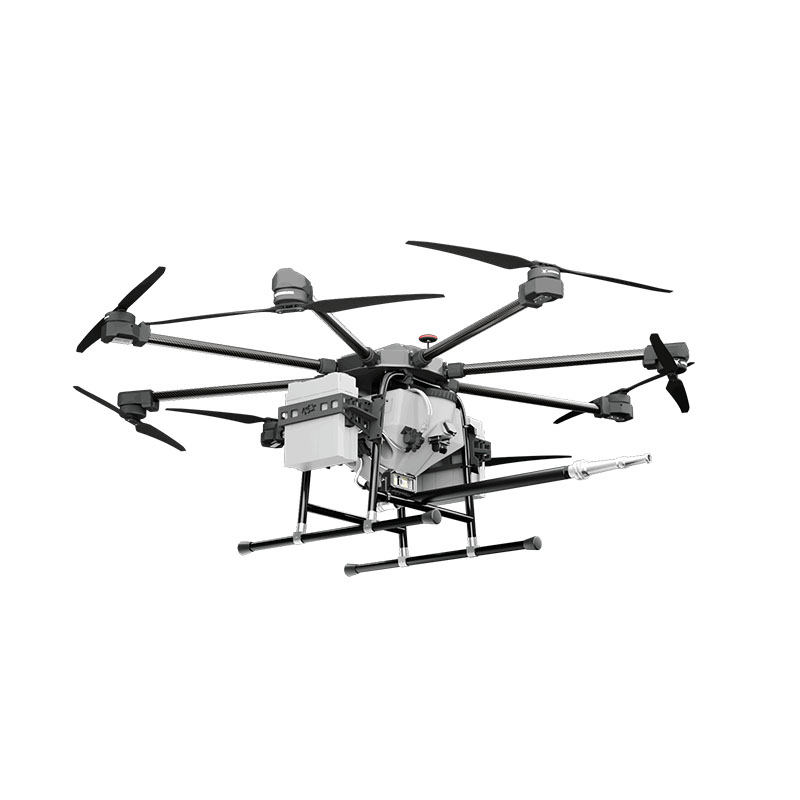

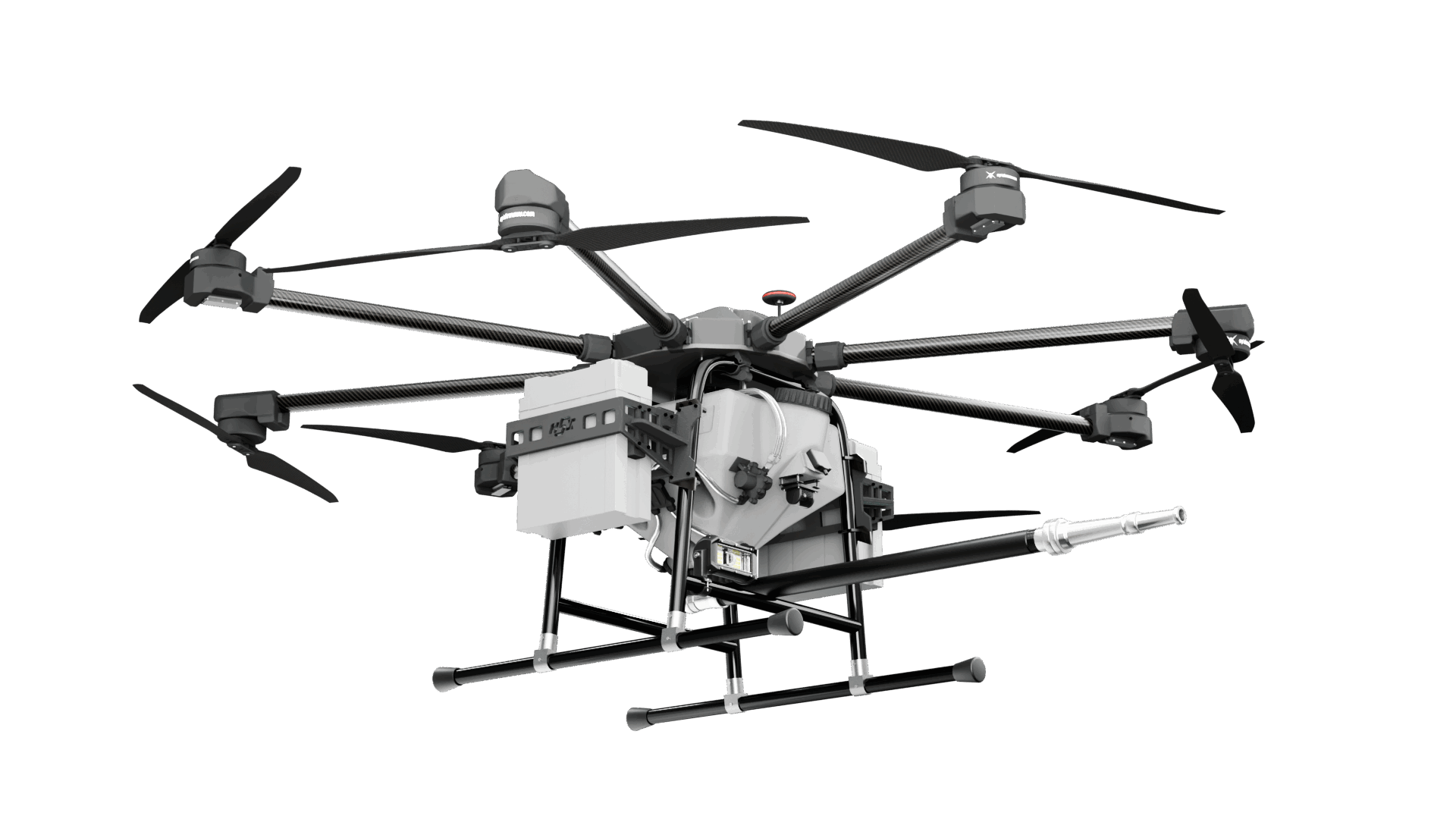

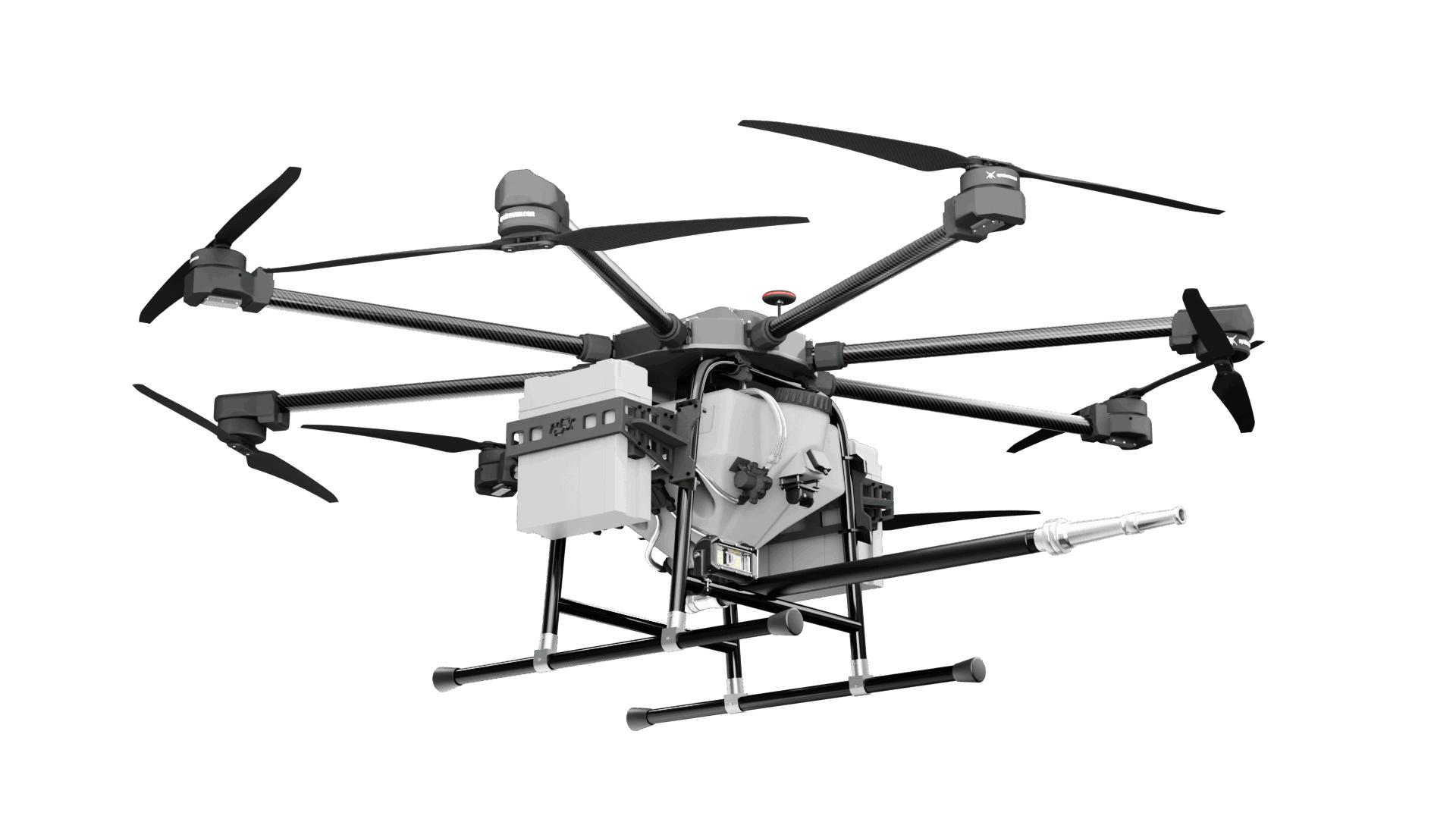

This industrial-grade cleaning drone is meticulously crafted from aviation carbon fiber composite materials and aviation-grade aluminum alloy. Its propellers are folding, and significantly reducing the space required for storage and facilitating transportation and storage. Meanwhile, drones have a large carrying capacity and can carry large-capacity water tanks for operations. The multi-angle stainless steel cleaning nozzles equipped can be flexibly adjusted according to cleaning requirements to achieve precise rinsing of different structures. In addition, it has a long battery life and a large cleaning water tank capacity, which can meet the cleaning needs in remote areas.
Product features
Wide coverage, 3350-4605 mm folding design
Working height over 100 meters
Replaceable multi-angle cleaning nozzles

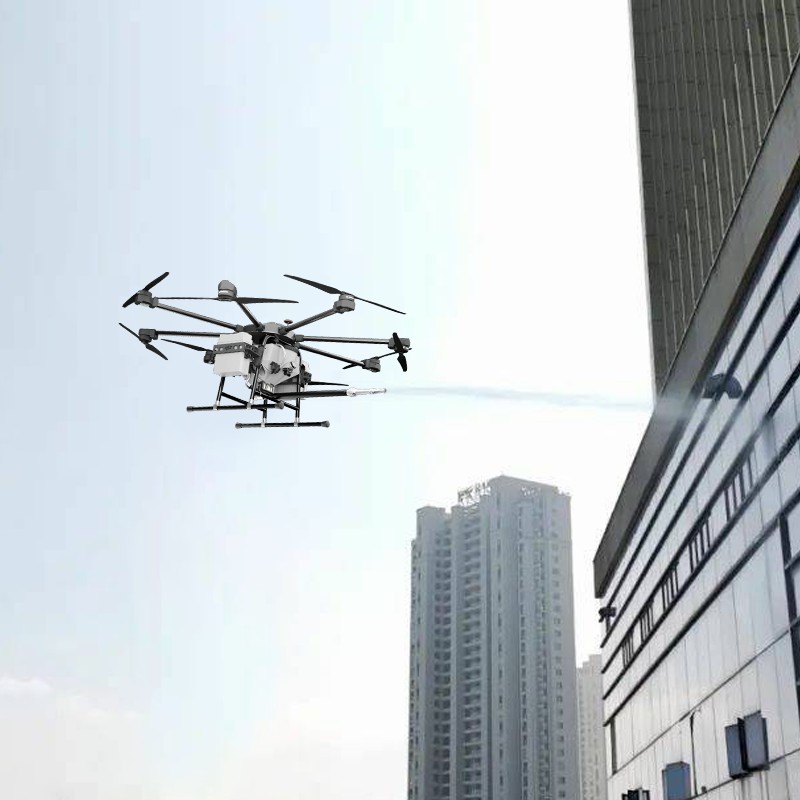

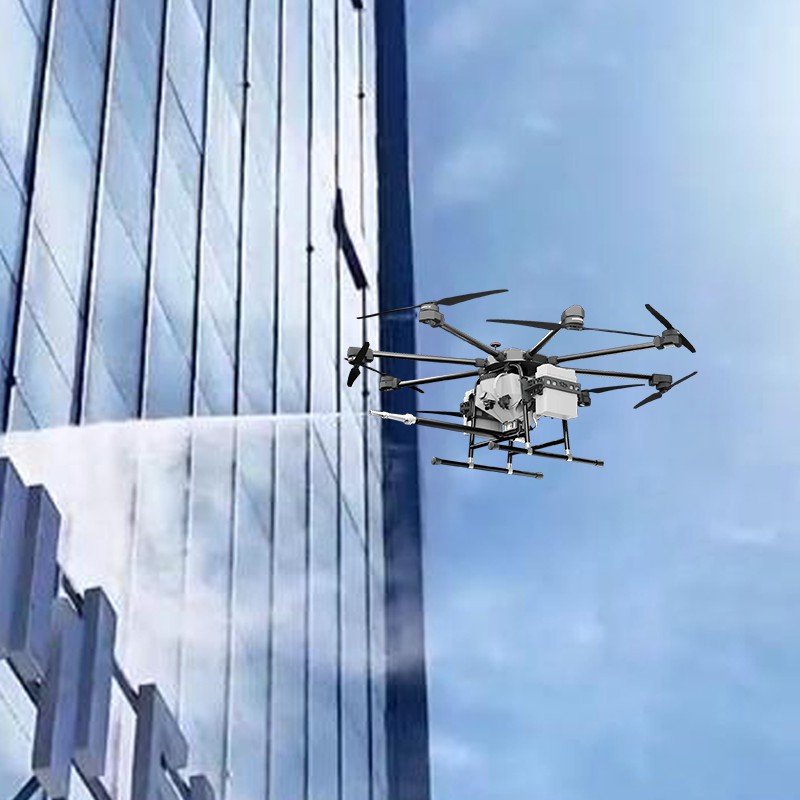

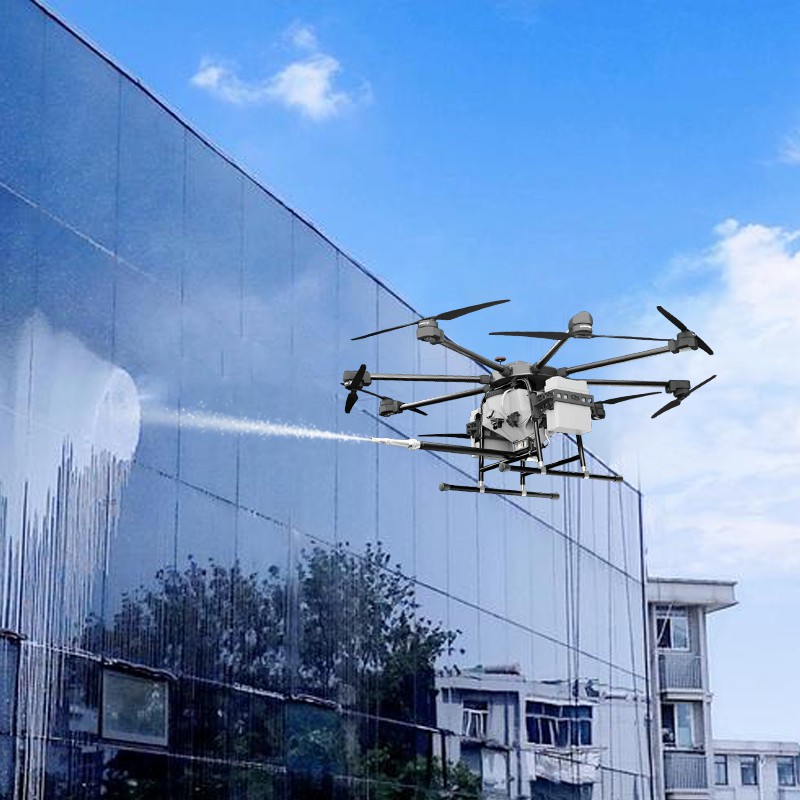

It can perform efficient cleaning in complex environments
Technical parameters
|
QX-10
|
|
Material
|
Aviation carbon fiber + aviation aluminum
|
|
Size
|
3350*3350*990mm (Propeller folding)
|
|
4605*4605*990mm (propeller unfolded)
|
|
Empty drone weight
|
74kg (excluding battery and water tank)
|
|
Maximum takeoff weight
|
254kg
|
|
Flight radius
|
≤5000m
|
|
Max flight speed
|
15m/s
|
|
Max working height
|
≤300m
|
|
Water tank capacity
|
≤95L
|
|
Max water flow
|
24L/min
|
|
Wind resistance grade
|
≤Level 7
|
|
Waterproof grade
|
IP67
|
|
Flight time
|
8 to 20 minutes (standard configuration), 20 to 40 minutes (customization required)
|
|
Standard battery
|
18s 30000mAh smart lithium battery
|
|
Charger
|
100~240V 9000W
|
|
Nozzle
|
|
Angle
|
45°，90°，180°
|
|
Material
|
Stainless steel
|
|
Length
|
1.06m
|
|
Weight
|
1kg
|
|
The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
|
