High Concentration Alcohol Refractometer ATC for Alcohol and Brix, Alcohol Meter

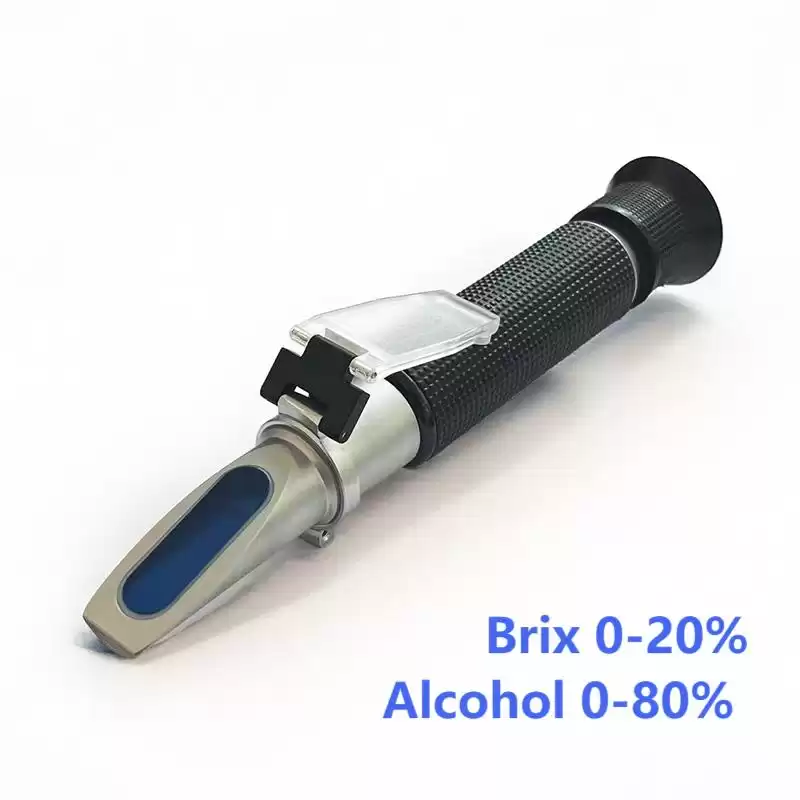

The RHW-80aA Handheld Alcohol Refractometer measures the percentage of alcohol and sugar content in high alcohol solutions, with a measurement range of 0-80% Alcohol and 0-20% Brix.

  • Ideal for quality control for spirits and liquors, as well as other high alcohol content solutions.
  • Copper body for improved durability and accuracy.
  • This model has Automatic Temperature Compensation(ATC). Models without ATC are also available for a lower cost.



Measurement Specifications

Scale(s) Ranges Resolution Accuracy
Brix
0 to 20%
0.2%
±0.2%
Alcohol
0 to 80%
1%
±1%

Facebook Twitter Pinterest LinkedIn 分享
Product Description

The RHW-80aA Handheld Alcohol Refractometer (Liquor Series) is an instrument designed to detect the concentration of alcohol and sugar in aqueous solutions. It can quickly measure the percentage concentration of alcohol-containing solutions and the sugar content of alcohol solutions. The product features a simple structure, convenient operation and portability, and a clear field of view. It is widely used in wineries and wine-related fields, serving as a good helper for scientific research, food industry production, as well as the purchase and operation of liquors.



Product Features
Handheld Refractometer Prism

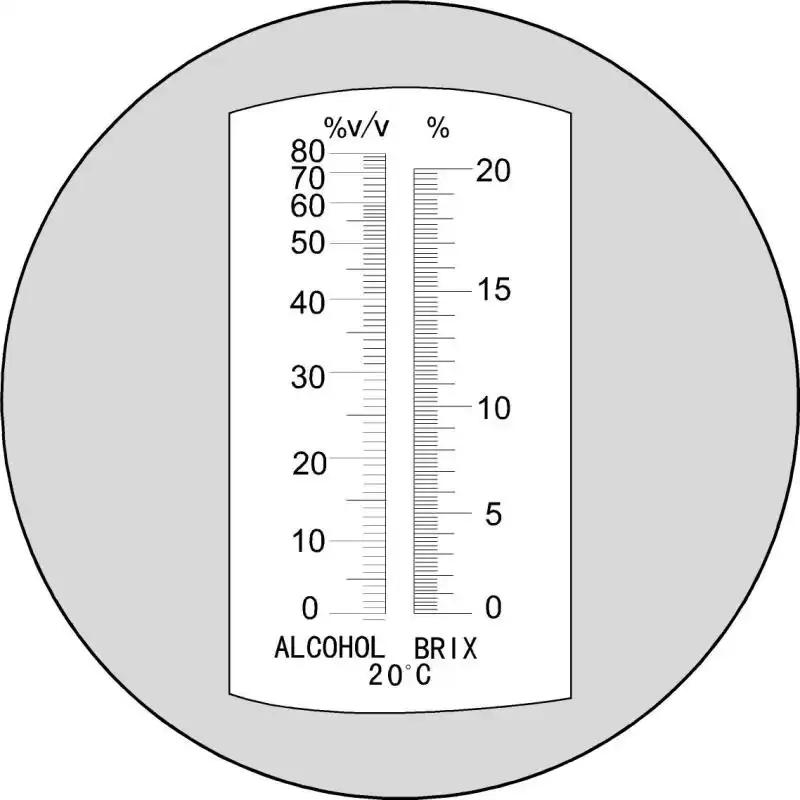

- Dual-Scale Measurement
Quickly measure both alcohol concentration and sugar content without switching device

- Copper Body
The prism base and eyepiece are made of copper. This improves durability and eliminates measurement errors caused by oxidation, corrosion, or deformation.

- Crown Glass Prism
The prism is made of crown glass to reduce refractive deviation, further improving accuracy.

- Temperature Compensation
Built with ATC function, extending its effective temperature range to 10–30°C, compared to the standard 20°C




Typical Applications

- Fermentation Monitoring
Track sugar reduction and alcohol increase during high-alcohol fermentation processes

- Distilleries
Measure alcohol strength in spirits such as whiskey, vodka, rum, and gin during production and quality control.

- Alcohol Production anf Sales
Verify compliance with product specifications and regulatory standards.



Product Parameters
Model RHW-80aA
Net Weight 0.27kg
Length 203mm
Diameter 29mm
Temperature Range

10℃ to 30℃ with ATC

20℃ without ATC

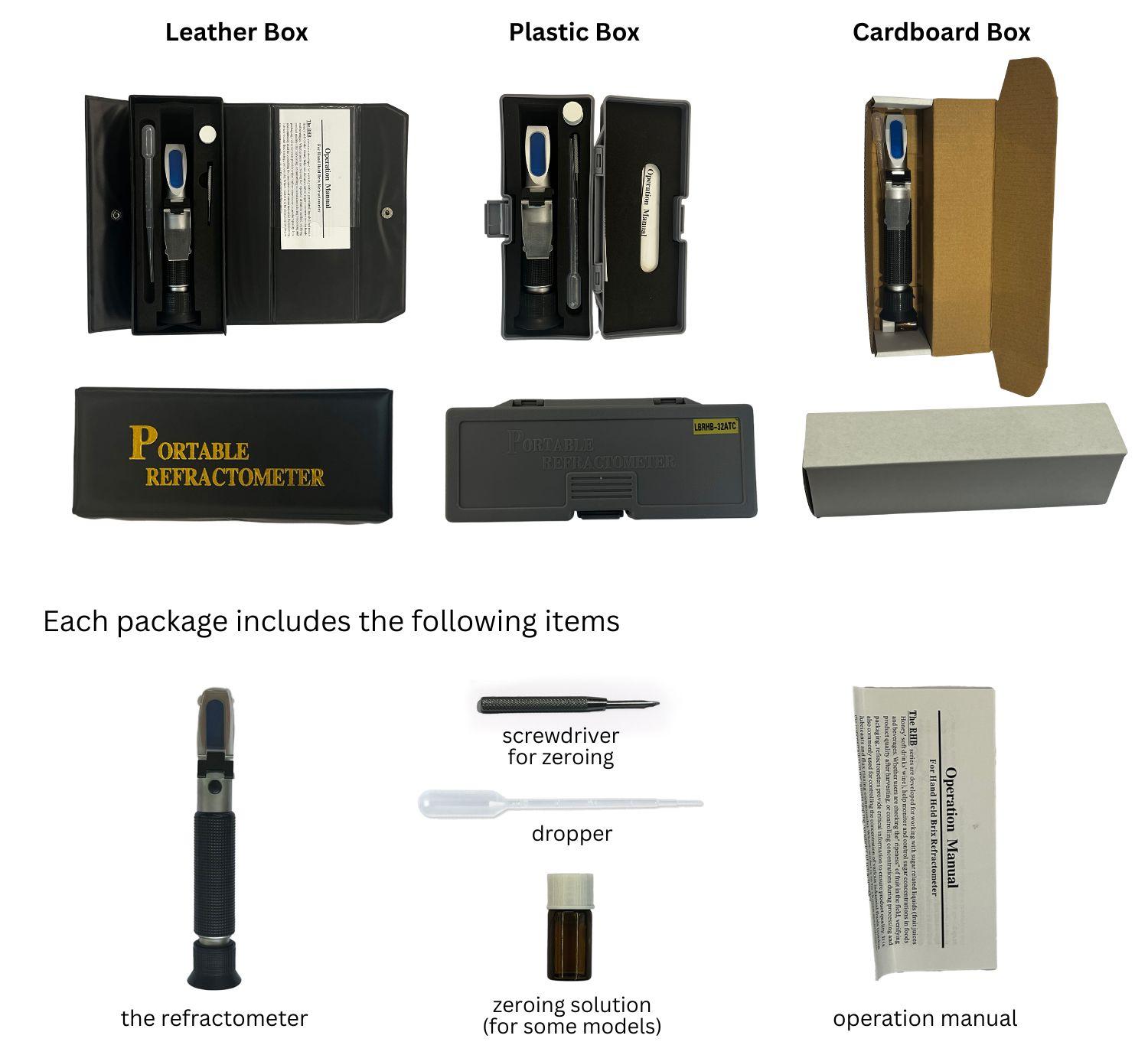

Packaging
We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.
If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.

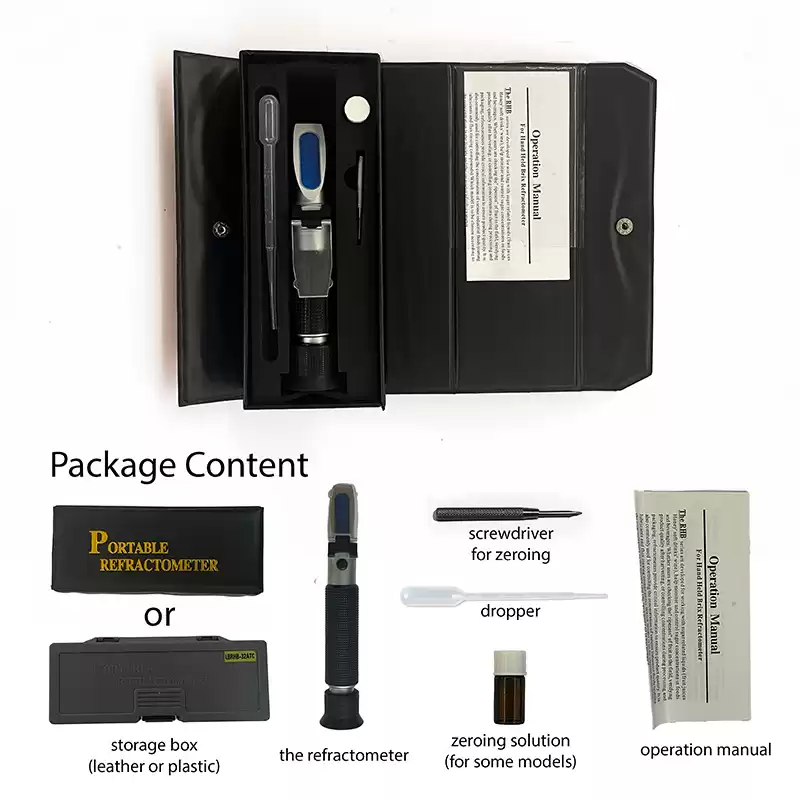

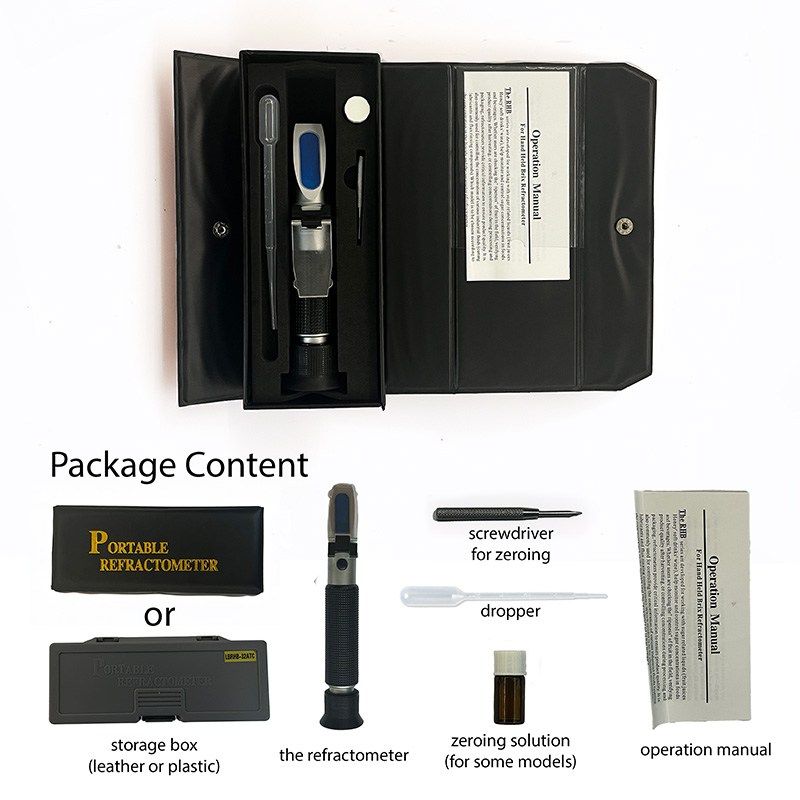

Handheld Refractometer Packaging Options and Content

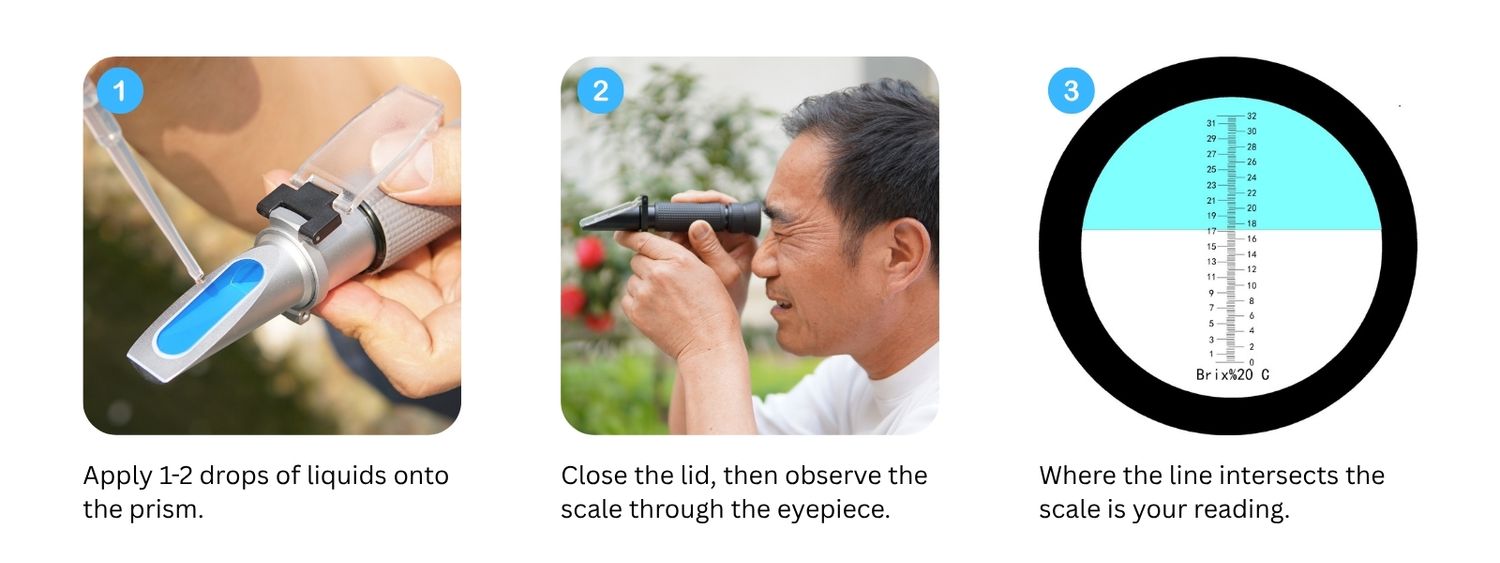

Instruction of Use
Handheld Refractometer Instruction of Use


After-Sale Services



At Lindian Technology, we take pride in providing only premium-quality refractometers. If any of our products is found to be defective upon arrival, we will replace the defective unit free of charge.

In addition, we offer a free replacement warranty for a period of three years, along with free lifetime maintenance and calibration services.
