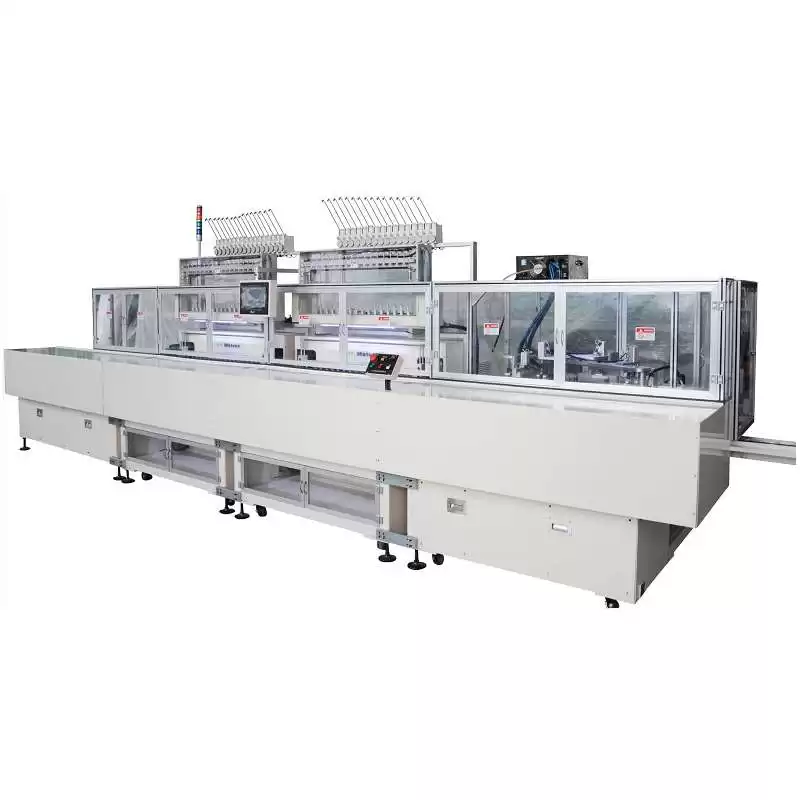

Full Automatic Coil Production Line
1. This Full Automatic Coil Production Line is suitable for large bobbin coils, such as contactor coils, solenoid valves, etc.
2.Two High Efficiency Automatic Winding Machines are connected in parallel to increase production capacity. The space between winding machines can be reached 150mm.
3.Welding processes include dip soldering, high frequency welding, resistance welding, laser welding and other processes, which are selected according to the specific product process.
4.Multiple processes can be integrated: loading, terminal insertion, wire winding, stranding, rubber-coated cloth, welding, terminal bending, resistance testing, pressure testing, laser marking, stacking, etc.
Technical Parameter:
|
Model #
|
STC-1902
|
|
Control System
|
YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)
|
|
Spindle Number
|
16
|
|
Spindle Pitch
|
36mm
|
|
Spindle speed
|
MAX.20,000RPM
|
|
Moving precision
|
±0.01mm
|
|
Wire range
|
0.02-0.5mm
|
|
Max. coiling diameter
|
Ф28mm
|
|
Max. coiling Width
|
40mm
|
|
Traverse moving range
|
X：80 mm，Y：60mm，Z：60mm
|
|
Revolution angle
|
± 1°
|
|
End processing number
|
Not limited
|
|
End processing speed
|
Max. 150/minute
|
|
End process angle
|
Vertical, Horizontal, 45 °as requested
|
|
Station number of soldering machine
|
8
|
|
Max. temperature of the soldering pot
|
520℃
|
|
Machine Size
|
3800(L)*2500(W)*1800(H)mm
|
|
Machine weight
|
2400kg
|
|
Power voltage
|
AC 380V 50HZ
|
|
Power consumption
|
7KVA
|
|
Air pressure
|
0.45-0.65Mpa
|
