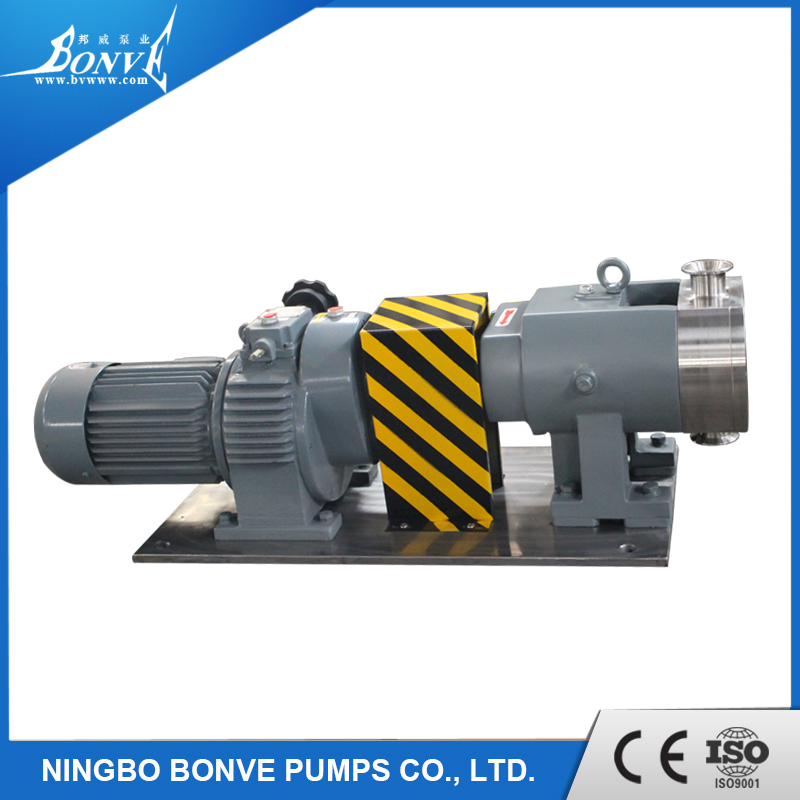

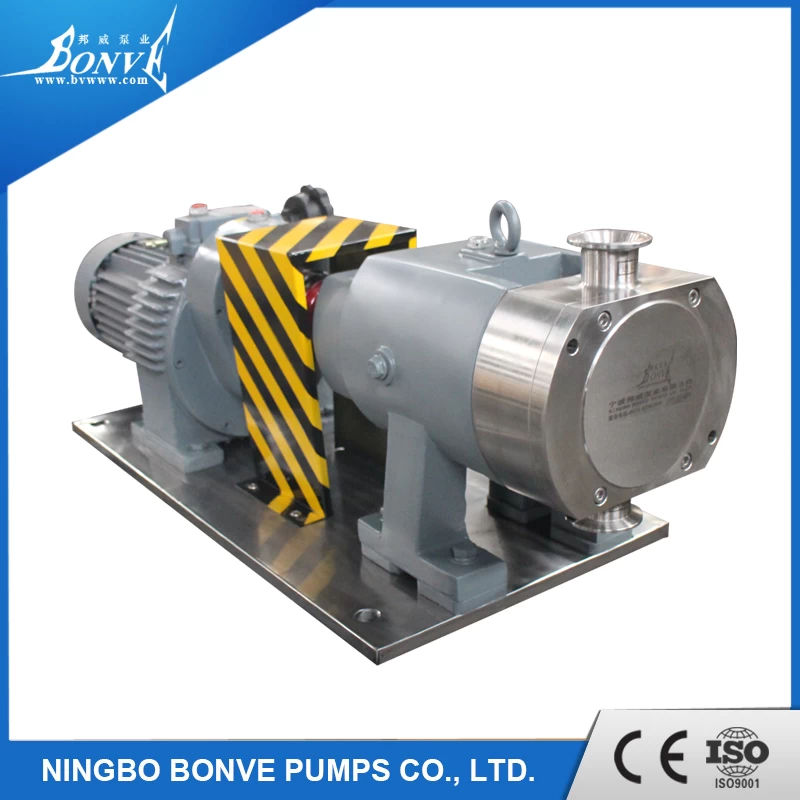

Bonve rotary Lobe Pumps for honey
Honey is a sweet, viscous food substance produced by bees and some related insects. Over its history as a food, the main uses of honey are in cooking, baking, desserts, such as mel i mató, as a spread on bread, as an addition to various beverages, such as tea, and as a sweetener in some commercial beverages. Honey barbecue and honey mustardare other common flavors used in sauces.
The process
Honey processing is a simple food processing industry, and
there is no stereotyped equipment. The honey room is designed according to the
capacity requirement and the temperature index. Honey production line equipment
includes honey tanks, storage tanks, reaction tanks, honey pipes, valves,
filters and transfer pumps. Honey transfer pumps often use stainless steel gear
pumps or stainless steel screw pumps, but usually will face below problems.
The problem
|
Screw pumps
|
|
Heavy damage might be
caused due to dry run
|
|
Sensitive to the change
of viscosity
|
|
The fluid may leak out of
the pump body and cause pollution to the environment and the pump body.
|
|
Maintenance is
inconvenient
|
|
Gear pump
|
|
The inter-tooth groove of
the end cap and gear constitutes a number of fixed sealing working chambers,
which can only be used as a dosing pump
|
|
Unbalanced radial force,
large flow artery, high noise
|
|
Low efficiency, poor
interchangeability of parts, difficult to repair after wear
|
|
High cost of wearing part
to replace
|
The solution
Advantages of Bonve
Rotary Lobe Pumps
-
Ability to pump abrasive media
-
Non-contacting pump head design enhances the pump’s ability
to handle abrasive crystalline slurries, whilst minimizing product damage and raise production
-
Cost effective easy maintenance
-
Low running and maintenance costs and easy access to pump head
minimizing downtime, results in a reduced life cycle cost.
-
Low energy consumption
-
Lower power requirements than other pump technologies.
-
Compact design
-
Occupies considerably less floor space than other pump
technologies.
How pump works?
The even rotation of the rotor pair creates a vacuum on the
priming side of the pump, which can be defined by the direction of rotation of
the drive. This vacuum draws the liquid into the pump chamber. With further
rotation, the pumped medium is conveyed past the pump wall into the pressure
area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a
standstill, the pump seals off almost
completely.

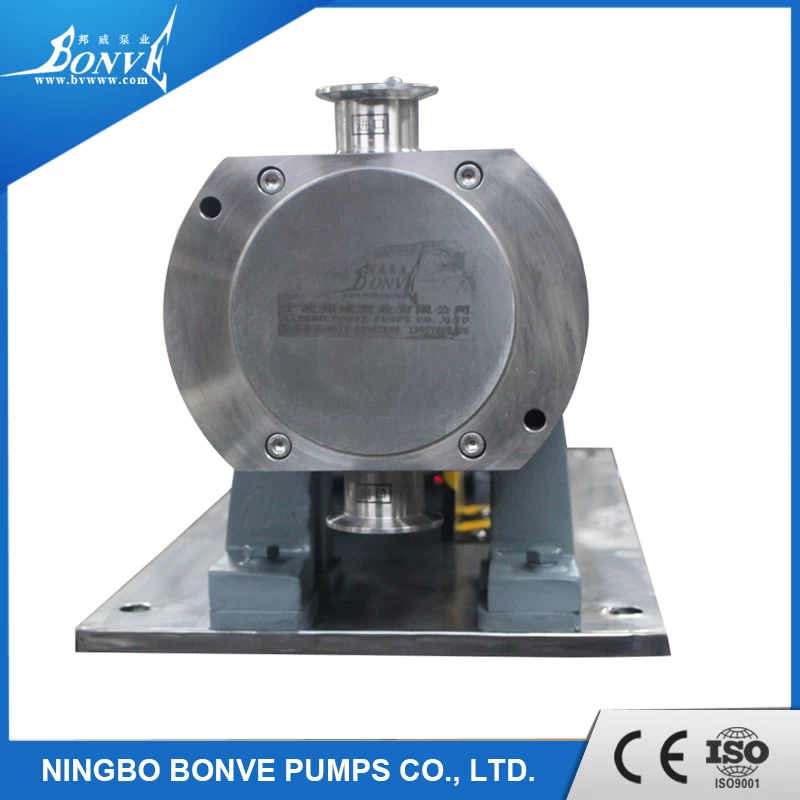

Pump
main structure
Pump
structure advantage
Pump main technical parameters
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Dis.
Pre.
(Mpa)
|
Electrical
power
(Kw)
|
Suc.
Pre.
(Mpa)
|
Dia.
of inlet and
outlet (mm)
|
|
25BV6 /12-2
|
0.15
|
20-600
|
2
|
0.1-1.2
|
1.1-2.2
|
-0.095
|
25
|
|
40BV6 /12-5
|
0.32
|
20-550
|
5
|
0.1-1.2
|
1.5-4
|
-0.095
|
40
|
|
50BV6 /12-10
|
0.65
|
20-550
|
10
|
0.1-1.2
|
2.2-7.5
|
-0.095
|
50
|
|
65BV6 /12-20
|
1.74
|
20-550
|
20
|
0.1-1.2
|
4-15
|
-0.095
|
65
|
|
80BV6 /12-30
|
2.48
|
20-550
|
30
|
0.1-1.2
|
5.5-22
|
-0.095
|
80
|
|
80BV6 /12-40
|
3.65
|
20-550
|
40
|
0.1-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV6 /12-50
|
4.60
|
20-550
|
50
|
0.1-1.2
|
11-45
|
-0.095
|
125
|
|
125BV6 /12-70
|
6.10
|
20-550
|
70
|
0.1-1.2
|
15-55
|
-0.095
|
125
|
|
125BV6 /12-80
|
7.63
|
20-550
|
80
|
0.1-1.2
|
18.5-75
|
-0.095
|
125
|
How
to choose our pump?
|
Selection Guideline
|
|
Liquid
name:___________
|
|
Viscosity:_______cp Density:_______
Temperature:_____℃ PH
value:________
|
|
Solid content:_______ Max. size of particle:_______
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
|
|
Connection type required: Thread [ ] Clamp [ ]
|
|
Installation type: Fixed [ ] Movable[ ]
|
|
Voltage:____ V Frequency: _____Hz
|
|
Liquid contact material: SS304[ ] 316[ ] 316L[ ]
|
|
Special
request_____________________________________
|
|
Order qty.
|
Thanks
for your interest into our rotary lobe pump, hope we can solve your pumping
problem during your honey production. Contact our sales engineer - Mr. Andre
Chen for a pump solution.
