Product Name

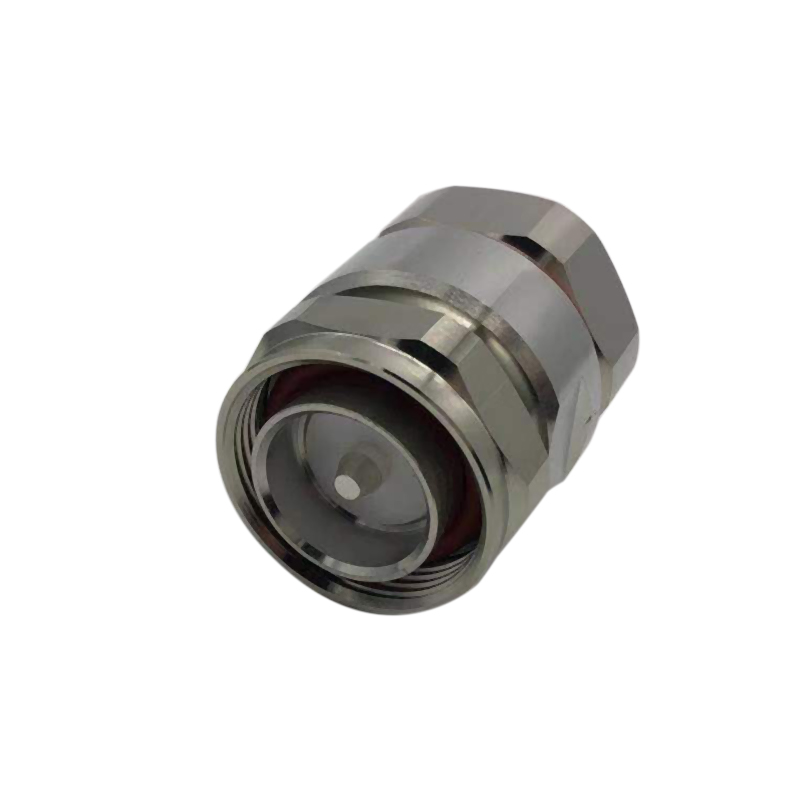

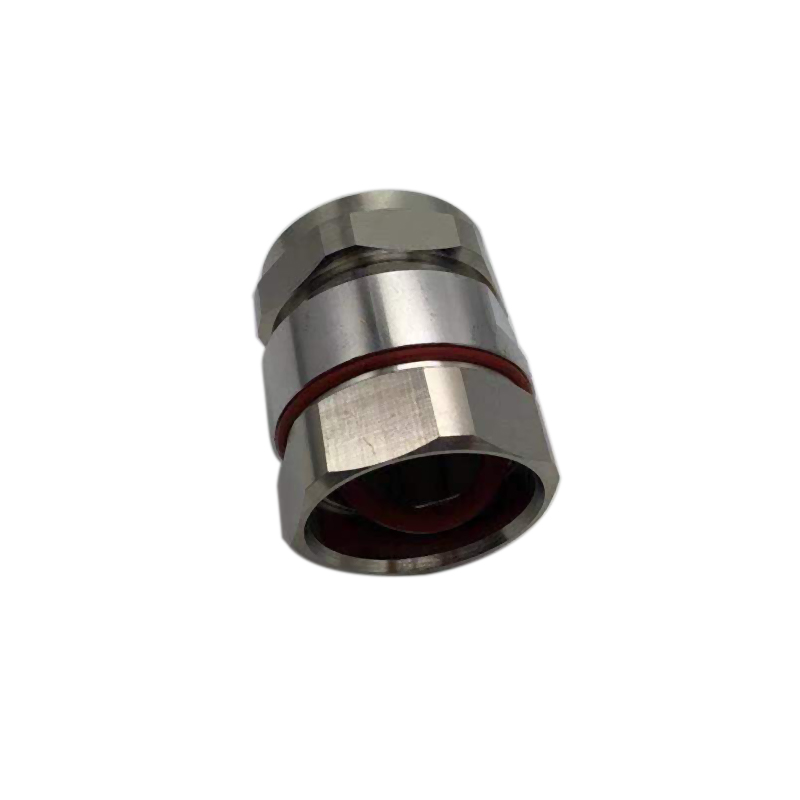

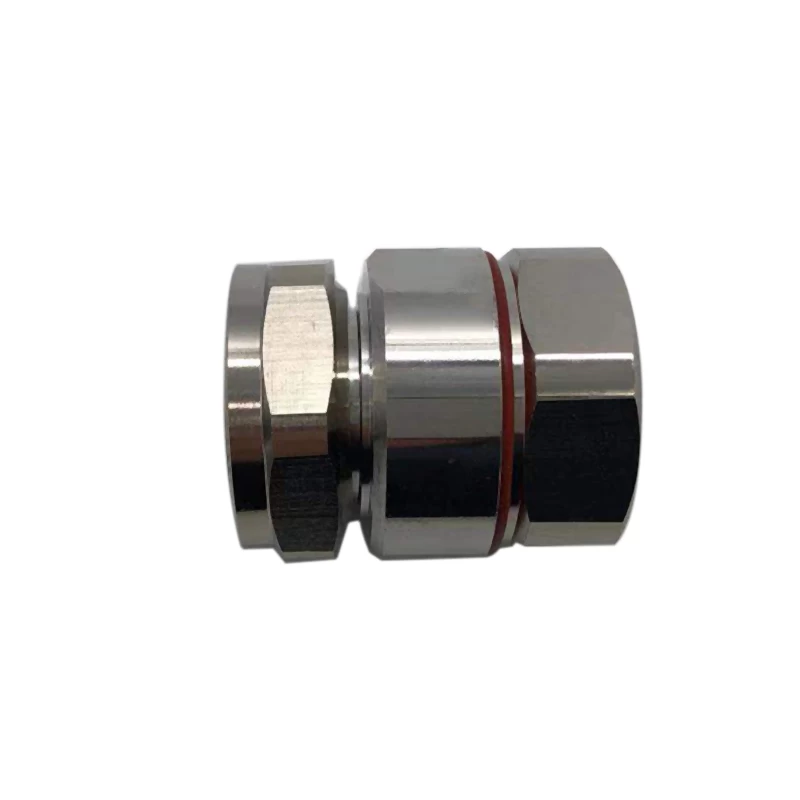

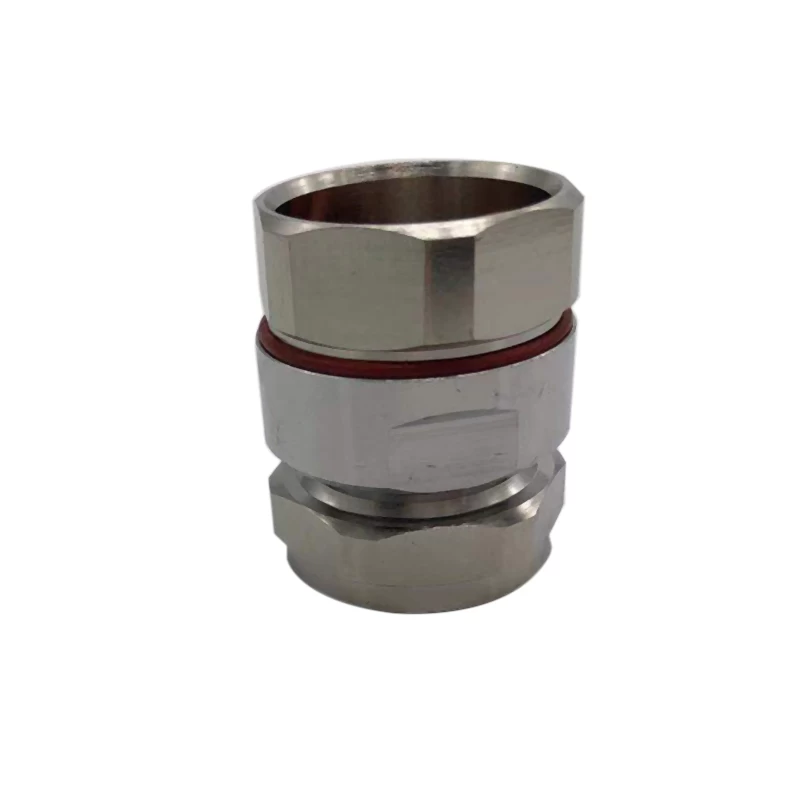

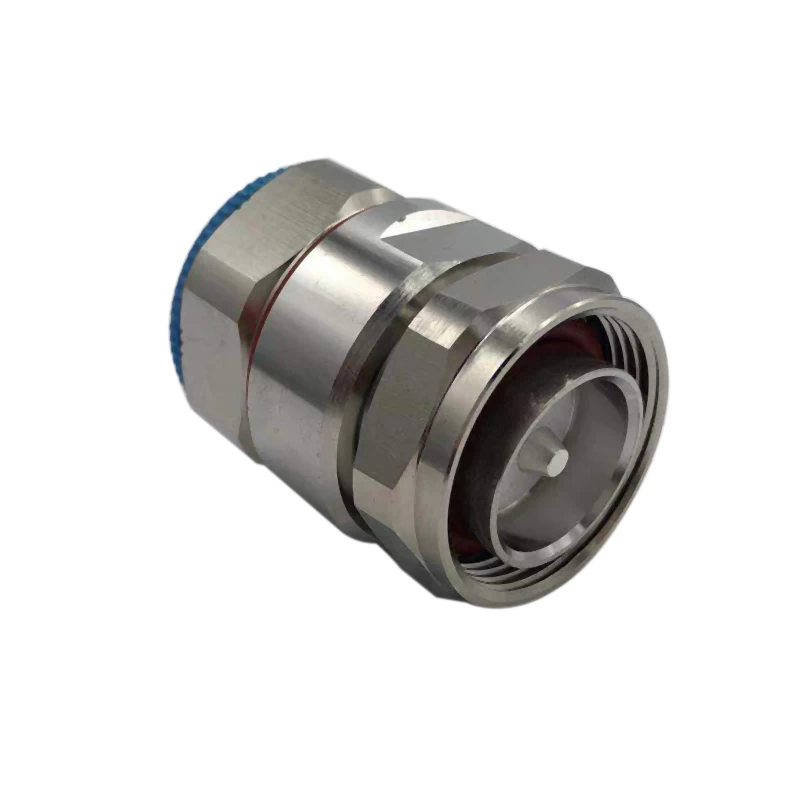

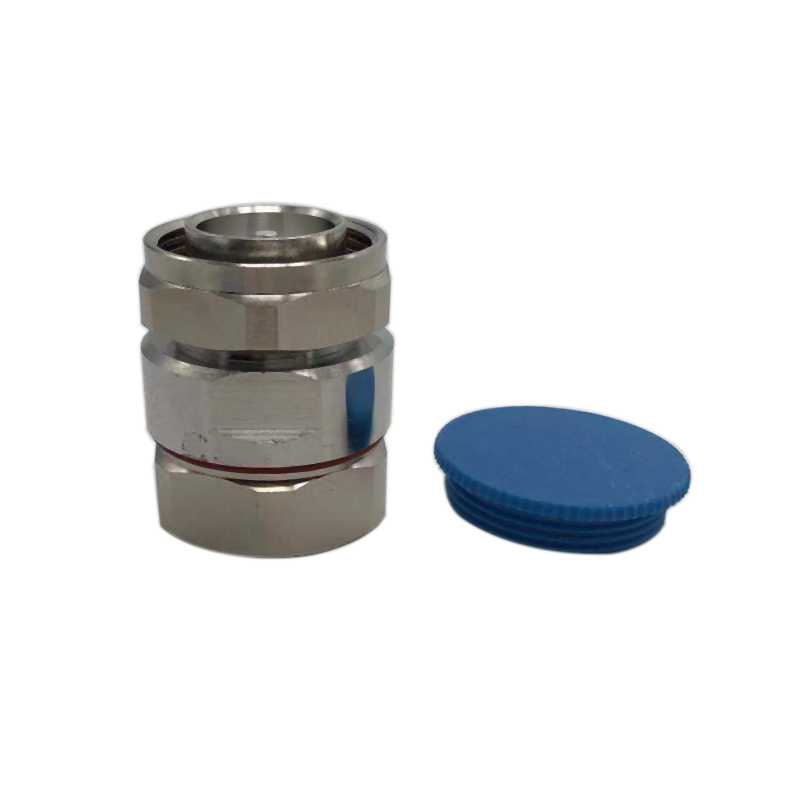

The 7/16 DIN Male series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and intermodulation distortion (IMD).
RF connectors are very robust, extremely stable and mostly with waterproof specifications, making them ideal for applications where vibration resistance and environmental protection is important. Because they are designed to minimize signal distortion from intermodulation, 7/16 connectors are especially suitable for base stations and broadcast communication systems.
Product Features
RF Coaxial connector, DIN Male connector is Low VSWR and excellent impedance matching
Technical &Mechanical Specifications
|
Model No.
|
MN-C--03-DM-7/8
|
|
Interface
|
According to IEC 60169-4
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric withstanding Voltage
|
≥4000V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥10000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.3M ohms
|
|
VSWR
|
≤1.12
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
