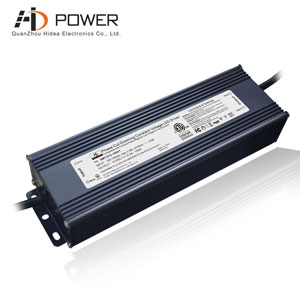

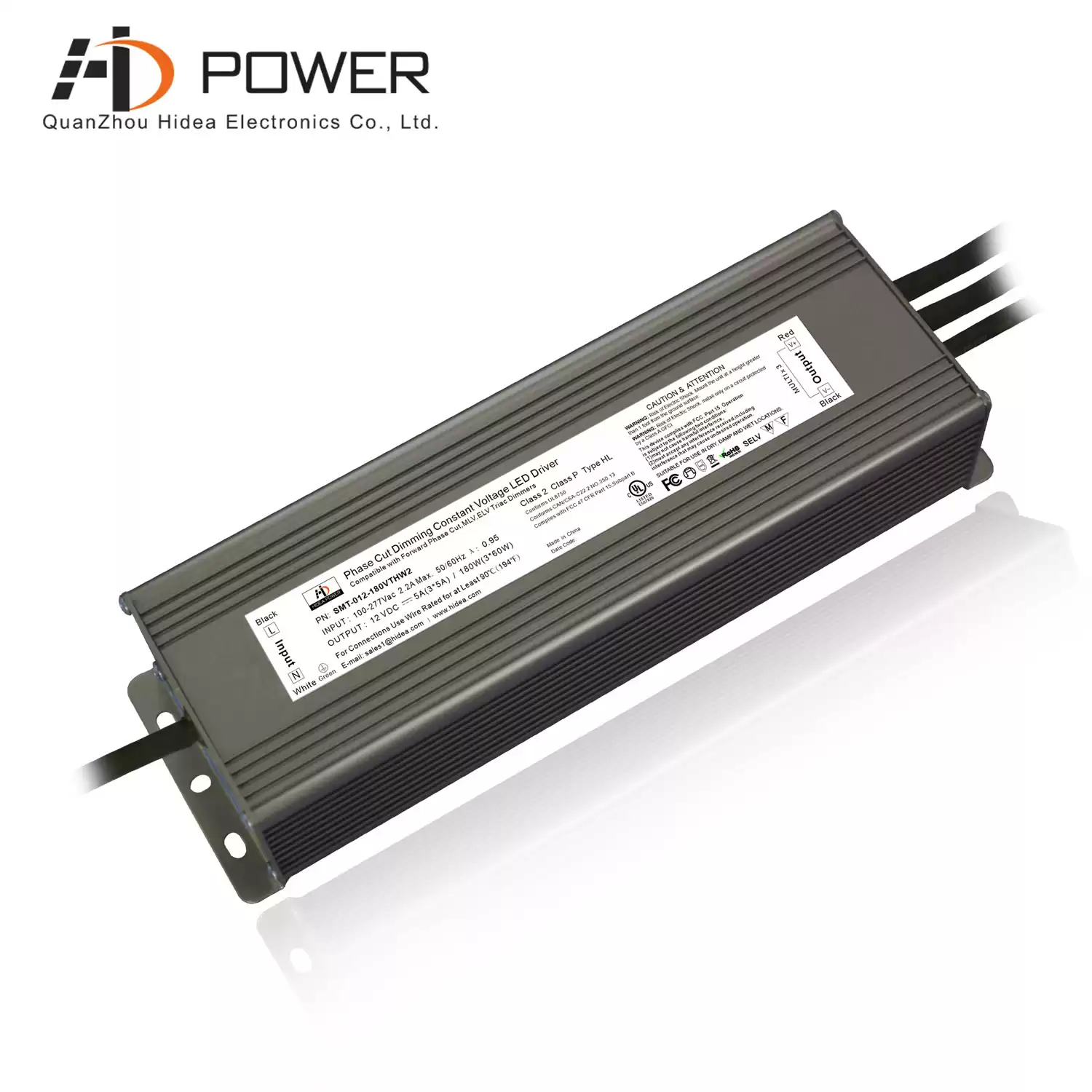

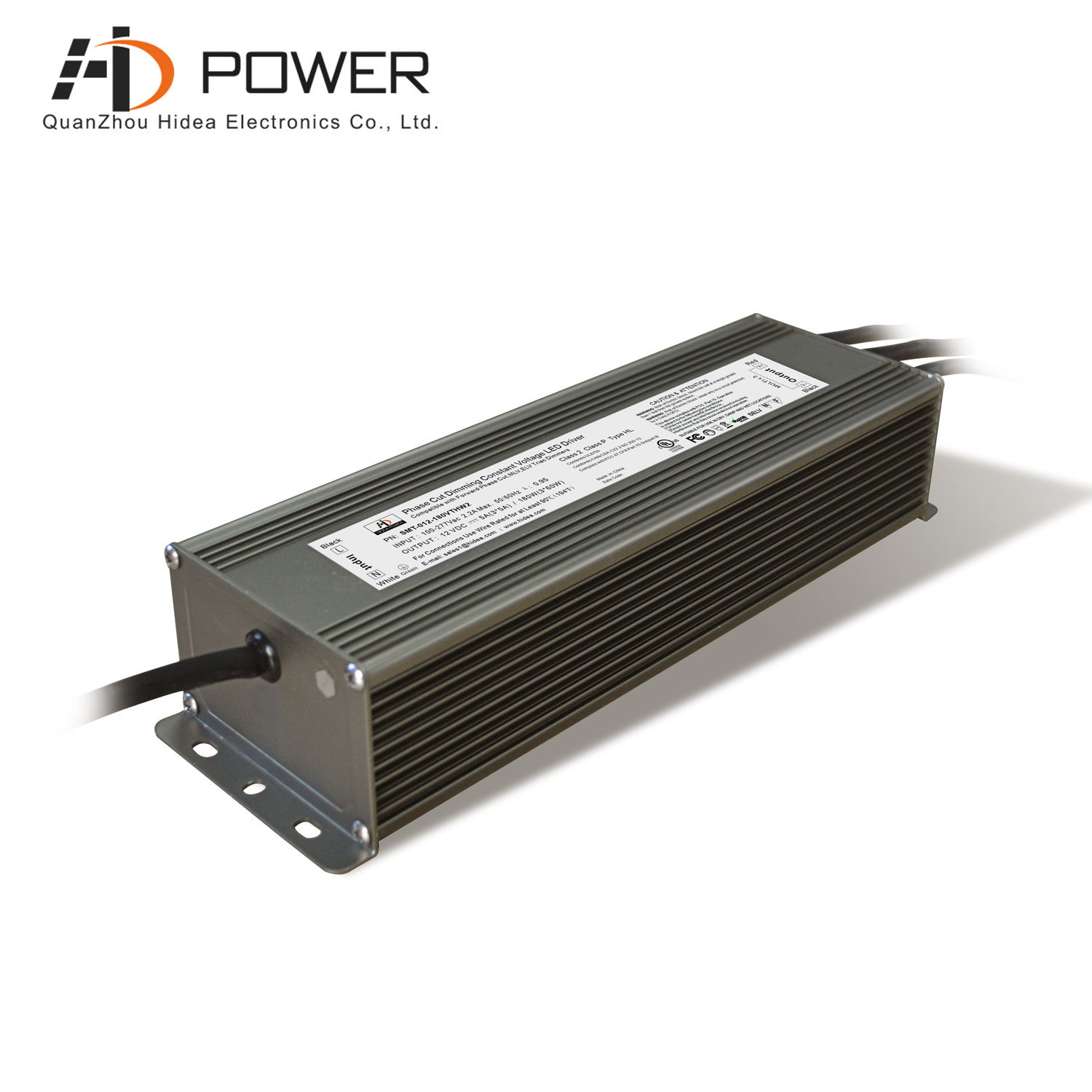

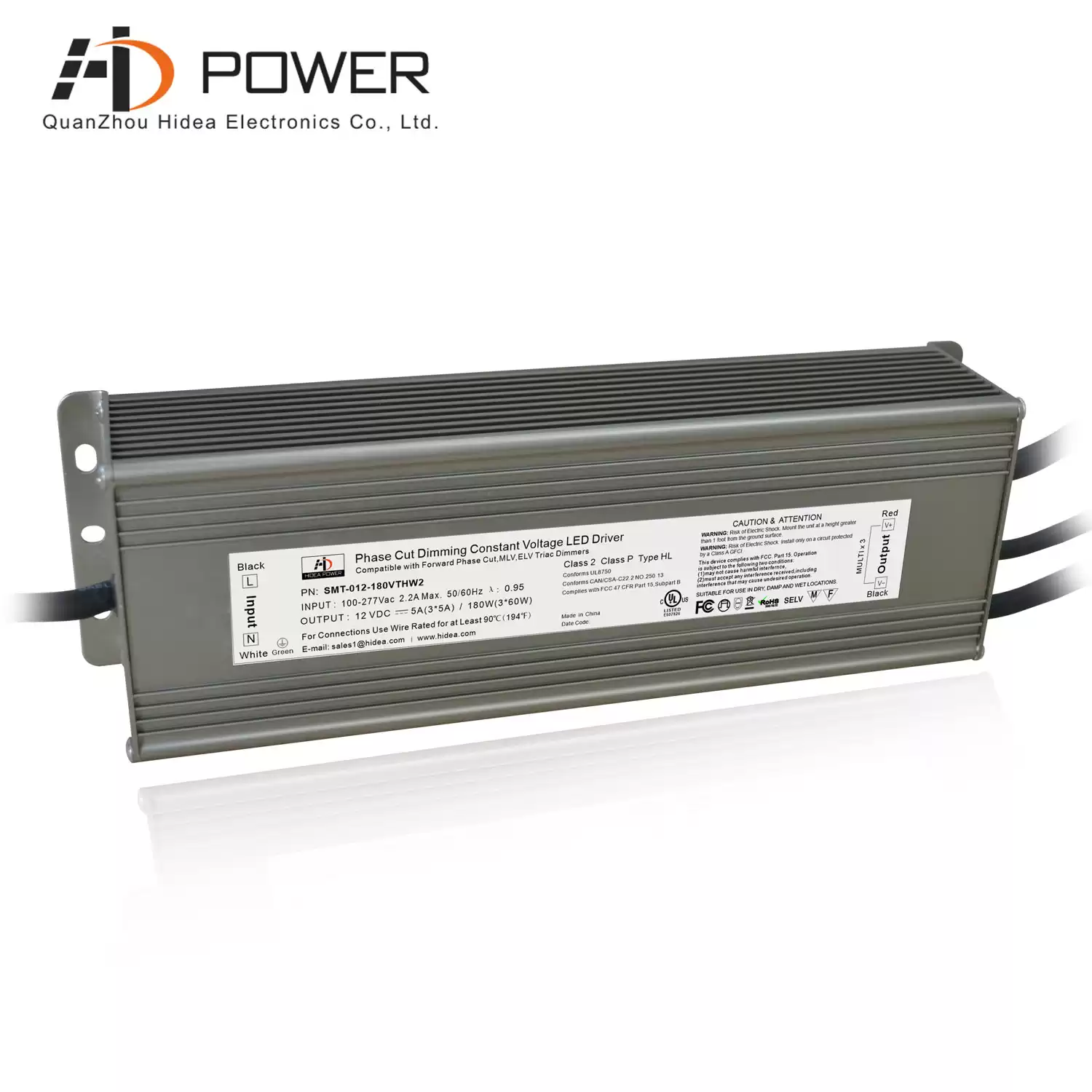

high power 180W electronic triac dimmable constant voltage led strip lights driver
Class P high power waterproof led driver 180W triac dimming built in PFC function, PF>0.98, constant voltage working mode, efficiency >89%, with short circuit, overload, over temperature protection design
Specification
|
model
|
SMT-012-180VTHW2
|
SMT-024-192VTHW2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
15.0A (3*5A)
|
8.0A (2*4A)
|
|
Rated power
|
180W
|
192W
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Load Regulation
|
±1%
|
±1%
|
|
Voltage Regulation
|
±0.5%
|
±0.5%
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
86%@120V 88%@277VAC
|
87%@120V 89%@277VAC
|
|
AC Current(Typ.)
|
2.2A@100VAC
|
2.3A@100VAC
|
|
Inrush Current (Typ.)
|
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
|
|
Leakage current
|
﹤0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
|
|
Others
|
Net Weight
|
1.7Kg
|
|
Size
|
276*78*47mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
