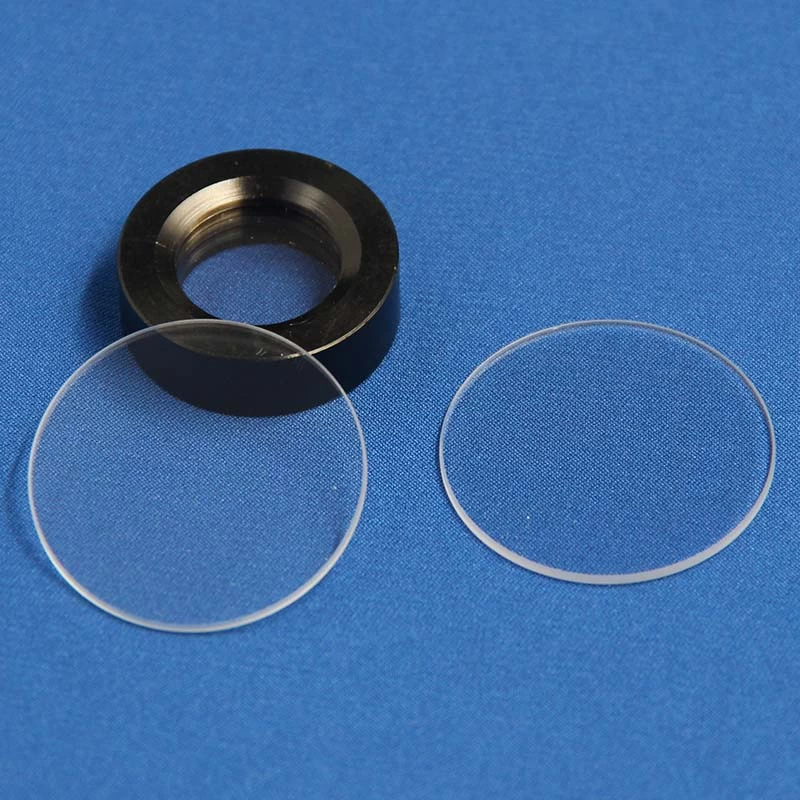

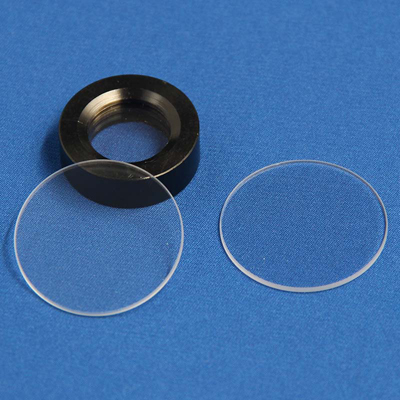

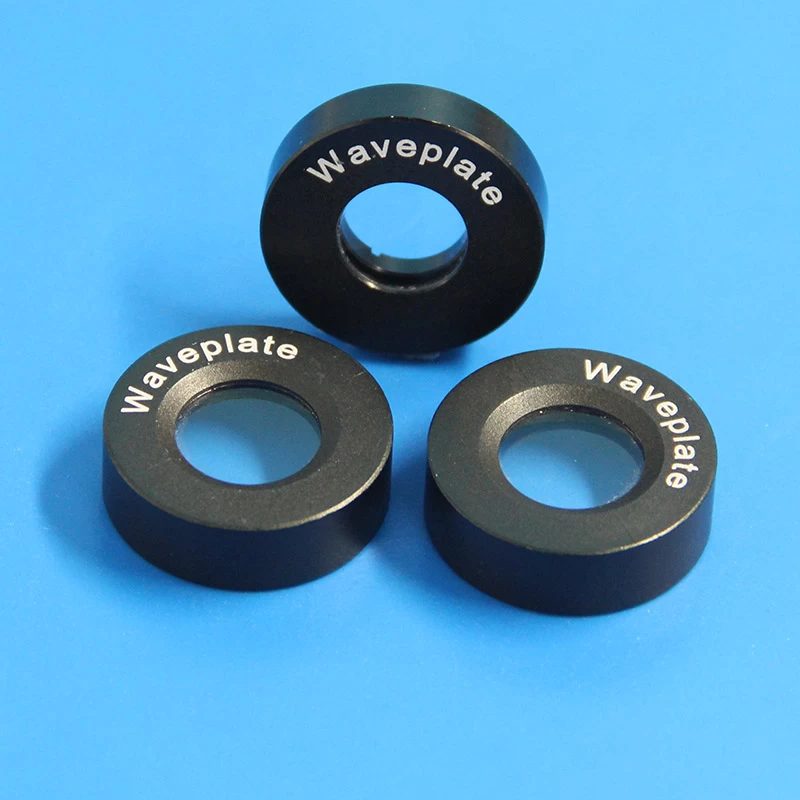

High Precision Dual Wavelengths Waveplate
Dual wavelength waveplate is a multiple waveplate that provide a specitfic retardance at two different wavelengths, it's particularly useful when used in conjunction with other polarization sensitive components to separate coaxial laser beams of different wavelength.
1. Operates as λ/2 @ λ1 & as λ/4 @ λ2
2. Dual Wavelength Operation 532 nm/1064 nm
3. High Damage Threshold
|
Specifications:
|
|
|
Type:
|
Half Waveplates Quarter Waveplates
|
|
Material:
|
Crystal Quartz
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Surface quality:
|
20-10
|
|
Clear Aperture:
|
>90%
|
|
Wavefront Distortion:
|
λ/8@632.8nm
|
|
Parallelism:
|
3 arc sec
|
|
Retardation tolerance:
|
λ/300
|
|
Coating:
|
AR/AR coating ,R<0.2% at central wavelength
|
|
Standard wavelengt:
|
532nm & 1064nm
|
|
|
|
Typical Sizes:
|
|
|
Size(mm)
|
Size(mm)
|
|
Φ 5.0
|
Φ20.0
|
|
Φ10.0
|
Φ25.4
|
|
Φ12.7
|
Φ30.0
|
|
Φ15.0
|
Φ38.1
|
