High Presion Double Convex Lenses and Bi-convex Lenses

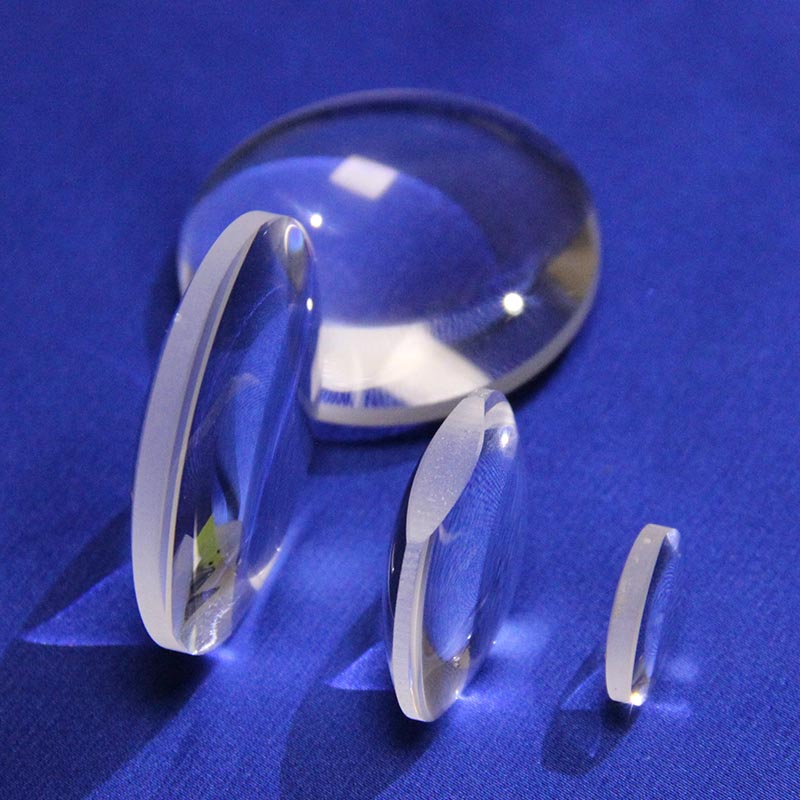

Double Convex Lenses(Bi-convex Lenses) have two outward curved surfaces, a positive focal length and are useful for 1:1 imaging and in multi-element systems.These lenses are designed to have a focal length of f= (R1*R2)/((n-1)*(R2-R1)).
1. Supported by the Zemax Optical Design Package
2. Posistive Focal Length
3. Material upon requirement
WTS offer customize Double Convex Lenses products.
Material:
|
Optical glass, BK7, Fused Silica, Schott, OHARA, CaF2, Germanium etc.
|
Dimension Tolerance:
|
±0.1mm(Standard), ±0.01mm(High Precision)
|
Center Thickness Tolerance:
|
±0.1mm(Standard), ±0.02mm(High Precision)
|
Paraxial Focal Length:
|
±2%
|
Surface quality:
|
60/40(Standard), 20/10(High Precision)
|
Clear Aperture:
|
>85%
|
Surface Figure:
|
λ/2(Standard), λ/8(High Precision) @633nm
|
Centration:
|
3 arc minutes
|
Bevel:
|
<0.25mm×45°
|
Coating:
|
Upon requirement
|
|

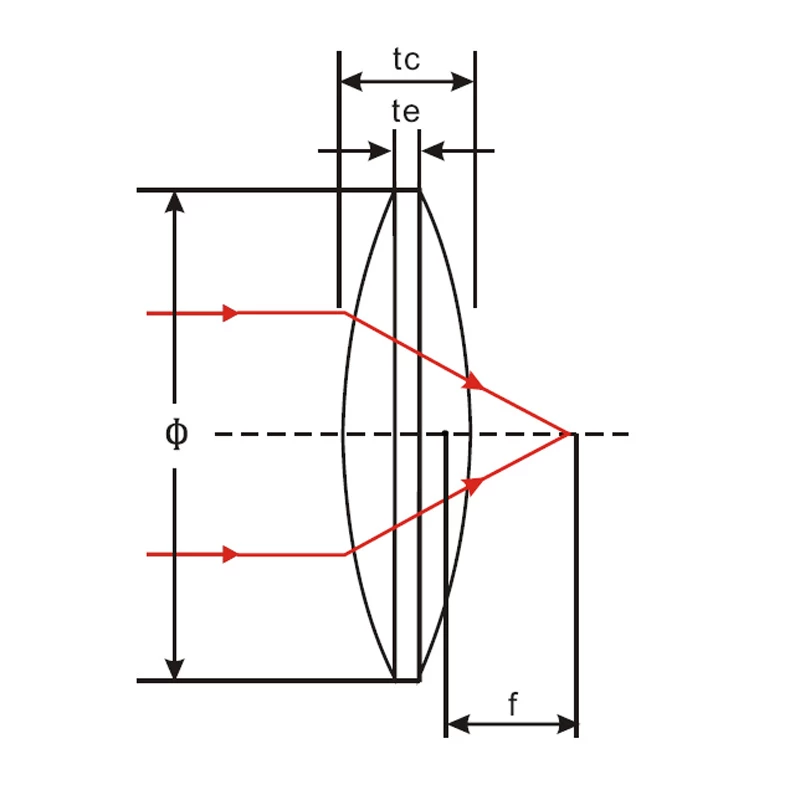

Typical Sizes
|
|
|
|
|
|
|
|
Item No.
|
Φ(mm)
|
f(mm)
|
R2=R2(mm)
|
Tc(mm)
|
Te(mm)
|
Fb(mm)
|
|
Material
|
N-BK7
|
|
BICX001
|
6
|
15
|
15.2
|
2.1
|
1.5
|
14.3
|
|
BICX002
|
6
|
30
|
30.83
|
1.79
|
1.5
|
29.42
|
|
BICX101
|
12.7
|
15
|
14.65
|
4.89
|
2
|
13.27
|
|
BICX102
|
12.7
|
20
|
20.04
|
4.07
|
2
|
18.62
|
|
BICX103
|
12.7
|
25
|
25.35
|
3.62
|
2
|
23.82
|
|
BICX104
|
12.7
|
30
|
30.55
|
3.33
|
2
|
28.89
|
|
BICX105
|
12.7
|
40
|
41.02
|
2.99
|
2
|
39.04
|
|
BICX106
|
12.7
|
50
|
51.4
|
2.79
|
2
|
49.08
|
|
BICX107
|
12.7
|
75
|
77.45
|
2.52
|
2
|
74.24
|
|
BICX108
|
12.7
|
100
|
103.28
|
2.39
|
2
|
99.16
|
|
BICX201
|
25.4
|
25
|
24.72
|
9.02
|
2
|
22.24
|
|
BICX202
|
25.4
|
31.7
|
31.55
|
7.34
|
2
|
29.15
|
|
BICX203
|
25.4
|
35
|
35.08
|
6.76
|
2
|
32.66
|
|
BICX204
|
25.4
|
50
|
50.93
|
5.22
|
2
|
48.22
|
|
BICX205
|
25.4
|
75
|
77.09
|
4.11
|
2
|
73.63
|
|
BICX206
|
25.4
|
100
|
103.04
|
3.57
|
2
|
98.73
|
|
BICX207
|
25.4
|
125
|
129.12
|
3.25
|
2
|
123.92
|
|
BICX208
|
25.4
|
150
|
155.1
|
3.04
|
2
|
149
|
|
BICX209
|
25.4
|
175
|
181.13
|
2.89
|
2
|
174.12
|
|
BICX210
|
25.4
|
200
|
207
|
2.78
|
2
|
199.07
|
|
BICX211
|
25.4
|
250
|
258.9
|
2.62
|
2
|
249.12
|
|
BICX212
|
25.4
|
300
|
310.8
|
2.52
|
2
|
299.17
|
|
BICX213
|
25.4
|
500
|
518.3
|
2.31
|
2
|
499.21
|
|
BICX214
|
25.4
|
1000
|
1037.1
|
2.16
|
2
|
999.32
|
|
BICX301
|
30
|
50
|
50.7
|
6.54
|
2
|
47.77
|
|
BICX302
|
30
|
500
|
518.3
|
2.43
|
2
|
499.19
|
|
BICX303
|
38
|
45
|
44.87
|
10.44
|
2
|
41.46
|
|
BICX304
|
38
|
50
|
49.97
|
10.5
|
3
|
46.4
|
|
BICX305
|
38
|
100
|
102.57
|
6.55
|
3
|
97.78
|
|
BICX306
|
38
|
150
|
154.7
|
5.34
|
3
|
148.23
|
|
BICX307
|
38
|
200
|
206.7
|
4.75
|
3
|
198.46
|
|
BICX308
|
38
|
350
|
362.4
|
4
|
3
|
348.66
|
|
BICX309
|
38
|
500
|
518.1
|
3.7
|
3
|
498.79
|
|
BICX310
|
38
|
700
|
725.6
|
3.5
|
3
|
698.84
|
|
BICX401
|
40
|
63.5
|
64.42
|
8.27
|
1.9
|
60.7
|
|
BICX501
|
50
|
100
|
102.06
|
9.2
|
3
|
96.9
|
|
BICX502
|
50
|
150
|
154.27
|
7.1
|
3
|
147.6
|
|
BICX503
|
50
|
200
|
206.28
|
6
|
3
|
198
|
|
BICX504
|
50
|
250
|
258.22
|
5.4
|
3
|
248.2
|
|
BICX505
|
50
|
400
|
413.87
|
4.5
|
3
|
398.5
|
|
BICX506
|
50
|
450
|
465.73
|
4.3
|
3
|
448.6
|
|
BICX507
|
50
|
500
|
517.58
|
4.2
|
3
|
448.6
|
|
BICX508
|
50
|
600
|
621.28
|
4
|
3
|
598.7
|
|
BICX509
|
50
|
800
|
828.64
|
3.8
|
3
|
798.7
|
|
Material
|
Fused Silica
|
|
BICX-FS01
|
6
|
15
|
13.46
|
2.18
|
1.5
|
14.24
|
|
BICX-FS02
|
6
|
30
|
27.29
|
1.83
|
1.5
|
29.34
|
|
BICX-FS03
|
12.7
|
15
|
12.91
|
5.34
|
2
|
13.05
|
|
BICX-FS04
|
12.7
|
20
|
17.7
|
4.36
|
2
|
18.46
|
|
BICX-FS05
|
12.7
|
25
|
22.39
|
3.84
|
2
|
23.66
|
|
BICX-FS06
|
12.7
|
30
|
27.04
|
3.51
|
2
|
28.77
|
|
BICX-FS07
|
12.7
|
40
|
36.31
|
3.12
|
2
|
38.92
|
|
BICX-FS08
|
25.4
|
25
|
21.23
|
10.11
|
2
|
21.14
|
|
BICX-FS09
|
25.4
|
35
|
30.97
|
7.45
|
2
|
32.33
|
|
BICX-FS10
|
25.4
|
50
|
45.08
|
5.65
|
2
|
48.01
|
|
BICX-FS11
|
25.4
|
75
|
68.23
|
4.39
|
2
|
73.39
|
|
BICX-FS12
|
25.4
|
100
|
91.41
|
3.77
|
2
|
98.69
|
|
BICX-FS13
|
25.4
|
150
|
137.5
|
3.18
|
2
|
148.89
|
|
BICX-FS14
|
25.4
|
200
|
183.65
|
2.88
|
2
|
199.09
|
|
BICX-FS15
|
25.4
|
250
|
229.6
|
2.7
|
2
|
249.06
|
|
BICX-FS16
|
25.4
|
300
|
275.6
|
2.59
|
2
|
299.07
|
|
BICX-FS17
|
25.4
|
500
|
459.7
|
2.35
|
2
|
499.19
|
|
BICX-FS18
|
25.4
|
1000
|
919.8
|
2.18
|
2
|
999.24
|
|
BICX-FS19
|
38
|
50
|
44.06
|
11.61
|
3
|
45.81
|
|
BICX-FS20
|
38
|
100
|
90.99
|
7.01
|
3
|
97.67
|
|
BICX-FS21
|
38
|
150
|
137.09
|
5.65
|
3
|
148.01
|
|
BICX-FS22
|
38
|
200
|
183.23
|
4.98
|
3
|
198.27
|
|
BICX-FS23
|
38
|
350
|
321.4
|
4.12
|
3
|
348.58
|
|
BICX-FS24
|
38
|
500
|
459.5
|
3.79
|
3
|
498.72
|
|
BICX-FS25
|
38
|
750
|
689.5
|
3.52
|
3
|
748.73
|
|
BICX-FS26
|
38
|
1000
|
919.6
|
3.39
|
3
|
998.82
|
Double-Convex
lenses have the same radius of curvature on both sides of the lens and
function similarly to plano-convex lenses by focusing parallel rays of
light to a single point. As a guideline, double convex lenses perform
with minimum aberration at conjugate ratios between 5:1 and 1:5.
