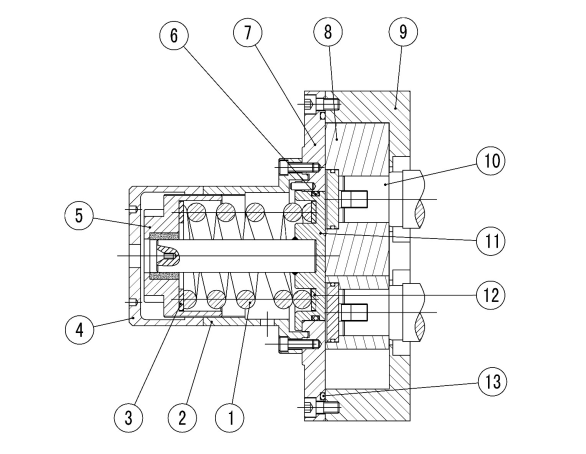

Bonve high pressure electric lobe pump, equipped with pressure relief valve, to protect the system from pressure peaks or restrictions in the discharge, providing a pressure relief valve loop from discharge to the suction areas. The safe valve are settled pressure index according to customer requirement. Detailed structures pls refer to below diagrams.
|
1. Spring
|
2. Base
|
3. Shim
|
4. Dust guard
|
5. Adjusting nut
|
|
6. O-ring
|
7. Pump cover
|
8. Rotor
|
9. Pump body
|
10. Shaft
|
|
11. Valve core
|
12. Shim
|
13. O-ring
|
|
|
OTHER TYPES OF PUMP
APPLICATIONS
|
Chemical Industry
|
Acids, Adhesives, Detergents, Horticultural Products, Paints, Petrochemicals, Photographic Solutions, Plastics / Resins, Printing Inks, Solvents
|
|
Pulp and Paper Industry
|
Dyes, Latex, Cooked Starch, Coating Pigments, Anti-foaming agents, CMC, Polymers, Starch Slurry, Specialty Chemicals, Emulsions, Resins, Retention Aids, Sizing agent, Flocculating agent, Dry/wet strength agent, Softening agent/softener
|
|
Soap and Detergents Industry
|
Dishwash Liquid, Dodecyl Benzene Sulphonic Acid, Fabric Conditioner, Fatty Acid, Lye, Neat Soap, Sodium Lauryl Ether Sulphate, Surfactant (AES, LAS, AOS, K12 ), Bathing shampoo, Skin cream , Shampoo, Detergent liquid , Toothpaste, Hair conditionar, Body lotion
|
|
Waste Treatment Industry
|
Primary Sludge, Digested Sludge, Humus Sludge, Raw Sewage, Abattoir Waste, Poultry Waste, Other Industrial Waste
|
WORKING PRINCIPLES
The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.

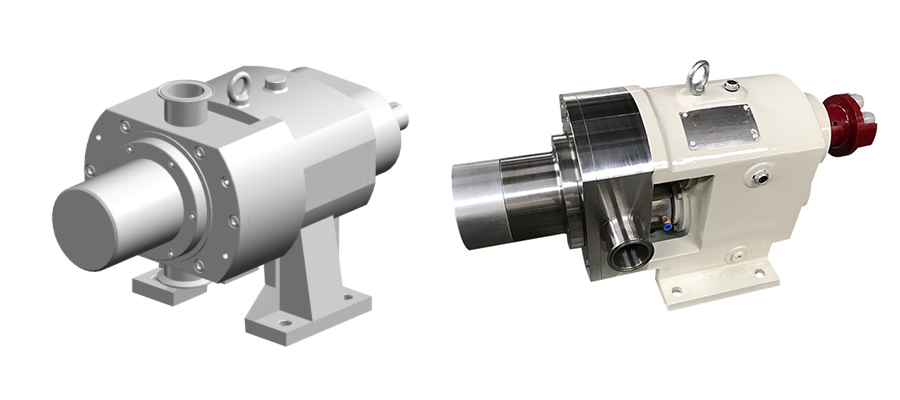

PUMP STRUCTURE DIAGRAM
PUMP DRIVING

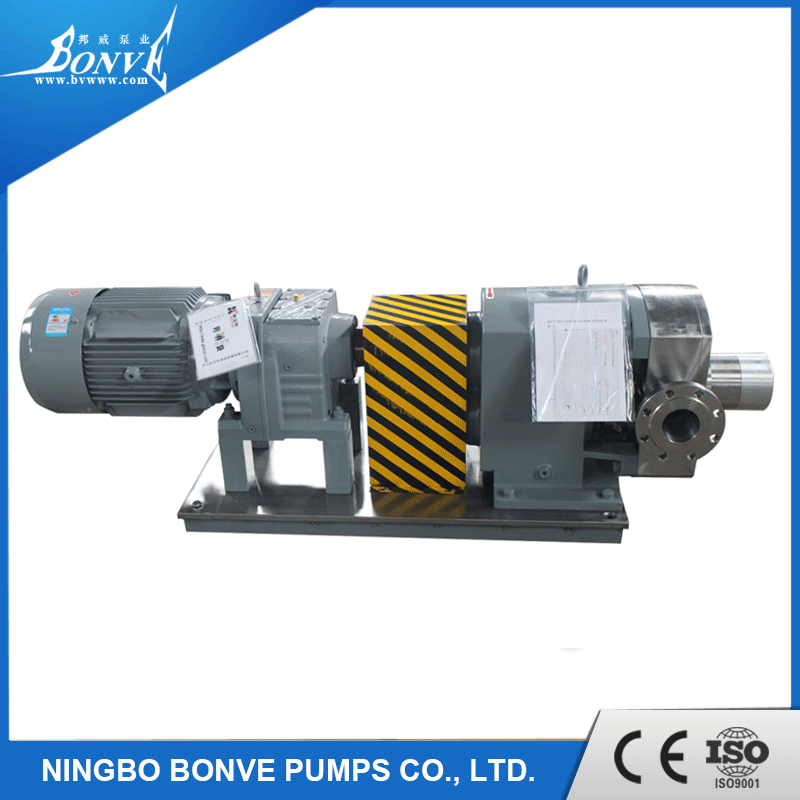

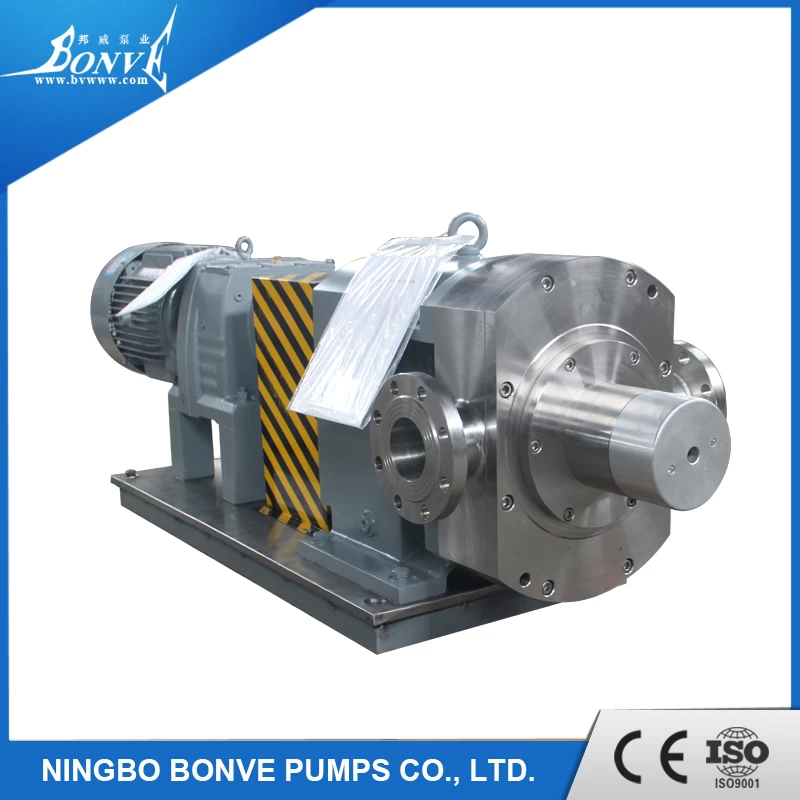

BONVE Lobe pumps can be supplied bare shaft (without drive) or mounted on a base plate with drive. For the drive, geared reducer with motor is commonly used since lobe pumps are generally operate at low to medium speeds i.e. 40 to 600 rev/min. The geared motor is direct coupled to the pump drive shaft via a flexible coupling. Pls refer to the structure. For pump working speed, it can be fixed or regulated as per your request
Fixed Speed
When exact flow is not critical a fixed speed drive is generally used.
Variable Speed
To handle changing duty conditions or a number of different duties, it may be necessary to use a variable speed drive or frequency converter to obtain correct pump duty speeds. The frequency converter allows the operator to change the frequency of the electric motor, thereby changing pump speed and controlling flow.
PUMP TECHNICAL PARAMETERS
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Dis.
Pre.
(Mpa)
|
Electrical
power
(Kw)
|
Suc.
Pre.
(Mpa)
|
Dia. of inlet and
outlet (mm)
|
|
25BV6 /12-2
|
0.15
|
20-600
|
2
|
0.1-1.2
|
1.1-2.2
|
-0.095
|
25
|
|
40BV6 /12-5
|
0.32
|
20-550
|
5
|
0.1-1.2
|
1.5-4
|
-0.095
|
40
|
|
50BV6 /12-10
|
0.65
|
20-550
|
10
|
0.1-1.2
|
2.2-7.5
|
-0.095
|
50
|
|
65BV6 /12-20
|
1.74
|
20-550
|
20
|
0.1-1.2
|
4-15
|
-0.095
|
65
|
|
80BV6 /12-30
|
2.48
|
20-550
|
30
|
0.1-1.2
|
5.5-22
|
-0.095
|
80
|
|
80BV6 /12-40
|
3.65
|
20-550
|
40
|
0.1-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV6 /12-50
|
4.60
|
20-550
|
50
|
0.1-1.2
|
11-45
|
-0.095
|
125
|
|
125BV6 /12-70
|
6.10
|
20-550
|
70
|
0.1-1.2
|
15-55
|
-0.095
|
125
|
|
125BV6 /12-80
|
7.63
|
20-550
|
80
|
0.1-1.2
|
18.5-75
|
-0.095
|
125
|
|
150BV6 /12-120
|
11.56
|
20-420
|
120
|
0.1-1.2
|
22-90
|
-0.095
|
150
|
|
150BV6 /12-150
|
14.22
|
20-420
|
150
|
0.1-1.2
|
37-110
|
-0.095
|
150
|
|
200BV6 /12-200
|
18.10
|
20-420
|
200
|
0.1-1.2
|
45-132
|
-0.095
|
200
|
|
250BV6 /12-250
|
22.92
|
20-420
|
250
|
0.1-1.2
|
55-160
|
-0.095
|
250
|
|
300BV6 /12-300
|
32.00
|
20-420
|
300
|
0.1-1.2
|
75-200
|
-0.095
|
300
|
PUMP SELECTION GUIDELINE
|
Liquid information
|
|
Your industry: __________ Liquid name:___________
|
|
Features: Sanitary[ ] Corrosive[ ] Poisonous[ ]
|
|
Viscosity:_______cp Density:_______ Temperature:_____℃ PH value:________
|
|
Solid content:_______ Max. size of particle:_______
|
|
Using condition
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
|
|
Suction pressure: Max. required__________Mpa Working required____________ Mpa
|
|
Delivery head required:____________ Vacuum:________ Mpa
|
|
Heating jacket required: Yes [ ] No. [ ] Heating temp.:_____℃
|
|
Liquid inlet/outlet direction: Horizontal[ ] vertical[ ]
|
|
Pipe size: Inlet___________ Outlet____________
|
|
Connection type required: Flange [ ] Thread [ ] Clamp [ ]
|
|
Installation type: Fixed [ ] Movable [ ]
|
|
Operating status: Continuous [ ] Interruption [ ]
|
|
Liquid contact material: SS304 [ ] 316 [ ] 316L [ ] Others________
|
|
Special request_____________________________________
|
|
Order qty.
|
