Description

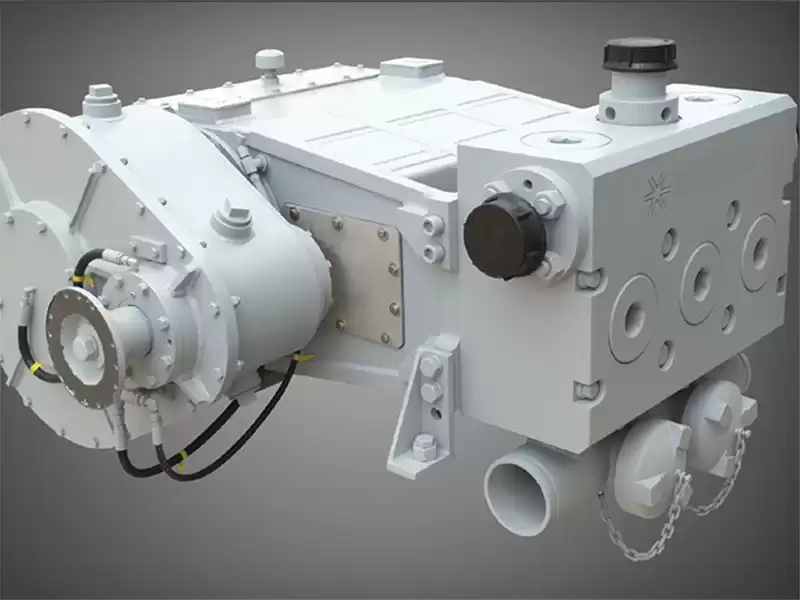

High pressure TPD600 triplex plunger pump is providing smooth and consistent flow rates while minimizing pulsations.
It adopts heavy duty crankshaft structure and wider heavy main bearing.

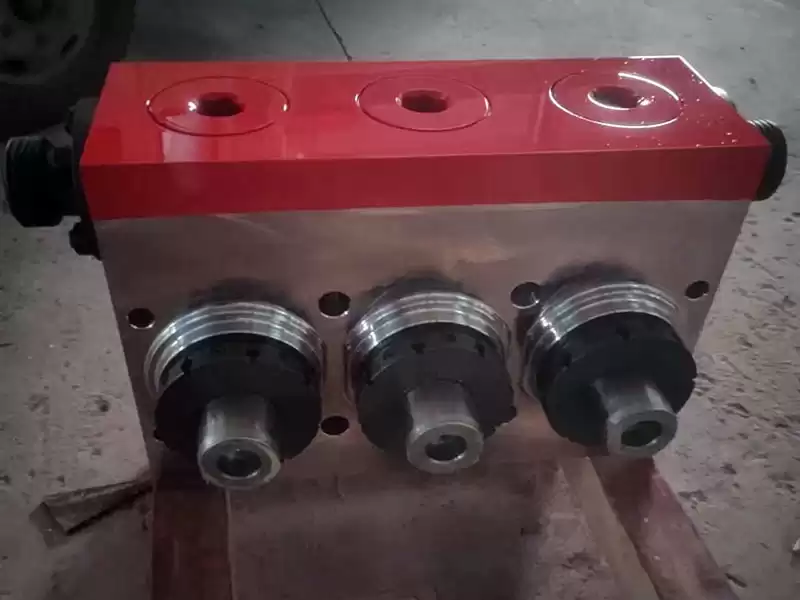

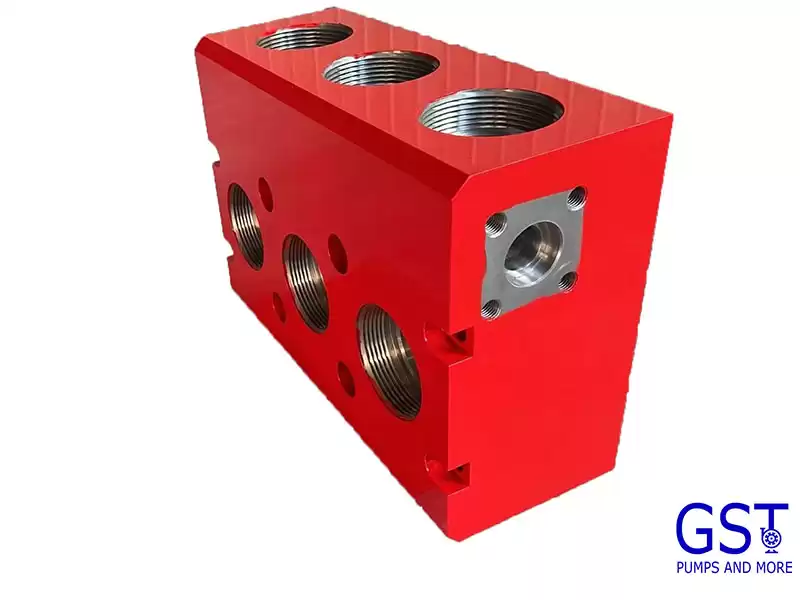

Integrated forged alloy steel fluid end assembly, and with removable packing nut.
High performance header-ring style packing
Optional stainless steel fluid end, more suitable for acidizing operations.
Whether you need a dependable solution for cementing or acidizing, the TPD600 triplex plunger pump is the ultimate choice.
Applicaiton
Specifications
| Product Model |
GST-TPD600 |
| Maximum Brake Power, bhp |
600 |
| Maximum Rod Load, kN(lbs) |
444(100,000) |
| Length of Stroke, mm |
152.4 (6") |
| Gear Ration |
4.6:1 |
| Length*Width*Height, mm |
1276*1344*607 |
| Weight, kg |
2086 |
Performance chart
|
Stroke (spm)
|
50
|
120
|
200
|
300
|
450
|
|
Plunger Dia.
|
Flowrate
|
Pressure
|
Flowrate
|
Pressure
|
Flowrate
|
Pressure
|
Flowrate
|
Pressure
|
Flowrate
|
Pressure
|
|
In(mm)
|
L/min(GPM)
|
MPa(Psi)
|
L/min(GPM)
|
MPa(Psi)
|
L/min(GPM)
|
MPa(Psi)
|
L/min(GPM)
|
MPa(Psi)
|
L/min(GPM)
|
MPa(Psi)
|
|
2-3/4"(69.9)
|
87(23)
|
116.1(16836)
|
210(56)
|
114.9(16665)
|
350(93)
|
69.0(9999)
|
526(139)
|
46.0(6666)
|
788(208)
|
30.6(4444)
|
|
3"(76.2)
|
104(28)
|
103.4(15000)
|
250(66)
|
96.6(14003)
|
417(110)
|
57.9(8402)
|
625(165)
|
38.6(5601)
|
938(248)
|
25.8(3734)
|
|
3-1/2"(88.9)
|
142(37)
|
71.7(10394)
|
341(90)
|
70.9(10288)
|
568(150)
|
42.5(6173)
|
851(225)
|
28.4(4115)
|
1277(337)
|
18.9(2744)
|
|
4"(101.6)
|
185(49)
|
54.9(7958)
|
445(118)
|
54.3(7877)
|
741(196)
|
32.5(4726)
|
1112(294)
|
21.7(3151)
|
1689(441)
|
14.5(2100)
|
|
4-1/2"(114.3)
|
235(62)
|
43.4(6288)
|
564(149)
|
42.9(6224)
|
938(248)
|
25.8(3734)
|
1407(372)
|
17.2(2489)
|
2111(558)
|
11.4(1660)
|
Packaging & Shipment
Packaging type: Seaworthy packing
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
