High profile NA170 Single Point Load Cell
The NA170 is an aluminum bending beam load cell made from aluminum. The high profile load cell is suitable for hopper scale. The hopper scale weighing sensor delivers highly precise and reliable measuring results even in long-term use.
Key Features：
High profile with low capacity
Aluminum
construction with surface anodized
Capacity: 4-20kg
Accuracy:0.02%R.O.
Usage & Applications：
Hopper scales

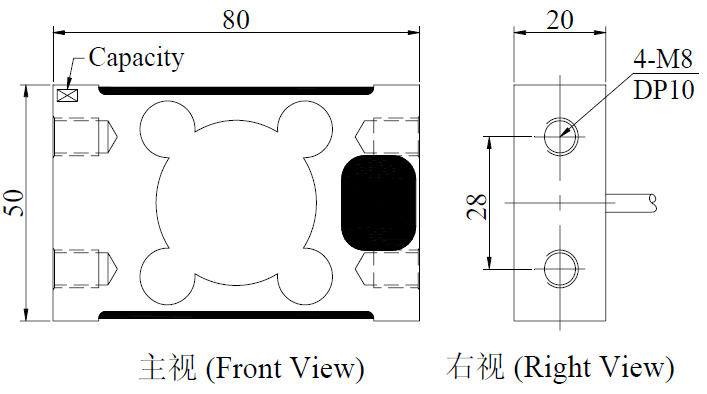

Dimension：
NA170 Specification：
|
Rated Capacities
|
4,
8, 15, 20（kg）
|
|
Rated Output
|
2.0 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
Φ4*0.16m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
