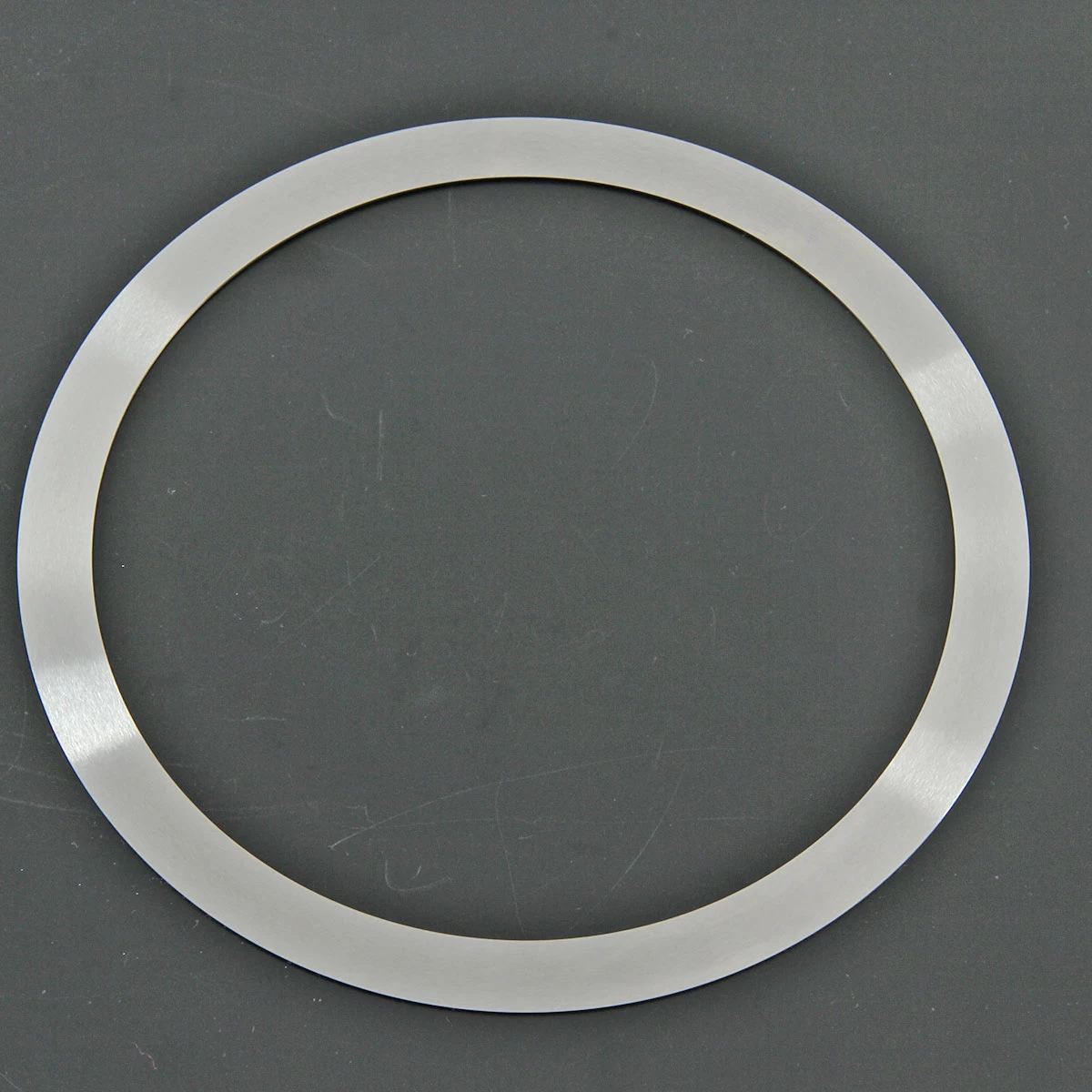

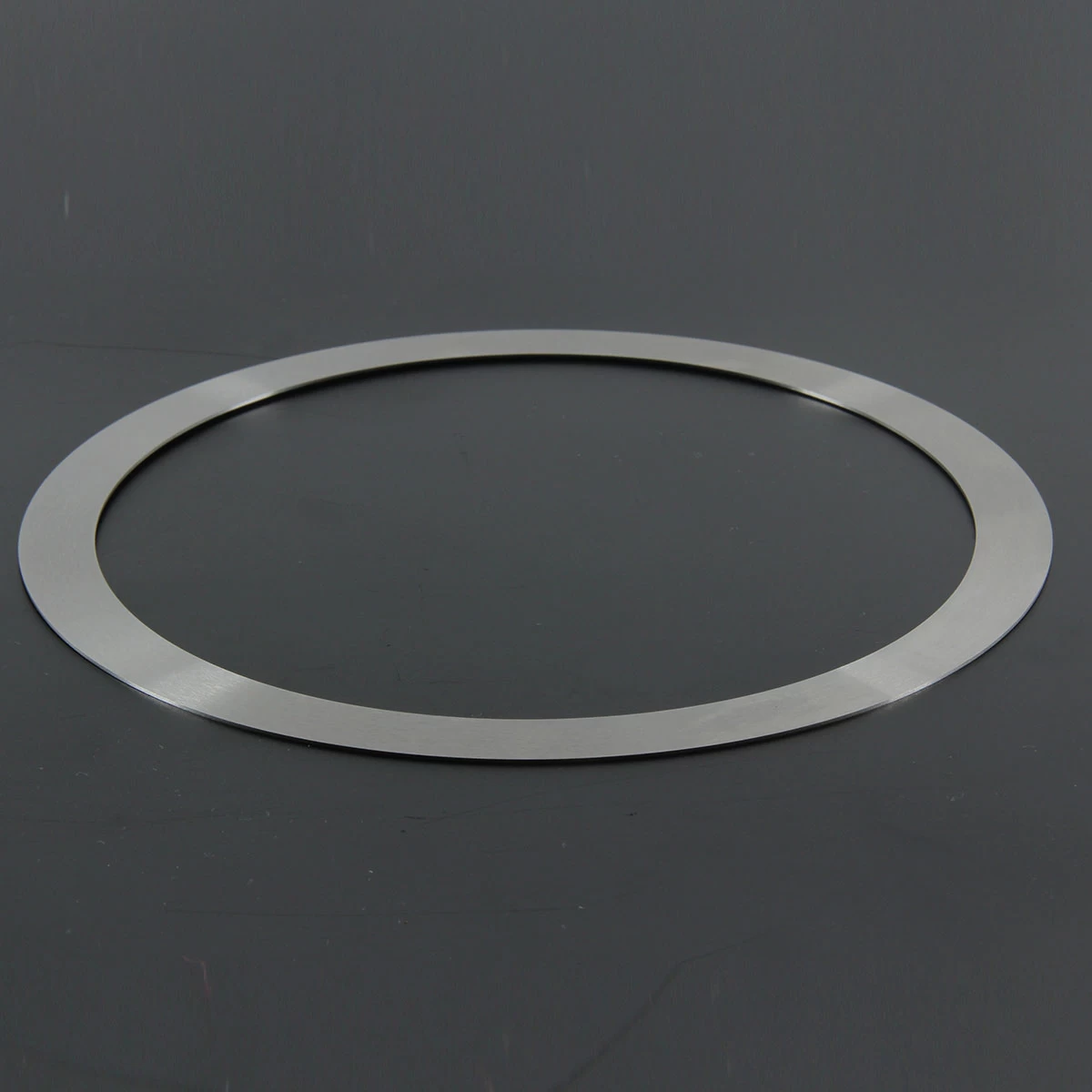

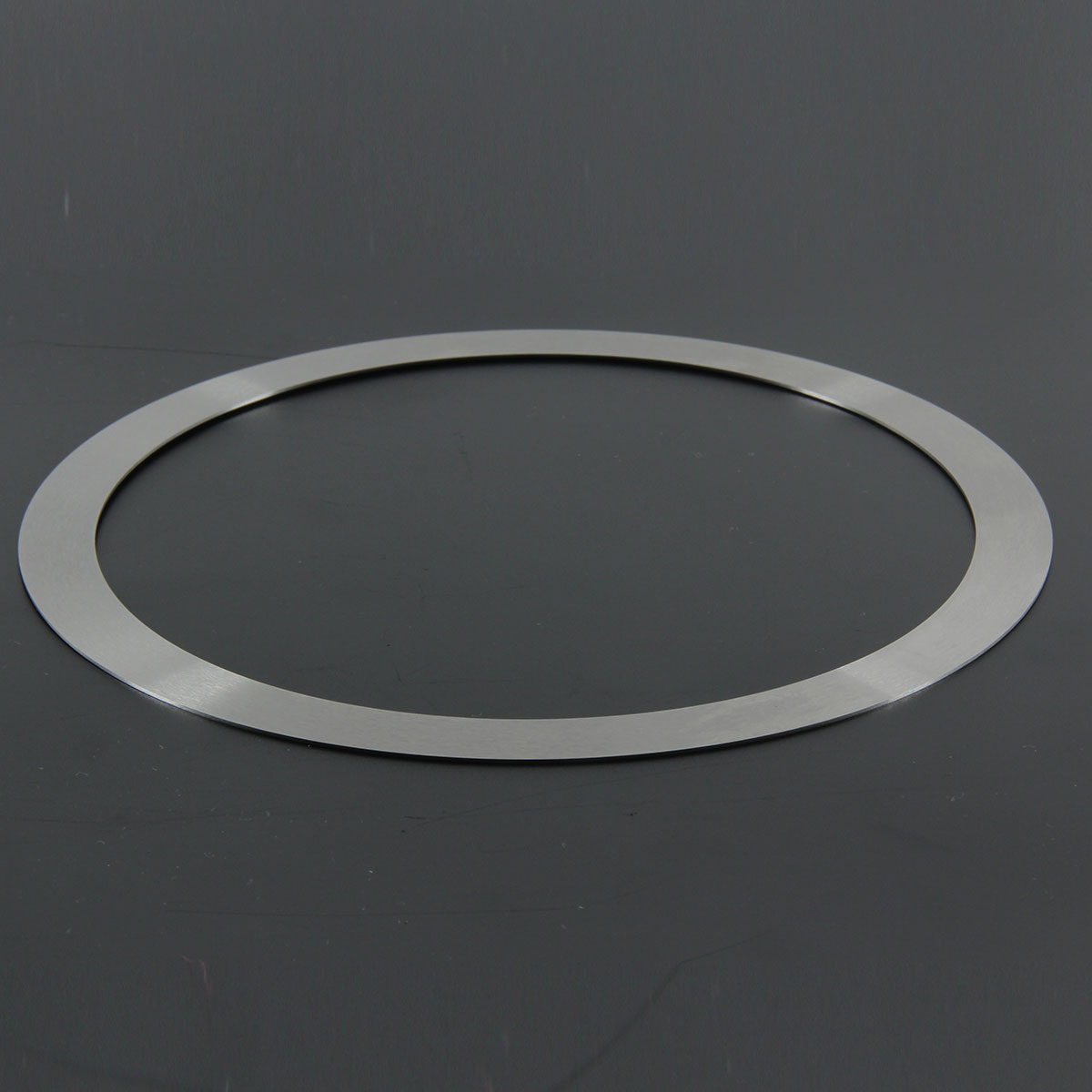

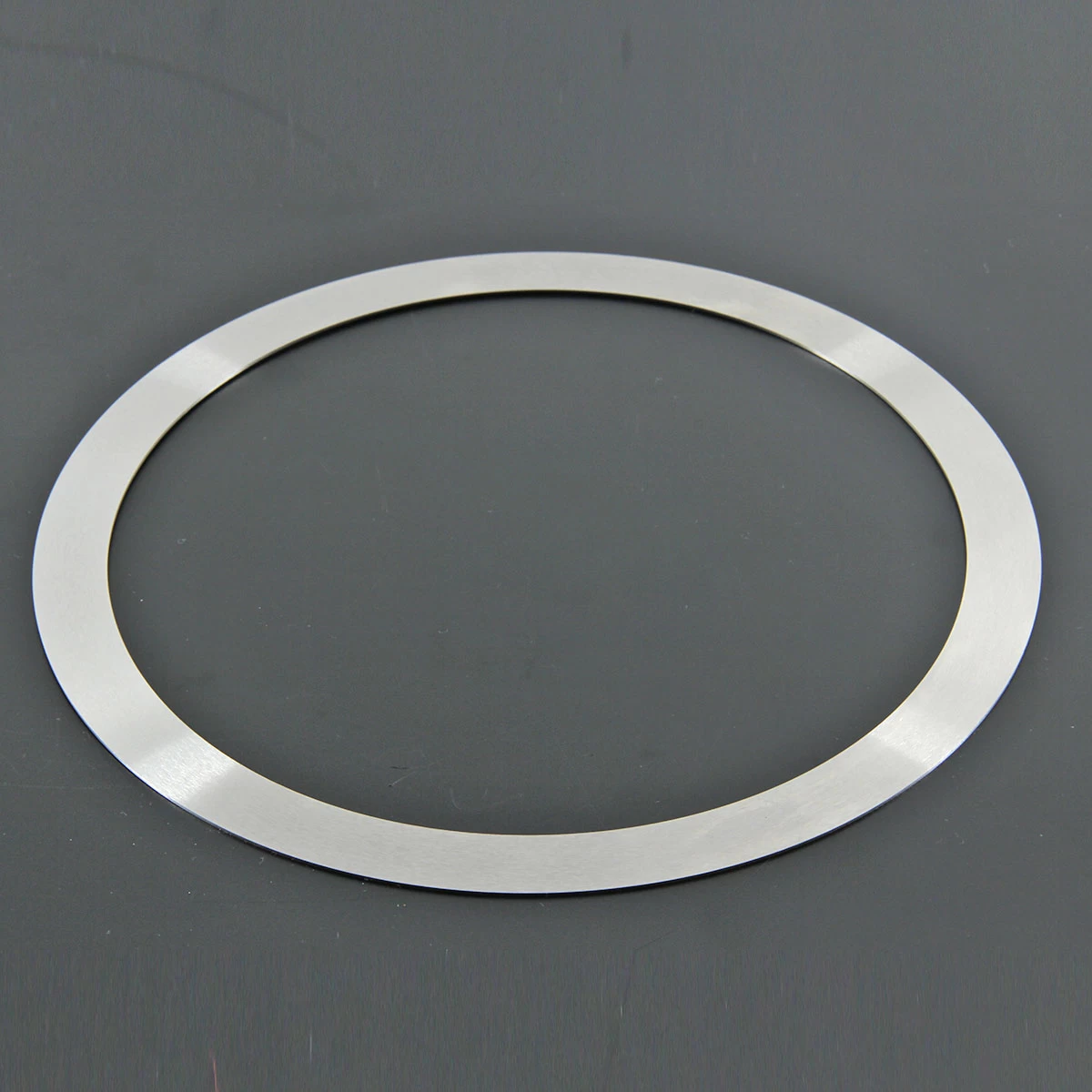

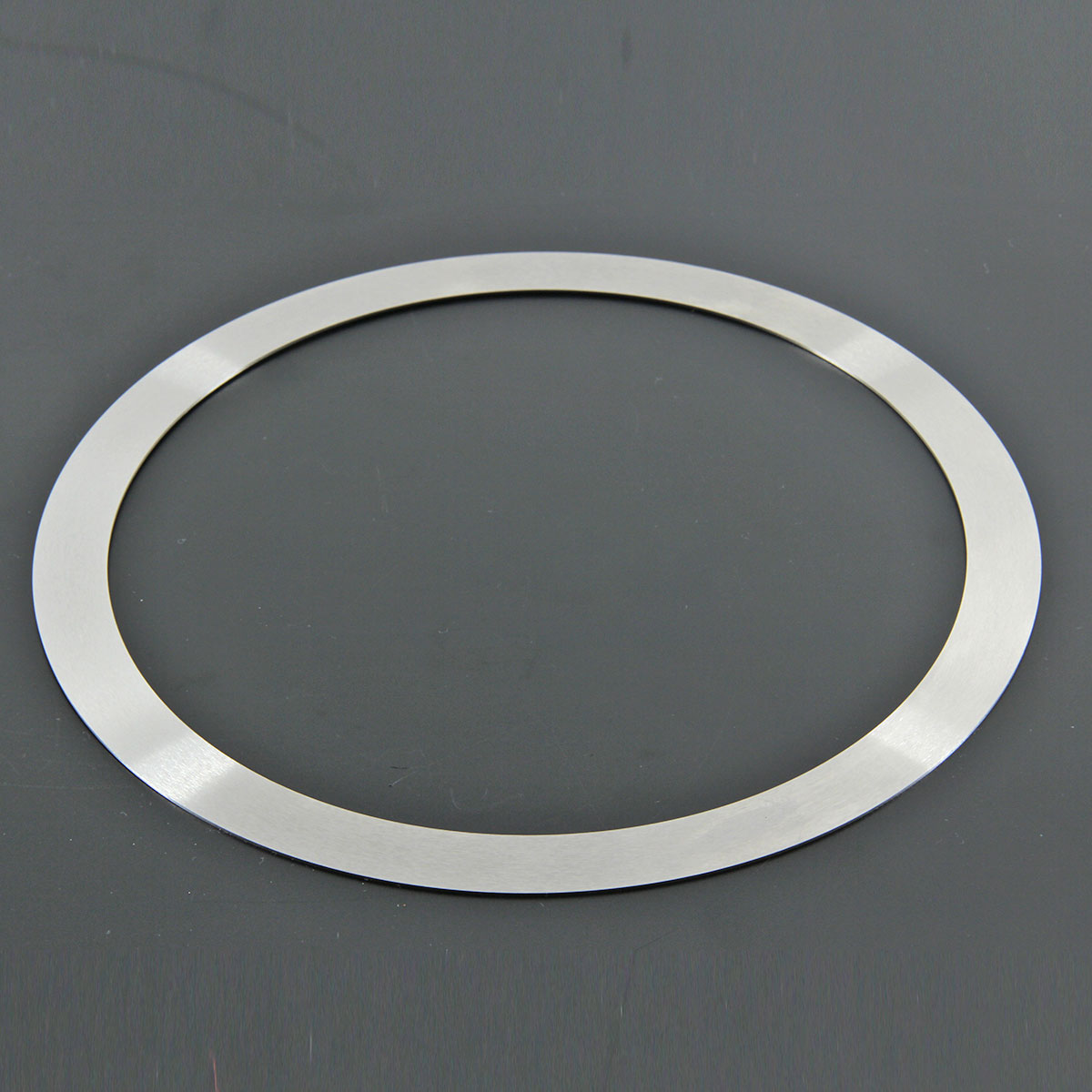

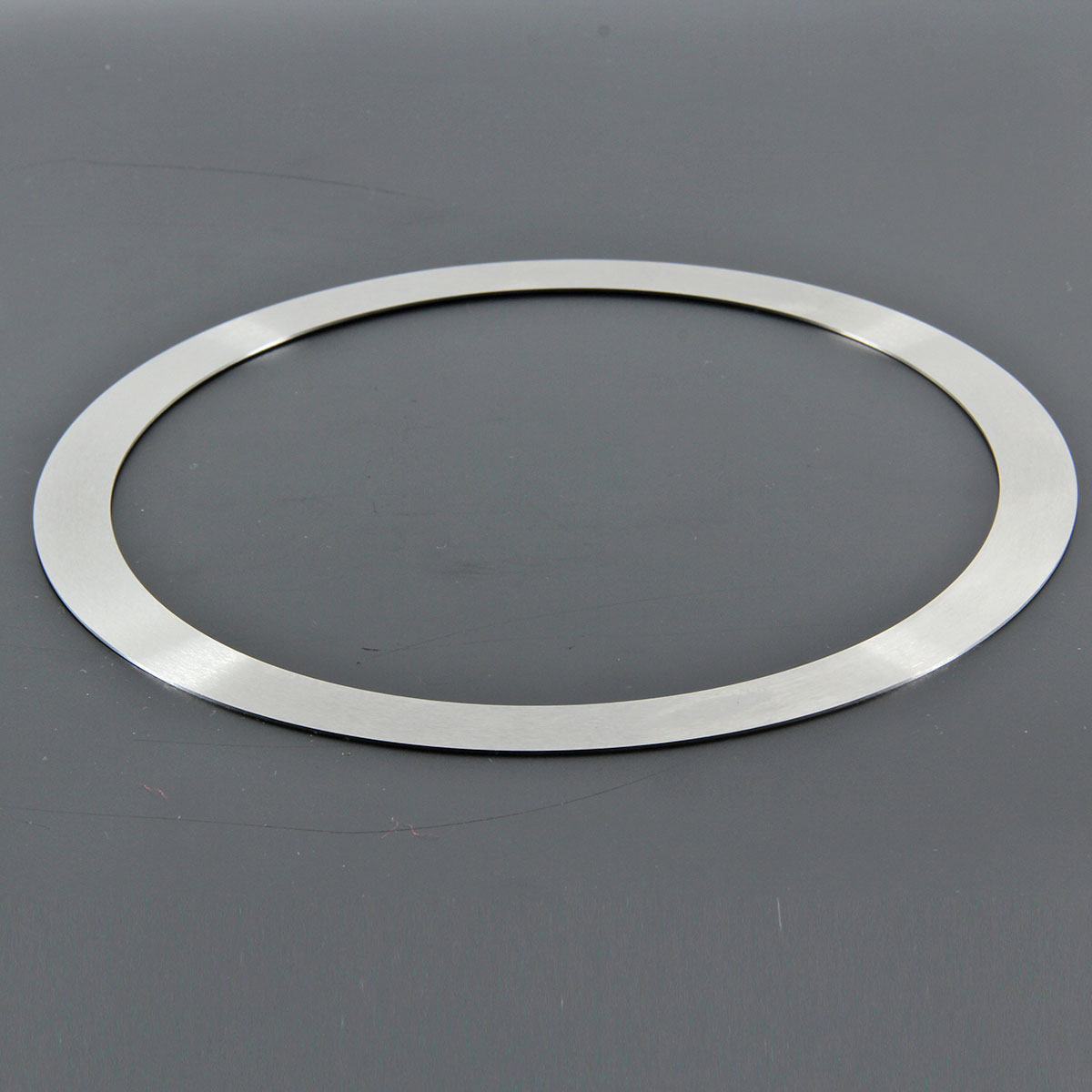

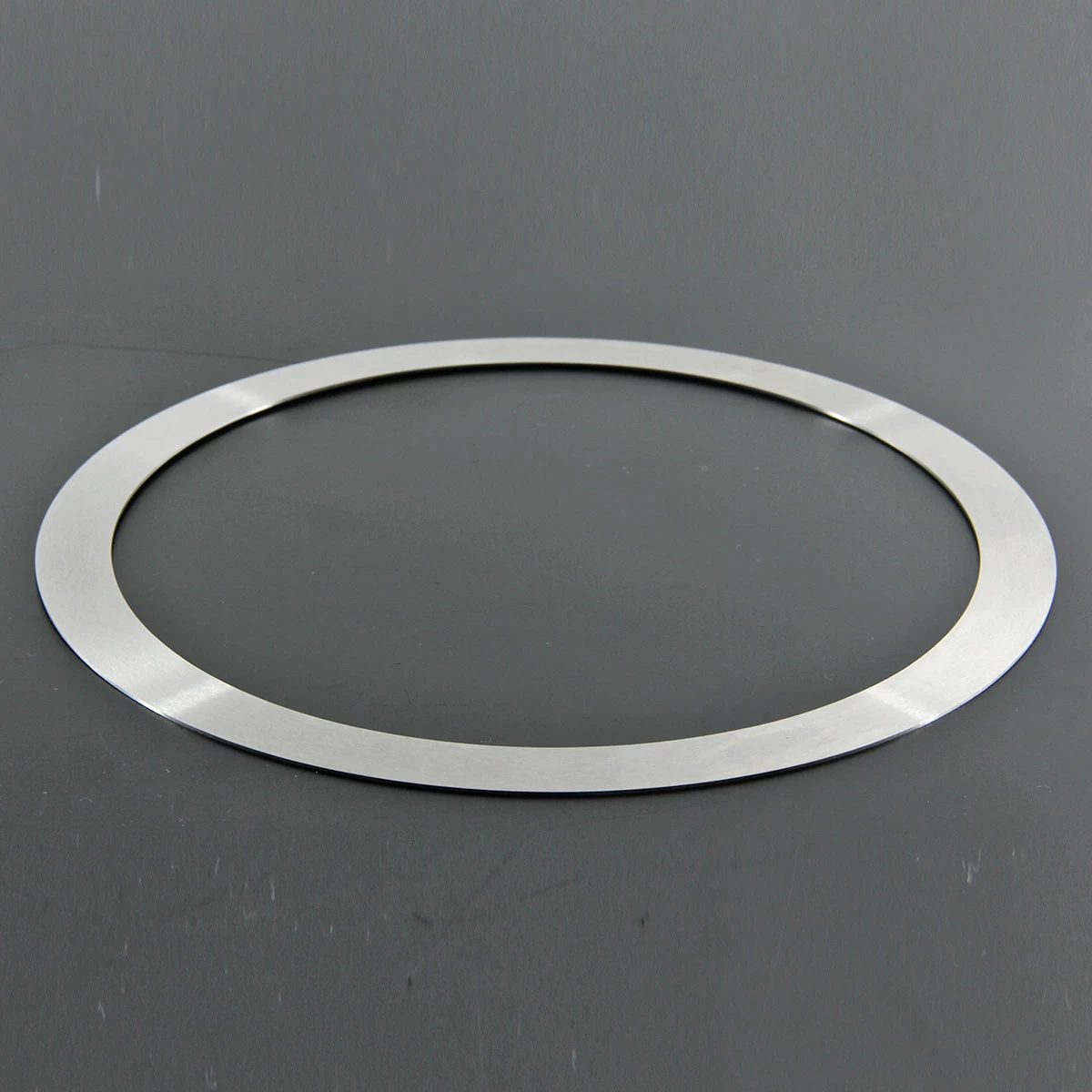

High quality disk metal steel spacer of slitting line

Matel spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips.

Same high pricision as slitting knife's;

Reasonable price, not as expensive as knifes;

Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling.

Detailed parameters:

1. Basic size (ODxIDxTmm): 140x100xT

2. Material: 65Mn

3. Hardness: 48-58HRC

4. Tolerance of Thickness: +/-0.002mm

5. Burr-free

6. Roughness: Ra0.2/ Ra.04




Product Description:

Matel spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips.

Same high pricision as slitting knife's;

Reasonable price, not as expensive as knifes;

Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling.


Detailed Parameters:


Material of separator

40Cr/ S45/ 65Mn/ 9CrSi/ GCr15/ SKD11

Thickness tolerance

±0.00008"

Hardness

42-58HRC

outside diameter tolerance

±0.001"

parallelism within

0.0001"

flatness within

0.0001"

concentricity within

0.001"

max surface roughness

Ra0.2

Popular size and material of separator:

Basic size (ODxIDxT)

Material

100x70x3mm

52100

150x80x4mm

SKD11

300x150x8mm

S45

320X160X10mm

9CrSi



Our advantages:

1. Our Factory is focusing on producing all kinds of slitting and cutting blades.

Blades provided are durable, precise and productive with a longer service life.

2. Our factory will provide professional advice involved selection of material and processing technology to meet our customer's requirements about a good use of slitting or cutting tool.

3. We have a strict quality control system, and strict inspection report to ensure client a exceeded standard product at competitive price.

4. Experienced and excellent over 21 years, always satisfy client with high level of commitment to quality and service.

5. Large production capability, abundant stock of standard knifes, and any customized dimension is available!
