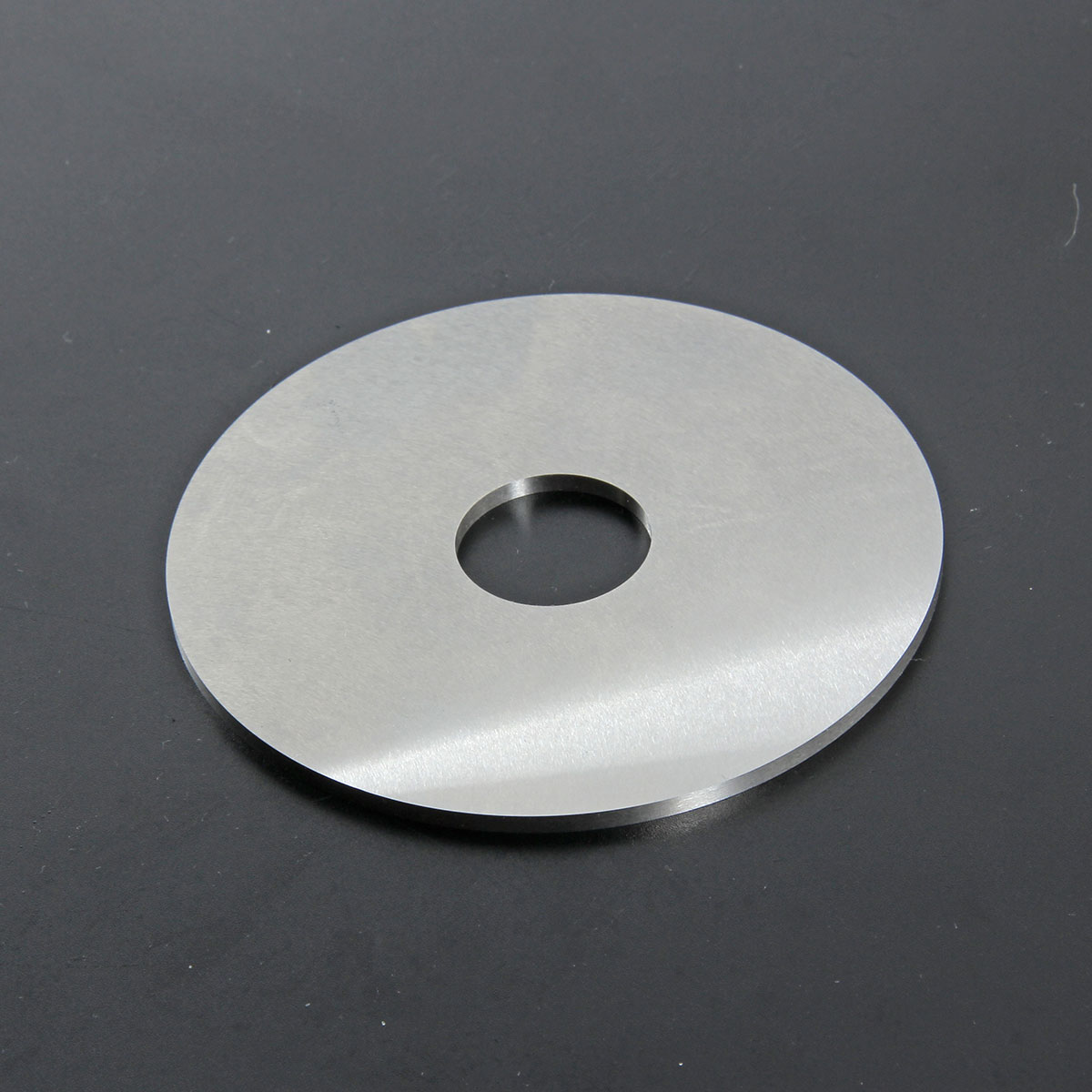

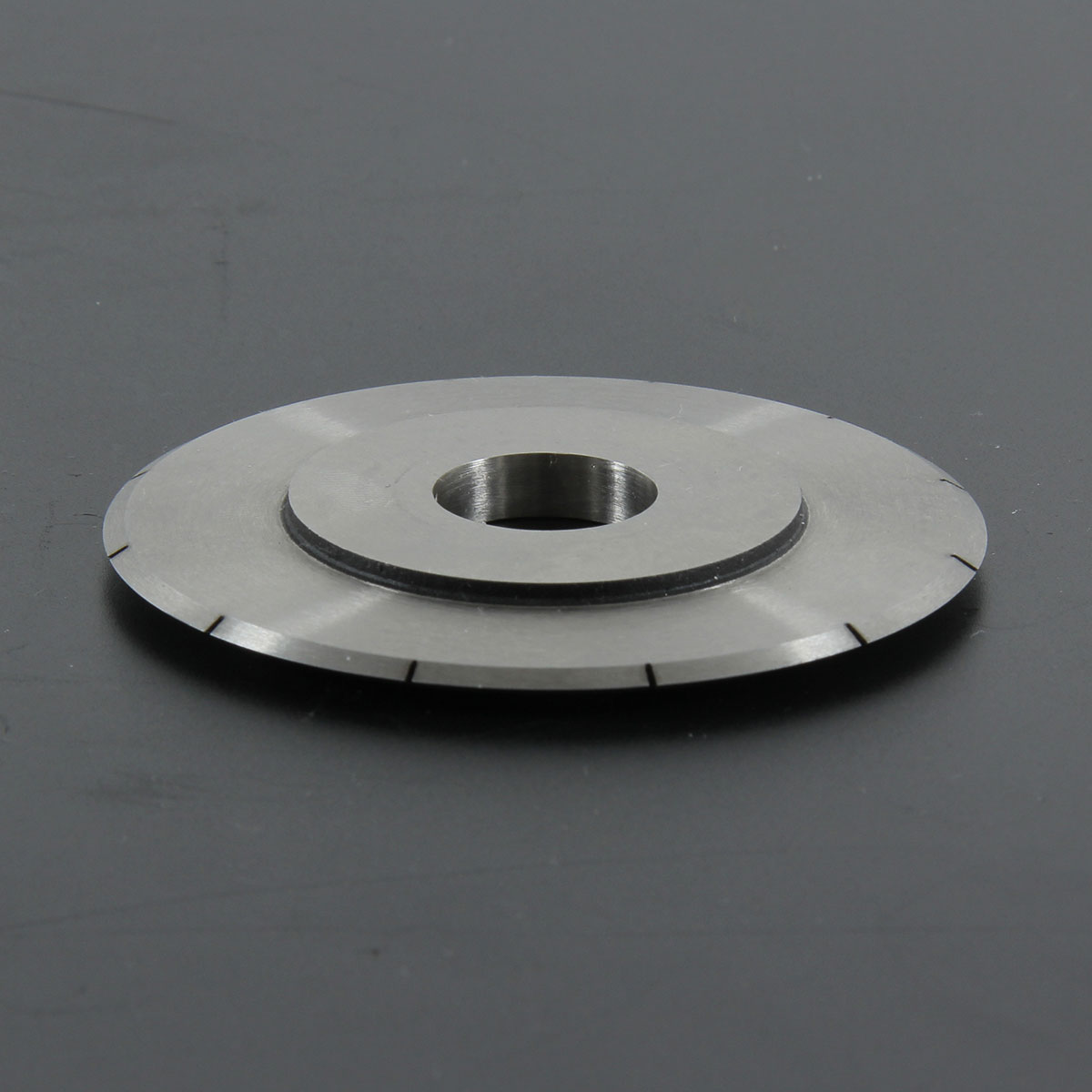

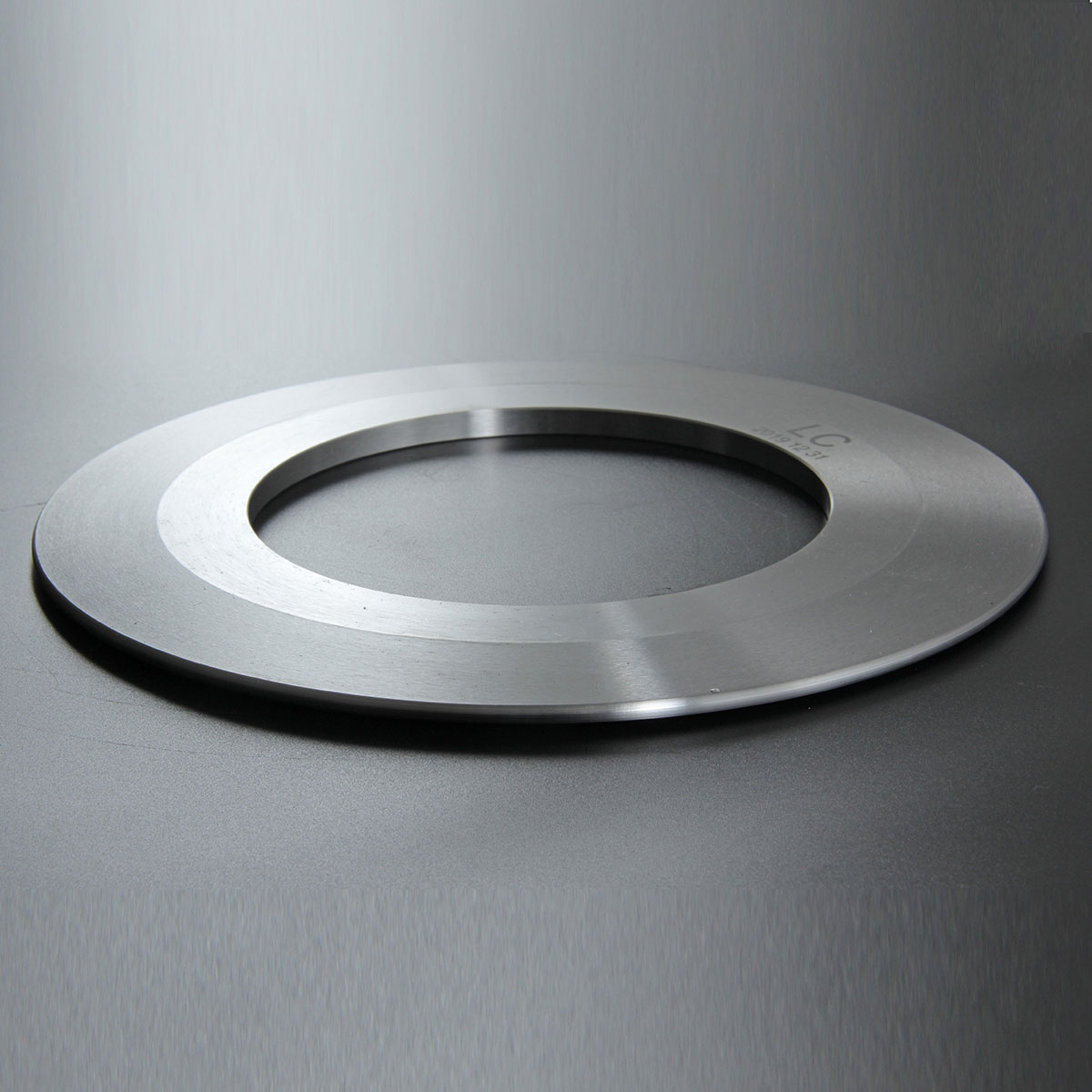

Superior durability corrugated cardboard slitting cutter blade

Circular slitter knife for corrugated paper slitting from Licheng Blade Manufatory is always popular with clients worldwidely. Use only premiun material selected for knife application of different machines, cardboads, and speeds; Excellent products wtih longer service life at reasonable prices; Large production capability, abundant stock, available customization. Detailed parameters: 1. Basic size (ODxIDxT) : 210x122x1.3mm 2. Material: HSS/TCT 3. Hardness: 62-64HRC / 90-96HRA 4. Bevel & Angle: two bevels on two faces

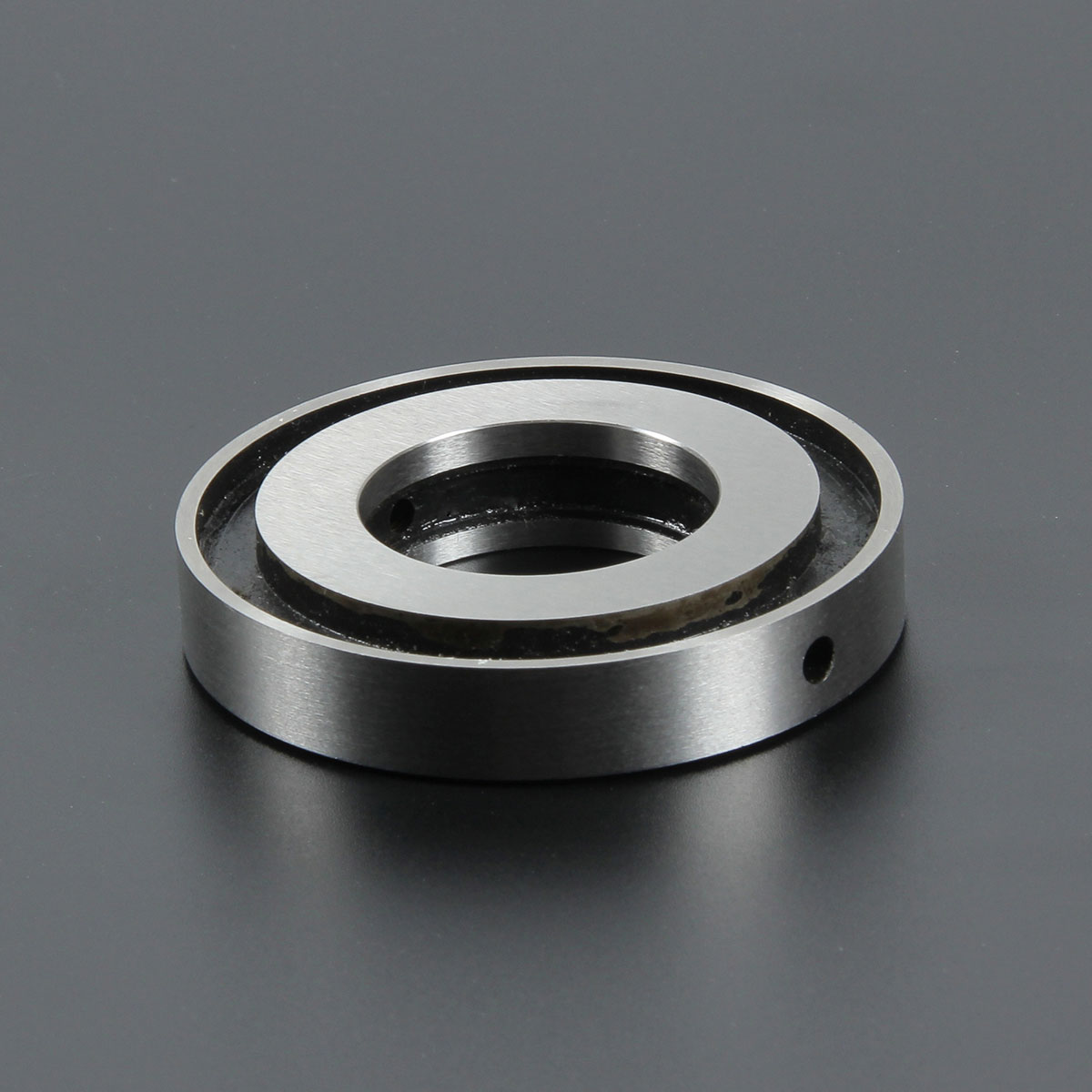

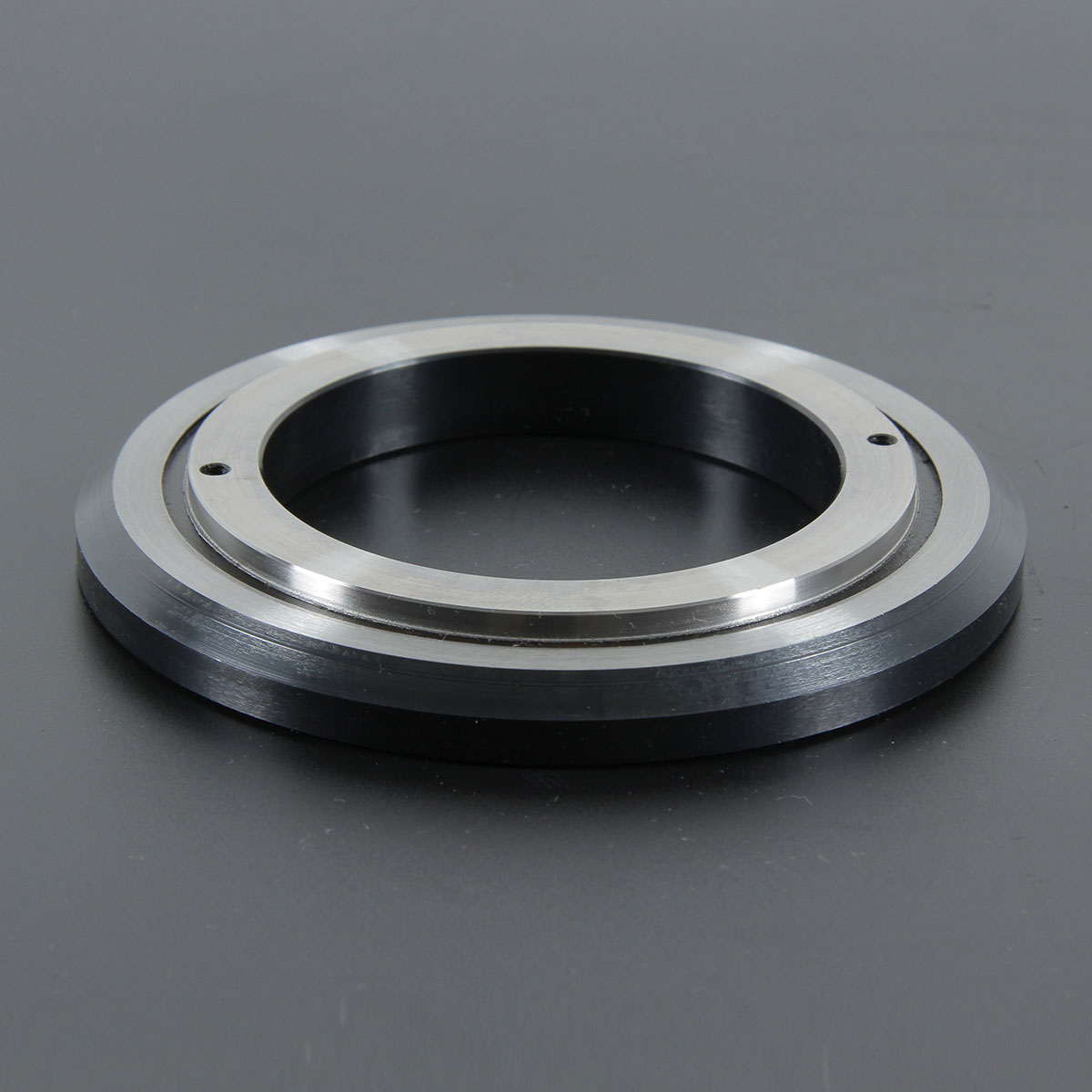

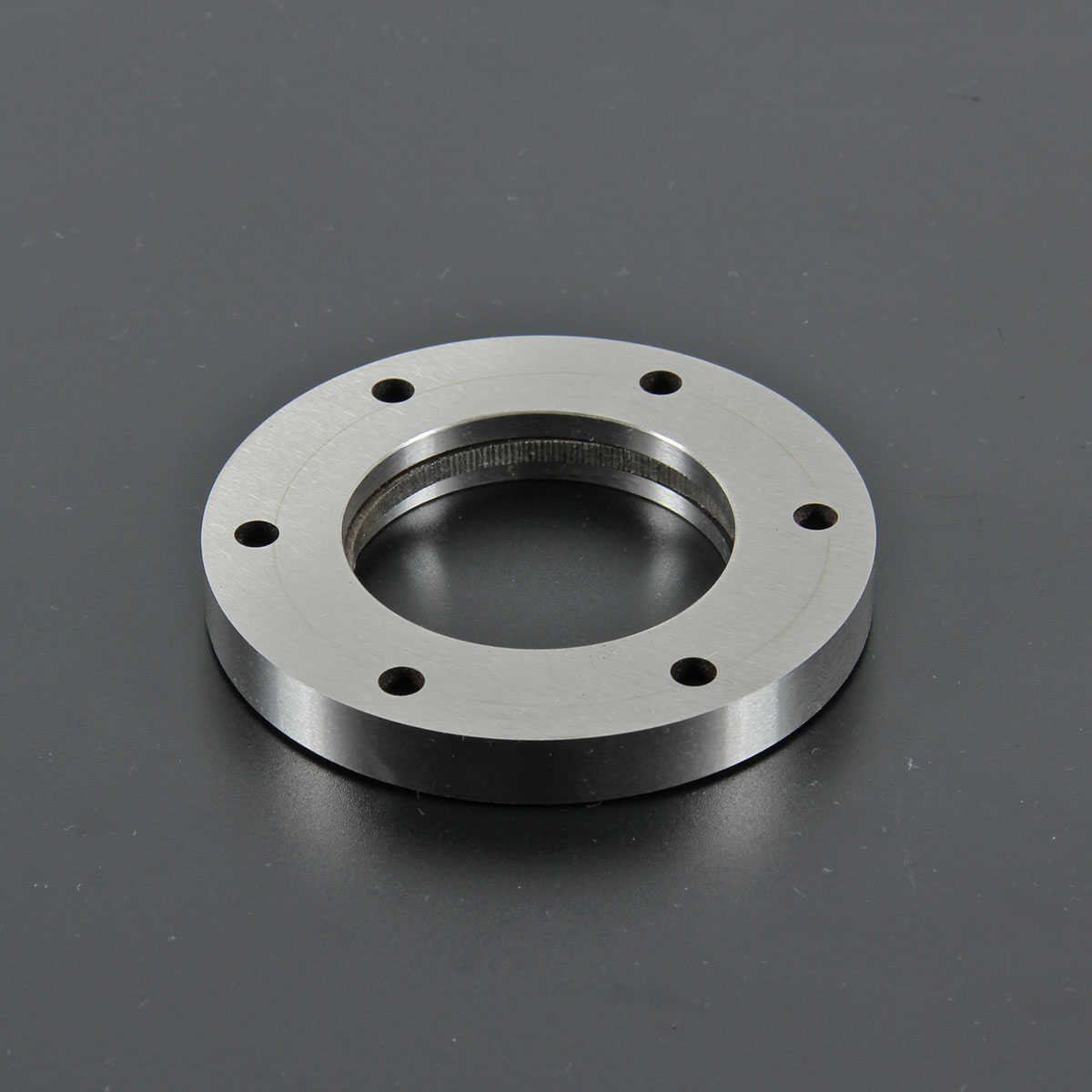

High quality round bottom slitting knife

Simply Detailed Parameters : 1. Basic size (ODxIDxT) : 68x30x15/13mm 2. Material: SKD11 3. Hardness: 58-59HRC 4. Angle of sharpening edge: 3 degrees 5. One ring in the middle to pretect shaft from demage of screw 6. Size of step 1mm one side

High quality top dished knife for paper slitting

Dished Knife should be assembled with a suitable knife holder installed in shaft of rewinding machine, working together with bottom knife on another shaft to slit rolled products like paper, film, tape, fabrics and so on into smaller rolls. Simply Detailed Parameters : 1. Basic size (ODxIDxT) : 62x40x1mm 2. Material: SKD11 3. Hardness: 58-59HRC 4. Dished angle: 5 degrees.

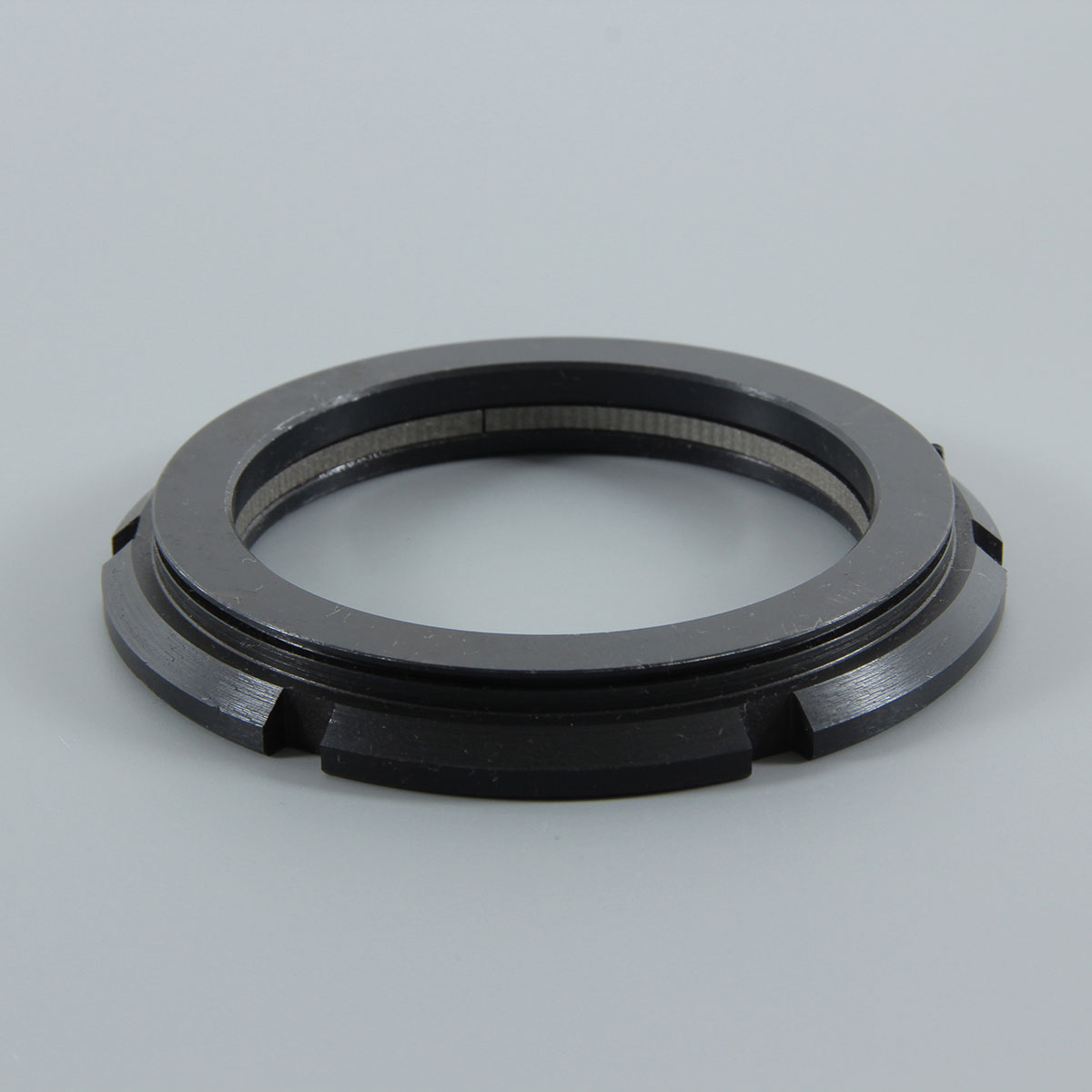

Eccentric Knife holder for slitting dished knife

Eccentric knife holder is ideal for narrow papers mostly, providing the stability and durability of a wide range of slitting applications. Achievable narrow sltting strips. Easier adjustment; No harm to knife holder shaft; Higher precision than screw knife holder; Tighter fitting. Well usged materials of Eccentric knife holder: C45, Stainless steel

Durable separator discs spacer between rolling sheet for rewinding machine

Disc separator is used to separate slitted strips of coiling sheet of Aluminum, Copper, Stainless, Q235, and so on. To ensure no interference between neighbor rolls while rewinding process. Well used materials of separator disc: 65Mn, GCr15, 9SiCr, SKD11. Super hardness, bur free, high wear resistance and long work life are the merits of our knifes and spacer discs.

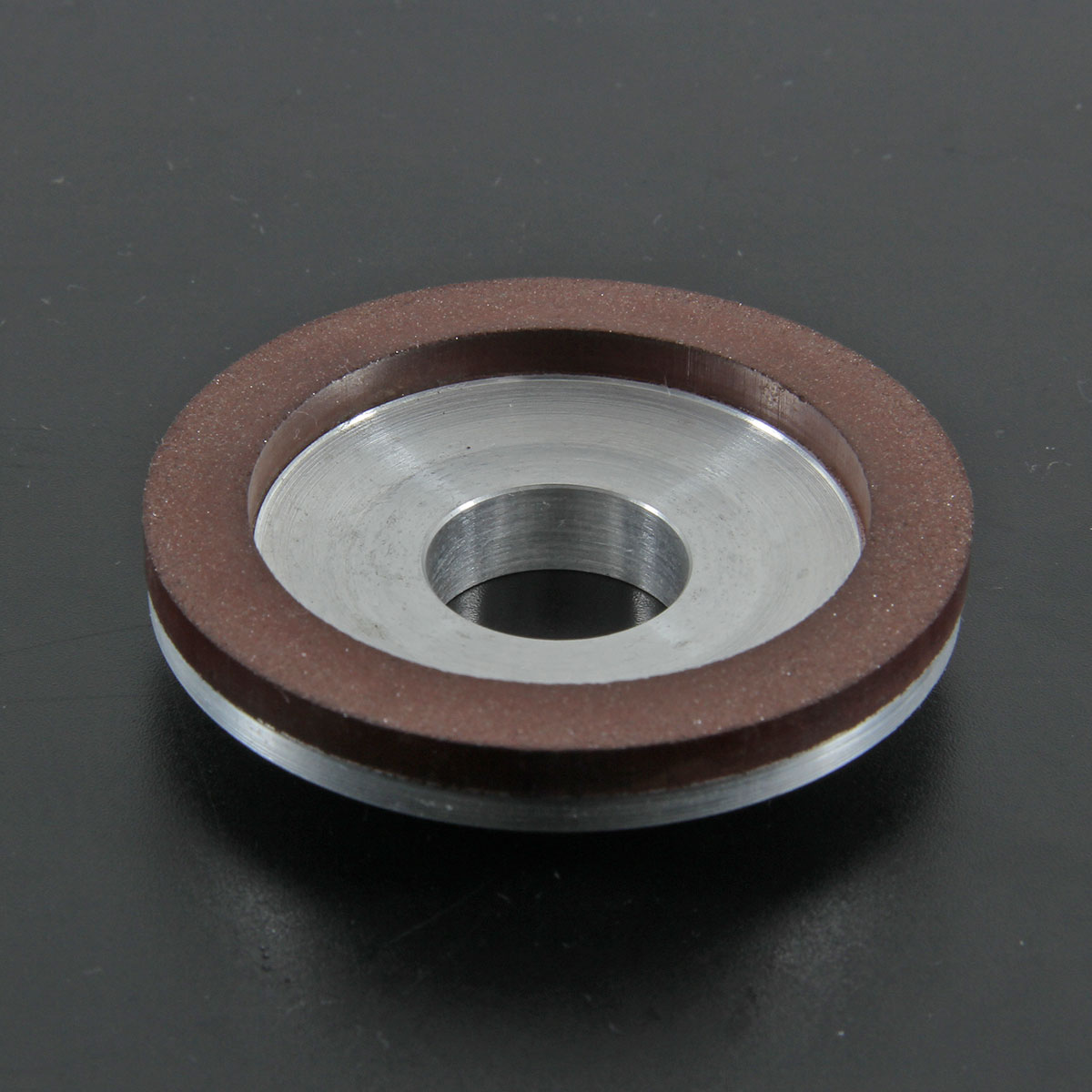

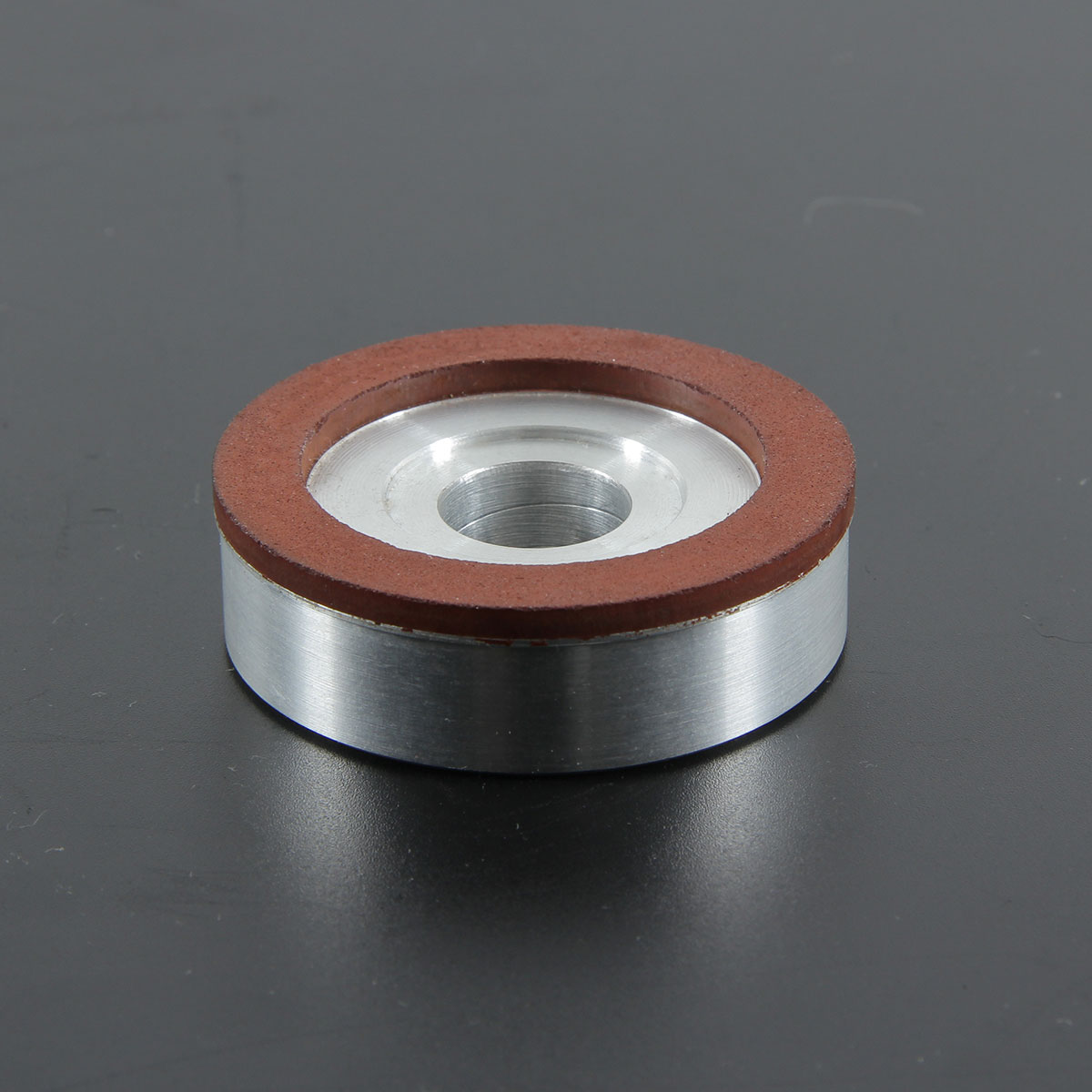

aluminium CBN disc grinding wheel and Resin Bond grinding wheel

1. High grinding efficiency; Much longer life of the wheel. 2. Good self-sharpening, lower grinding temperature; less blocking, less surface burn of a workpiece. 3. Grinding wheel has a certain elasticity, improving the surface roughness, used for grinding, semi-finish grinding, polishing, and another process 4. A diamond grinding wheel is shorter production cycle time; higher removal rate. Easily to make complex wheels. 5. The company has professional technology and equipment, easier to form a variety of complex surface resin diamond grinding wheel

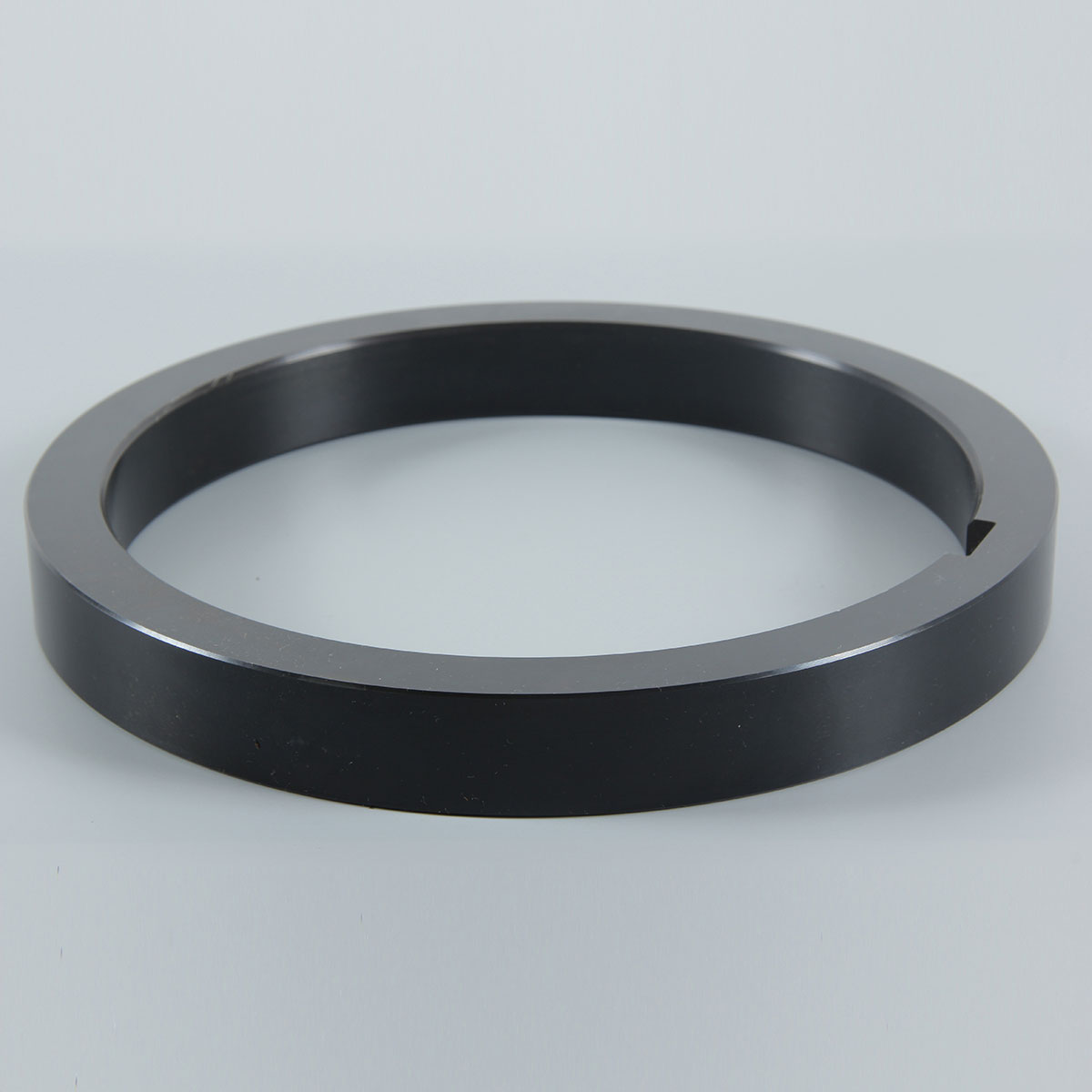

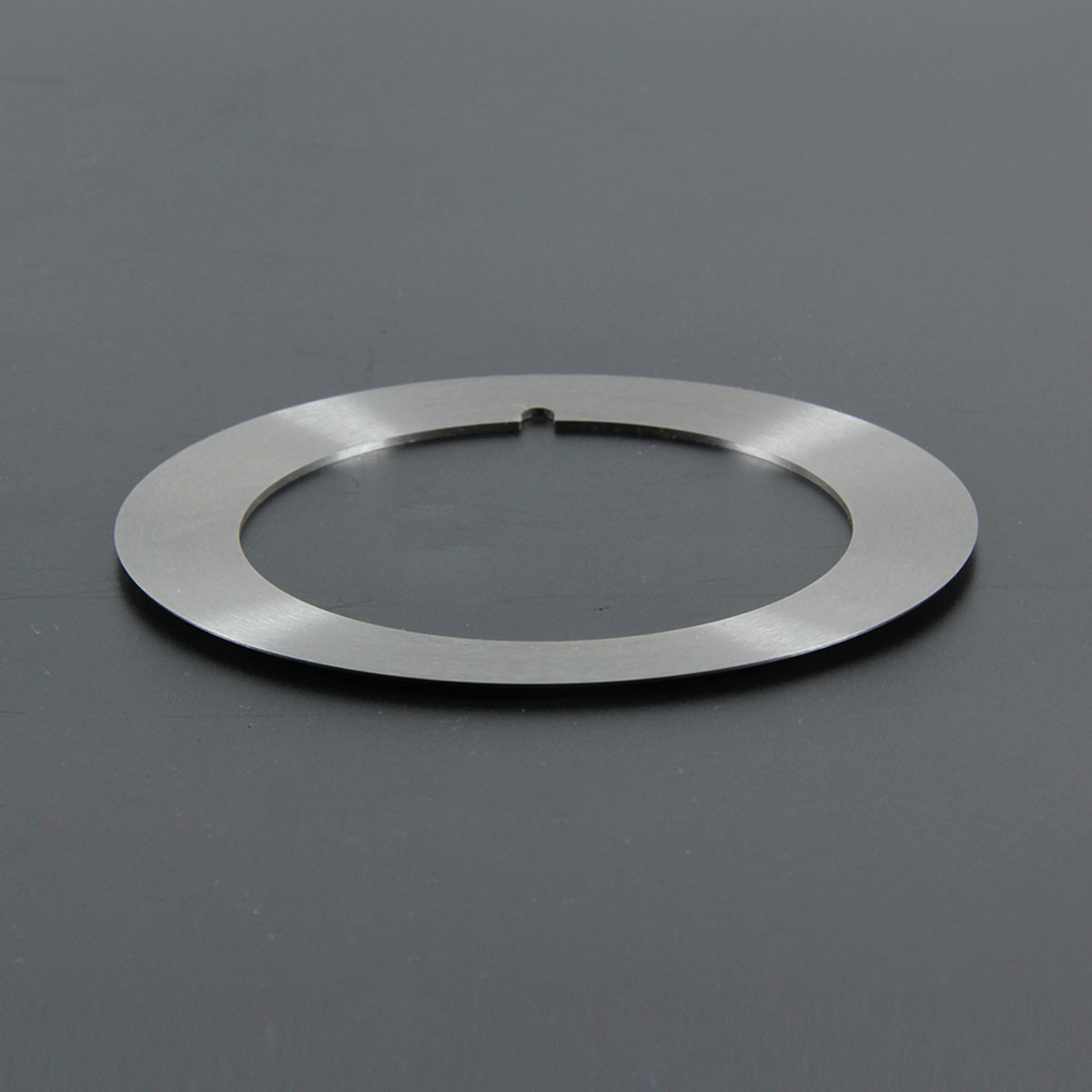

Steel slitter spacer separator disc for coil slitting line

Metal spacer is used on slitter shaft to adjust different distance between slitting knifes according to needed width of coiling strips, which should be the same as precision as knife. resonable prices, wear resistance, but lighter for ensuring high precision of slitting strip and easier assembling operations. Well used materials of metal spaces: 40Cr, S45,65Mn,9CrSi,GCr15,and stainless steel.

Slitter Knives Rewinder Knife Slitter Spacer for Slitting Line

Matel spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips. Same high pricision as slitting knife's; Reasonable price, not as expensive as knife of raw material; Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling.

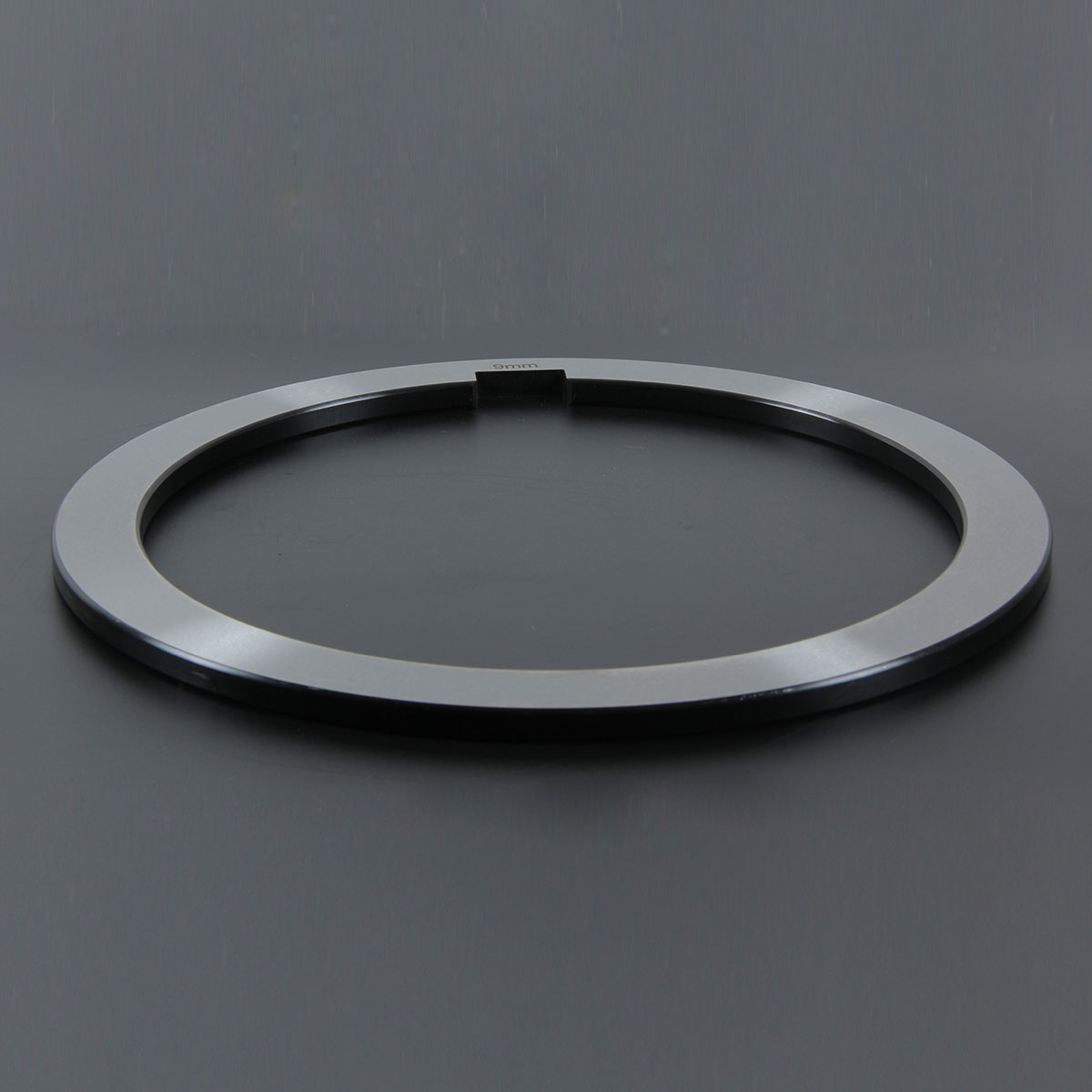

High precision slitter steel metal spacer with rubber disc for slitting line knives

Matel spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips. Same high pricision as slitting knife's; Reasonable price, not as expensive as knife of raw material; Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling. Details: Material of separator 9CrSi / 52100/ SKD11 Thickness tolerance ±0.00008" Hardness 45-56HRC outside diameter tolerance ±0.001" parallelism within 0.0001" flatness within 0.0001" concentricity within 0.001" max surface roughness Ra0.2

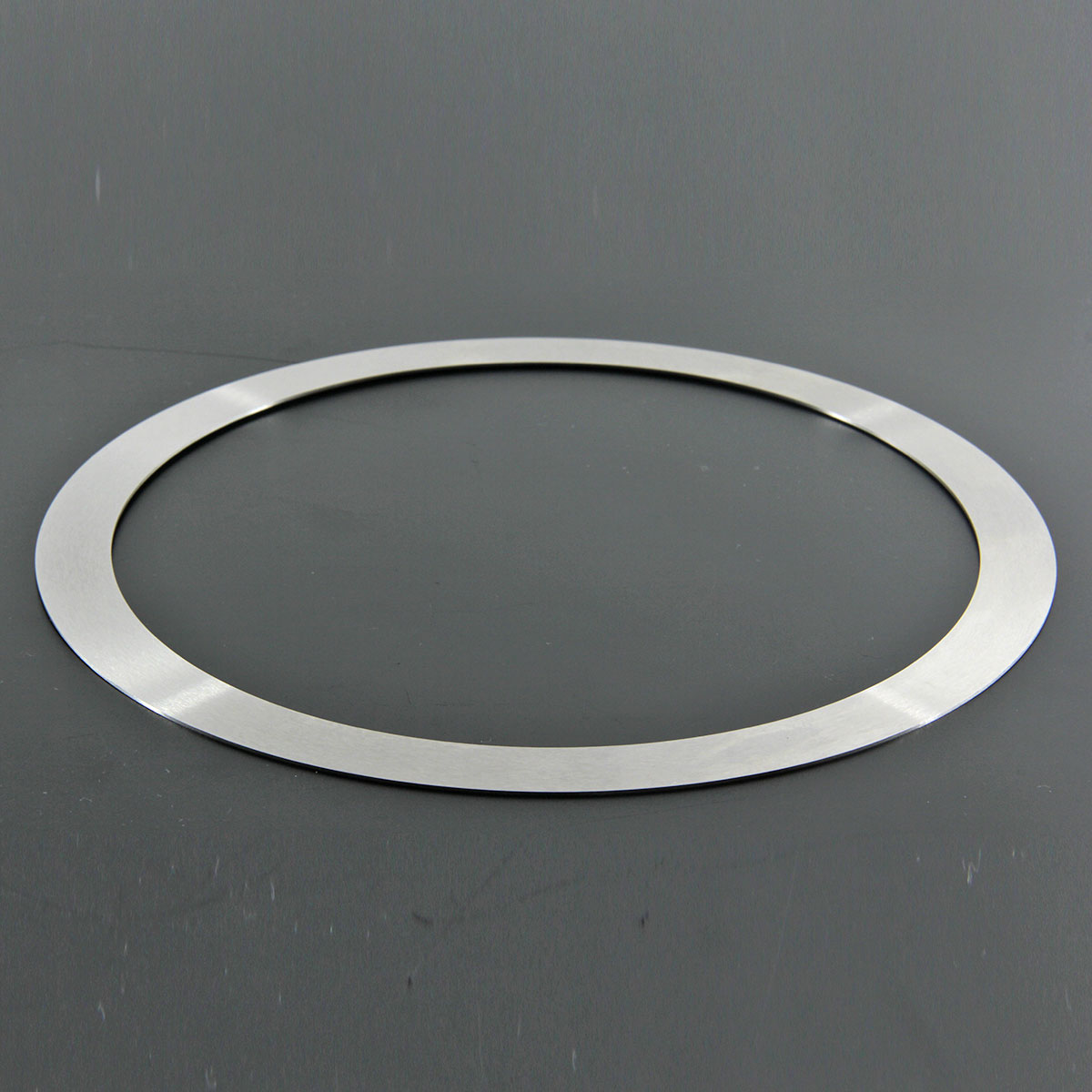

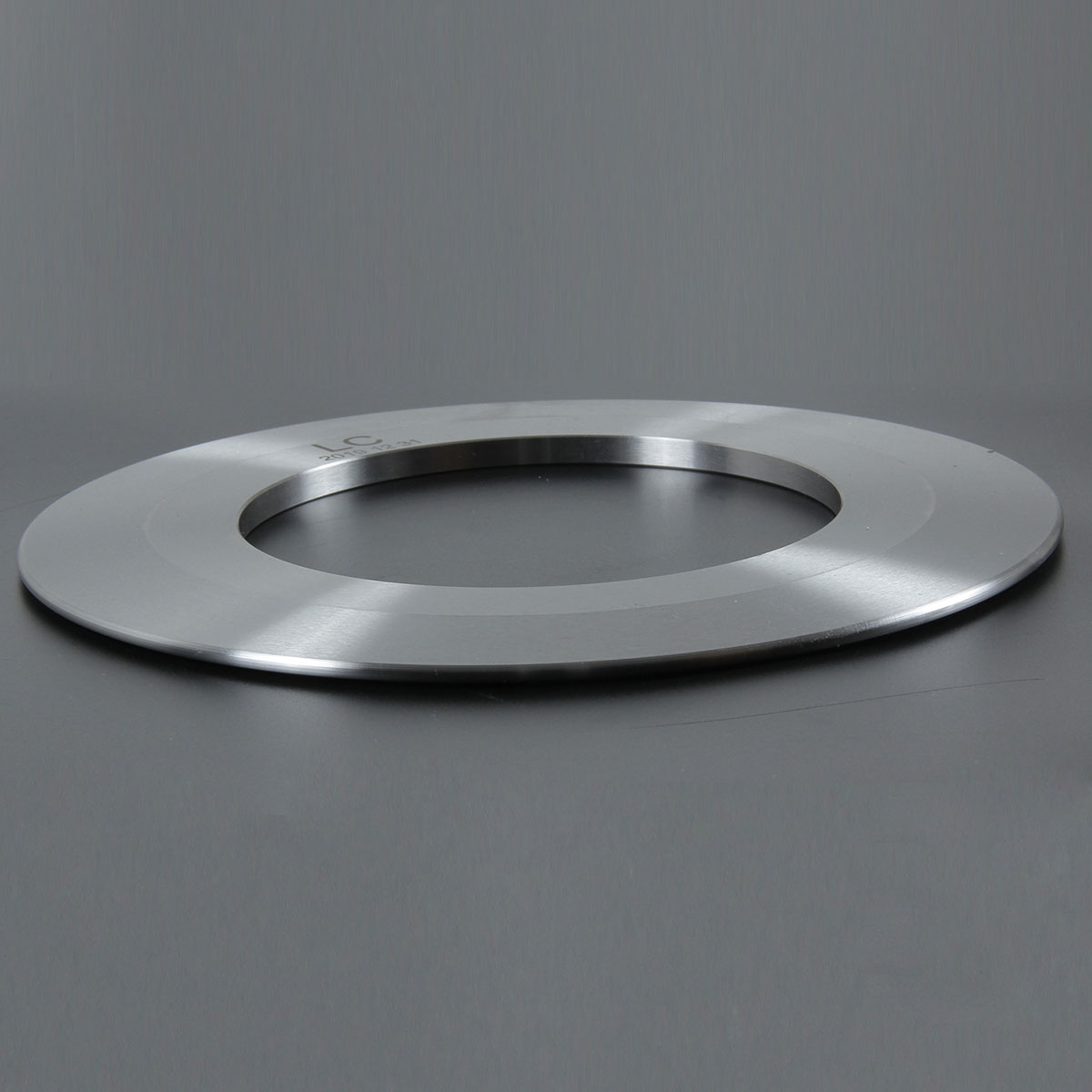

Professional circular separator spacer between recoiling sheet

Disc separator is used to separate slitted strips of coiling sheet of Aluminum, Copper, Stainless, Q235, and so on. To ensure no interference between neighbor rolls while rewinding process. Well used materials of separator disc: 65Mn, GCr15, 9SiCr, SKD11. Super hardness,bur free,high wear resistance and long work life are the merits of our knifes and spacer discs.

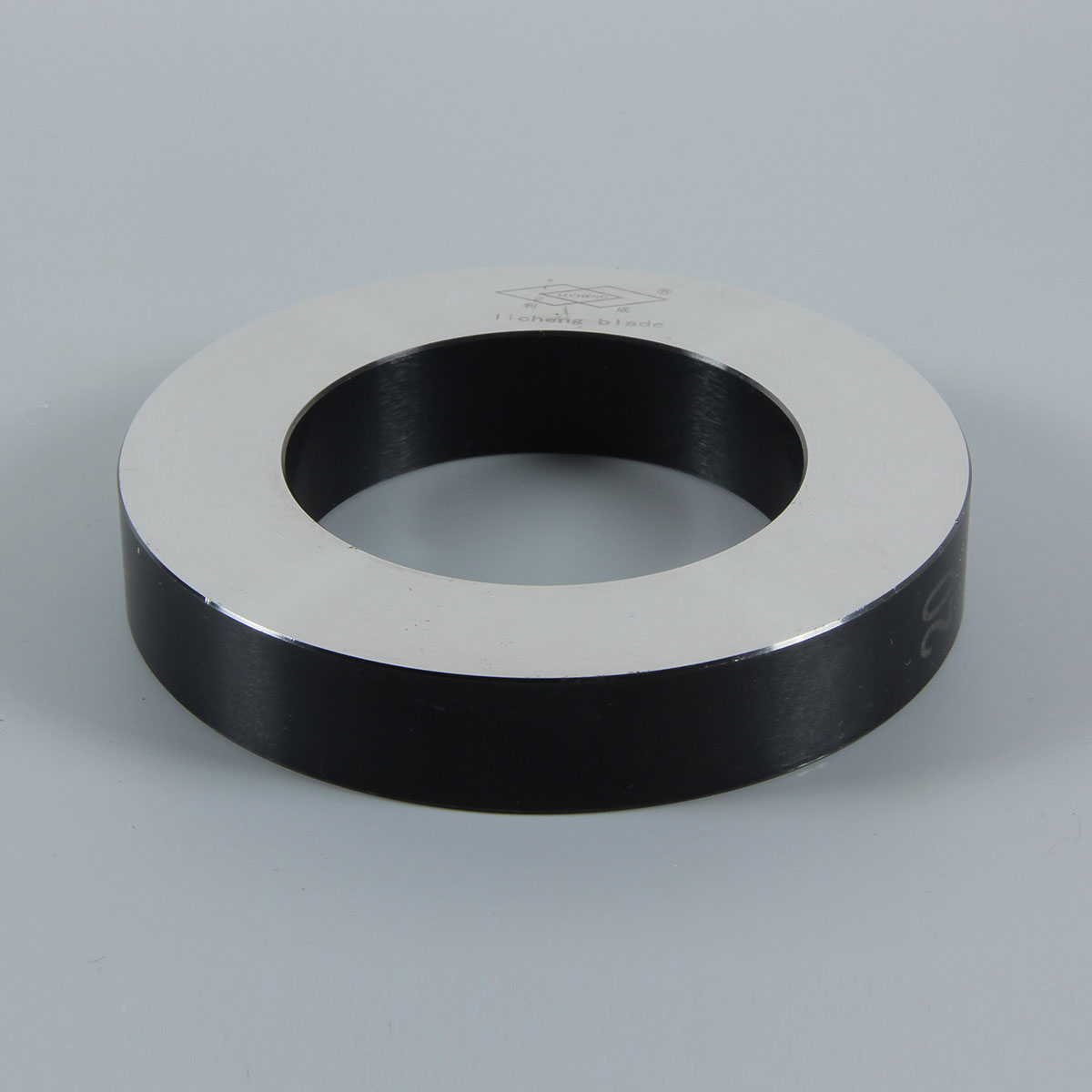

High quality disk metal steel spacer of slitting line

Matel spacer is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips. Same high pricision as slitting knife's; Reasonable price, not as expensive as knifes; Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling. Detailed parameters: 1. Basic size (ODxIDxTmm): 140x100xT 2. Material: 65Mn 3. Hardness: 48-58HRC 4. Tolerance of Thickness: +/-0.002mm 5. Burr-free 6. Roughness: Ra0.2/ Ra.04

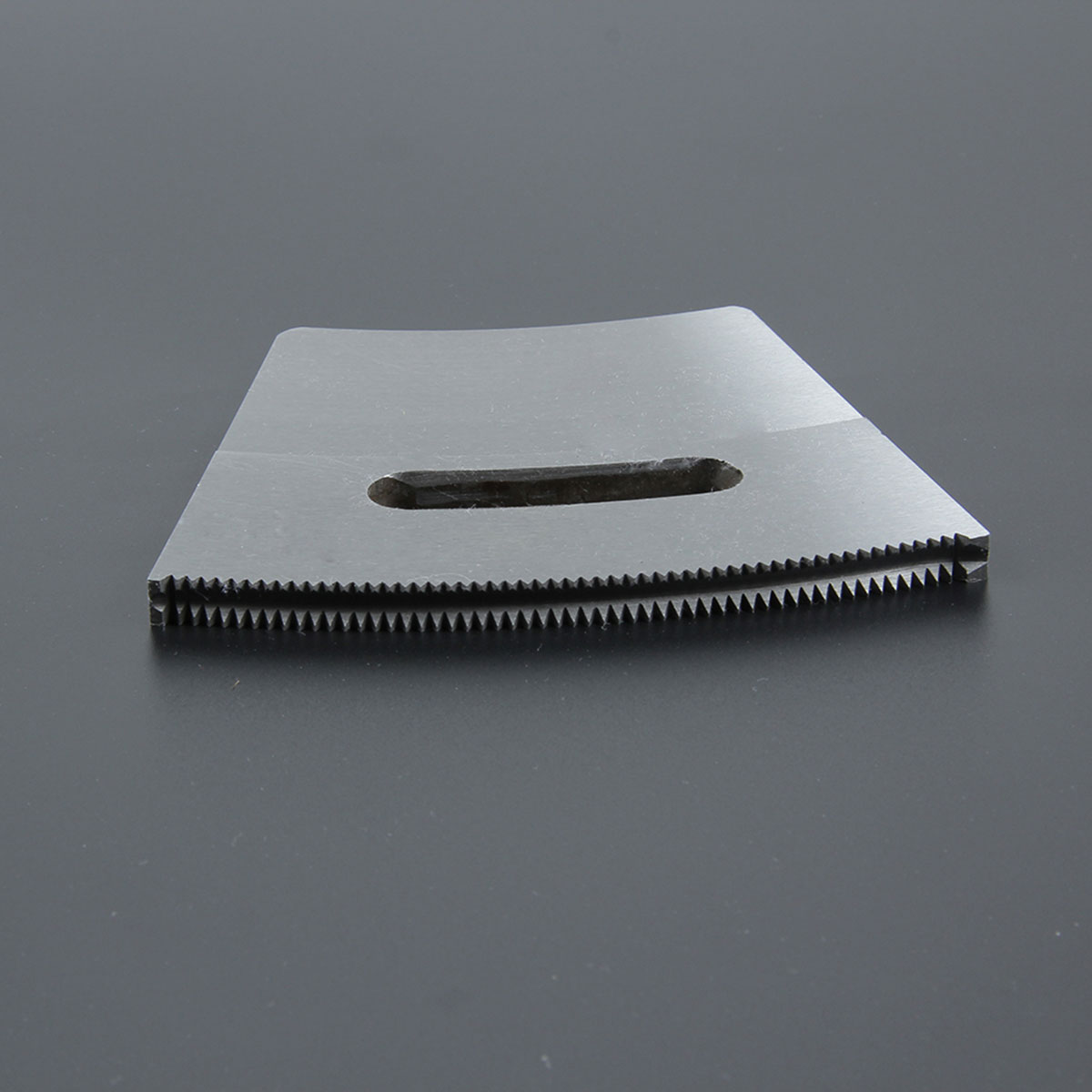

Groove slot knife corrugated board slitter knife

A whole set of knife of a slotter machine consitsts mostly of slot knife, bottom knife, spacer, and valve knife. Slotter knife is also called "Sector knife" by manufacturers due to its curved shape. The function of slotter knife is obviously slot, slotting folding parts of corrugated cardboard by the teeth which coud be serrated or crescent-shaped. Deatils: Basic size: Angle of sector x (R-r) x T Material: GCr15, 9SiCr, SKD11, LD, HSS Hardnss: 57-64HRC Teeth type: Serrated or crescent-shaped Roughness of surface: Ra0.2-Ra0.8

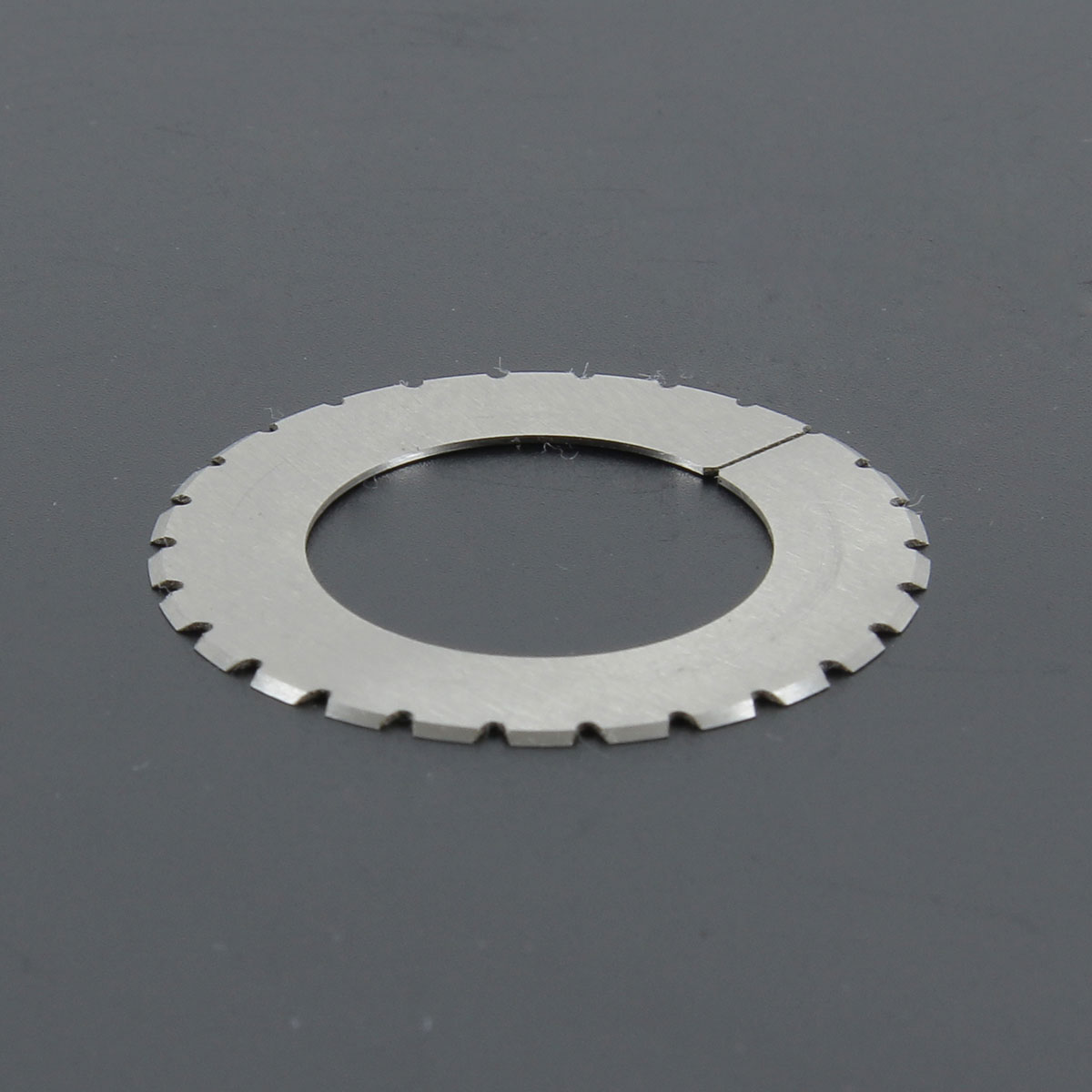

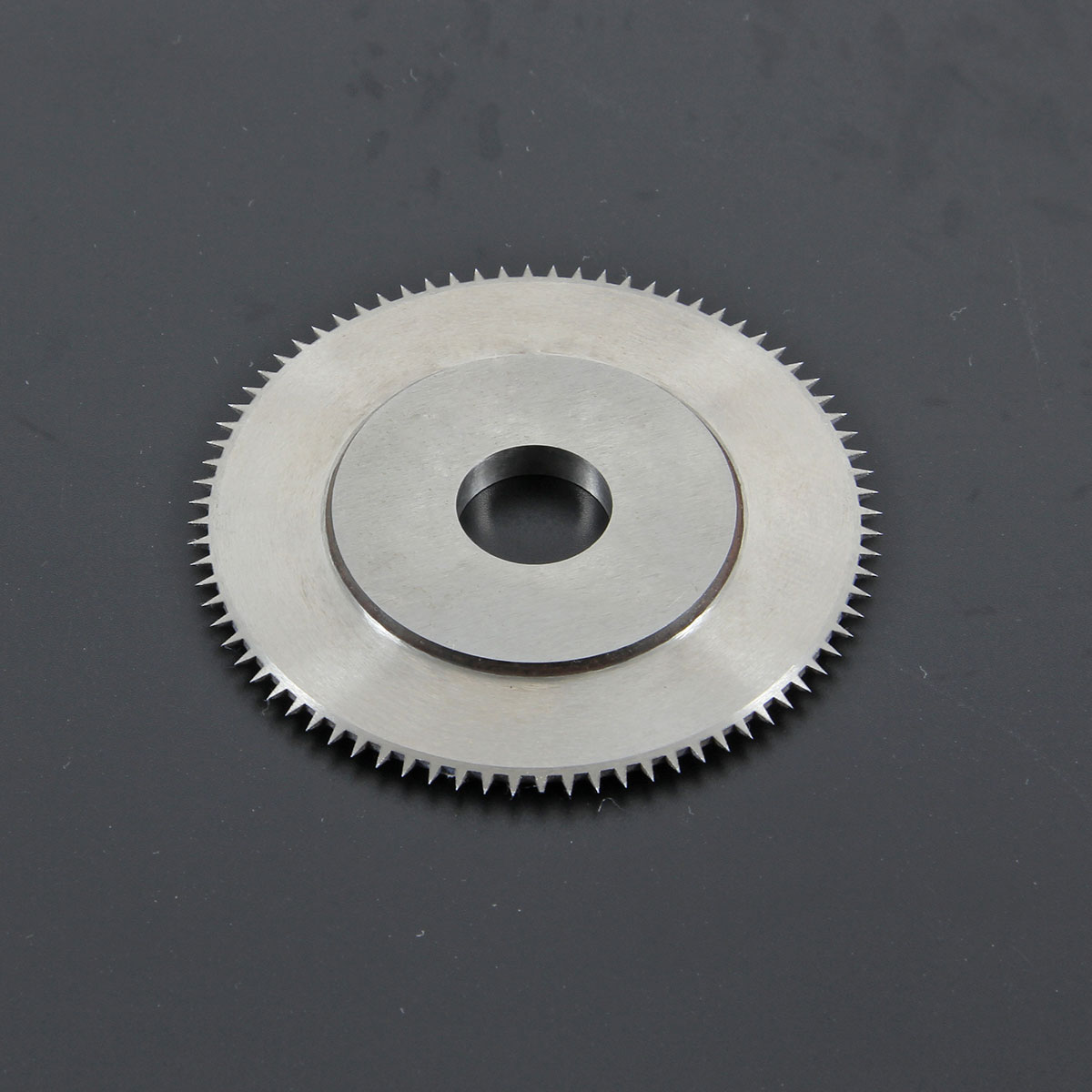

disk teeth knife for half cutting adhesive label papers

Disk Teeth Knife is widely applied to adhesive products, protective films, all kinds of papers, fabrics, rubber tires, and so on. Teeth of knife are sharp; Surface of teeth is smooth; Material of knife is suitable and durable. Detailed Paremeters: 1. Size (ODxIDxTmm): 42x26x0.5 2. Material: HSS 3. Hardness: 62-63HRC 4. Number of teeth: 26

Professional air slitter machine pneumatic knife holder with blades

This Pneumatic knife holder is specially designed with lower safety guard. This device has frontal blade extraction and penumatic locking to generate more efficiently. It is also used in easy cutting angle setting.

High precision Pneumatic tool holder accessories

Easy adjustment, increased slitting accuracy and consistency. Durable construction minimizes vibration and yields exceptional slitting quality. Economic and efficient product for basic slitting applications.
