High Quality Fiberglass Reinforced Plastic FRP Molded Grating
Product Description

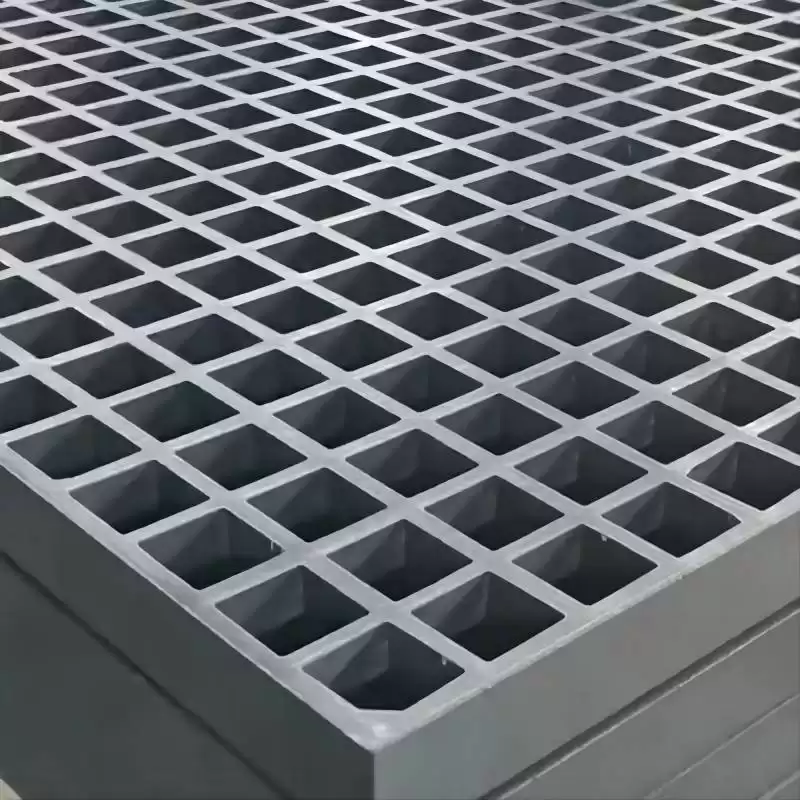

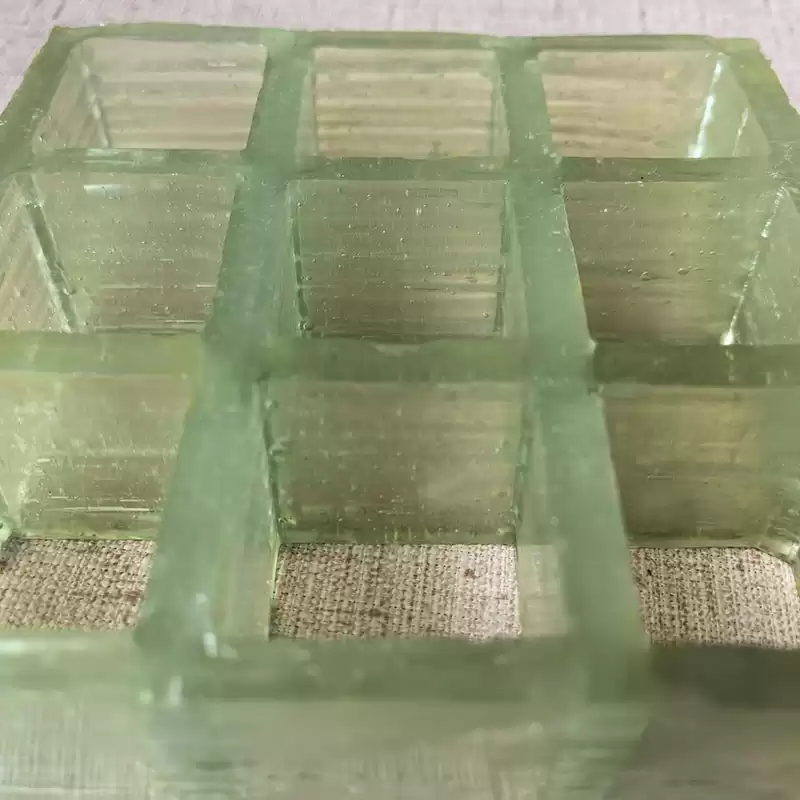

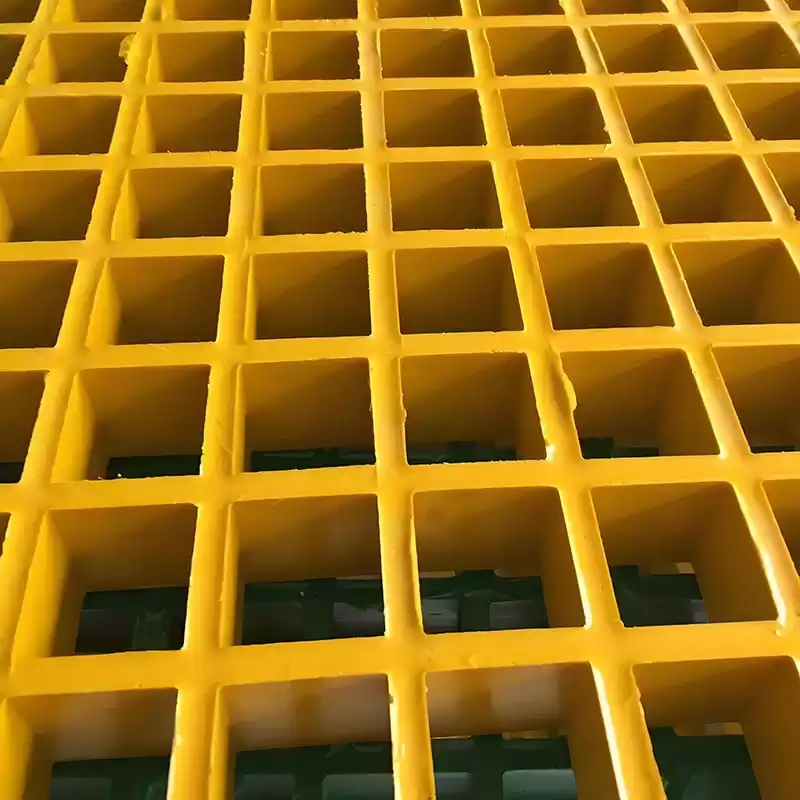

Fiberglass Reinforced Plastic FRP (GRP) grating is a new composite material composed of fiberglass reinforced materials and thermosetting resin matrix. It has the characteristics of light weight, high strength, corrosion resistance, durability and strong designability. It is widely used in Industrial Flooring, Walkways,Platforms, Trench Covers, Stair Treads, etc.

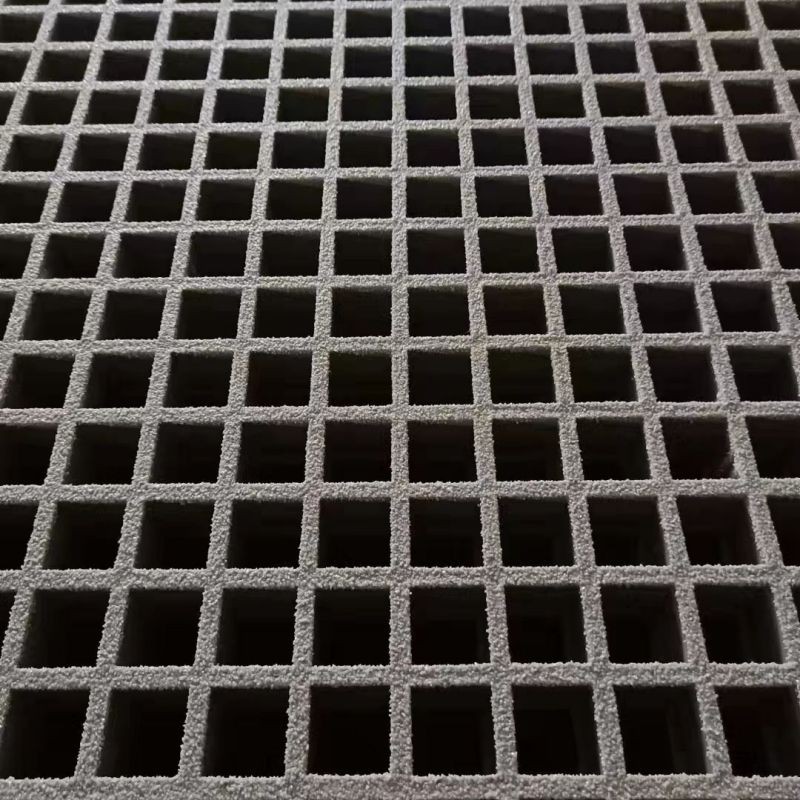

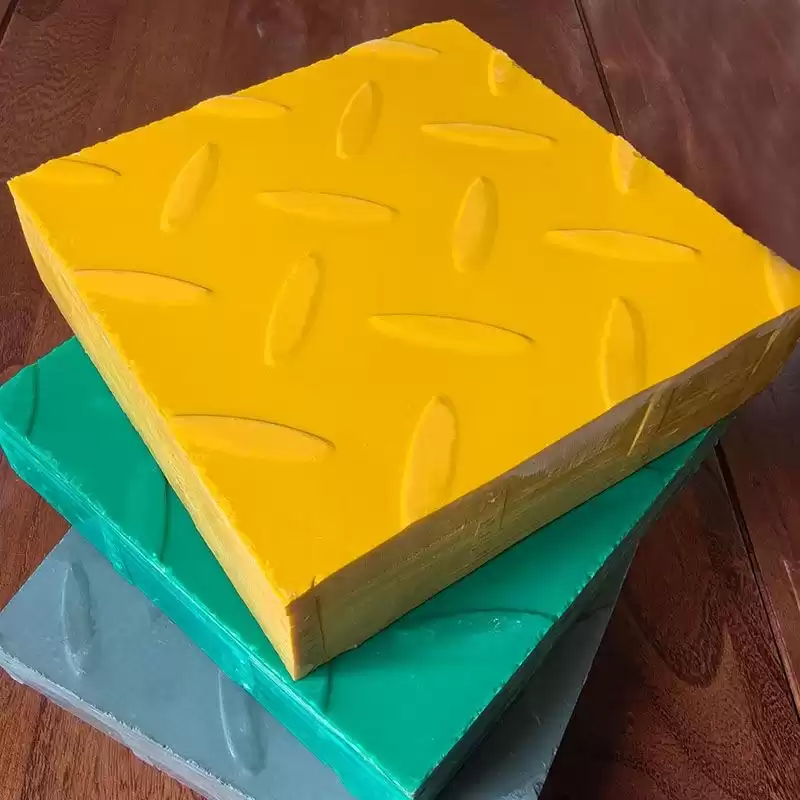

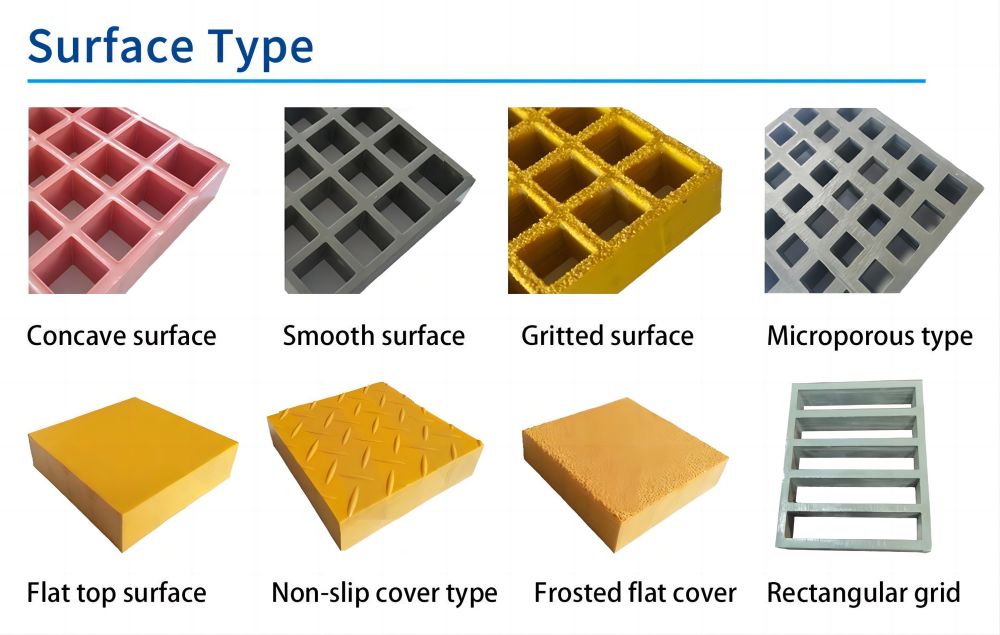

Surface Treatment
Size Of FRP Grating
The Fiberglass Reinforced Plastic gratings we produce are available in various specifications, including square holes in 38*38mm and 40*40mm, elongated holes in 100*25mm and 152*38mm, and micro holes in 12*12mm and 19*19mm. Product heights are 25/30/38/50/65mm, etc. The following table is an introduction to some specifications. If you need to customize other specifications, please contact us!
|
MOLDED GRATING SPECIFICATIONS
(The following parameters are for reference only, and there will be slight errors in actual products.)
|
| 38x38 |
|
View
(mm)
|
Thickness
(mm)
|
Mesh Size
(mm)
|
Bar Thickness
(mm)
|
Full Panel Size
(mm)
|
Weight
(kg/m²)
|
Open Rate
(%)
|
 |
25 |
38x38 |
6.0/5.0 |
1000x4040
1220x4040
|
12.5 |
68 |
| 30 |
38x38 |
6.0/5.0 |
1000x4040
1220x4040
|
16 |
68 |
| 38 |
38x38 |
7.0/5.0 |
1000x4040
1220x4040
|
20 |
68 |
| 40 |
38x38 |
7.0/5.0 |
1220x3660 |
22 |
68 |
| 65 |
38x38 |
8.0/6.0 |
1220x3660 |
40 |
65 |
| 40x40 |
|
View
(mm)
|
Thickness
(mm)
|
Mesh Size
(mm)
|
Bar Thickness
(mm)
|
Full Panel Size
(mm)
|
Weight
(kg/m²)
|
Open Rate
(%)
|
 |
25 |
40x40 |
5.5/4.5 |
1000x4000
1220x4025
|
12 |
67 |
| 30 |
40x40 |
6.0/5.0 |
1000x4030
1220x4025
|
15 |
67 |
| 38 |
40x40 |
7.0/5.0 |
1000x4040
1220x4025
|
18.5 |
67 |
| 40 |
40x40 |
6.5/5.0 |
1000x4040 |
20 |
67 |
| 65 |
40x40 |
7.5/5.0 |
1000x4040 |
34.5 |
64 |

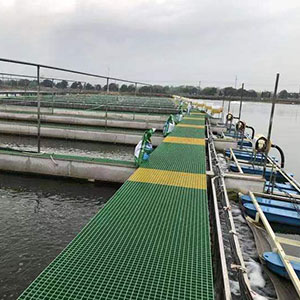

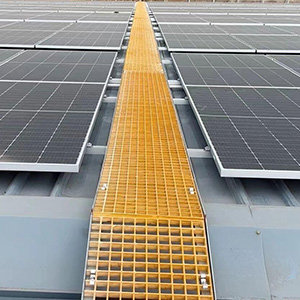

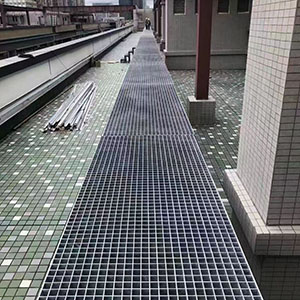

Application

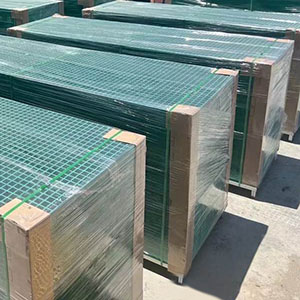

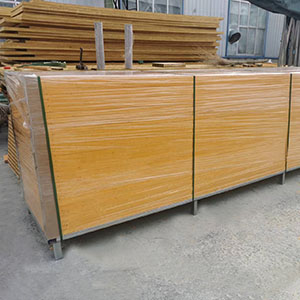

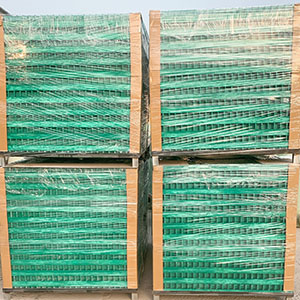

Packaging
Our Services
Our company has more than 40 years of production experience and professional production equipment. We can customize and produce various specifications of FRP Grating according to your needs. The product quality is excellent and the price is very competitive. Welcome to consult and discuss cooperation!
