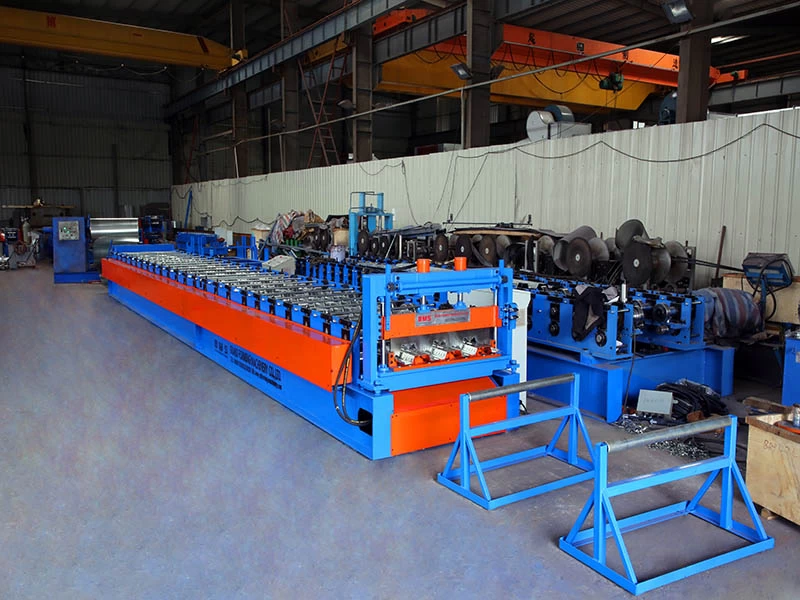

High Quality Floor Decking Roll Forming Machine

Floor Decking Roll Forming Machine can make S550Mpa,2.0mm product.



Floor Decking Roll Forming Machine For YX50-333-1000



 Click here to view the video


floor deck roll forming machine

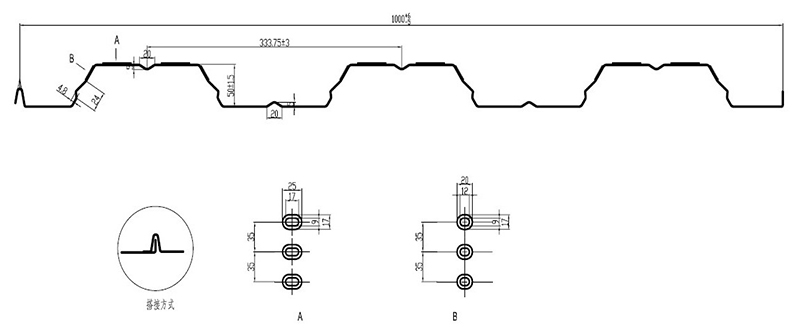

Profile

floor decking roll forming machine


Material

Material Thickness: 0.8-1.5mm Or 1.5-2.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength 235-550Mpa

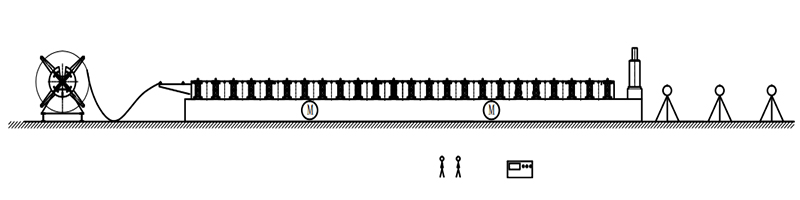

Work Follow

Decoiler→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter →Exit Rack

floor decking roll forming machine

Machine Components


1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 1250mm,coil ID range 508mm±30mm
Capacity: Max. 7 Ton

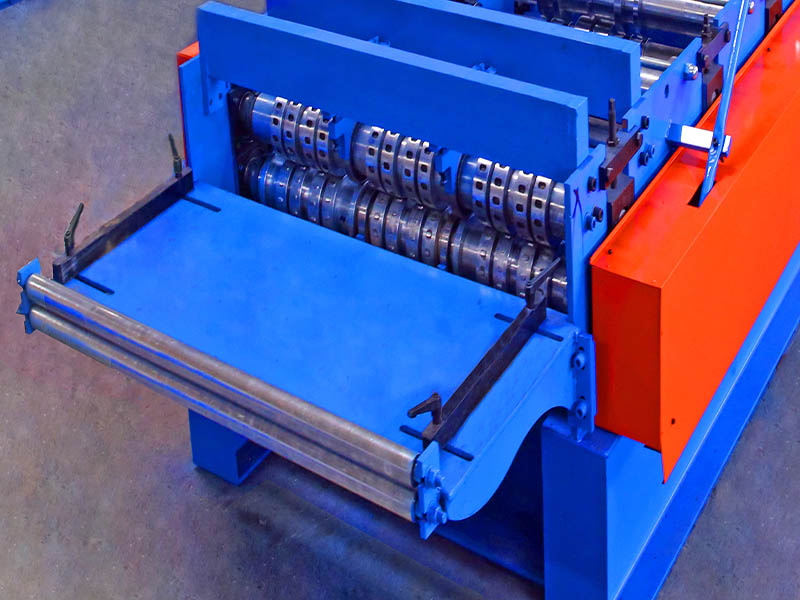

2) Feeding Guide Device

Feeding guide device can control the material feeding width


floor decking roll forming machine

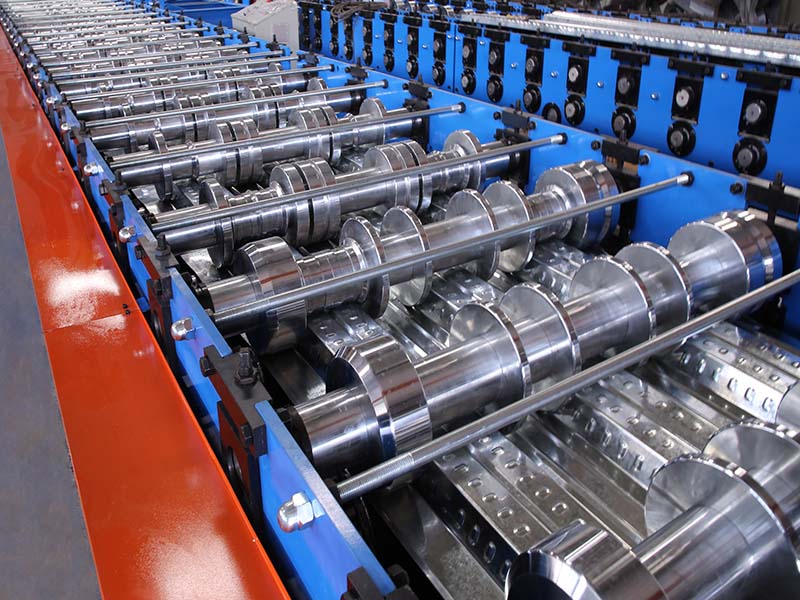

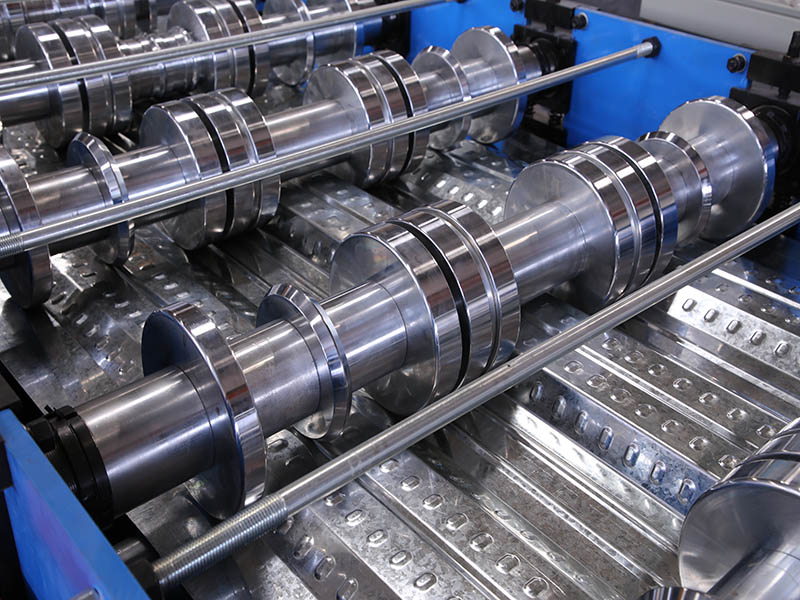

3) Main Machine

body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
The material for Embossing roller:GCr15 Steel,for long working life, heat treatment,HRC58-62
Shafts Diameter=ф90/95mm,precision machined
Gear/Sprocket driving,about 24-step to form
Main Motor(Polaroid brand)=11x2KW,Frequency speed control
Real forming speed 18-20m/min(Not include cutting time)


floor decking roll forming machine


floor decking roll forming machine

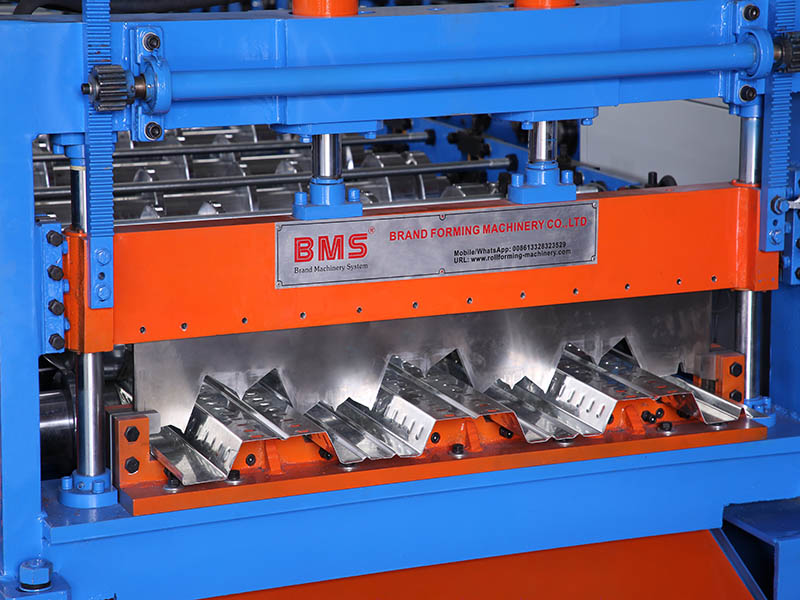

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:5.5KW ;Cutting pressure: 0-12Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station


floor decking roll forming machine

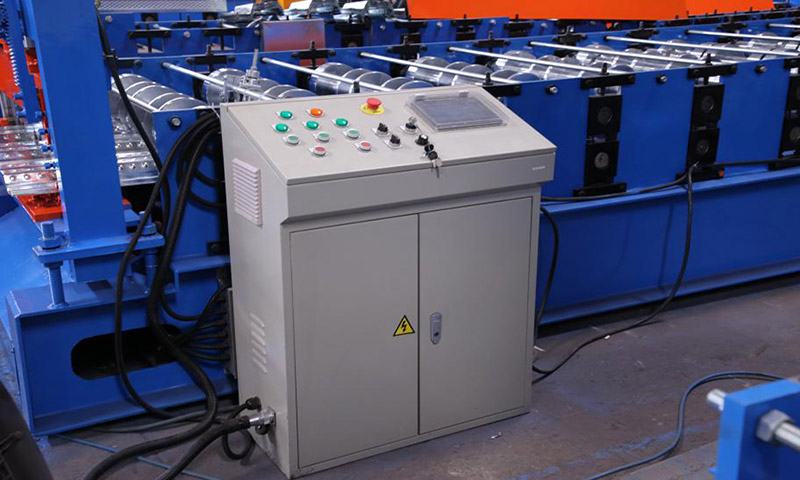

5) PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen
It Can Finish The Production Automatically
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


floor decking roll forming machine


6)Exit Rack

Un-powered, Three units,with rollers on it for easy movement


floor decking roll forming machine

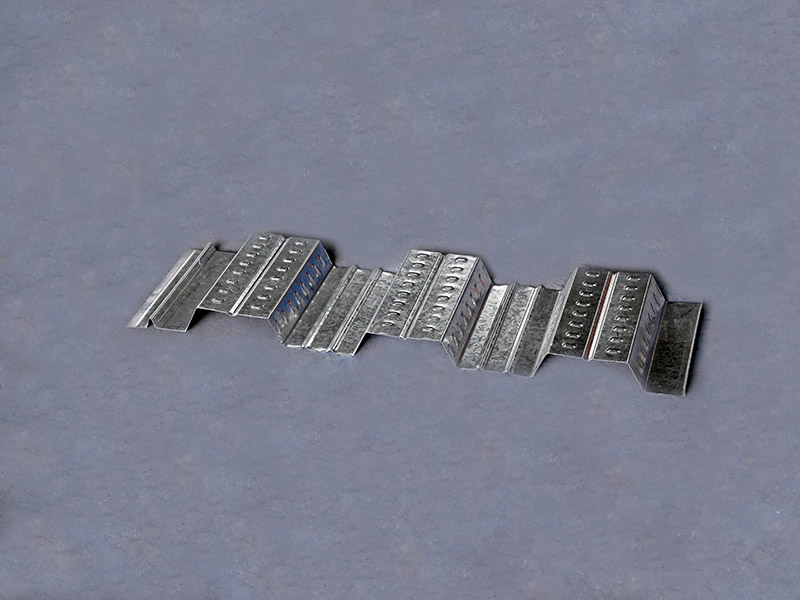

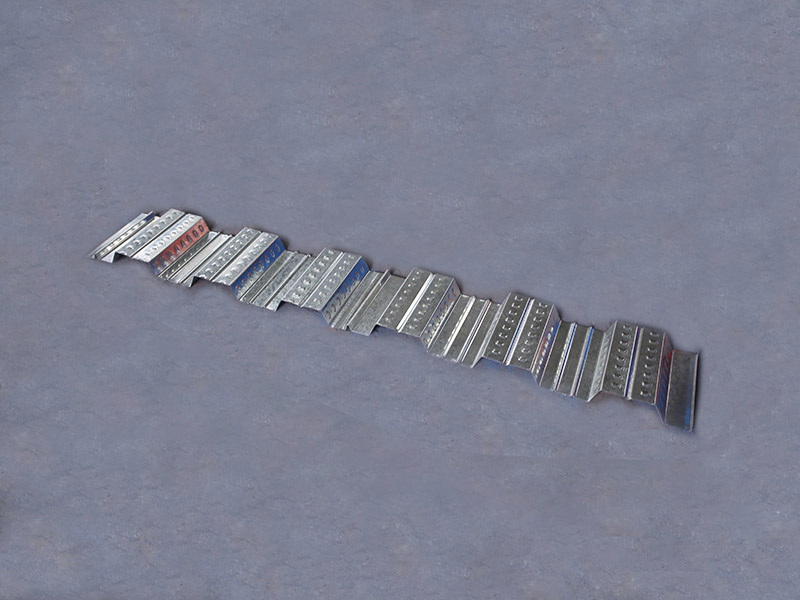

7)Product Show

floor decking roll forming machine


floor decking roll forming machine


Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
