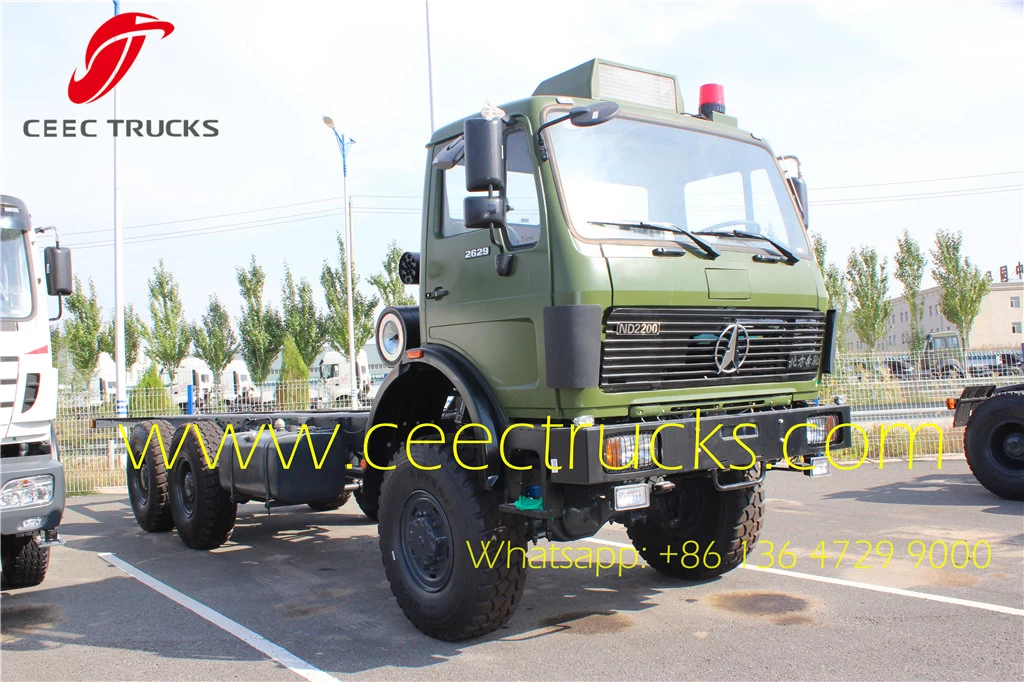

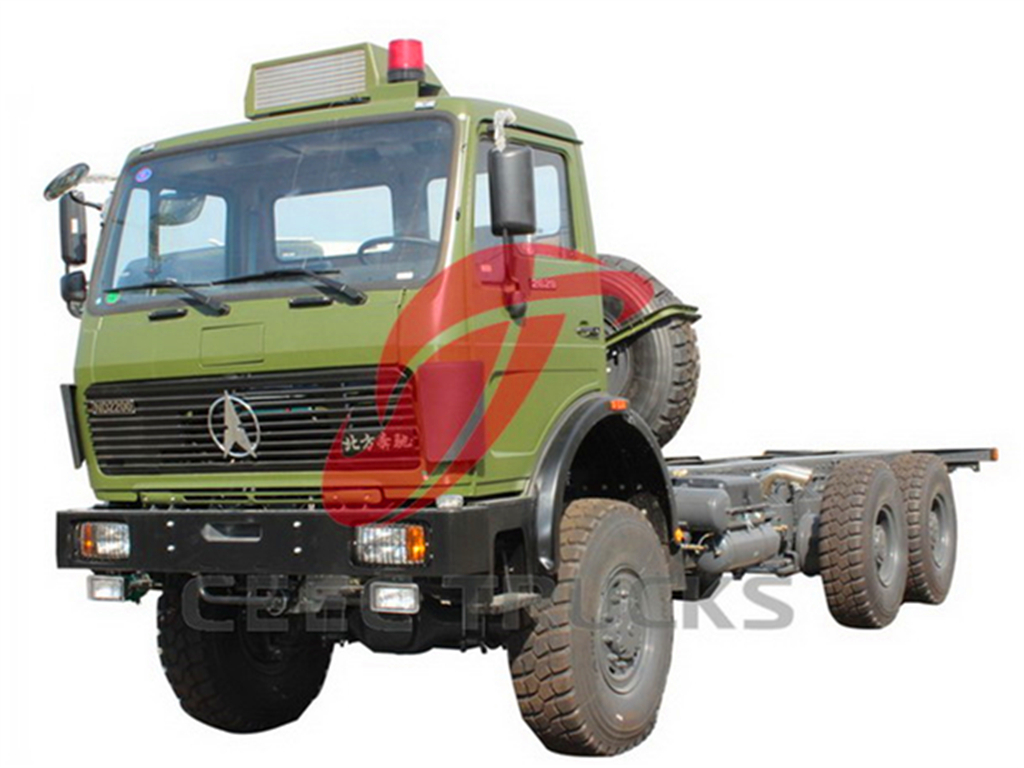

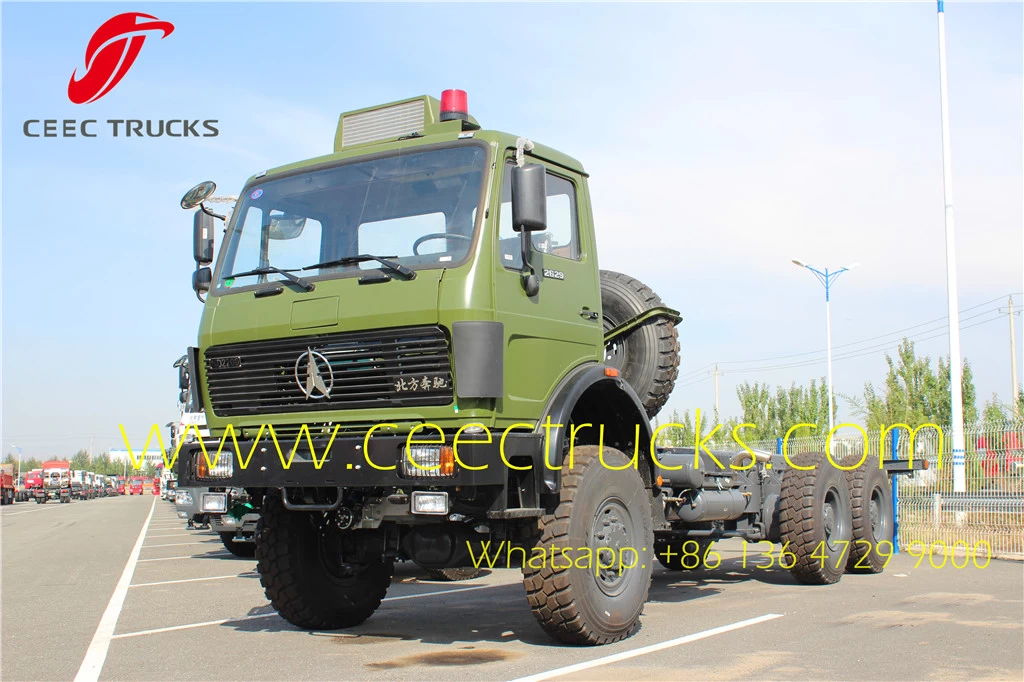

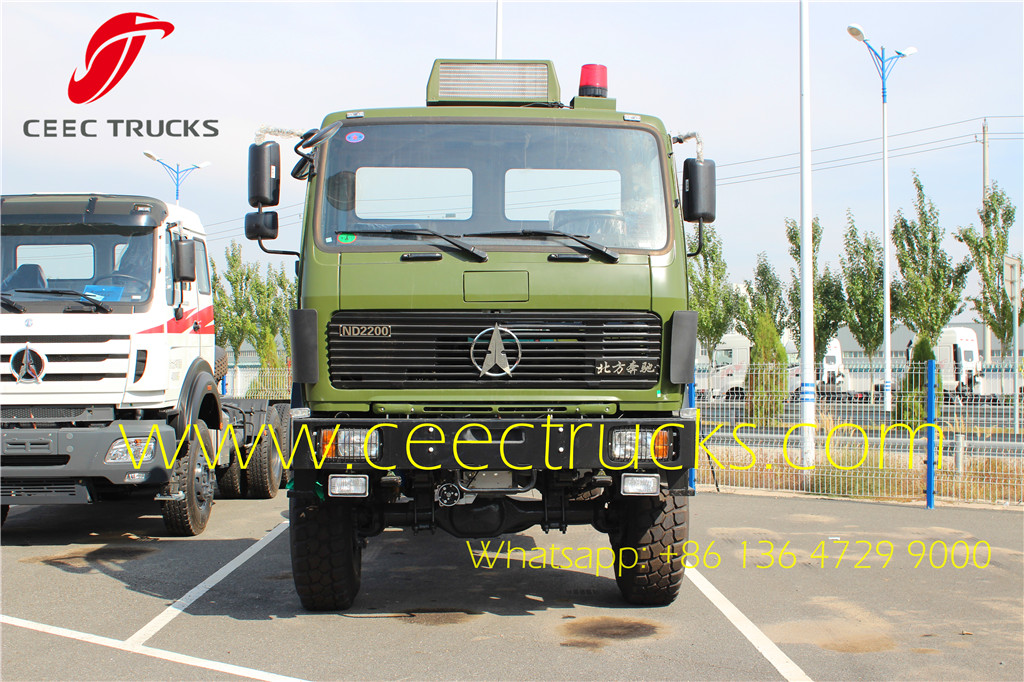

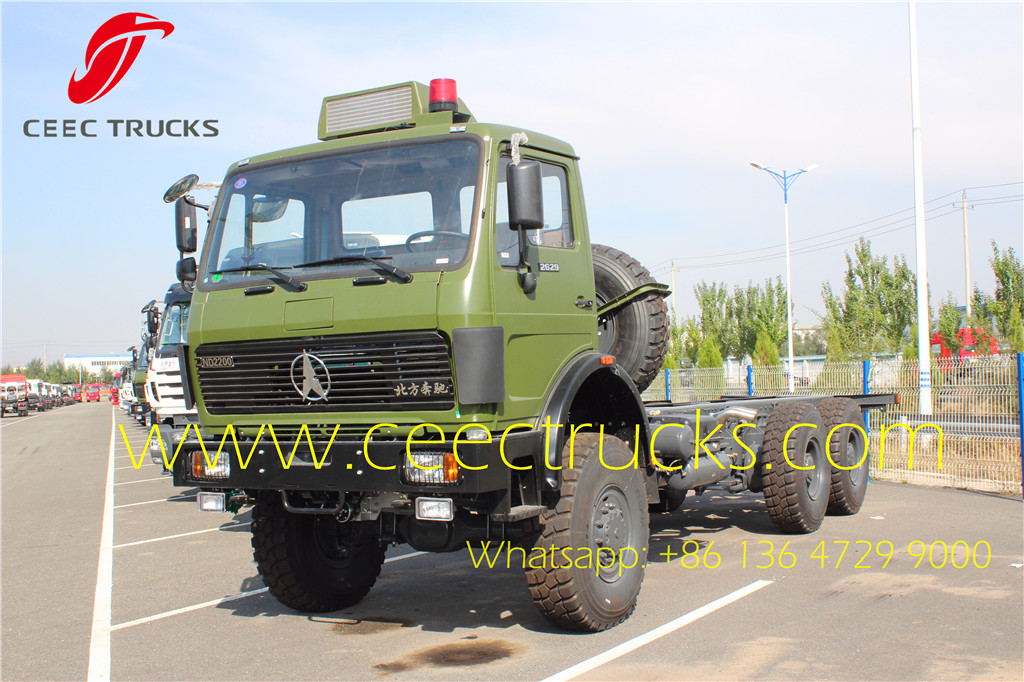

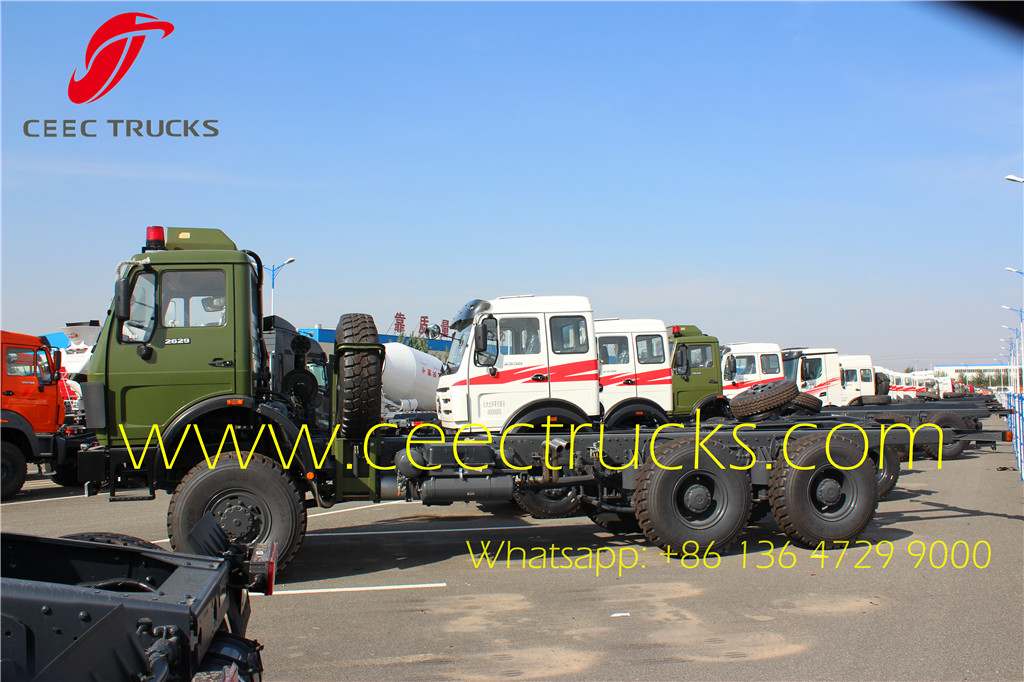

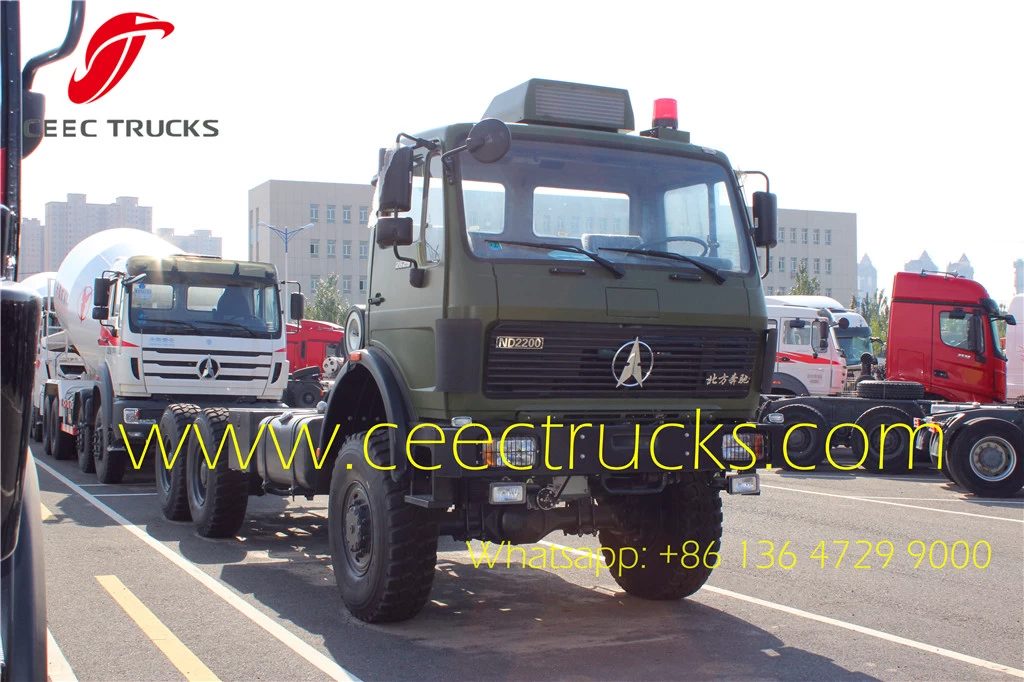

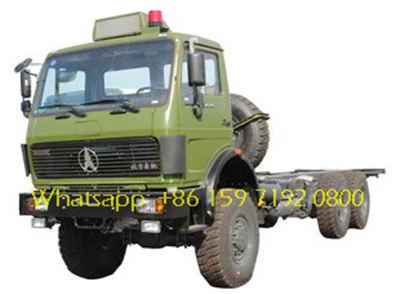

Beiben Military 2636 tractor head Hot Sale
Kenya, Tanzania, Algeria, Mozambique Customer choose military beiben 2536, 2636 towing trucks features:
★ CEEC TRUCKS are authorized Beiben 2636 tractor trucks, north benz 2536, 2538 prime movers supplier in China
★ Beiben trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ The price for Benz 2634 towing trucks are relatively at least 10% lower than European and Asian competitors
★ Beiben truck and benz trucks share familiar gearboxes - ZF and Fuller Fast. mainly 9-shift manual gearbox and 12-sfhit manual transmissions
★ Mercedes Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have displacements of 10 and 12 liters and HP of 270 to 480.
★ Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.

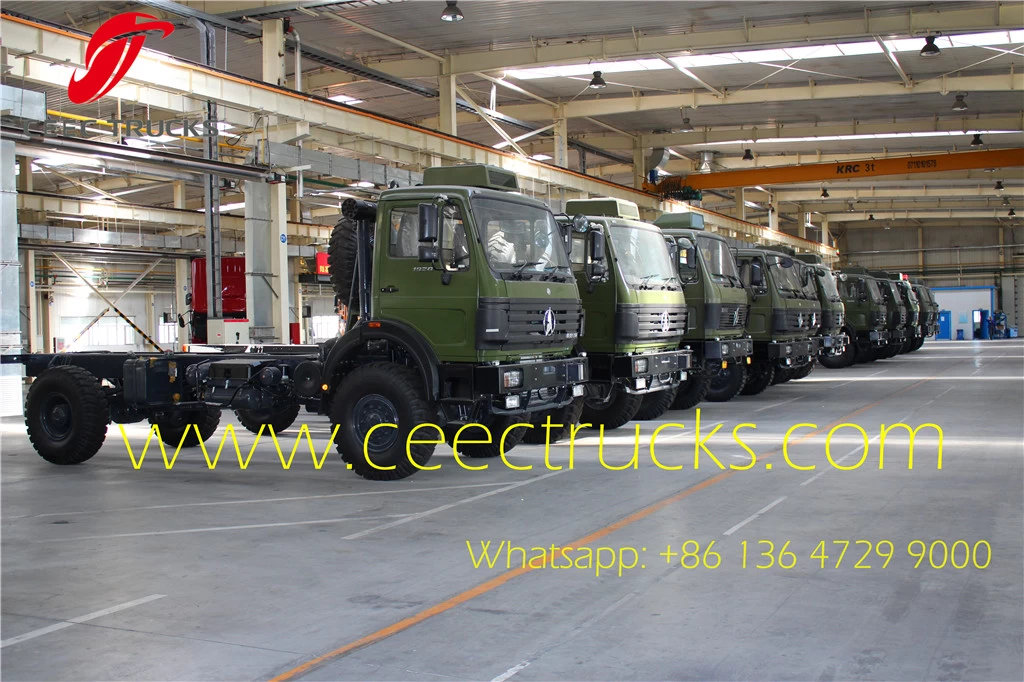

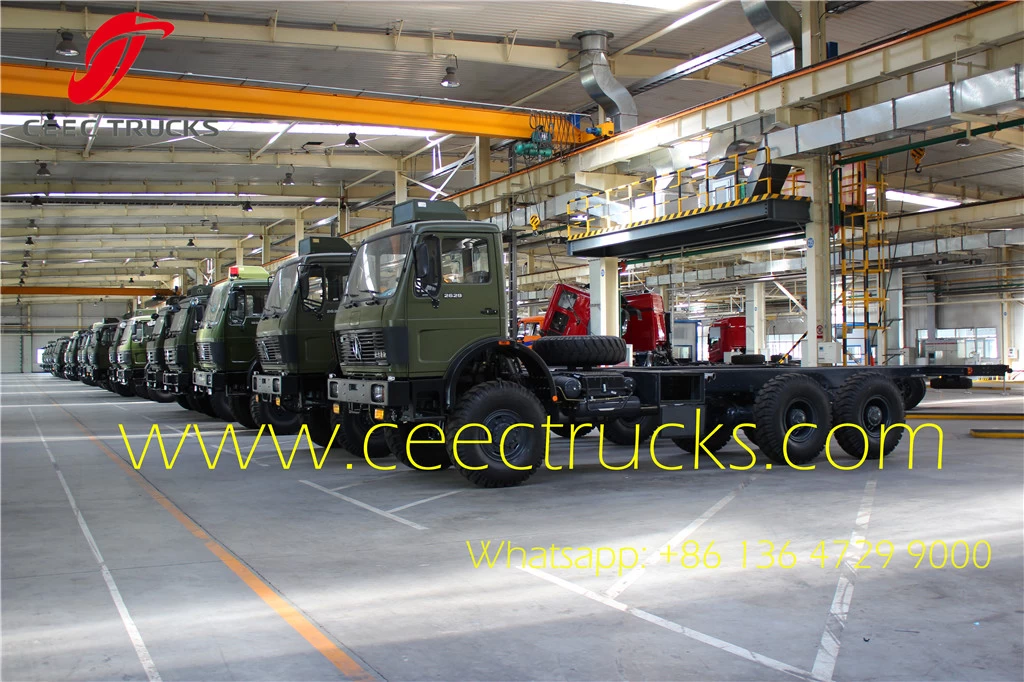

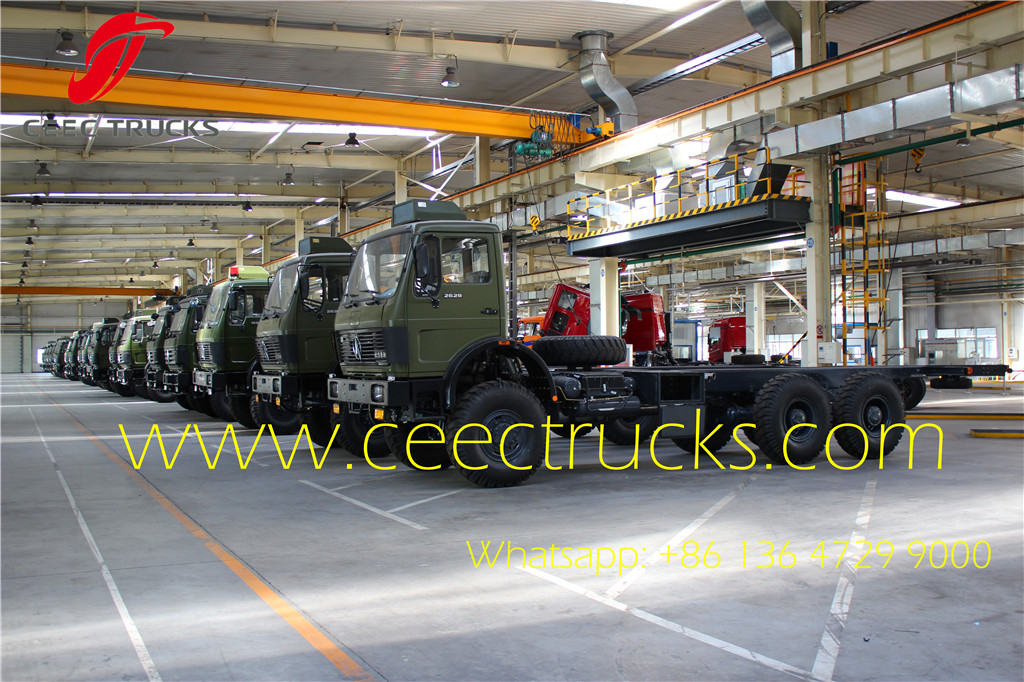

Beiben 2536 trailer tractor truck also can be called Beiben 6*4 tractors, north benz 2536 towing truck and beiben 2536 tractor head trucks, provided by authorized beiben heavy truck company supplier CEEC TRUCKS, which has plant which located in Hubei Suizhou, all beiben tractor trucks use Germany Mecedes Benz technology and heritage are manufactured to the highest international standards and the strictest military quality controls.
Similar
Key Works: Beiben 2636 towing trucks, Benz 6*4 prime mover, Beiben 2636
tractor truck, Benz 1834 tractors, beiben 6*6 all-wheel-drive tractors,
beiben 2534 towing trucks, beiben 6*4 trailer tower, offroad beiben 6 wheeler tractor trucks

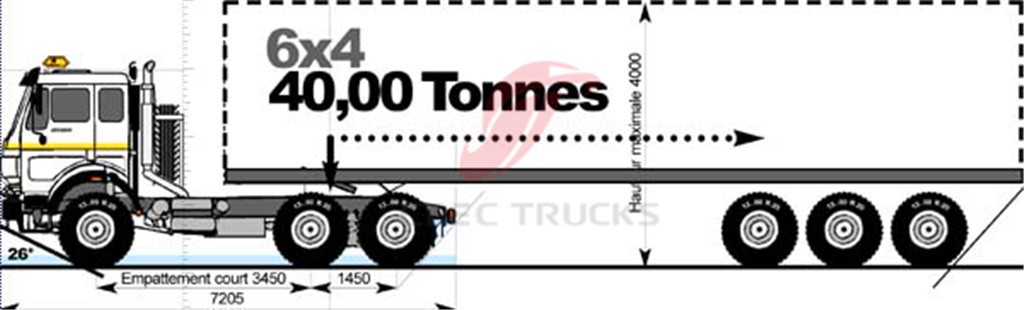

| Beiben 2636 tractor truck/6×4/3450+1450/Long Cab/LHD
|

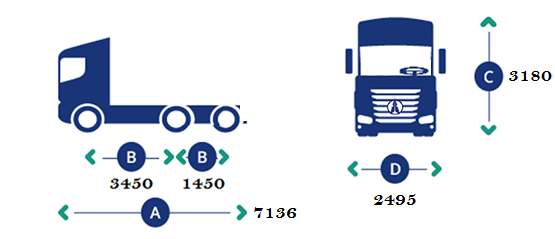

| Dimension
|
6935*2495*3340mm
|
| Approaching angle/Departure angle
|
20/64°
|
| Overhang(front/rear)
|
1410/625mm
|
| Wheel base
|
3450+1450mm
|
| Max speed
|
100km/h
|
| Curb weight
|
9200kg
|
| Max towing weight
|
39670kg
|
| Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WD615.46, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
265/2200 (kw/rpm)
|
| Max.torque
|
1750/1300-1400(Nm/rpm)
|
| Emission stantard
|
EuroⅢ
|
| Fuel tanker capacity
|
400L
|
| Clutch
|
430, Single dry frictional disc,Hydraulic boosting
|
| Gearbox
|
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer
|
| Gear ratio of gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
|

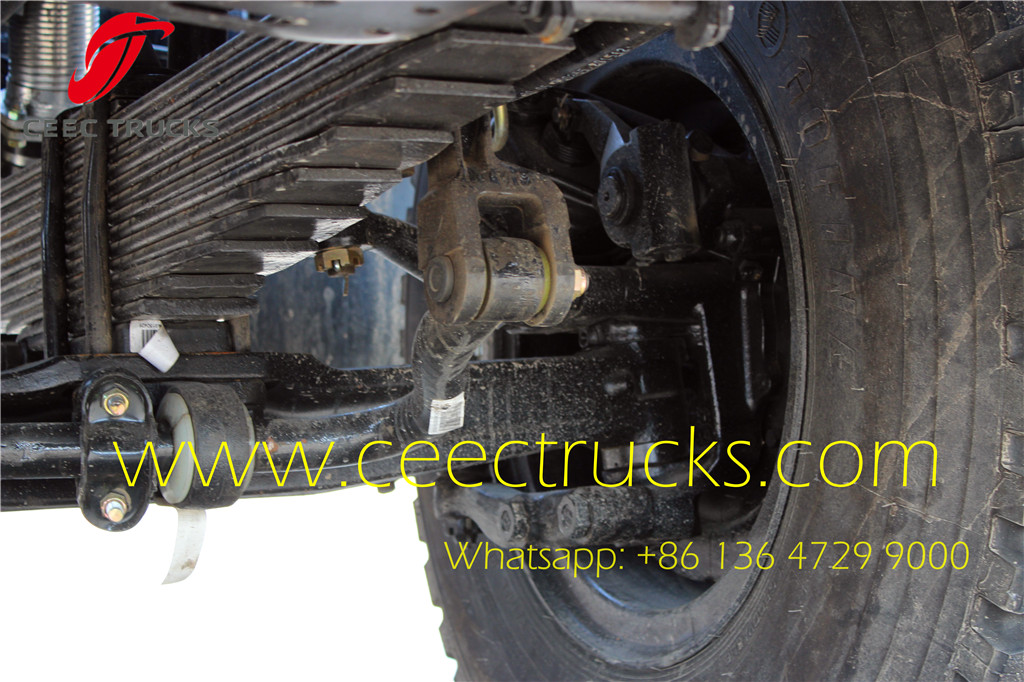

| Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
|

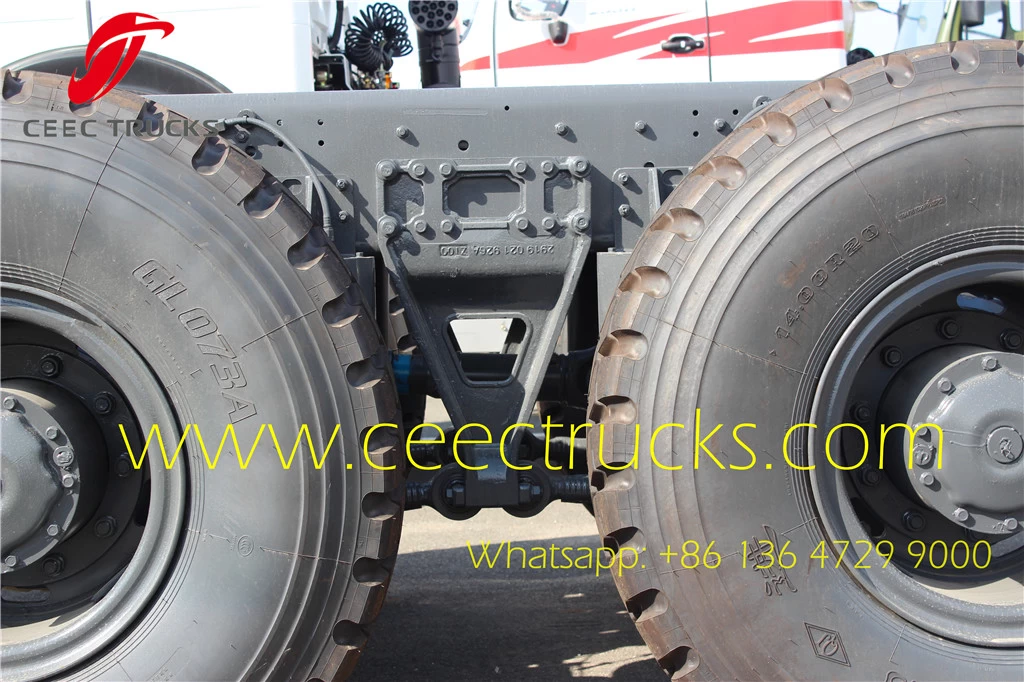

| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Model
|
JOST 90 single direction
|
| Height of fifth wheel(mm) (unload)
|
1410
|
| Radius of front gap (mm)
|
2300
|
| Radius of rear slew (mm)
|
2600
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|

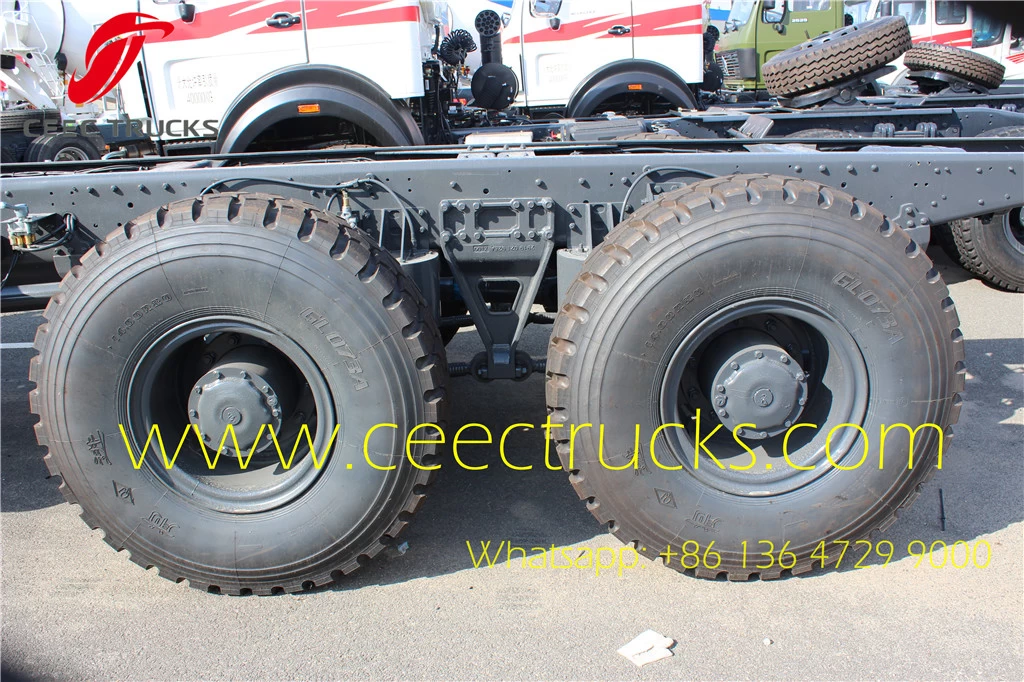

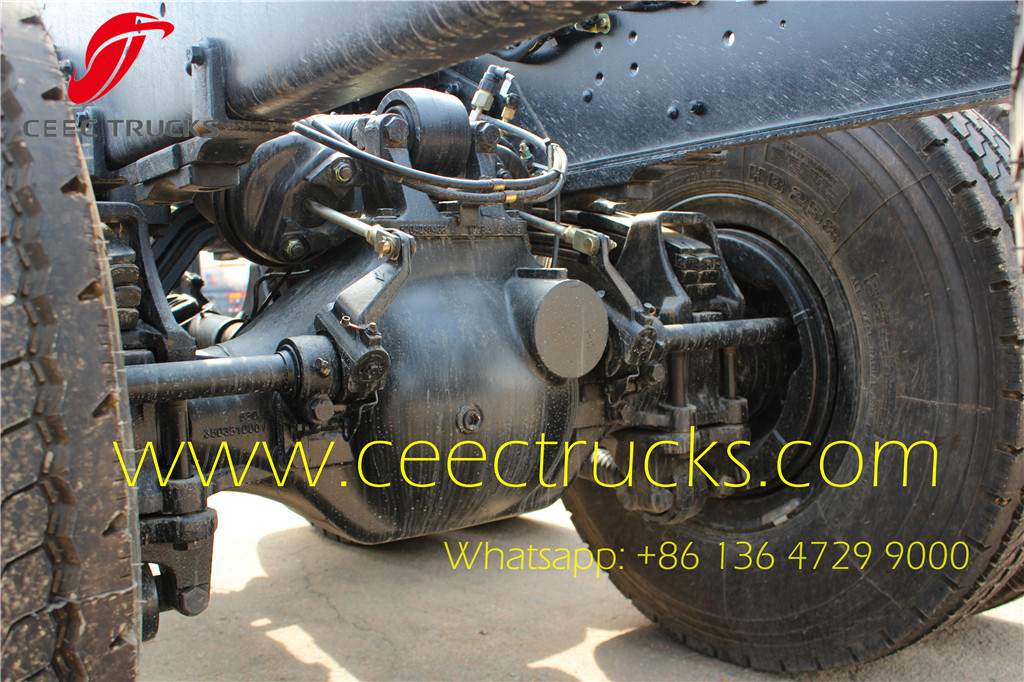

| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|

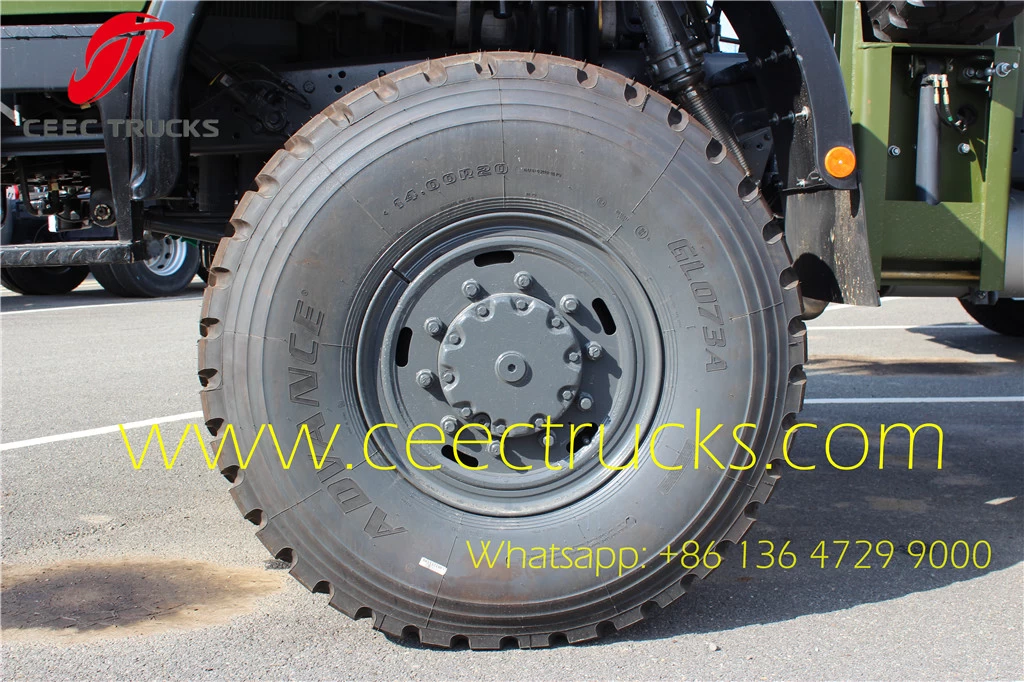

| Tyre
|
12.00-R20
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|
| Cabin
|
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|

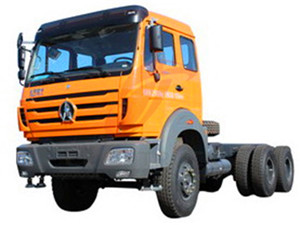

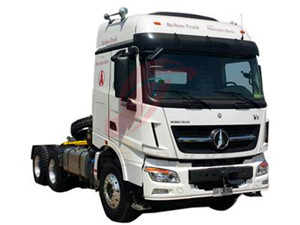

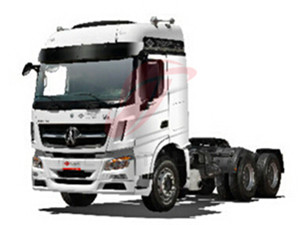

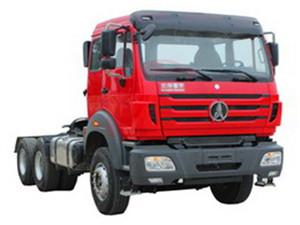

Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale

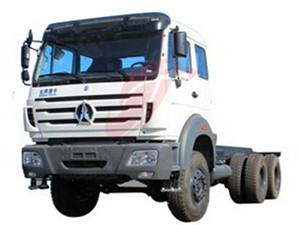

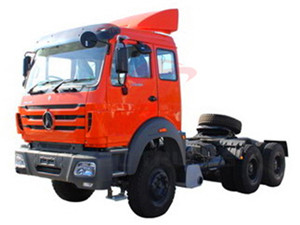

Other beiben trucks display
