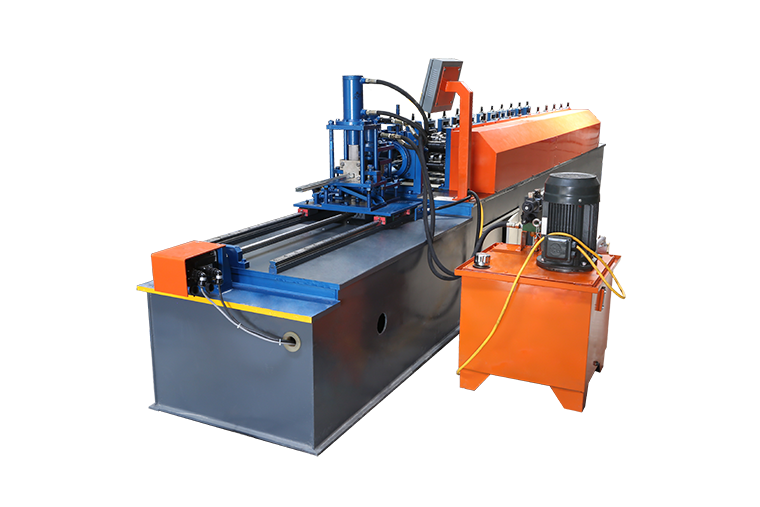

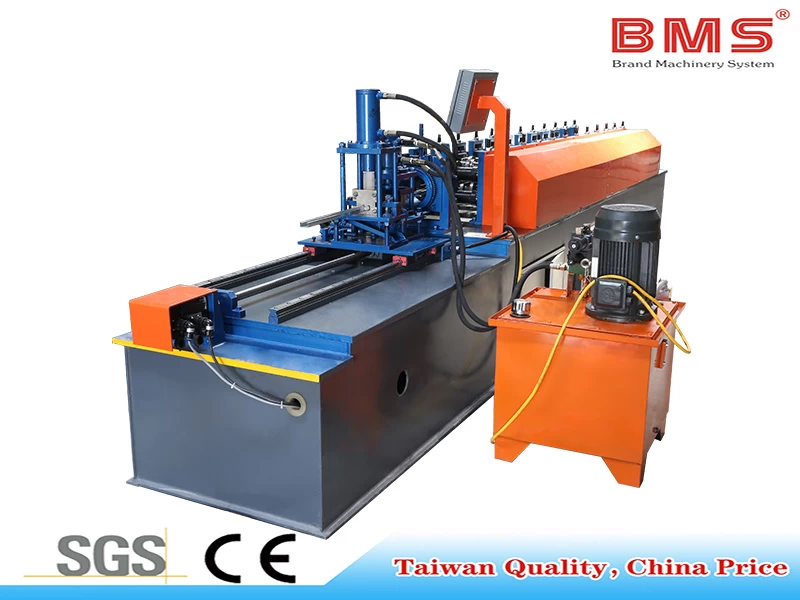

High Quality Stud and Track Roll Forming Machine

Speed can reach 30-40 meters/ per minute





       High Speed Stud and Track Roll Forming Machine

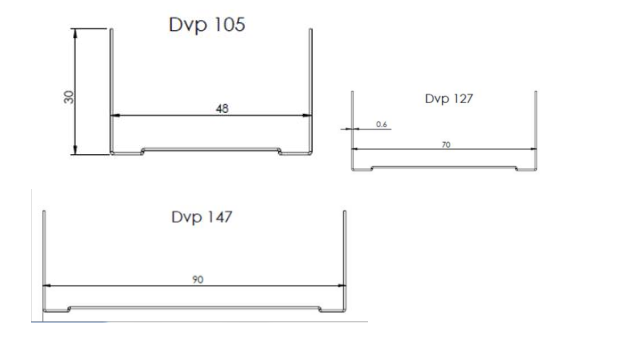

         (1 machine for multi-profiles,size-changing by spacer)



High Speed Stud And Track Roll Forming Machine

                                      Click here to check the video




1.Main features of high speed stud and track roll forming machine



    The advantages of high speed stud and track machine  are as follows:

    1.The speed can reach 30-40 meters per minute

    2.Enlarged hydraulic station to ensure high speed working

    3.Easy operation, low maintenance cost

    4.Beautiful appearance.

    5.One machine for multi-profiles,size-changing by spacer



2.Detailed Images of stud and track roll forming machine



    Machine Parts

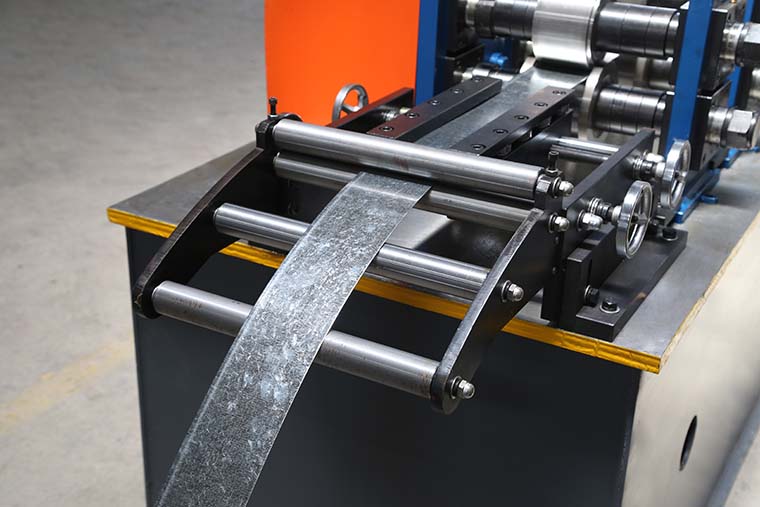

 1) High speed stud and track machine arc feeding guide

   Brand: BMS    Original: China

   Arc Feeding Guide(make feeding smooth and no wrinkling)


Stud and Track Roll Forming Machine

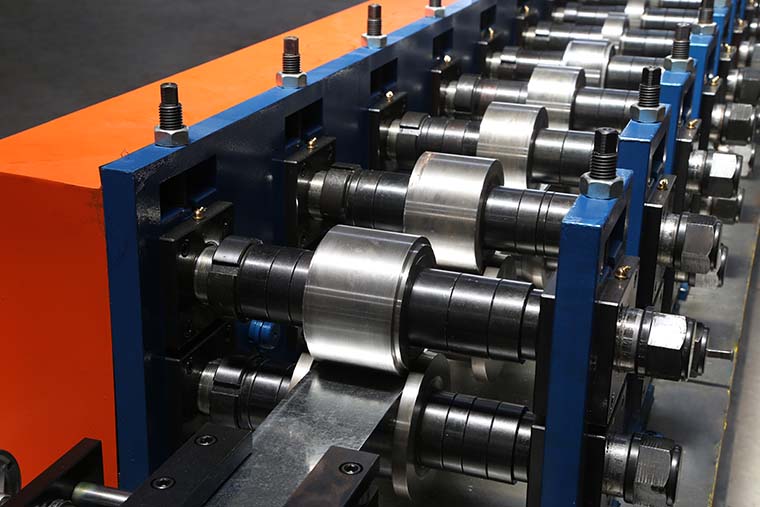

    2) High speed stud and track machine rollers

        Rollers manufactured from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,

        Heat Treatment. (with black treatment or Hard-Chrome Coating for options).

        With feeding material guide, body framemade from 400# H type steel by welding


Stud and Track Roll Forming Machine Rollers

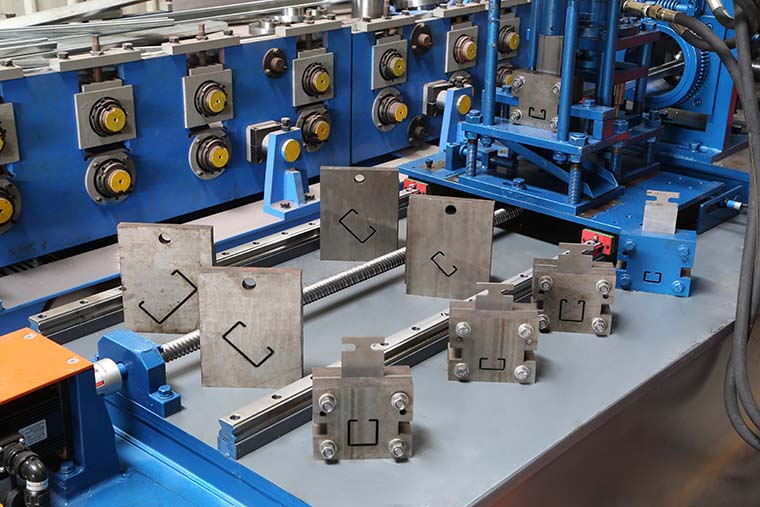

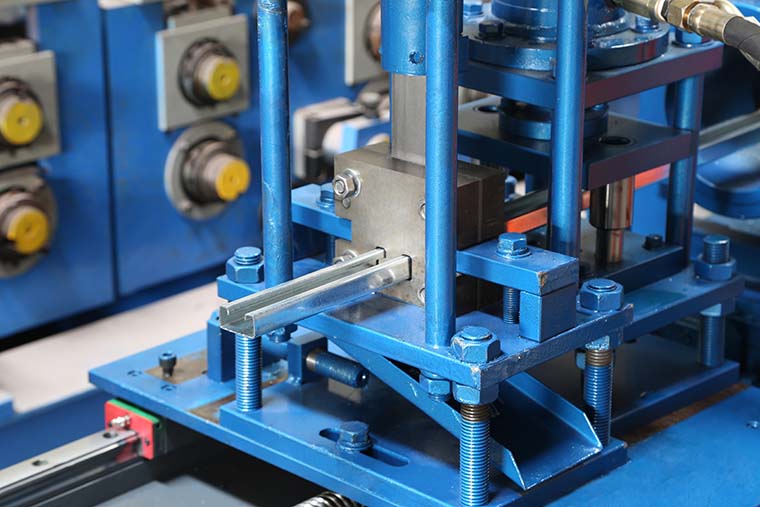

     3) High speed stud and track machine straighting and logo punching device


Stud and Track Roll Forming Machine



Stud and Track Roll Forming Machine


        4) High speed stud and track machine operation panel





   5) High speed stud and track machine flying cutting

        made by high quality long life mold steel Cr12Mov,with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding

        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa


Stud and Track Roll Forming Machine Post Cutter


Stud and Track Roll Forming Machine Post Cutter


Stud and Track Roll Forming Machine Post Cutter

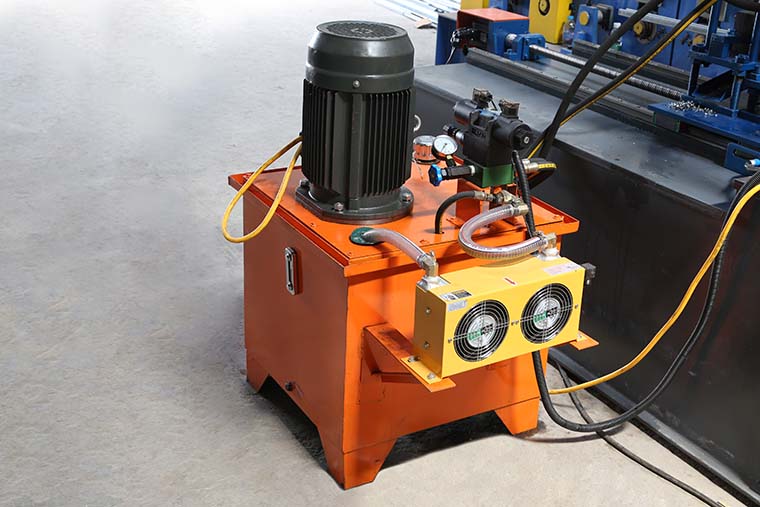

        6) High speed stud and track machine hydraulic system

              Enlarged hydraulic station to ensure high speed working





   7) High speed stud and track machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 508mm±30mm

        Capacity: Max. 3Ton




        With 3 tons hydraulic decoiler for option




        8) High speed stud and track exit rack

        Un-powered,4meters long ,one unit




Other detailes of high speestud and track roll forming machine



Suitable for material with thickness 0.8-1.2 mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 12 rollers to form.

Main servo motor=2.0KW , Frequency speed control. Forming speed approx.30-40m/min




PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of stud and track roll forming machine



1. The warranty of stud and track roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
