High Quality Unclad Epoxy Glass Fabric Laminate FR4 Sheet

Plastic machining components, Resin Bonded Composites, Cotton fabric based laminate.
JY Machinery's technical capability combines high performance up-to-date CNC equipment with an unmatched depth of experience in machining laminated plastics and resin bonded materials and other engineering plastics.



NEMA Grade FR4 materials are glass fabric reinforced laminates, bonded with frame resistant epoxy resin.
The material has the ability to maintain excellent mechanical, electrical and physical properties at elevated
temperature to 130°C.

We provide a wide range of material solutions from rigid, glass epoxy composites to high-temperature
This model provides application-specific solutions, shorter lead times, and materials that meet or exceed our customers’ most demanding application requirements.

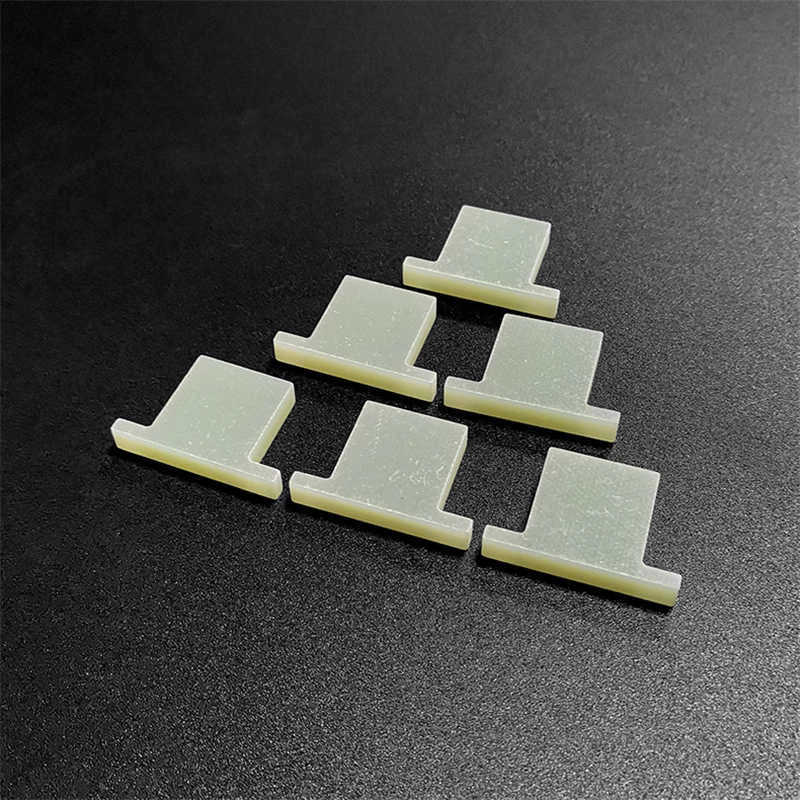

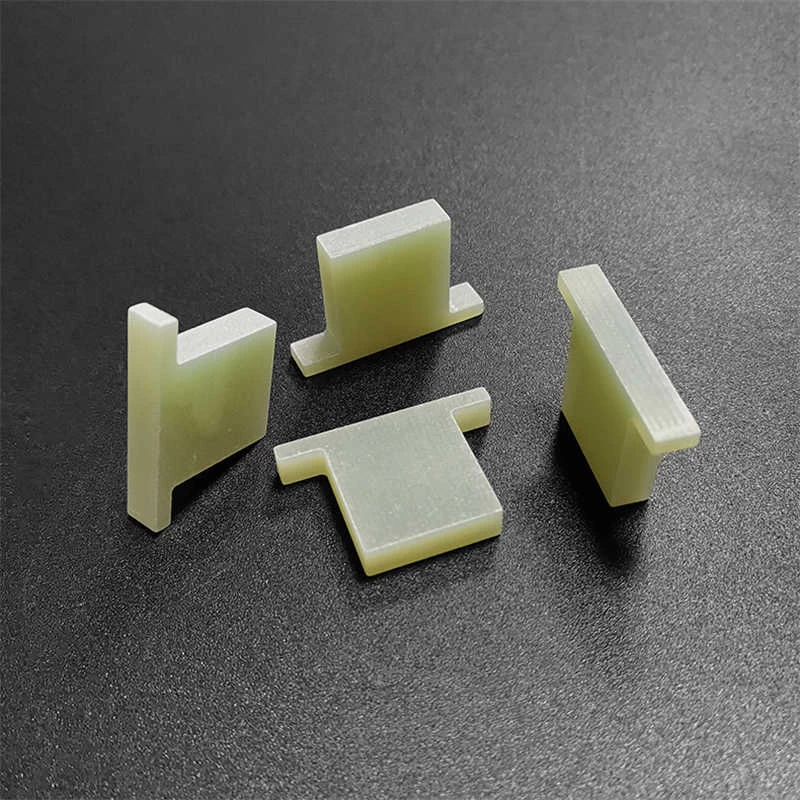

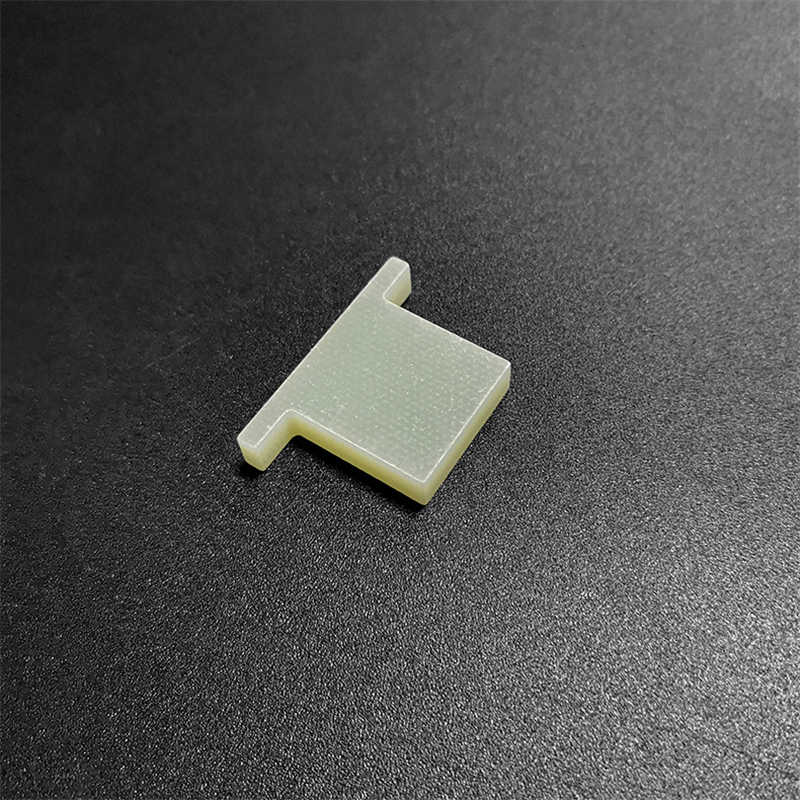

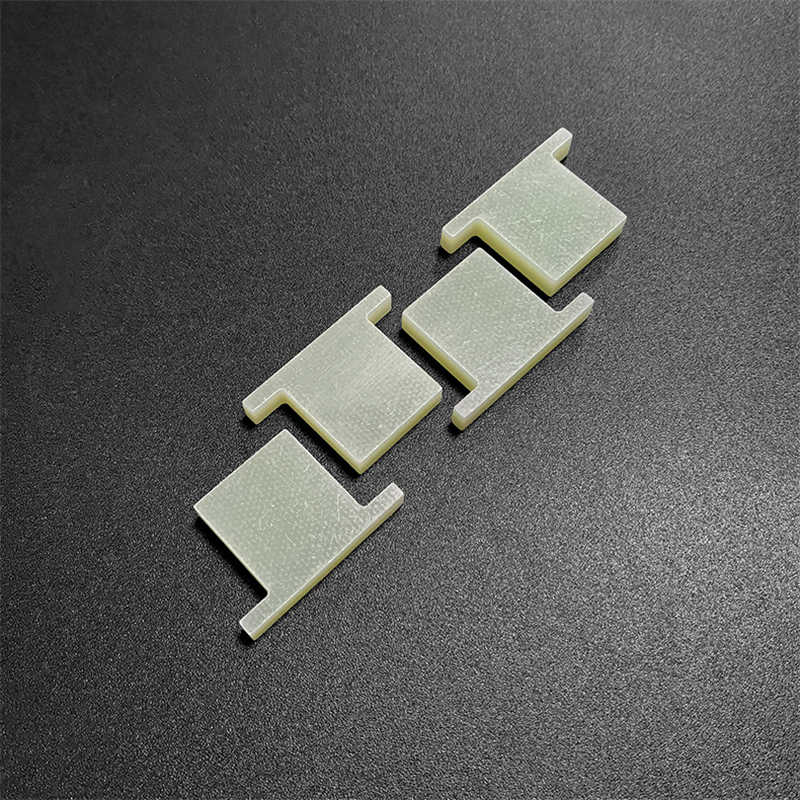

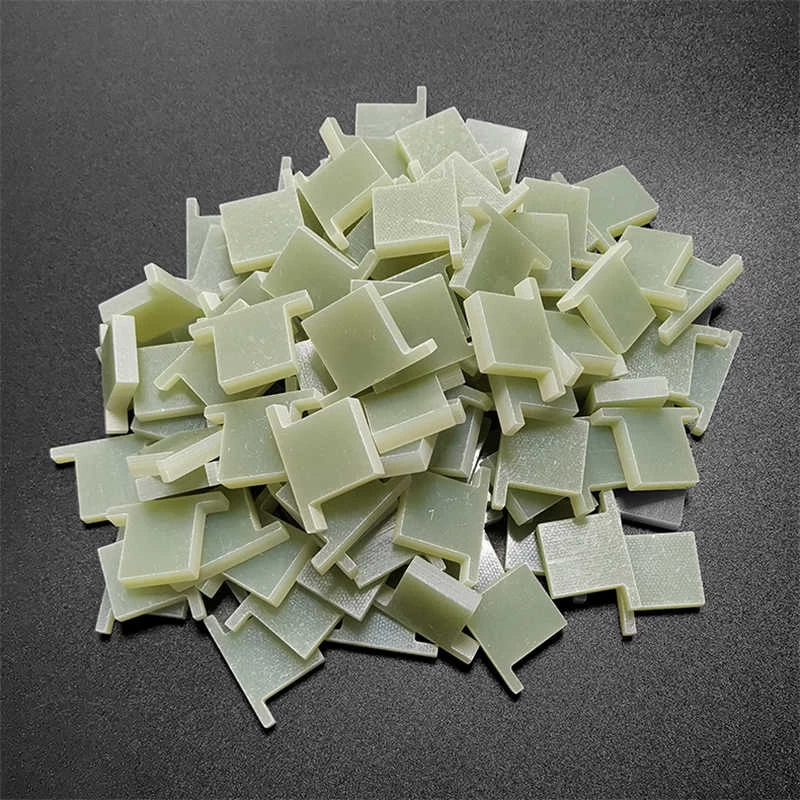

Products Show:



Product Parameters:

Item:

Unit

Result

Density

g/cm³

1.9

standard color



yellow, green

Fire Retardancy Grade:

--

UL94-V0

Flame Resistance:

°C

170-180

Voltage Resistance(penetrating)

KV/mm

18

Voltage Resistance

KV/mm

12

Arc Resistance

S

60-80

Volume resistivity:

Ω*cm

10 ^6

Surface resitance:

Ω*cm

10 ^6

Compressive Strength(Vertical):

MPA

≥350

Compressive Strength

MPA

≥300

Anti-impact intensity

KJ/ m2

≥33

Bending strength

kg/mm2

≥340

Dielectric constant (1MHz) :

/

5.4

Adhesive strength:

kg

700-900

Compressive strength(Horizontal):

kg/mm2

20-24

Water absorption rate:

%

0.07-0.12



thickness/mm

tolerance/mm

thickness/mm

tolerance/mm

0.2-0.3

± 0.02

20

± 0.5

0.4-0.7

± 0.03

25-30

± 0.6

0.8-1.2

± 0.05

35-40

± 1

1.5-2

± 0.1

40-100

± 1.5

3-6

± 0.2





8-12

± 0.3





15

± 0.4






Products Properties:

Epoxy Based Fiberglass Resin FR4 Epoxy Precision G10 CNC Machined Part is woven fiberglass soaked in an epoxy resin and then compressed and baked. It is very dense, lightweight, and impervious to water. The advantages of this material:


  • Strong, stiff, tough and durable
  • Excellent dielectric strength
  • Good machinability
  • Light weight
  • Heat and water resistant
  • Corrosion and chemical resistant
  • Good mechanical strength
  • Excellent wear properties
  • Good dimensional stability
  • Low moisture absorption
  • Excellent creep resistance

JY Machinery has sufficient stock of the fiberglass epoxy sheet due to its widely applications, to meet fast delivery for our clients.


Our Factory:



Our Servies:

1. Rich Experience

Professional materials background and non-metallic materials processing experiences with more than 10 years,using in industry field like transformer,generator,electric motor,etc.

2. Provide one-stop service from raw material sheet supply to customized further processing of nonmetal insulating parts.

We can develop and produce various high standards and personalized products according to customers' requirement.

3. Pre-sales Service

We have professional sales team to offer comprehensive technical and business consultation services. Designing and fabricating targeted products according to the special requirements of clients.

4. After-sales Service

Highly inspecting equipment in every working procedure, quality comes first.

5. Our Advantage

Competitive price, Flexible payment options, Quick speed.

Always ready for supplying the best solution for your various application.


Main Application:

With high mechanical strength, Insulation, heat resistance, electrical properties and good moisture resistance properties. Widely range of applications, for example: Suitable for using as insulating structural parts in electric equipment, such as electric generators, motors, switch board, pcb , etc.




Product Tags machining insulation parts          insulator parts          insulation machine          machine insulation          insulation parts          insulations parts          insulator machine          parts of insulation tester          insulated panel machine
