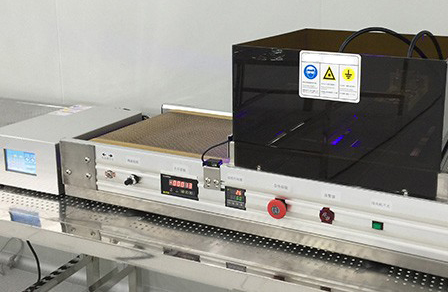

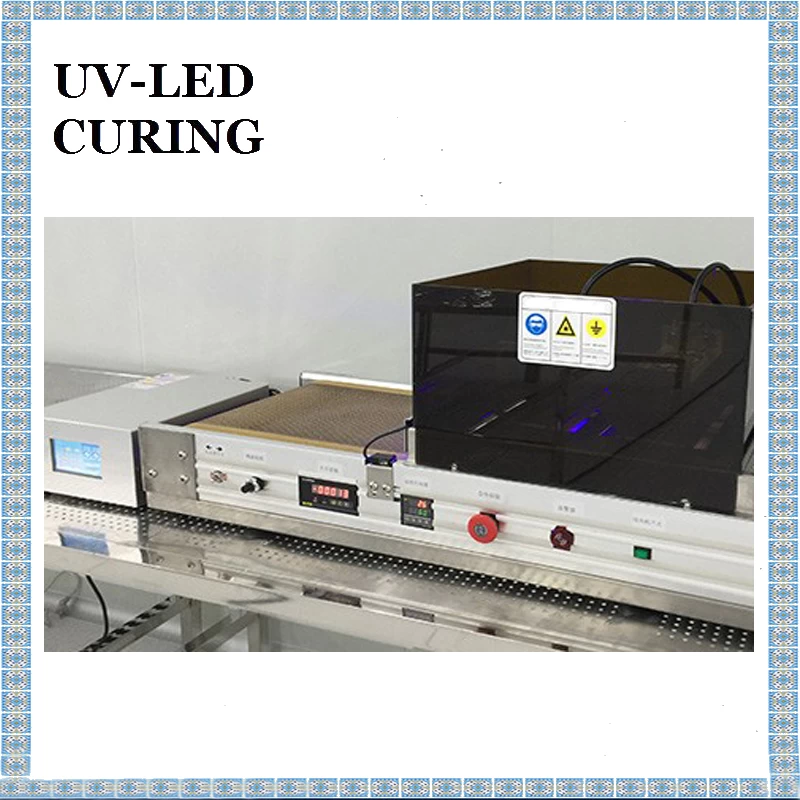

High Quality UV LED Curing Conveyor Machine Dryer Screen Printing can be set by the display screen, Multi-Channel drive, Bending resistance cable, etc..
Parameters :
Speed m / min : 1-10 adjustable
Outside Dimension mm : L1200 * W410
Belt Material : Teflon / Green Belt / Stainless steel mesh belt
Number of Light Sources : two LED lights can be placed at the same time
Effective Width of Belt : 350mm (with product guide)
Weight : about 10 KG
Power Consumption : 50W
Light Source Height : adjustable
Internal Draft Device of the Assembly Line : it needs to be equipped with the draft device
To the Product Line : both ends can be connected to other production lines
Air Pumping Unit at the Top of the Assembly Line : air pumping unit shall be selected
Sensor : yes
Draft Switch : yes
Emergency Stop Button : yes
Temperature Monitoring Report : yes (internal temperature > 55 degree)
Linear Speed Display : yes
Alarm Buzzer : yes
Light Source Controller Specification :
External Dimension mm : according to the specifications of light source luminescent head
Color : full aluminum housing
Input Power : 100-240VAC
Standby Power : <50W
Setting Interface : key + key knock / touch screen + password
Back End Serial Port of Controller : pedal, MCU, PLC, RS232 interface
Number of Driven Luminescent heads : 1 PCB standard
1.It can be set by the display screen : irradiation intensity, irradiation time and irradiation mode.
2.Multi-Channel drive can achieve independent control, independent adjustment of parameters.
3.Bending resistance cable : the bending resistance robot cable is adopted for the cable between the luminous head and the controller.
4.Interlock signal : short connection allows the light head to light up, automatic device interlock signal, the controller detects this signal before the LED lights up.
5.Serial Port Function : adjustable irradiation intensity, irradiation time and irradiation mode. The same industry can only control LED on and off functions.
6.Signal : by defecting the working status signal of the luminous head and various abnormal alarm signals. The next step of work is automatically carried out.
7.LED Light Time : it can be stored in the equipment (if the new LED is replaced, the manufacturer can reset it).
8.Highlights : it has the function of preparing signal output. When at least one bald heads is in the irradiable state, it outputs the signal.
The Specifications of Light Source Luminescent Head :
Wavelength : 365nm, 405nm
Cooling Method : air cooling
Connection Cable : 2m, 5m
Optical Power : 2000mW/cm2
Weight : 2 KG
Working Distance : 20mm
Color : silver (all aluminum)
Power Consumption : 200W
Configuration :
Top Optional : to the suction pipe suction device
Light Source Configuration :
1.Optional 1 to 2
2.The maximum luminous size is 100-300mm
3.Wavelength : 365-405nm
Exhaust Port Configuration : standard, no suction device to be selected
