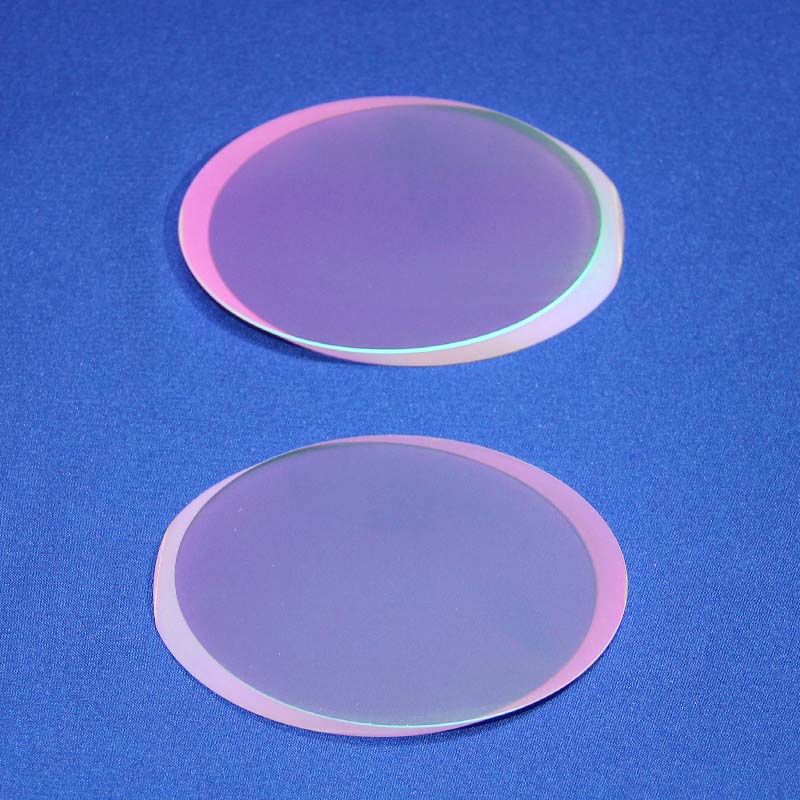

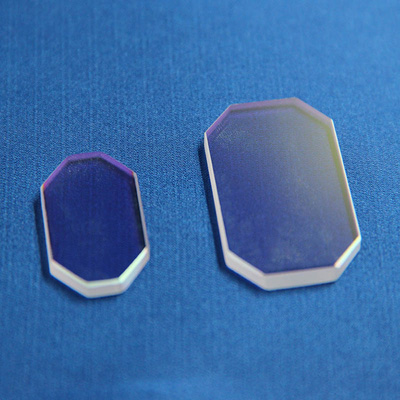

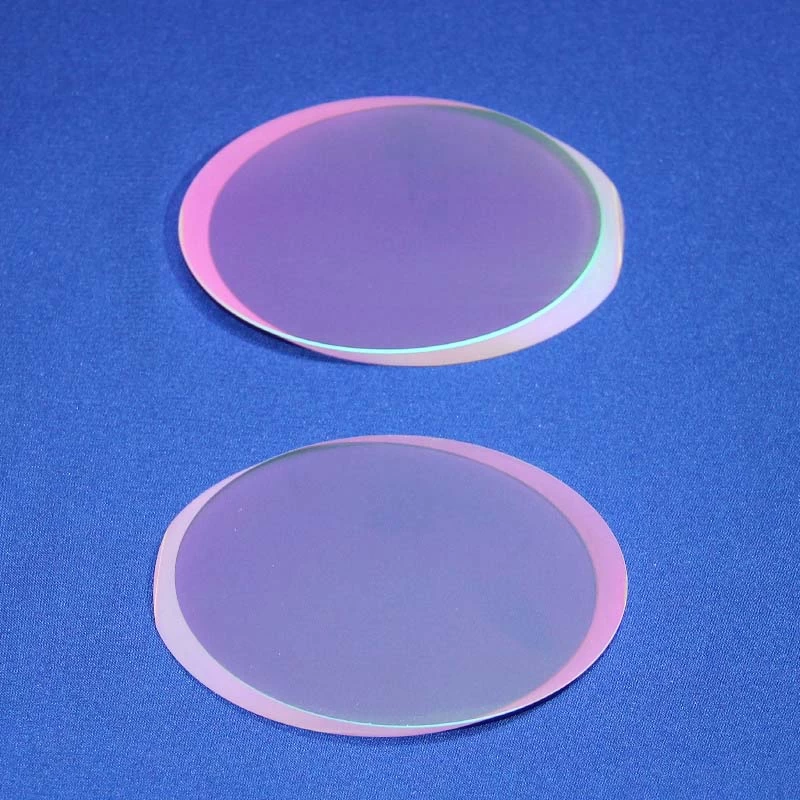

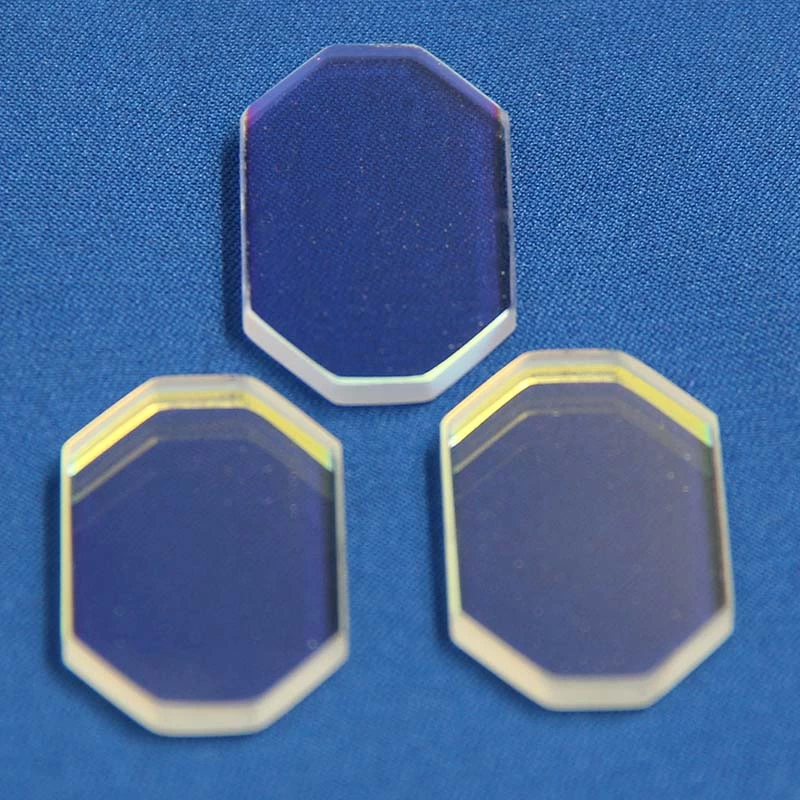

High Reflective Broadband Dielectric Mirrors
Dielectric Mirrors offer near total reflection, minimizing losses in nearly all optical systems. These coatings are very durable, easily cleaned, and resistant to laser damage.
Available either broadband or narrowband, they operate efficiently over 0–45°angle of incidence:
AOI=0°, R>99.8%;
AOI=45°, R>99.5% (Rs>99.9%, Rp>99.2%).
|
Specifications:
|
|
|
Material:
|
N-BK7 or UV Fused Silica or other optical Glass
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
+/- 0.1mm
|
|
Surface quality:
|
60/40(Standard), 10/5(High Precision)
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
Lambda/4 per 25mm@633nm
|
|
Parallelism:
|
<1'
|
|
Bevel:
|
<0.25mmx45°
|
|
Coating:
|
One surface(S1) :HR @ design wavelength（Broadband or Narrowband ）
|
|
The other surface :uncoated
|
|
Typical Sizes:
|
|
|
Size(mm)
|
Size(mm)
|
|
Φ5.0x1.0
|
10.0x10.0x3
|
|
Φ10.0x2.0
|
20.0x20.0x3
|
|
Φ12.7x2.0
|
25.4x25.4x3
|
|
Φ15.0x3.0
|
30.0x30.0x5
|
Other size and shape are available. Different coating design are available. Contact us now! You can get competition price here!
