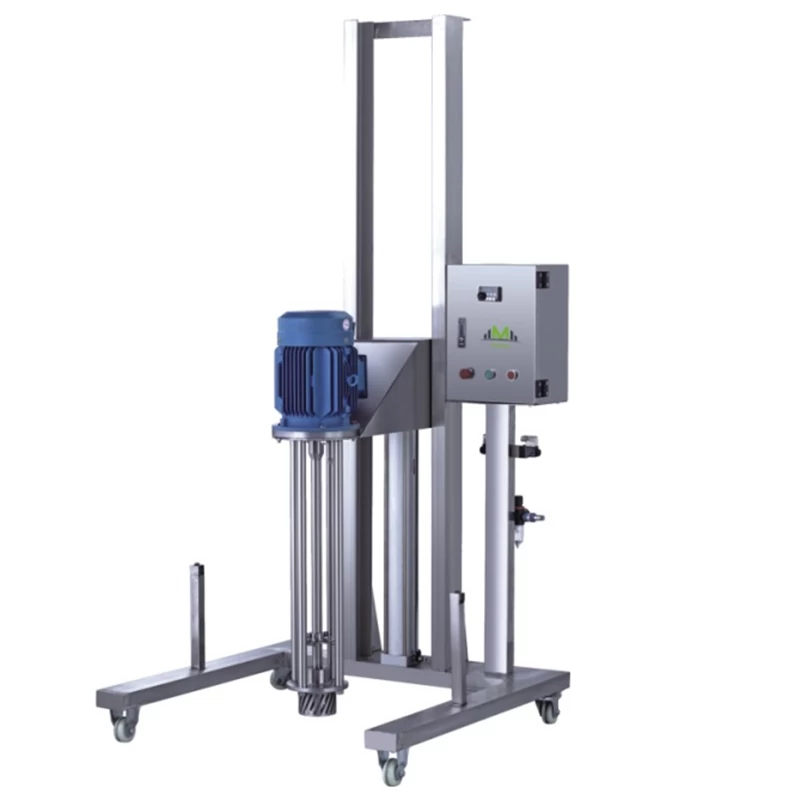

High shear Dispersing homogenizing mixer paint dispenser

Stainless steel High Shear Dispersing Homogenizing Mixer, High Shear Dispersion Emulsifier is an efficient, rapid and uniform distribution of one or more phases in another continuous phase, and in ordinary cases each phase is insoluble.



High shear Dispersing homogenizing mixer paint dispenser

Customized And OEM Service Available


High Shear Dispersion Emulsifier

Product descriptions:

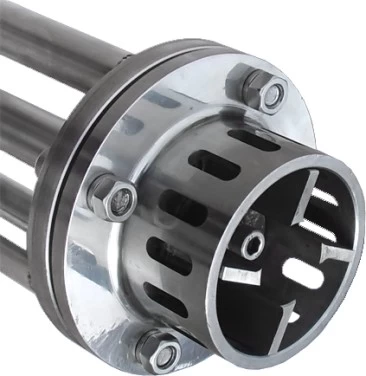

This High shear Dispersing homogenizing mixer, Paint Dispenser Machine due to the strong kinetic energy caused by high shear speed and high frequency mechanical effect produced by high speed rotation of the rotor, the material is subjected to a strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap between fixed and rotor, so that the insoluble solid phase, liquid phase and gas phase are in phase.

High Shear Dispersion Emulsifier Under the joint action of mature technology and proper amount of additives, the emulsification is dispersed uniformly and finely in a moment, and the stable high quality products are finally obtained through high frequency circle cycle.



Characteristics of pipeline type high shear dispersion emulsifier:

1. Large capacity, suitable for industrial continuous online production;

2. Narrow particle size distribution and high uniformity.

3. Saving energy, efficiency and efficiency;

4. Low noise, smooth operation.

5. Eliminate quality differences between mass production.

6. The suction inlet of homogenizer can directly suck some raw materials into the stator after shearing, and then discharge from the pump body.

7. No dead Angle, material 100% depends on scattered shear;

8. Short distance and low head.

9. Easy to use and maintain;

10. Automatic control can be realized.


Specifications:

Powder(KW)

Litre fall height mm

Speed rpm

Mixing volumeL

Dispersion diameter diametermm

Weight

3

900

A; 0-1500

50/150

150

480

4


B;0-3000

80/200

150

500

5.5

1000


100/300

250

900

7.5



100/500

250

930

11



300/800

250

1050

15

1200


300/1000

300

1200

18.5



500/1500

300

1300

22



500/1800

300

1500

30



500/2000

350

2000

37



500/2000

350

2200

45

1400


800/3000

350

2500
