High-speed Active Optical Cable 40G QSFP+ 100G QSFP28 AOC Cable

This QSFP+ QSFP28 transceiver module is a high performance module for short-range duplex data communication and interconnect applications.

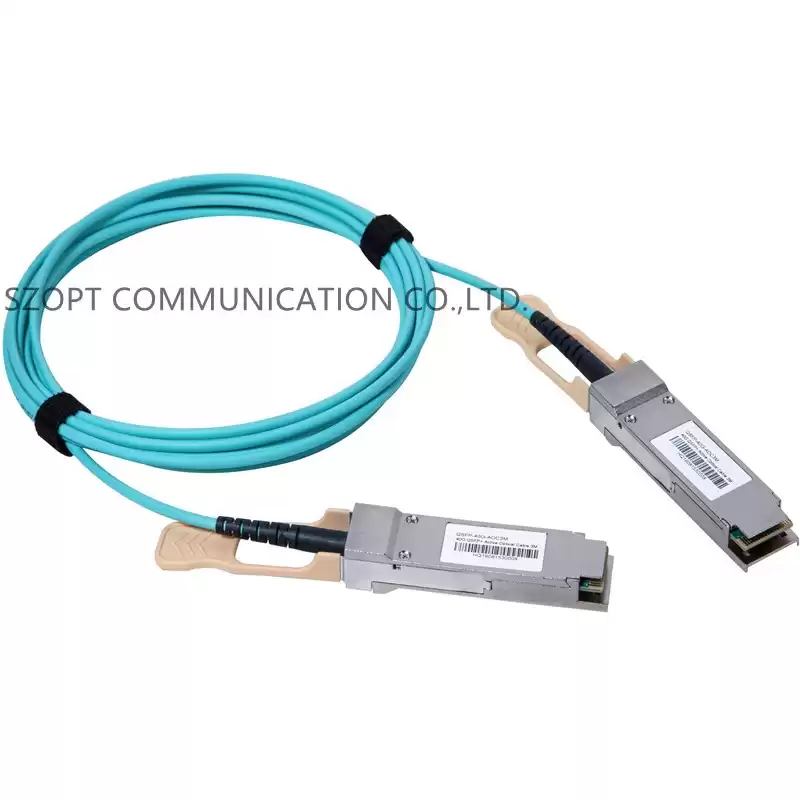

High-speed Active Optical Cable 40G QSFP+ 100G QSFP28 AOC Cable


AOC Active Optical cables offer a flexible way to connect within racks and across adjacent racks. AOCs support farther inter-rack distances. AOCs are much thinner and lighter than DACs, which makes cabling easier. Active optical cables enable efficient system airflow, which is critical in high-density racks.SZOPT offers a wide range of products for 1m to 100m reaches, in CXP, QSFP28, QSFP, SFP28, SFP+ form factors and data rates of 10G~120G,all of ou active optical cables for high-speed Interconnectivity provides cost-effective solution for data centers and HPCs.Please reach us for details.


raw materials of SFP

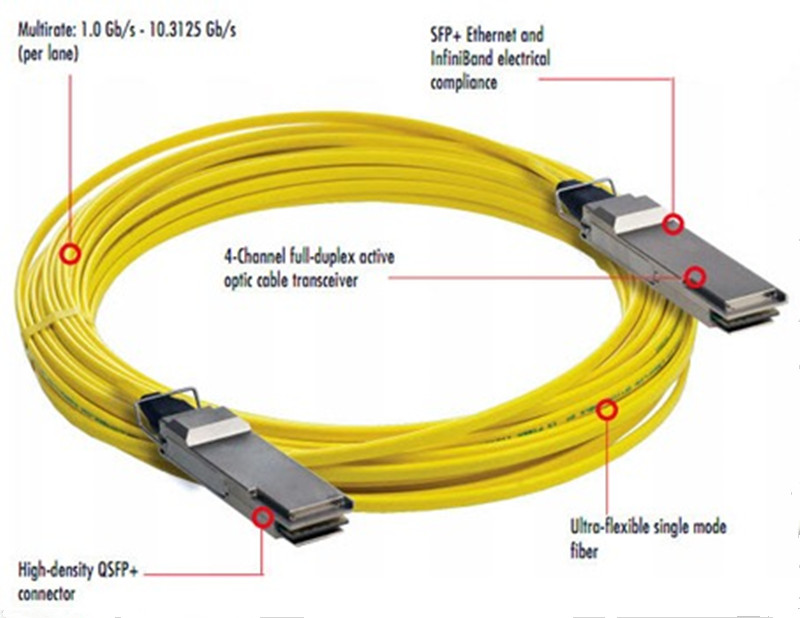

AOC CABLE ILLUSTRATION

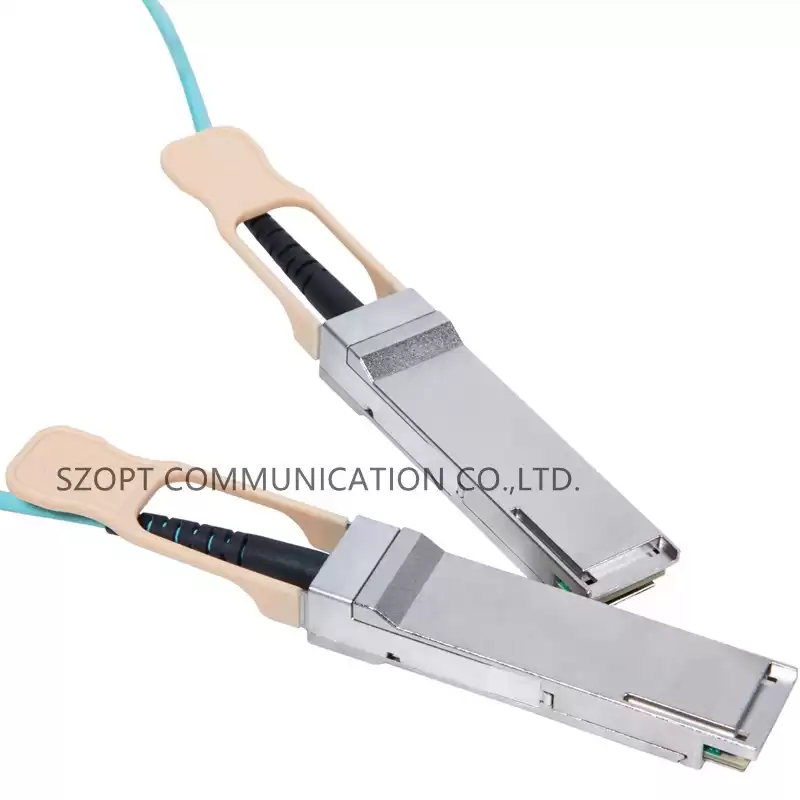

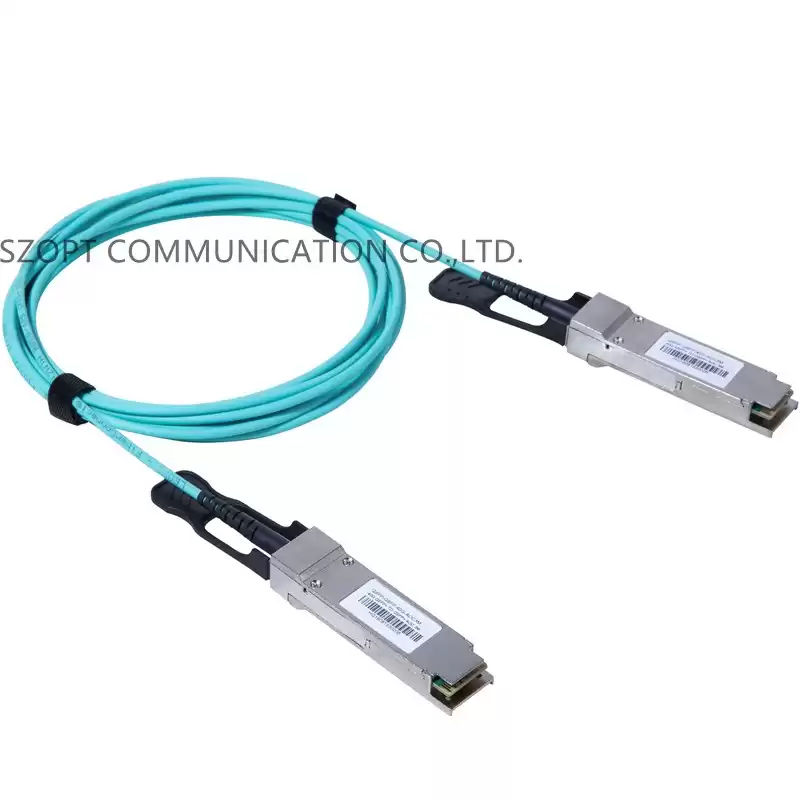

AOC CABLES

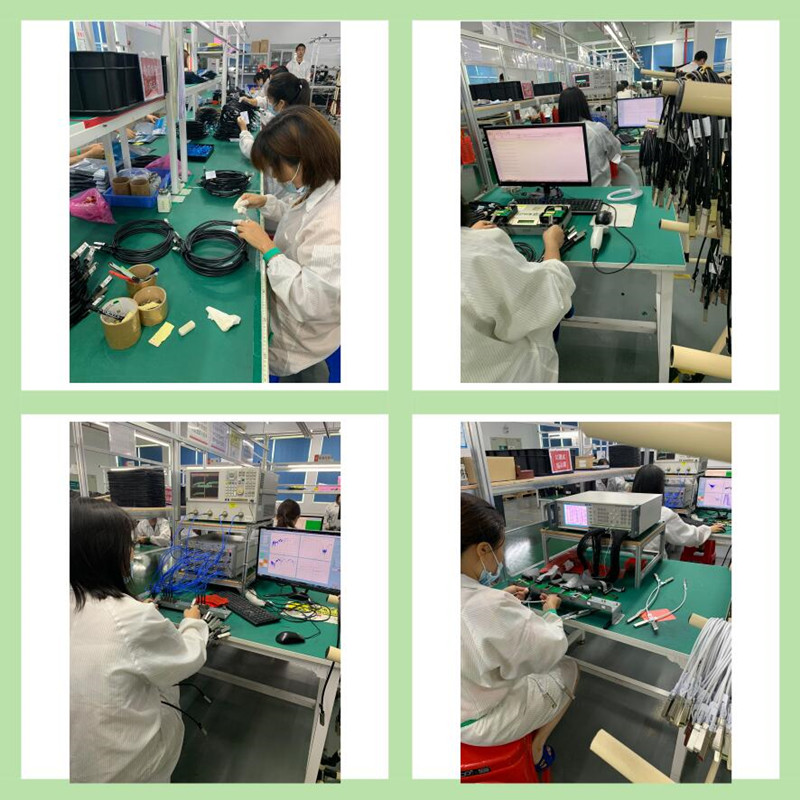

WORKSHOPS

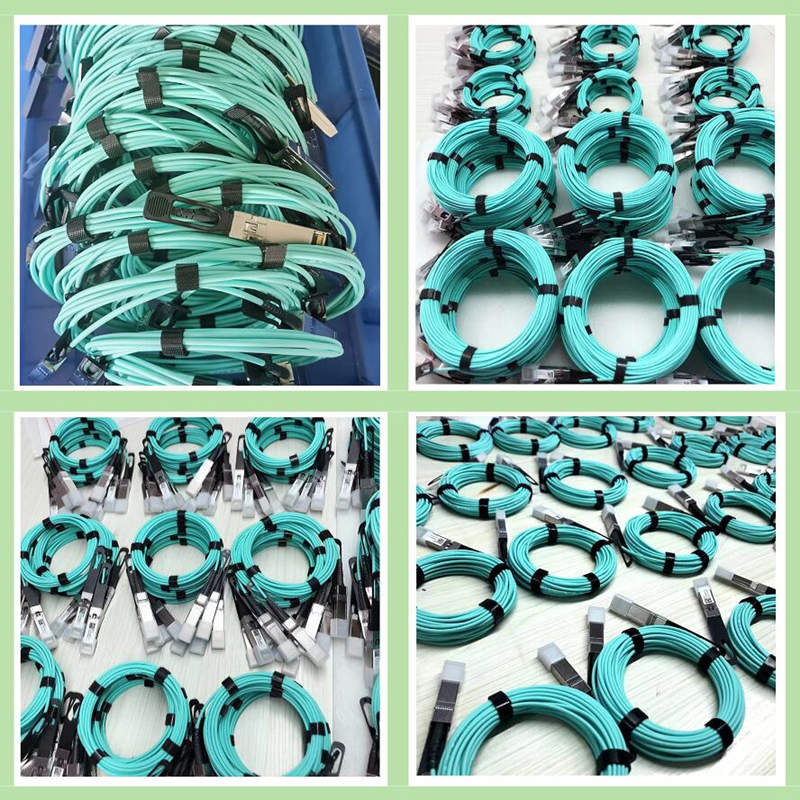

GOODS READY TO SHIP

Applications:

Fiber channels

Datacom/Telecom switch & router connections

Data aggregation and backplane applications

Proprietary protocol and density applications


Features:

Up to 10.5Gb/s data rate per channel

Distance up to 2km on SMF

4 ×10G CWDM DFB transmitter

Duplex LC receptacle optical interface

Single +3.3V power supply

XLPPI electrical interface

Hot pluggable QSFP+ form factor

Maximum power dissipation<3.5W

Operating temperature range: 0℃ ~ +70 ℃

Compliant with RoHS


Package:

Each item in a pe bag,finally in a carton box.


Maximum ratings:

Parameter

Symbol

Min.

Typ.

Max.

Unit

Storage Temperature

Ts

-40



85

ºC

Supply Voltage

Vcc1,VccTx,VccRx

-0.5



+4.0

V

Relative Humidity

RH

5



95

%
