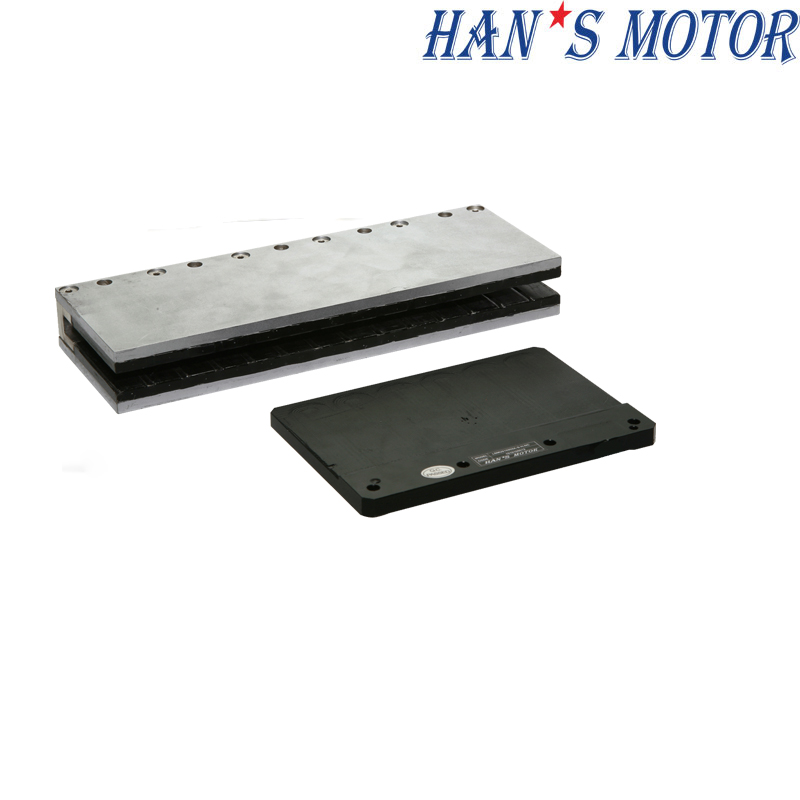

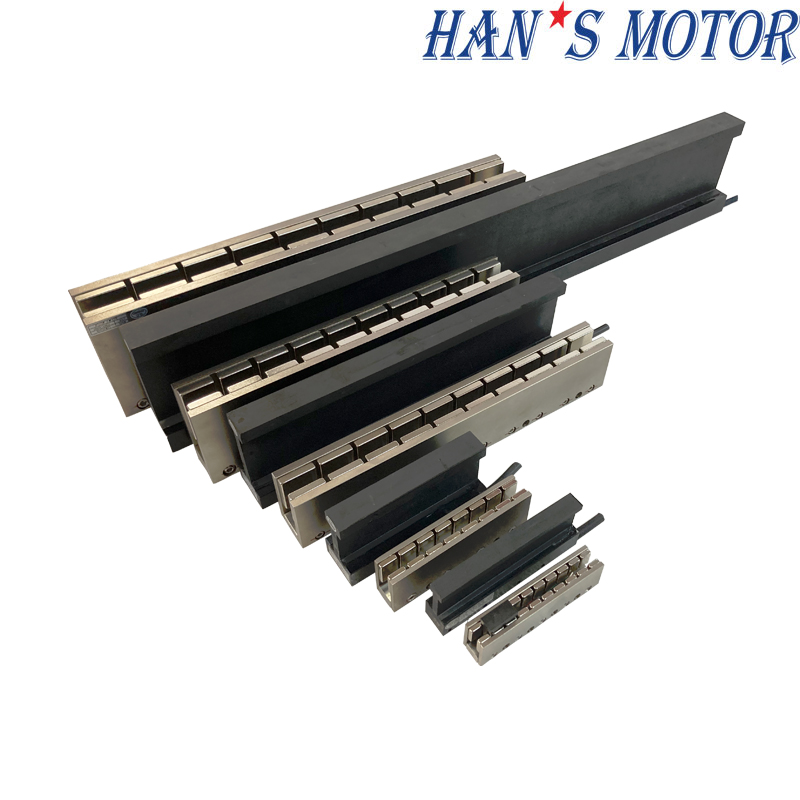

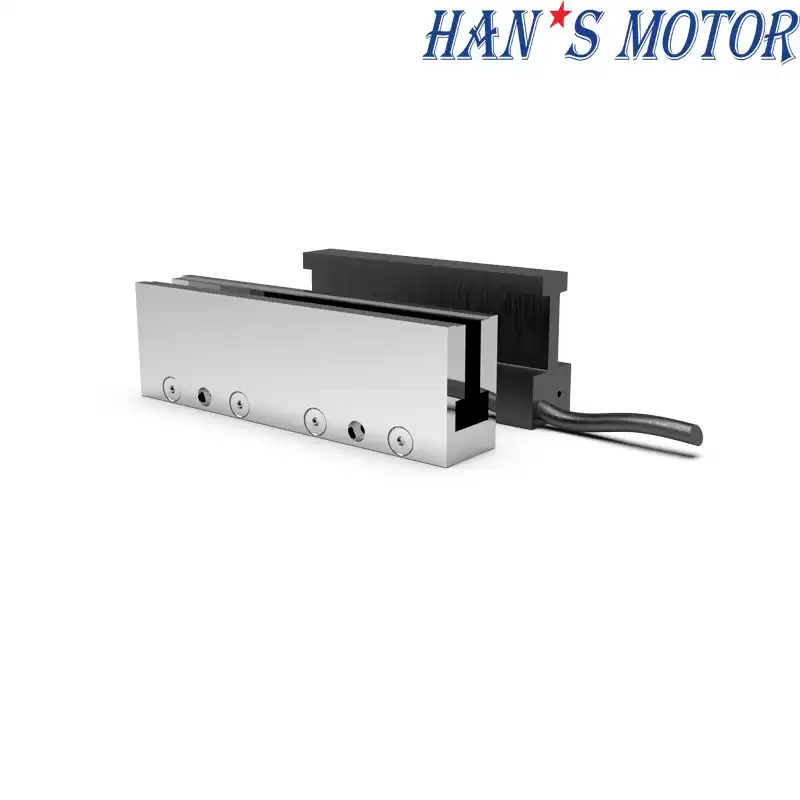

High speed and big thrust coreless linear motor LSMU6 for material handling

Features:

1. Coreless

2. Zero cogging effect

3. Winding compact design, High thrust density

4. High continuous force and Peak force

5. Optional hall sensor



Product name:High speed and big thrust coreless linear motor LSMU6 for precision 3C machining


Specifications

Mover Spec: LSMU610xxxx-x-H-NC-N-D00.5
101A-S 201B-S 201B- P 301A-S 301A- P 401A-S 401A- P 501A-S
501A- P 601A- S 601A-P 801A- S 801A- P
Performance Parameters
Symbol
 Unit   Series Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Series
Parallel
Continuous Force (Tmax)
Fc N 110 221 221 331 332 442 442 552 552 662 662 883 883
Peak Force
Fp N 660 1326 1326 1988 1989 2649 2649 3311 3309 3972 3972 5300 5300
Motor Constant
Km25 N//Sqrt (W)
16.1 22.8 23.3 27.9 28.5 32.2 32.9 36.2 36.8 39.7 40.0 45.9 46.6
Max.Continuous Power Dissipation
Pc W 64 129 124 193 185 257 247 319 309 382 376 508 494
Continuous Current (Tmax)
Ic Arms 2.5 2.5 5.0 2.5 5.0 2.5 5.0 2.5 5.0 2.5 5.0 2.5 5.0
Peak Current (1S)
Ip Arms 15.0 15.0 30.0 15.0 30.0 15.0 30.0 15.0 30.0 15.0 30.0 15.0 30.0
Force Constant (25℃,±5%)
Kf N/Arms
44.0 88.4 44.2 132.5 66.3 176.6 88.3 220.7 110.3

264.8

132.4 353.3 176.7
Back EMF Constant (25℃,±5%)
Ke Vrm/rad /s
14.7 29.5 14.8 44.2 22.1 58.9 29.5 73.6 36.8 88.3 44.2 117.8 58.9
Electrical Resistance (25℃,±5%)P-P
R Ω
5.0 10.0 2.4 15.0 3.6 20.0 4.8 24.8 6.0 29.7 7.3 39.5 9.6
Inductance (25℃,±20%)P-P
L mH 9.5 19.0 4.8 28.5 7.1 38.0 9.5 47.5 11.9 57.0 14.3 76.0 19.0
Max Coil Temperature
Tmax

120 120 120
120
120
120
120
120 120 120 120 120
120
Polar Distance (N-N) (360℃ Electrical cycle)

mm 84 84
84
84
84 84 84 84 84 84 84 84
84
Magnetic Attraction
Fa kN 0.0 0.0
0.0
0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Max.DC Bus Voltage
Ubus V 330 330
330
330
330
330
330
330 330 330 330 330
330
Vmax,Fc@Vbus=310Vdc
Vmax,Fc
m/s 7.9 3.6 7.9 2.2 5.1 1.5 3.6 1.1 2.8 0.8 2.2 0.4 1.5
Vmax,Fp@Vbus=310Vdc
Vmax,Fp
m/s
4.8 0.6 4.9 0.0 2.2 0.0 0.8 0.0 0.0 0.0 0.0 0.0 0.0
Vmax,0@Vbus=310Vdc
Vmax,0
m/s
8.5 4.2 8.5 2.8 5.6 2.1 4.2 1.7 3.4 1.4 2.8 1.0 2.1
Mover Mass
Mp Kg 1.0 1.9 1.9 2.7 2.7 3.6 3.6 4.5 4.5 5.4 5.4 7.2 7.2
Stator Mass within unit length
Ms Kg/m 24.0 24.0
24.0
24.0 24.0 24.0 24.0  24.0
  24.0
 24.0
24.0 24.0 24.0

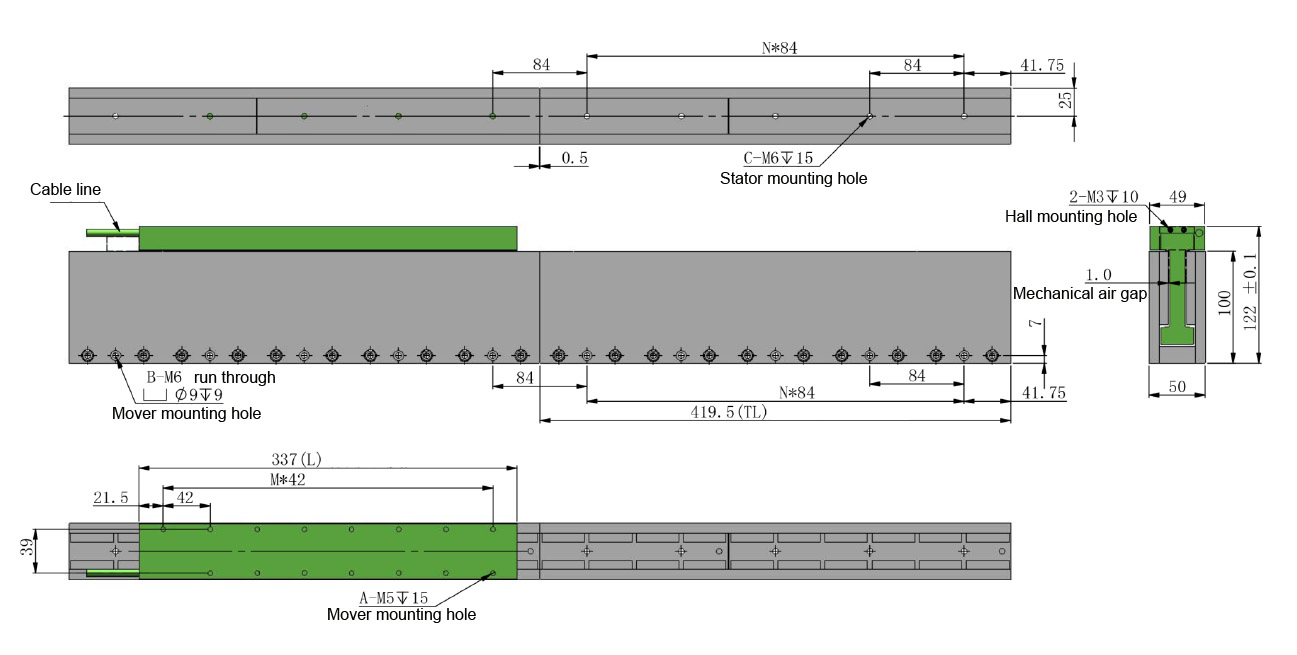

Dimension

high torque linear motor

Mover Length
Mover model
  Mover length L
      M       Mover mounting hole A
LSMU610101A-S-H-NC-N-D00.5
85 1 3
LSMU610201B-S-H-NC-N-D00.5
169
3
7
LSMU610201B-P-H-NC-N-D00.5
7
LSMU610301A-S-H-NC-N-D00.5
253
5
11
LSMU610301A-P-H-NC-N-D00.5
11
LSMU610401A-S-H-NC-N-D00.5
337
7
15
LSMU610401A-P-H-NC-N-D00.5
15
LSMU610501A-S-H-NC-N-D00.5
421
9
19
LSMU610501A-P-H-NC-N-D00.5
19
LSMU610601A-S-H-NC-N-D00.5
505 11 23
LSMU610601A-P-H-NC-N-D00.5
23
              LSMU610801A-S-H-NC-N-D00.5
673
15
31
LSMU610801A-P-H-NC-N-D00.5
31

Remark:  1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
              2. optional temperature sensor.


Stator Length
  Stator model   Stator length TL       N       Stator mounting hole B Stator mounting hole C
LSMU6202A 167.5 1 2 2
LSMU6203A
251.5 2 3 3
LSMU6204A
419.5 4 5 5

Suitable for any mover of this series, stator installation mode can be selected.


Advantages:

1. High speed,
2. high positioning accuracy
3. Simple structure, maintenance
4. Safe and reliable work, long life

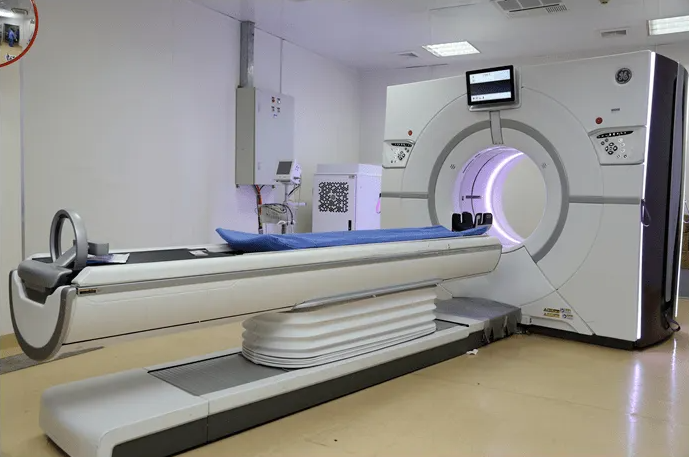

Application Case:Medical Industry

CT and MRI devices require very high precision. Need to bear a high inertia loads at very high speeds.The use of linear motor can achieve accurate and smooth control of the scanning table can improve the accuracy of diagnostic images and patient comfort.

high torque linear motor


Industry Applications:

light linear motor



Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
