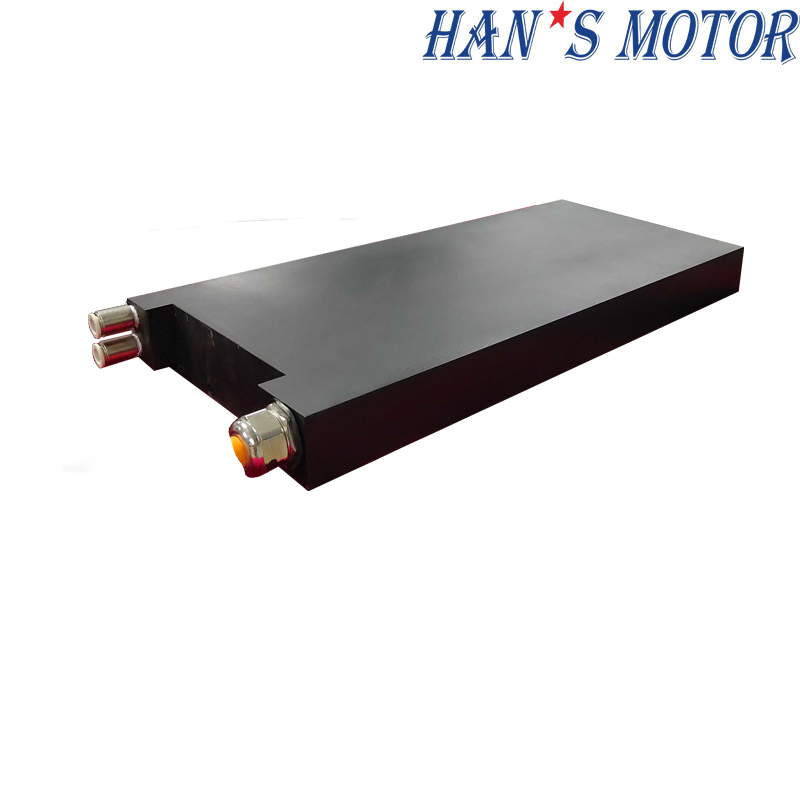

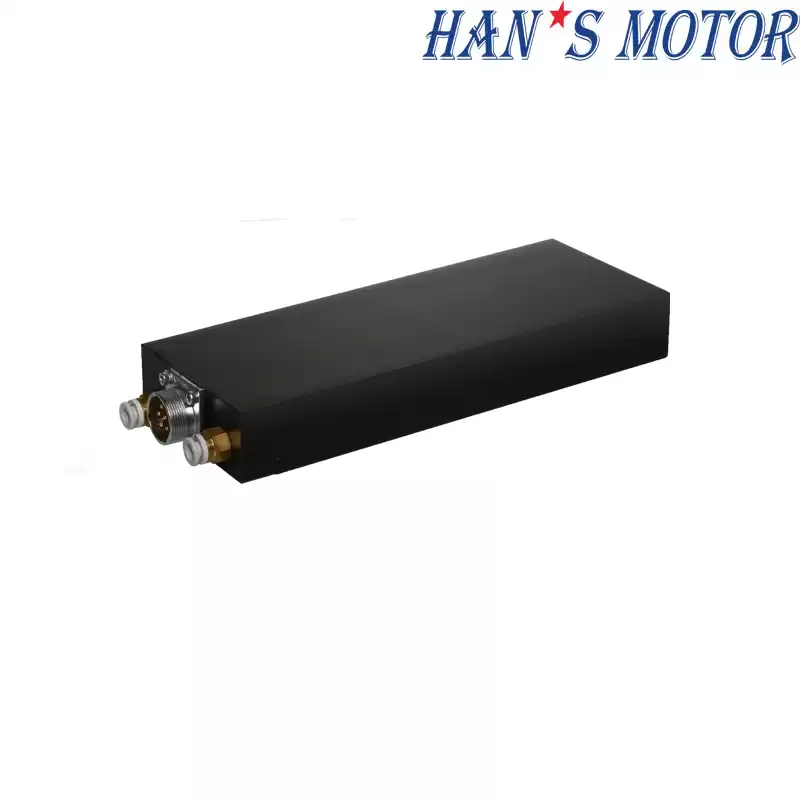

High speed continues force 851N flat iron core linear motor LSMF6-71 for PCB industry

Features:

1. Core technology

2. Low cogging effect

3. Water cooling/Natural cooling structure

4. Standardization, modularization, high reliability

5. Multi-series, maximum specification peak thrust 20000N

6. Optional hall sensor

7. Customizable development



Product name:High speed continues force 851N flat iron core linear motor LSMF6-71 for PCB industry


Specifications

Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5
501A-S   501B-S
502A-S
 502A-P
 503A-P
 503B-P 504A-P
Performance Parameters
 Symbol     Units
 Series
Series
Series
Parallel
Parallel
Parallel Parallel
Continuous Force (Tmax)
Fc      N
195 192 404 404 8.5 851 648
Peak Force
Fp      N
463 442 951 951 1953 1958 1490
Motor Constant (25℃)
Km25 N/Sqrt(W)
24.2 24.6 35.5 35.5 51.9 51.0 45.6
Max.Continuous Power Dissipation
Pc      W 89 84 178 178 356 382 277
Continuous Current (Tmax)
Ic     Arms
6.0 2.8 6.0 12.0 12.0 8.0 8.0
Peak Current (1S)
Ip     Arms
18.0 8.4 18.0 36.0 36.0 24.0 24.0
Force Constant (25℃,±5%)
Kf   N/Arms
32.5 68.6 67.3 33.7 69.6 106.4 81.0
Back EMF Constant (25℃,±5%)
Ke Vrms/m/s
10.8 22.9 22.4 11.2 23.2 35.5 27.0
Resistance(25℃,±5%)P-P
R      Ω
1.2 5.2 2.4 0.6 1.2 2.9 2.1
Inductance(25℃,±20%)P-P
L     mH
18.0 80.7 36.0 9.0 18.0 42.1 32.4
Max Coil Temperature
Tmax     ℃
120 120 120 120 120 120 120
Polar Distance (N-N) (360℃ Electrical cycle)

    mm
42 42 42 42 42 42 42
Magnetic Attraction
Fa     kN
0.9 0.9 1.8 1.8 3.6 3.6 2.7
Max.DC Bus Voltage
Ubus      V
600 600 600 600 600 600 600
Vmax,Fc@Vbus=310Vdc

    m/s
6.9 4.1 4.2 8.7 4.1 2.5 3.4
Vmax,Fp@Vbus=310Vdc

    m/s
4.4 1.9 2.0 4.4 2.0 1.1 1.6
Vmax,0@Vbus=310Vdc

    m/s
11.5 5.4 5.5 11.1 5.4 3.5 4.6
Vmax,Fc@Vbus=537Vdc

    m/s
15.8 7.3 7.5 15.4 7.4 4.7 6.2
Vmax,Fp@Vbus=537Vdc

    m/s
7.9 3.6 3.8 7.9 3.7 2.3 3.1
Vmax,0@Vbus=537Vdc

    m/s
20.1 9.5 9.7 19.4 9.4 6.1 8.0
Mover Mass
Mp      Kg
2.1 2.1 4.0 4.0 7.5 7.5 6.0
Stator Mass within unit length
Ms     Kg/m
5.1 5.1 5.1 5.1

5.1

5.1 5.1

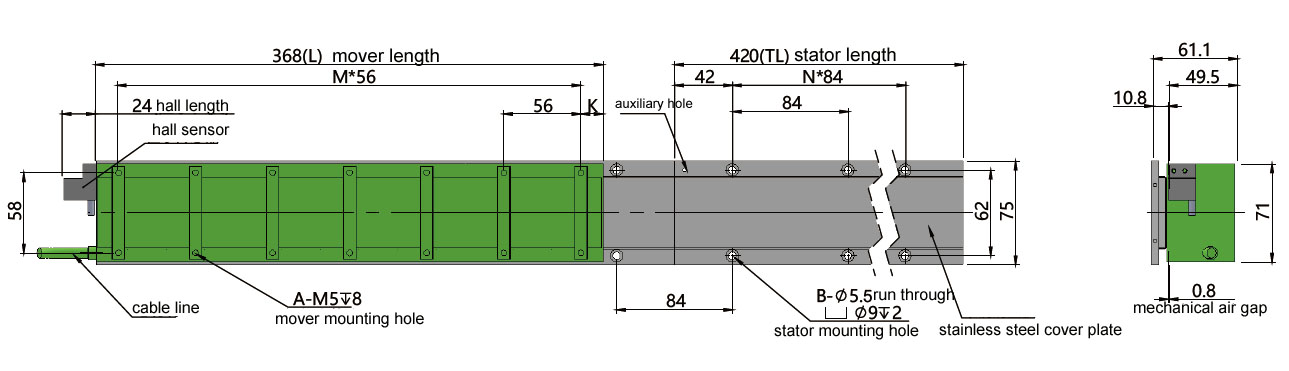

Dimension

linear motor rail

Mover Length
Mover model
 Mover length L
      M        Mover mounting hole A
      K
LSMF610501A-S-H-NC-N-C00.5
101 1 4 22.5
       LSMF610501B-S-H-NC-N-C00.5
101 1 4 22.5
LSMF610502A-S-H-NC-N-C00.5
200 3 8 16
LSMF610502A-P-H-NC-N-C00.5
200 3 12 16
LSMF610503A-S-H-NC-N-C00.5
368 6 14 16
LSMF610503B-P-H-NC-N-C00.5
368 6 14 16
LSMF610504A-P-H-NC-N-C00.5
278 4 10 27

Remarks:  1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10<Ic≤12A/ 12<Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.

               2. Optional temperature sensor.


Stator Length
Stator model
Stator length TL
    N     Stator mounting hole B
LSMF6201E 168 1 4
LSMF6202E 252 2 6
LSMF6203E
420 4 10

Suitable for any mover of this series.



Advantages:

1. Fast speed, high acceleration

2. Hhigh rigidity, large thrust

3. High accuracy, repeating accuracy can reach to ±1um

4. Simple structure, maintenace-free

3. No mechanical wear, long service life

5. Low noise, quiet operation


Industry Applications:

linear motor rail


Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
