High Speed CU Metal Stud and Track Roll Forming Machine

The speed of High Speed Stud And Track Machine can be 120m/min.




High Speed Stud & Track Roll Forming Machine


Click Here To View The Video


Stud & Track Roll Forming Machine

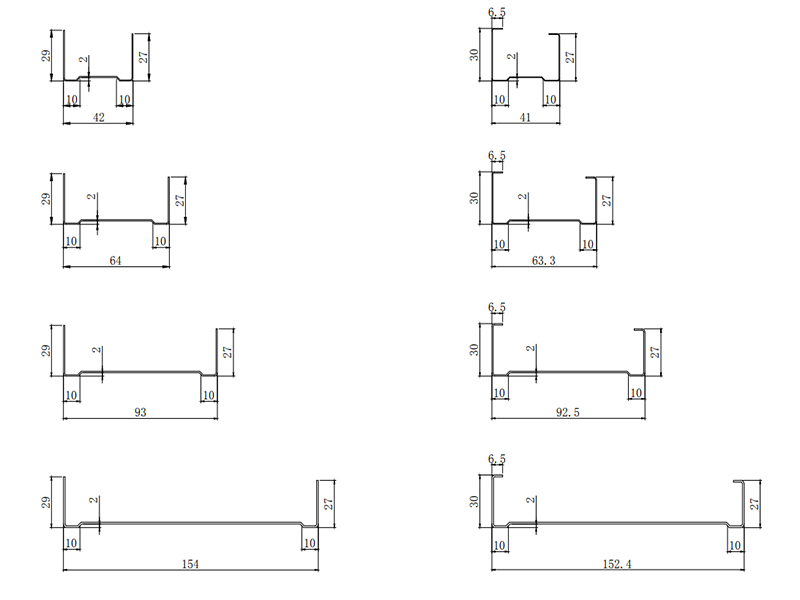

Profile(Option)


Stud & Track Roll Forming Machine


Material

Material Thickness:0.3-1.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)

With yield strength :245-550Mpa

Work Follow

DecoilerFeed Guide DeviceRolling Forming SystemLeveling Device →Hydraulic Not Stop Cutting DeviceExit Rack


High Speed Metal Track Roll Forming Machine


Machine Components

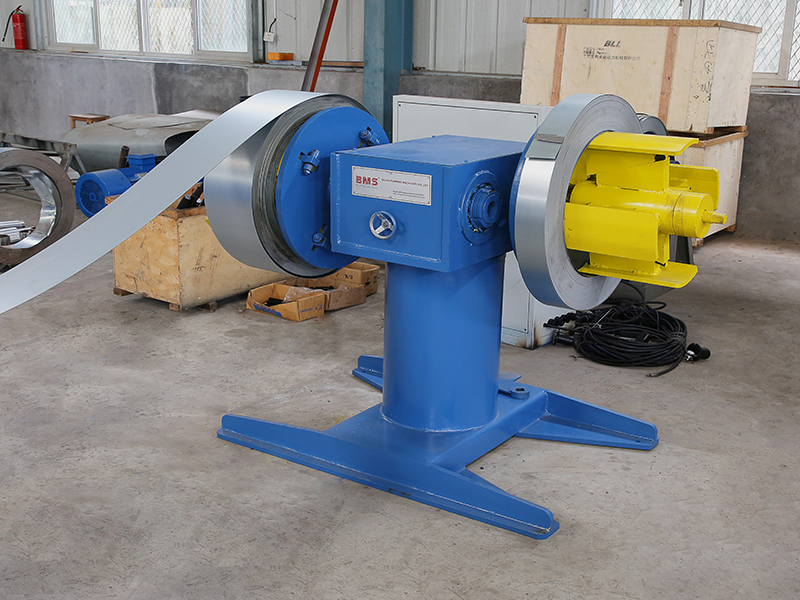

1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 500mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton



High Speed Metal Track Roll Forming Machine

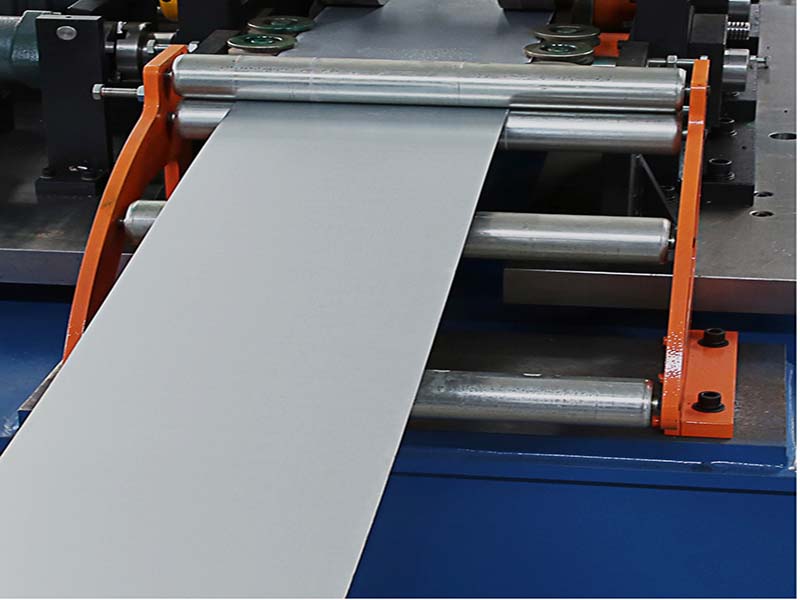

2) Feed Guide Device

A left and right guiding device at the main entrance of the machine. During work,Raw materials on both sides of the plate the enter into the machine by the left and right guiding device,make the raw materials and roll forming system to maintain the correct position. The guiding position can be adjusted by the manual screw mechanism,and the left and right can be adjusted independently.


High Speed Metal Track Roll Forming Machine

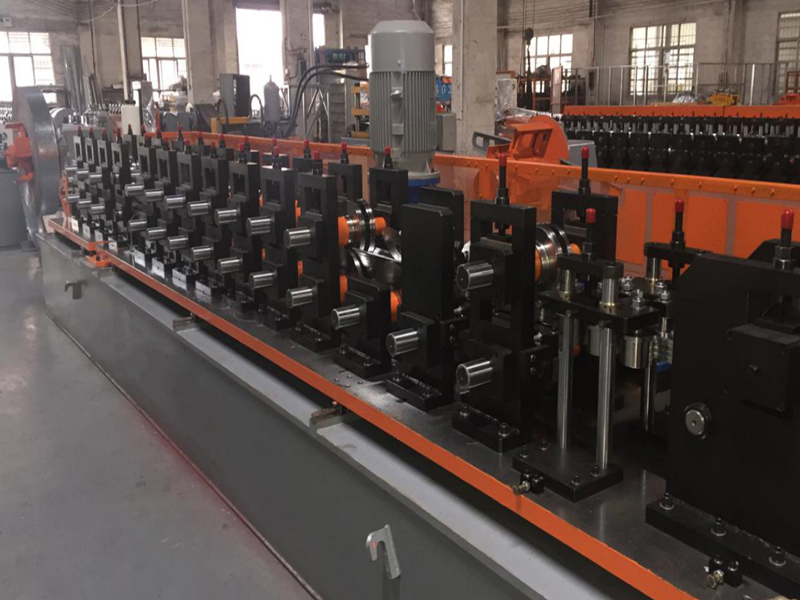

3) Main Machine

machine body frame: it adopts steel plate welding and CNC machining center processing

Rollers manufactured from Cr12MoV steel,vacuum quenching heat treatment after grinding the inner hole and end face, CNC lathe finishing roller face.

Shafts manufactured from 40Cr Steel,quenching and tempering heat treatment, hard chrome plating, and external grinding.Shafts Diameter=ф55mm,precision machined

Gear/Sprocket driving,about 14-step to form

Main Motor(Polaroid brand)=15KW , Frequency speed control

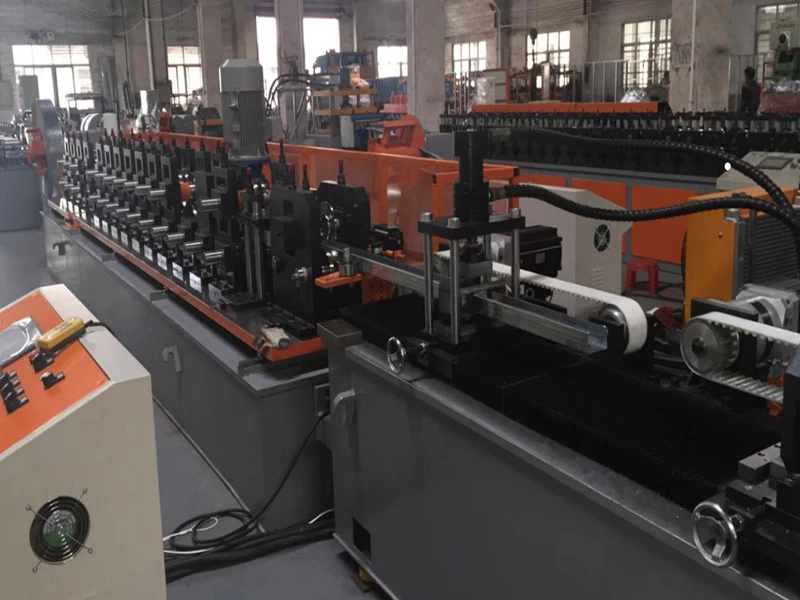

Stud & Track Roll Forming Machine



4) Punching &Post Hydraulic Not Stop Cutting Device


No-stopping punching and cutting
Hydraulic servo motor:3 KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV,(= SKD11 with at least one million times of cutting life),Heat treatment to HRC58-62 degree

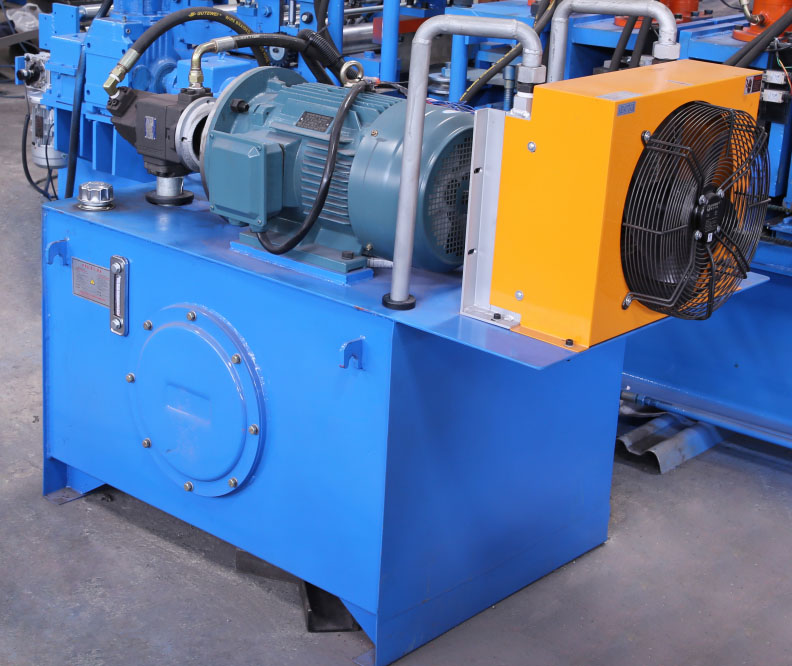

The cutting power is provided by the main engine indepedent hydraulic station


High Speed Metal Track Roll Forming Machine



5) PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


Stud & Track Roll Forming Machine


6)Exit Rack
