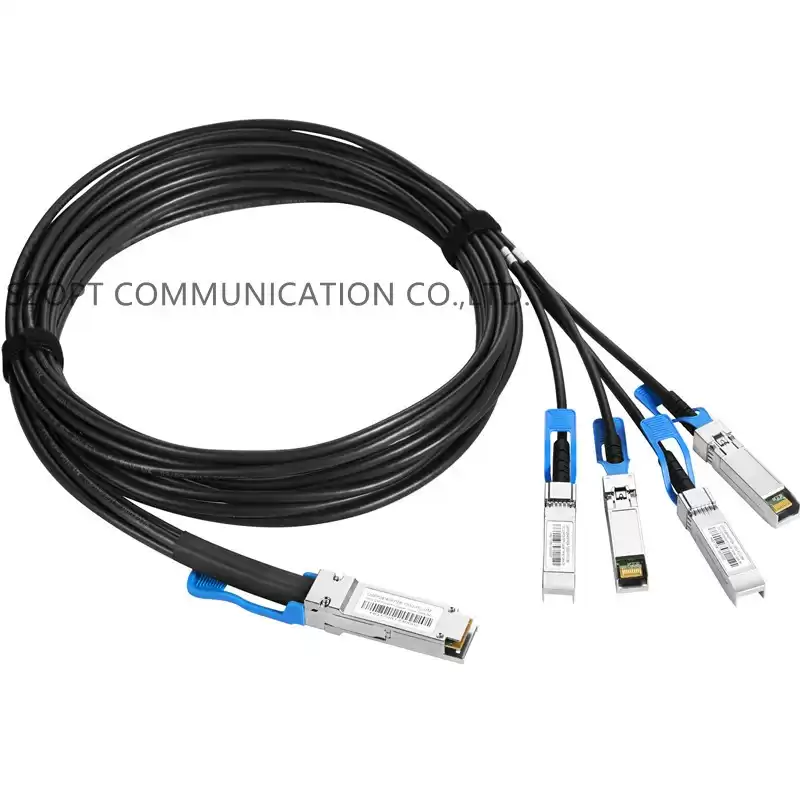

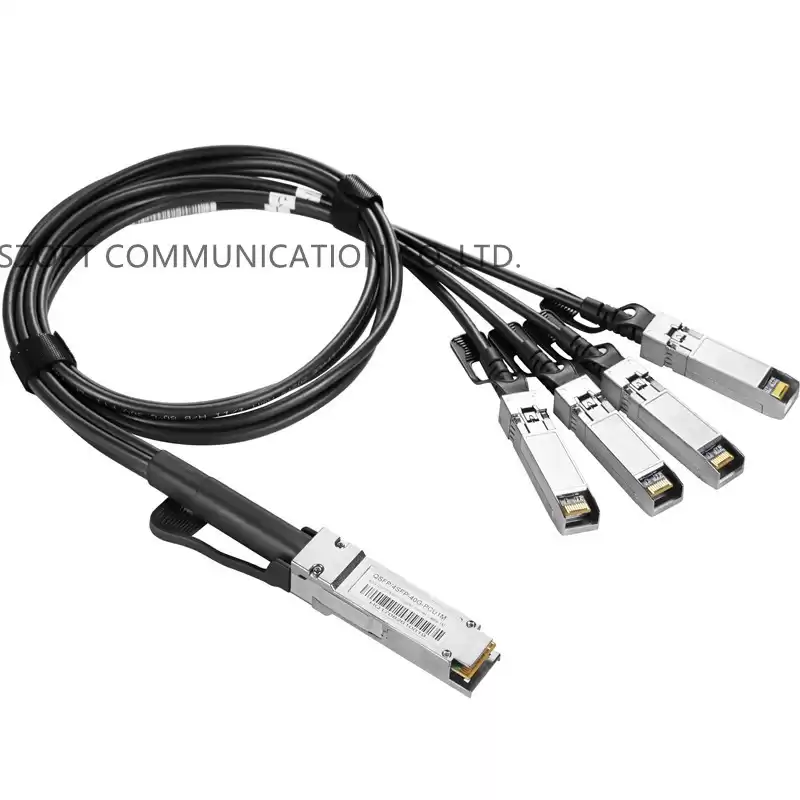

High Speed DAC Patch Cable 40G QSFP+ to 4xQSFP+100G QSFP28 to 4xQSFP28 Direct Attach Copper Cable

Designed for applications in the data center,networking and telecommunications markets that requires a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.



High Speed DAC Patch Cable 40G QSFP+ to 4xQSFP+100G QSFP28 to 4xQSFP28 Direct Attach Copper Cable


QSFP+/QSFP28 passive copper cable assembly features providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.Please reach us for details.


raw materials of SFP


CABLES READY PRODUCTION

WORKSHOPS

GOODS READY TO SHIP


Applications:

1G/10G/40G/100G Ethernet

High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect



Features:

Compatible with IEEE 802.3,IEEE 802.3

Supports aggregate data rates of 100Gbps

Optimized construction to minimize insertion loss and cross talk

Backward compatible with existing QSFP+/QSFP28 connectors and cages

Compliant with RoHS


Package:

Each item in a PE bag,finally in a carton box.


Maximum ratings:

Parameter

Symbol

Min.

Typ.

Max.

Unit

Storage Temperature

Ts

-40



85

ºC

Supply Voltage

Vcc1,VccTx,VccRx

-0.5



+4.0

V

Relative Humidity

RH

5



95

%
