Basic Info
Model
NO.: NH1600
Hot
Melt Application: Spray Coating for
Nonwoven/ Filter Materials
Certificate: CE,ISO Certificates
Coating
Type: Non-Streak Coating(with Rotary
Bar)
Samples
Testing: Free
Unwinder
Diameter: 1200mm
Rewinder
Diamer: 1200mm
Trademark: NDC
Transport
Package: Spray Coating Machine Packed in
Cartons
Specification: 17000mm x 6000mm x 2600mm
Origin: China
HS
Code: 84778000
Product Description
|
Device Name
|

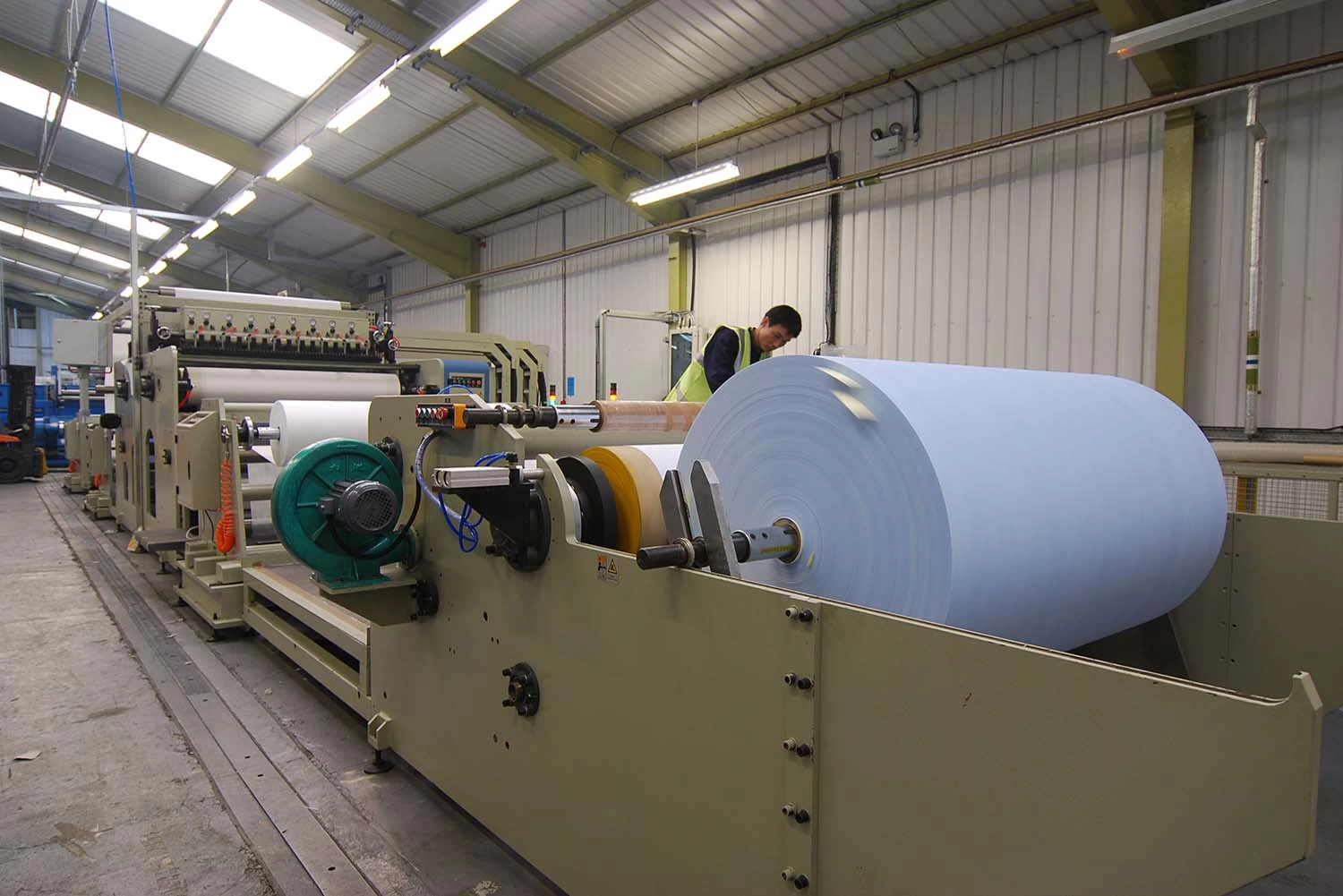

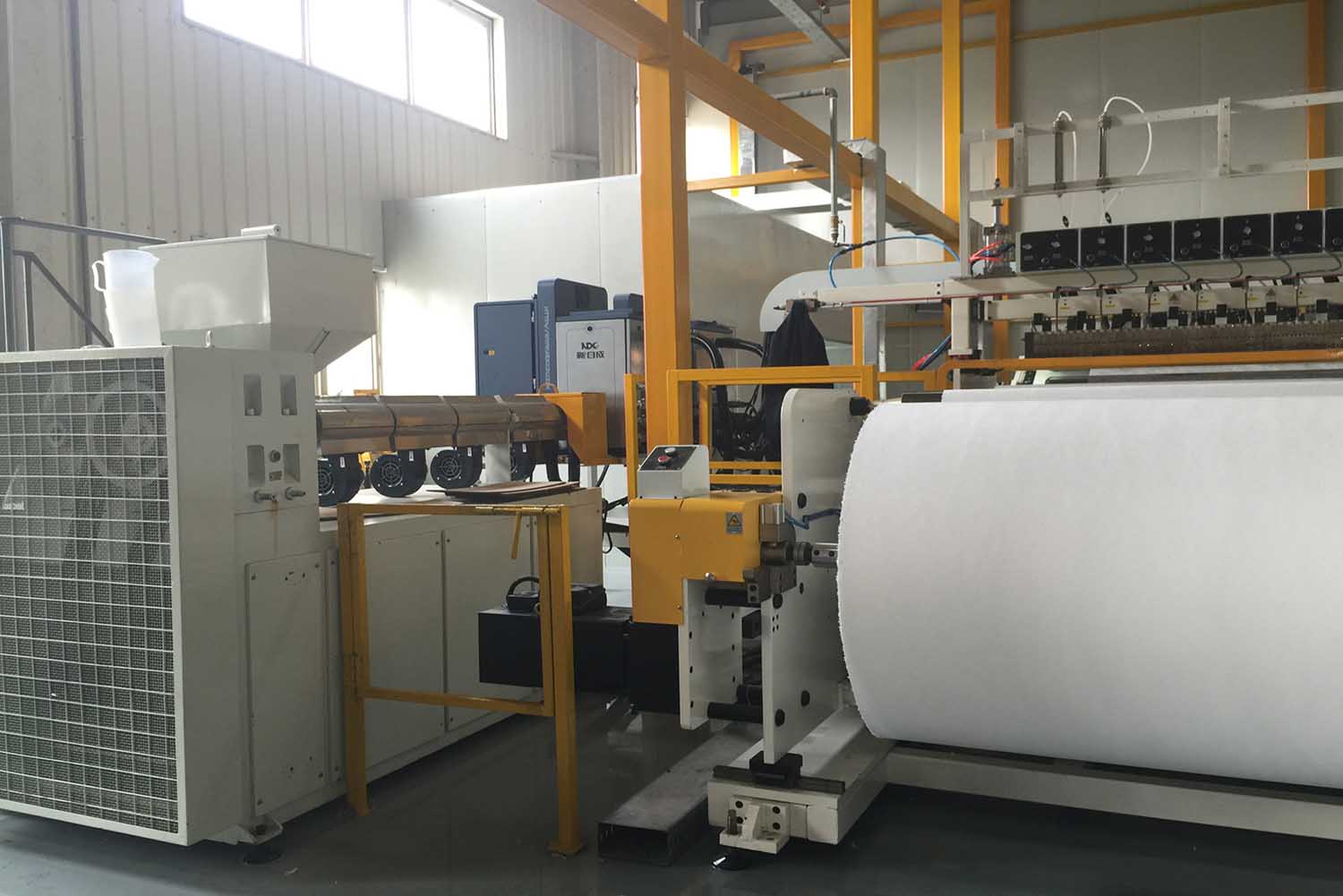

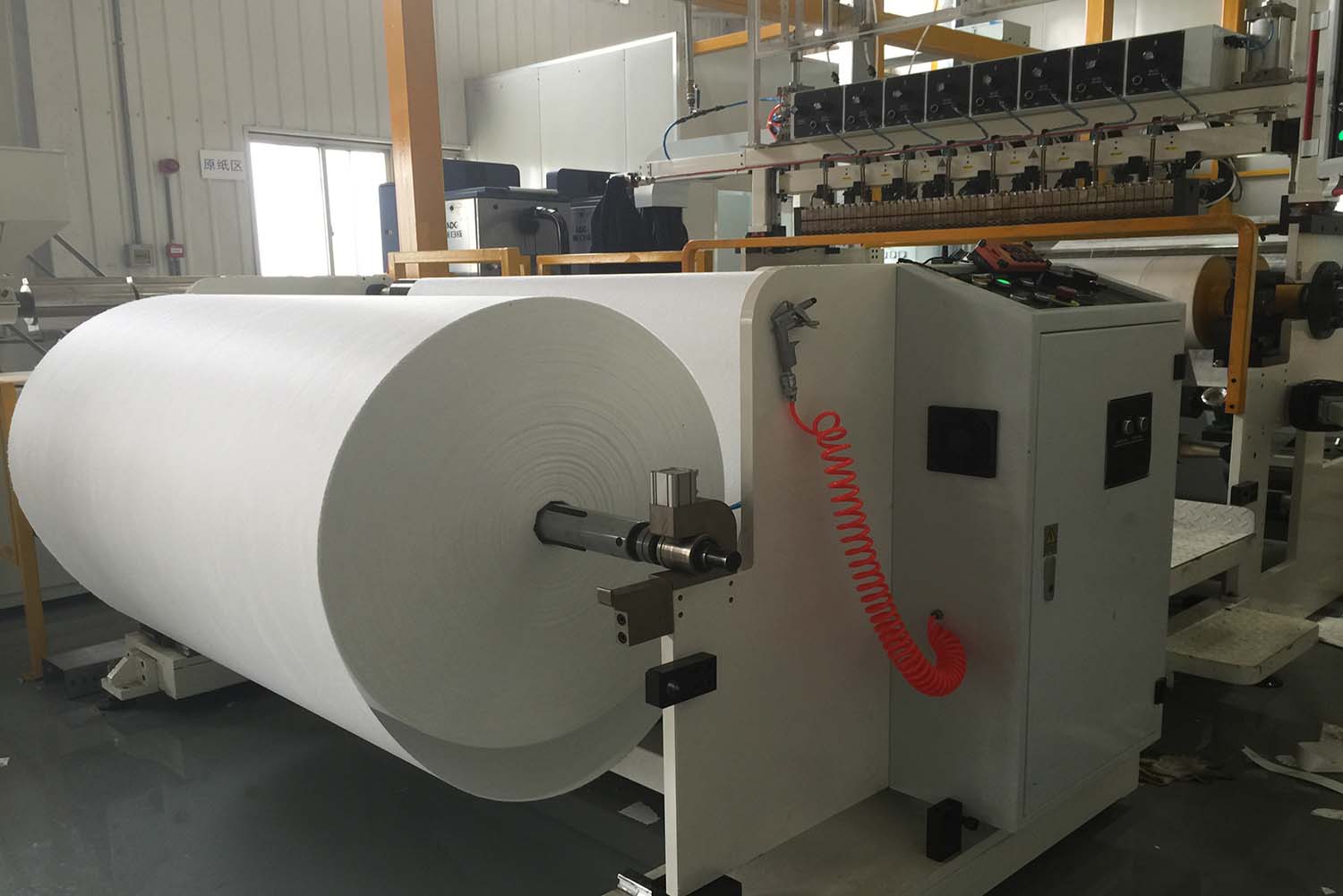

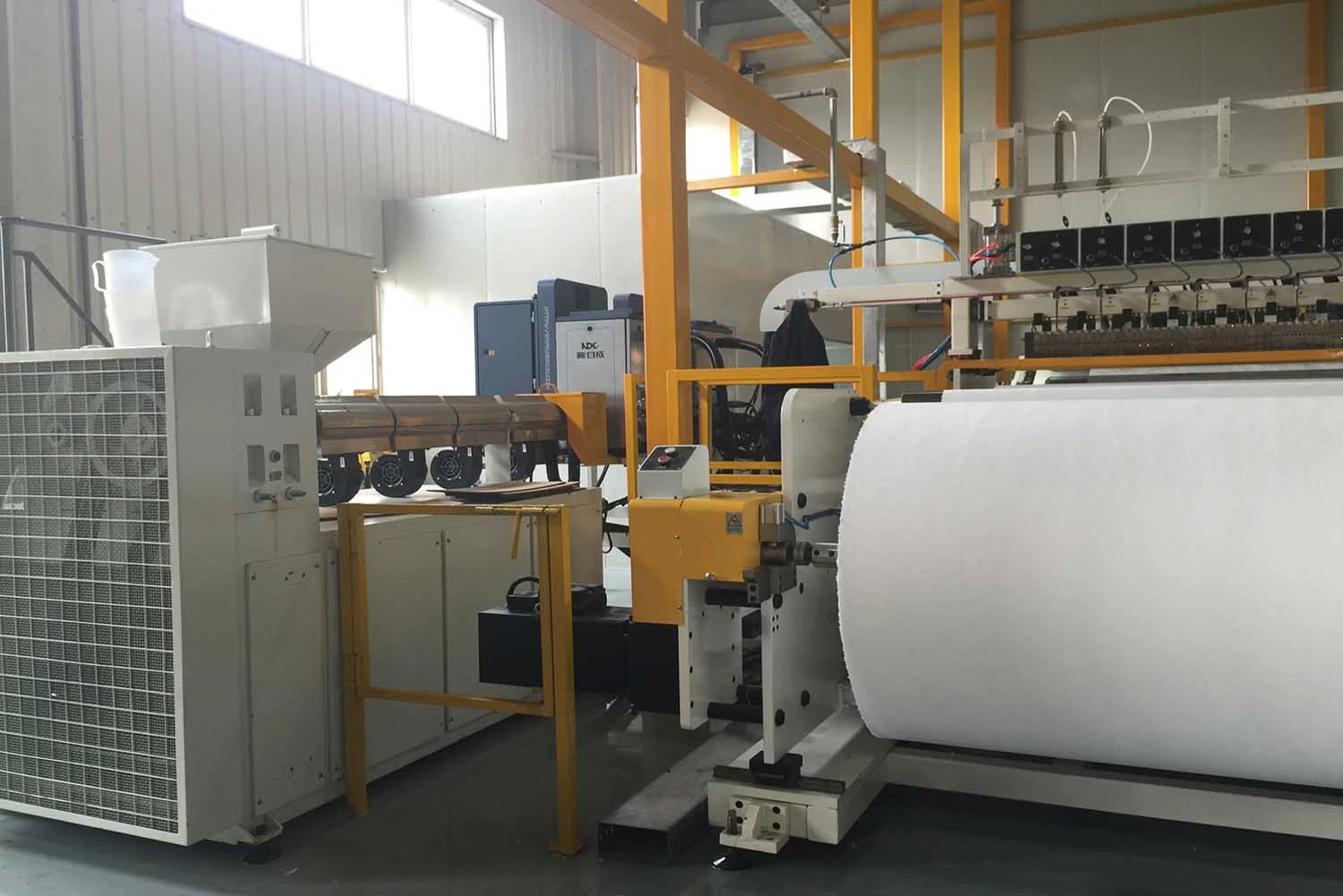

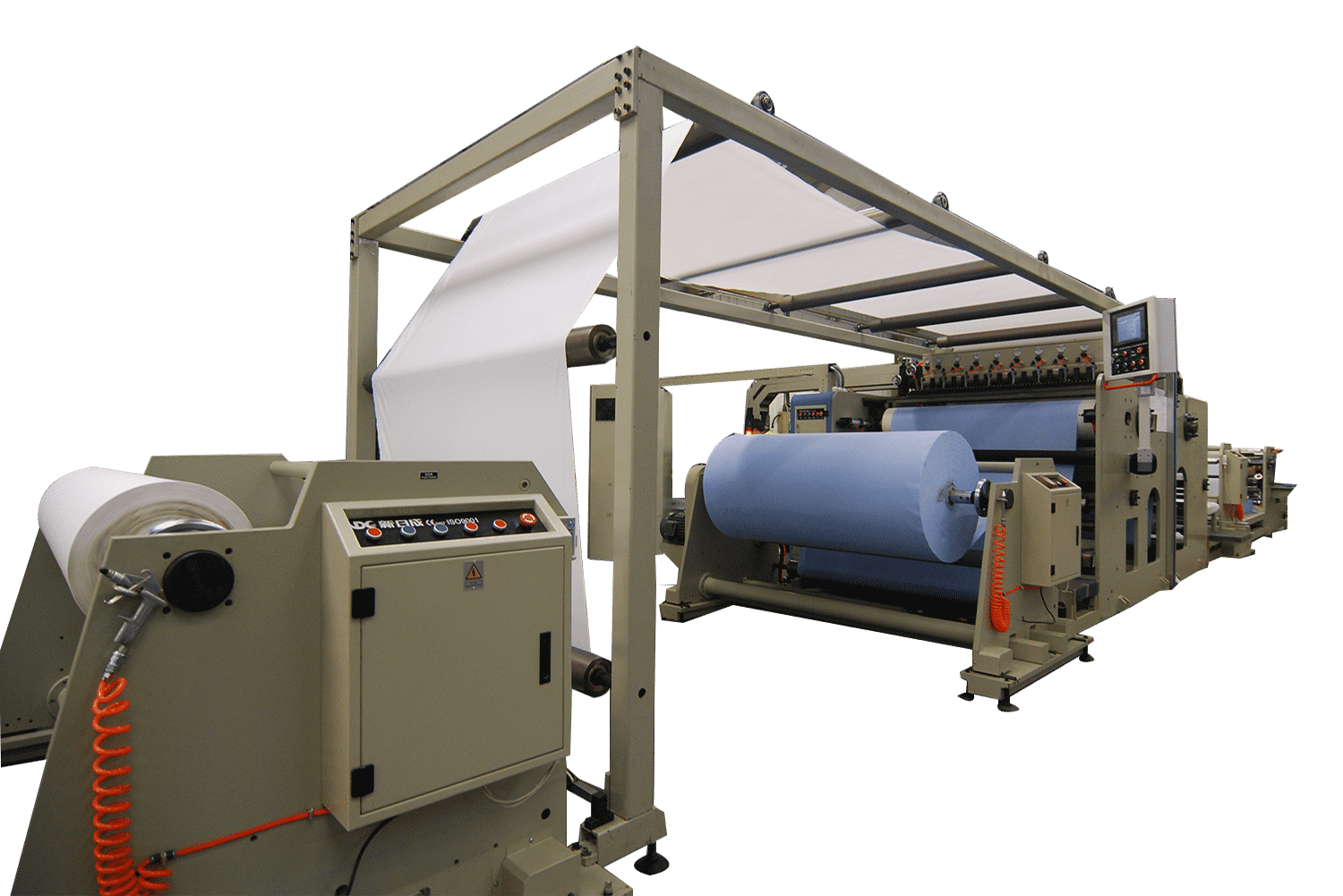

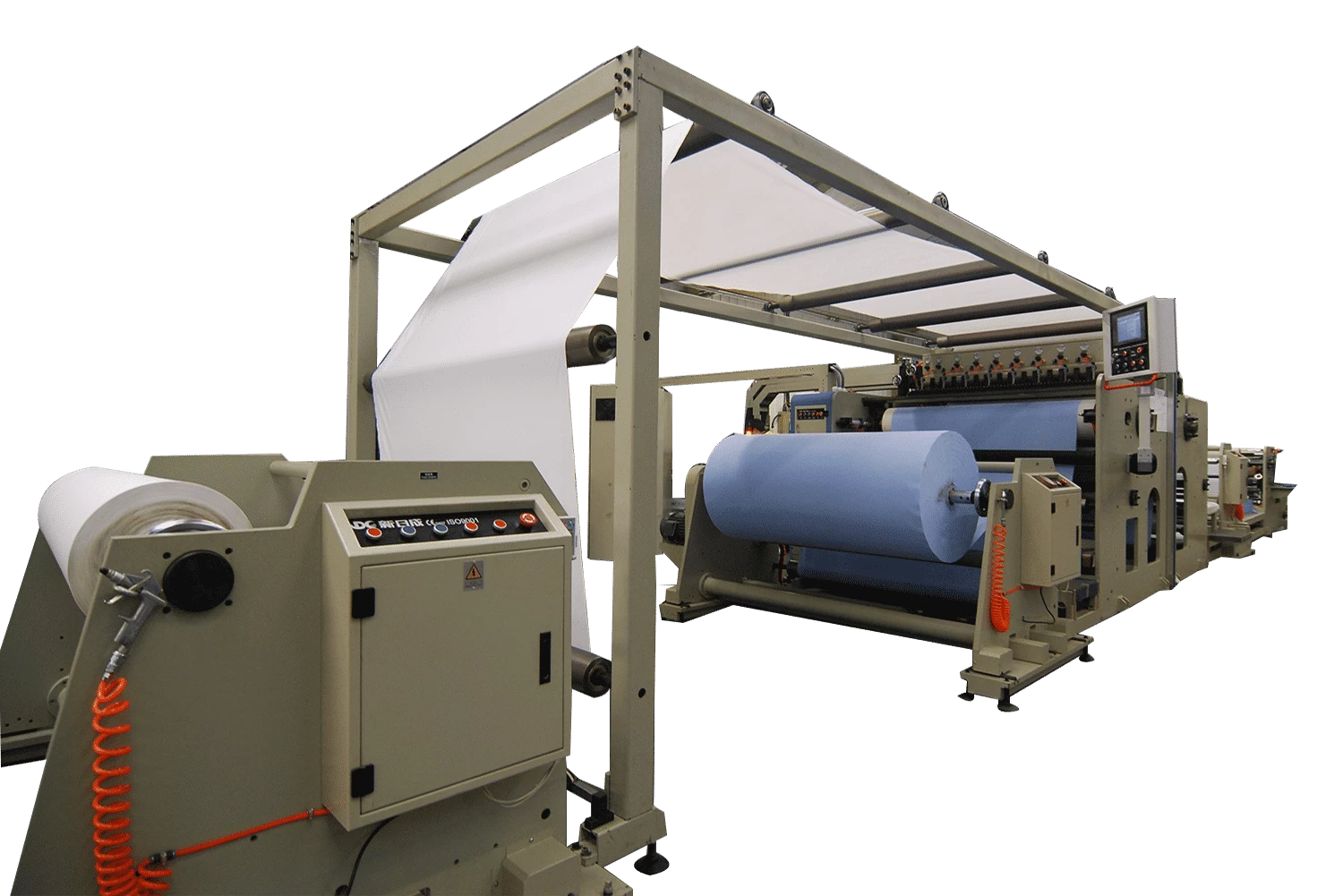

Hot Melt Fiber Spraying Coating Laminating Equipment for Filter Materials
|
|
Power
|
AC380V, 3-phase, 4-wire As required
|
|
Max. Web Width:
|
1600mm
|
Coating width:
|
1600mm
|
|
Design Speed
|
250m/min
|
Production Rate
|
200m/min
|
|
Adhesive
|
SIS.EVA
|
Viscosity
|
10000CPS
|
|
Working temp.of Coating Die
|
120 ºC-180 ºC
|
|
Application in
|
Nonwoven spray coating/Filter materials Laminating
|
|
Coating Die
|

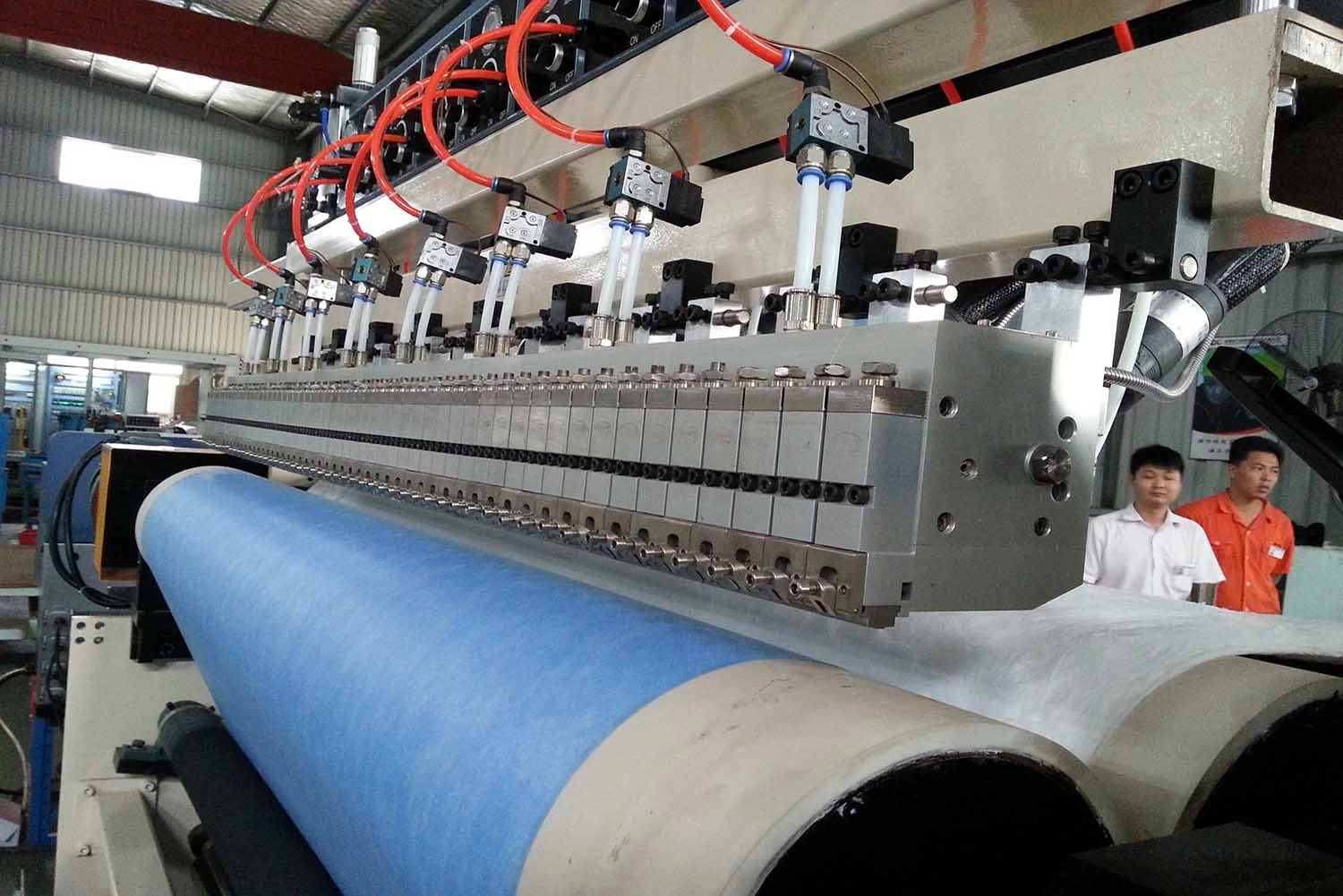

non-contact fiber spray coating applicator
|
|
Delivery
|
By Sea
|
|
Dimension: 17000mm x 6000mm x 2600mm
|
|
Color of Framework and Unit
|
ivory-white (No.RAL0015)
|
|
Operation
|
Touch Screen
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
35T
|
Main characteristic
1,This hot melt
coating machine is constructed with 80mm wall panels & steel links and
processed by CNC boring & milling machine center with fine appearance
and high precious strength.
2,This hot melt
coating machine is equipped with turrerts unwinder and rewinder or single
unwinder and rewinder, laminating unit, spraying coating system ,driving
system, auto-control system,pneumatic system and web guidance
and designed scientifically and logically for the convenience of
maintenance and upgrade with excellent quality.
3, PLC Control
system with touch screen makes operation more easier and accurate.
4,High quality
advanced hot melt coating/spray coating applicator. External aluminum
alloy heating module design for coating die can prevent carbonation from local
high temperature.
5,Unwinder
diameters: 1200mm, Rewinder diameters: 1200mm. Or As required.
6,Electrical
control system (With CE Standard)
