NDC TB1600 Hot Melt Laminating Machine

Lamination of filter materials

Spray Coating for Non-woven/ Filter Materials

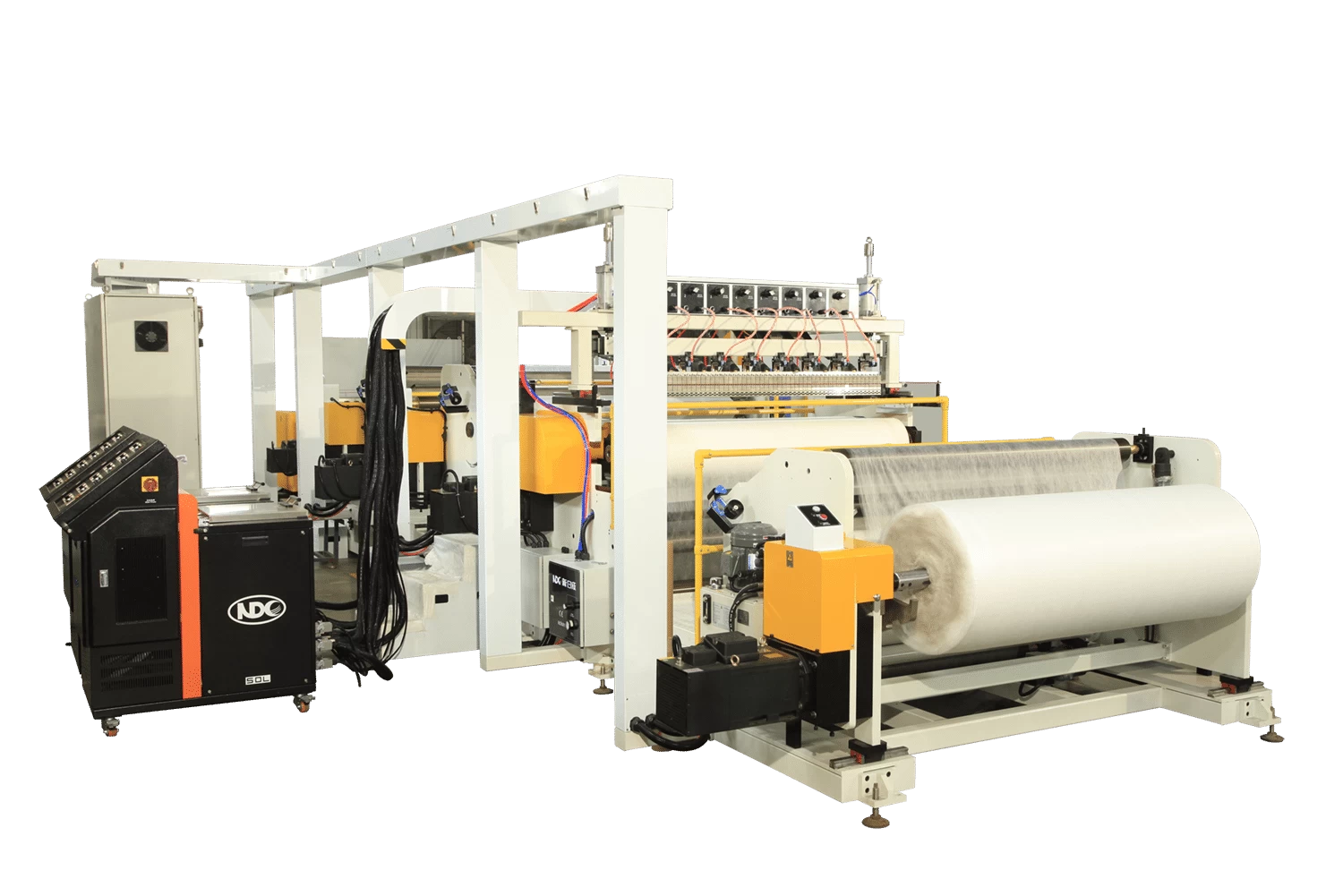

NDC hot melt laminating machine

Basic Info

Model NO.: TB1600

Effective Coating Width: 1600mm or as Required

Unwinder: Turrets/Single Unwinder

Rewinder: Turrets/Single Rewinder

Hot Melt Application: Spray Coating for Nonwoven/ Filter Materials

Certificate: CE,ISO Certificates

Coating Type: Non-Streak Coating(with Rotary Bar)

Samples Testing: Free

Unwinder Diameter: 1200mm

Rewinder Diamer: 1200mm

Trademark: NDC

Transport Package: Spray Coating Machine Packed in Cartons

Specification: 17000mm x 6000mm x 2600mm

Origin: China

HS Code: 84778000


Product Description


Device Name

Hot Melt Laminating Machine for Breathable Materials

Power

AC380V,  3-phase, 4-wire  As required

Max. Web Width:

1600mm

Coating width:

1600mm

Design Speed

250m/min

Production Rate

200m/min

Adhesive

SIS.EVA

Viscosity

10000CPS

Working temp.of Coating Die

120 ºC-180 ºC

Application in

Nonwoven spray coating/Filter materials Laminating

Coating Die

non-contact fiber spray coating applicator

Delivery

By Sea

Dimension:  17000mm x 6000mm x 2600mm

Color of Framework and Unit

ivory-white (No.RAL9010)

Operation

Touch Screen

Cable

Cable Bridge frame

Total Weight

35T


Main characteristic

1,This hot melt coating machine is constructed with 80 mm wall panels & steel links and processed by CNC boring & milling machine center with fine appearance and high precious strength.

2,This hot melt coating machine is equipped with turrerts unwinder  and rewinder or single unwinder and rewinder, laminating unit, spraying coating system ,driving system, auto-control system,pneumatic  system and web guidance and  designed scientifically and logically for the convenience of maintenance and upgrade with excellent quality.

3, PLC Control system with touch screen makes operation more easier and accurate.

4,High quality advanced hot melt coating/spray coating applicator. External aluminum alloy heating module design for coating die can prevent carbonation from local high temperature.

5,Unwinder diameters: 1200 mm, Rewinder diameters: 1200mm. Or As required.

6,Electrical control system (With CE Standard)
