High Temperture 1600C Vertical Tube Furnace Gas Quenching Furnace Sintering


This quenching furnace is a gas quenching furnace. The difference from the traditional quenching furnace is the vacuum cavity behind the flange. There are two pairs of air inlets on the cavity. After the material is heated, pull the material to the vacuum cavity and quench it with gas.


Detailed technical parameters

Model

VTL1600-I

VTL1600-II

VTL1600-III

Power

7.5KW

7.5KW

7.5KW

  Tube size

Dia60(OD)X1000mm

Dia80(OD)X1000mm

Dia100(OD)X1000mm

Dimension(LXDXH)

1300X500X800mm

1300X500X800mm

1300X500X800mm

Supply voltage

220V/380V

phase

single phase

Heating element

1800 MoSi2 heating element

Tube

Corundum tube: high purity AIO ceramics (containing) 99.5%

Control mode

Use Yudian program temperature control instrument (standard)

1. 50-segment program temperature control intelligent PID adjustment.

2. With over-temperature protection. The electric furnace heating circuit is automatically cut off when over-temperature protection or over-temperature protection occurs. (When the temperature of the electric furnace exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is disconnected, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected).

3. With 485 communication interface (standard configuration when purchasing software).

4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the temperature of the furnace when the power is turned off.

5. The meter has the function of temperature self-tuning.

High Temperture 1600C Vertical Tube Furnace Gas Quenching Furnace Sintering

(replacement of imported instruments requires additional payment and purchase)

 High Temperture 1600C Vertical Tube Furnace Gas Quenching Furnace Sintering

FP93 control instrument(SHIMADEN)       EUROTHERM      touch screen

Break couple protection and display

Yes

Over-temperature protection

Yes

Overcurrent protection

Yes

Control precision

+/- 1 ℃

Flip-flop

·                                Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

·                                    106/16E SEMIKRON

Max. temp

1600 ℃

Rated temp

1550 ℃

Heating rate

≤20 ℃/ Min (can be modified as required)

Recommended heating rate

≤5℃/ Min

Thermocouple Type

B

Heating length

300mm

Electrical certification

CE

Ambient surface temperature

≤45℃

Vacuum seal flange and valve

1. A stainless steel sealing flange and stainless steel needle valve are installed on the top of the furnace body.

2. A bottom plate valve, a non-mechanical pressure gauge, and a KF25 vacuum interface are used to connect the vacuum pump at the bottom of the furnace body.

3. Vacuum degree: The vacuum degree of the mechanical pump can be less than 1Pa. If you want to obtain a higher vacuum degree, you can choose a domestic or imported high vacuum unit. The vacuum degree can reach 10-3Pa.

Optional: The following accessories increase vacuum efficiency.

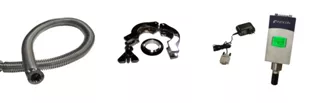

4. KF25 stainless steel bellows, KF25 quick remover clamp.

5. Optional anti-corrosion digital vacuum gauge with a measurement range of 3.8x10-5 to 1125 Torr. No coefficient conversion is required due to different types of measurement gases.



 Cavity structure diagram



 After the sample is heated, the sample is pulled to the vacuum chamber through a pull rod and quenched with gas.



Warranty period

One year warranty, lifetime technical support

Special Note:

1. Consumable parts such as heating elements, furnace tubes, sample crucibles, etc. are not under warranty.

2. Damage caused by the use of corrosive gases and acid gases is not covered by the warranty.



Precautions

1. The air pressure in the furnace tube cannot be higher than 0.02MPa.

2. Due to the high internal pressure of the gas cylinder, when introducing gas into the furnace tube, a pressure reducing valve must be installed on the gas cylinder. In order to ensure safety, it is recommended to use a pressure lower than 0.02 MPa.

3. When the furnace tube used is corundum tube, when the furnace temperature is higher than 1500 ° C, the furnace tube cannot be in a vacuum state, and the pressure in the furnace tube must be equal to the atmospheric pressure.

4. The gas flow into the furnace tube needs to be less than 200SCCM to avoid the impact of the cold air flow on the hot furnace tube.

5. For the experiment of sample heating, it is not recommended to close the suction valve and inlet valve of the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you must always pay attention to the indication of the pressure gauge. If the air pressure is greater than 0.02MPa, the exhaust valve must be opened immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.).

6. Do not use graphite crucibles in alumina tubes.

7. MoSi2 heating element should not be used at low temperature (400 ℃ -700 ℃) for a long time, otherwise the heating element may be damaged.



Gas Quenching Furnace


 Tmax CE
