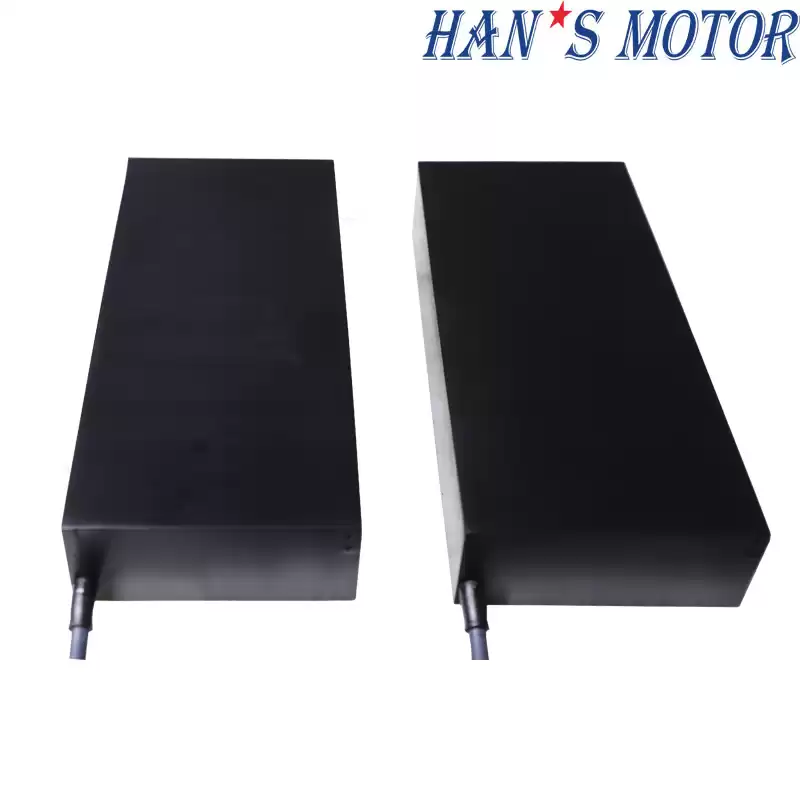

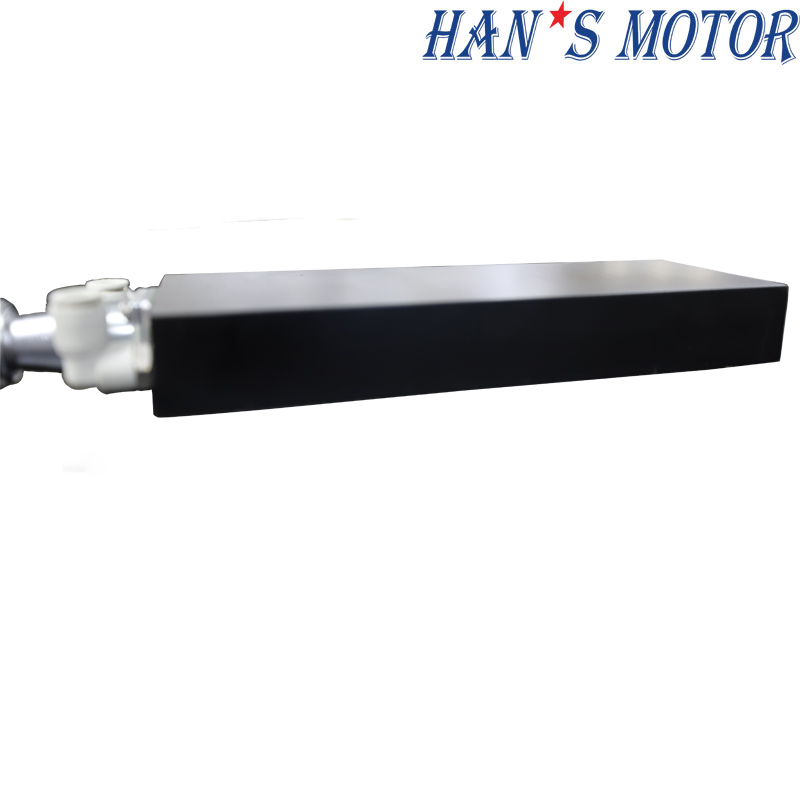

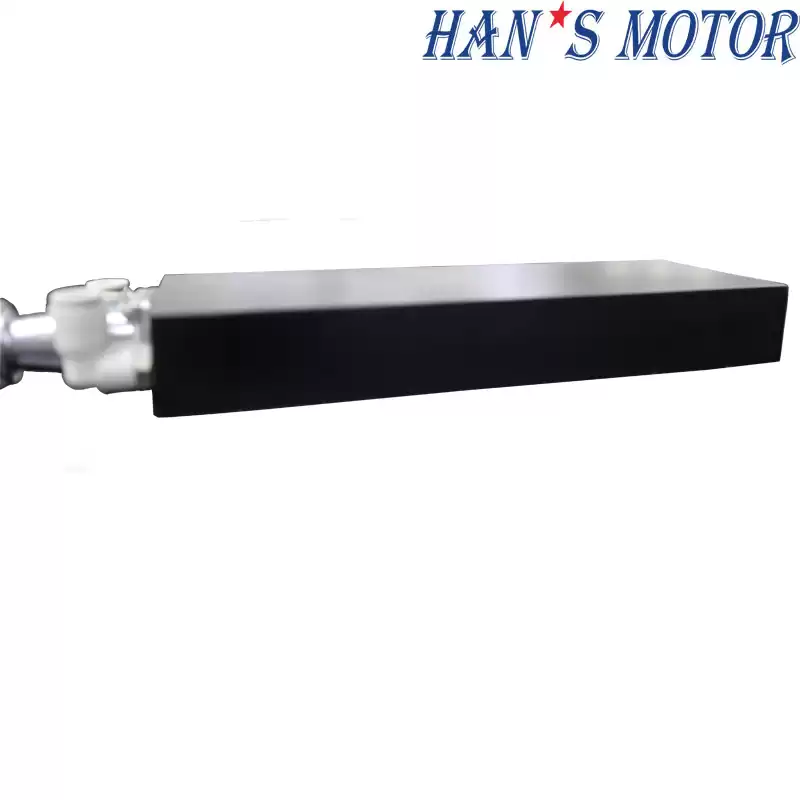

Product name：High thrust and high acceleration iron core direct drive linear motor LSMFL-125
Specifications
Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5
|
104A-S
|
104B-S
|
204A-S
|
304A-S
|
404A-S
|
404A-P
|
Performance Parameters
|
Symbol
|
Units
|
Series
|
Series
|
Series
|
Series
|
Series
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
196
|
196
|
393
|
589
|
785
|
785
|
Peak Force
|
Fp
|
N
|
518
|
518
|
1035
|
1553
|
2070
|
2070
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
24.3
|
24.3
|
34.8
|
42.8
|
49.5
|
48.8
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
89
|
89
|
175
|
260
|
346
|
356
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
4.0
|
2.6
|
4.0
|
4.0
|
4.0
|
8.0
|
Peak Current (1S)
|
Ip
|
Arms
|
12.0
|
7.8
|
12.0
|
12.0
|
12.0
|
24.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
49.0
|
75.4
|
98.3
|
147.0
|
196.3
|
98.1
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
16.3
|
25.4
|
32.8
|
49.0
|
65.4
|
32.7
|
Resistance(25℃，±5%）P-P
|
R
|
Ω
|
2.7
|
6.4
|
5.3
|
7.9
|
10.5
|
2.7
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
15.0
|
36.0
|
30.0
|
45.0
|
60.0
|
15.0
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
20
|
20
|
20
|
20
|
20
|
20
|
Magnetic Attraction
|
Fa
|
kN
|
1.1
|
1.1
|
2.2
|
3.3
|
4.4
|
4.4
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
600
|
600
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
6.3
|
3.9
|
2.9
|
1.8
|
1.3
|
2.9
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
3.4
|
2.0
|
1.4
|
0.8
|
0.4
|
1.4
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
7.6
|
4.9
|
3.8
|
2.5
|
1.9
|
3.8
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
11.2
|
7.1
|
5.4
|
3.5
|
2.5
|
5.4
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
6.3
|
3.9
|
2.9
|
1.8
|
1.2
|
2.9
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
13.3
|
8.6
|
6.6
|
4.4
|
3.3
|
6.6
|
Mover Mass
|
Mp
|
Kg
|
2.5
|
2.5
|
4.7
|
6.9
|
9.0
|
9.0
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
8.8
|
8.8
|
8.8
|
8.8
|
8.8
|
8.8
|

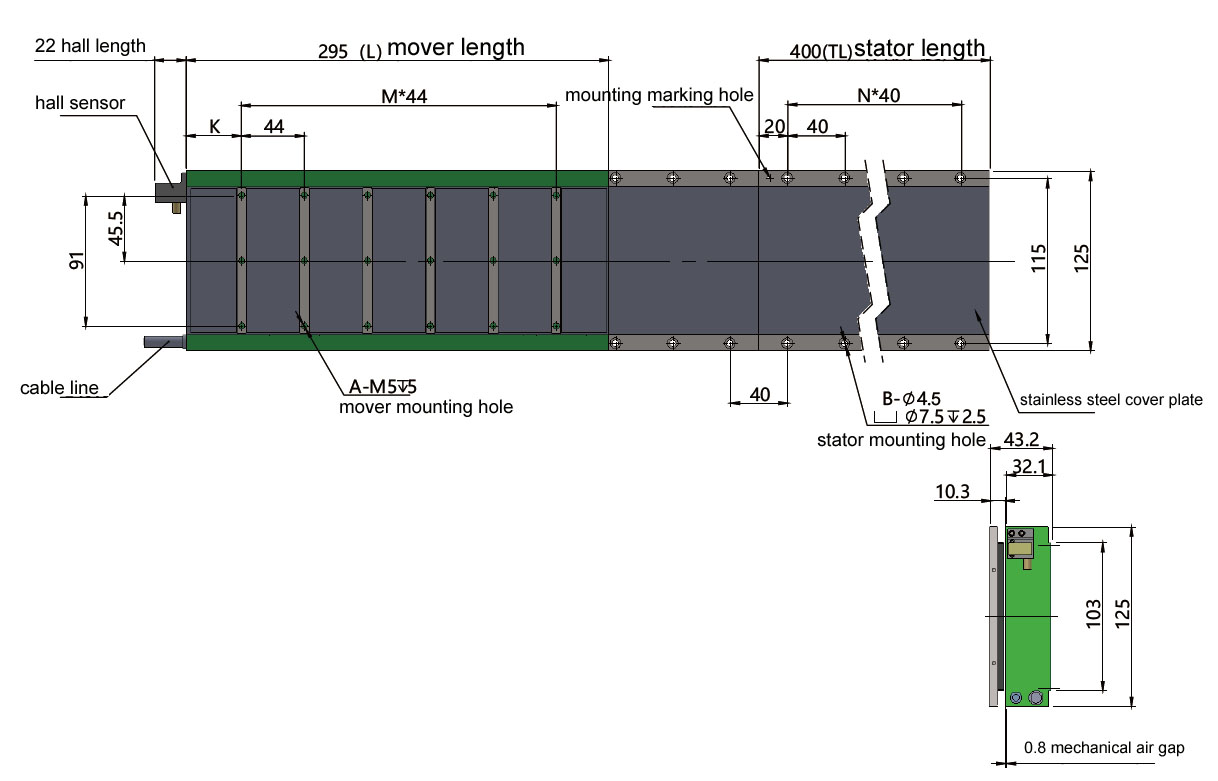

Dimension
|
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
k
|
LSMFL10104A-S-H-NC-N-C00.5
|
85
|
1
|
6
|
21.5
|
LSMFL10104B-S-H-NC-N-C00.5
|
85
|
1
|
6
|
21.5
|
LSMFL10204A-S-H-NC-N-C00.5
|
155
|
2
|
9
|
34.5
|
LSMFL10304A-S-H-NC-N-C00.5
|
225
|
4
|
15
|
25.5
|
|
LSMFL10404A-S-H-NC-N-C00.5
|
295
|
5
|
18
|
38.5
|
LSMFL10404A-P-H-NC-N-C00.5
|
295
|
5
|
18
|
38.5
|
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
|
LSMFJ2A-W125-L40
|
40
|
0
|
2
|
|
LSMFJ2A-W125-L80
|
80
|
1
|
4
|
LSMFJ2A-W125-L200
|
200
|
4
|
10
|
LSMFJ2A-W125-L320
|
320
|
7
|
16
|
LSMFJ2A-W125-L400
|
400
|
9
|
20
|
Suitable for any mover of this series.

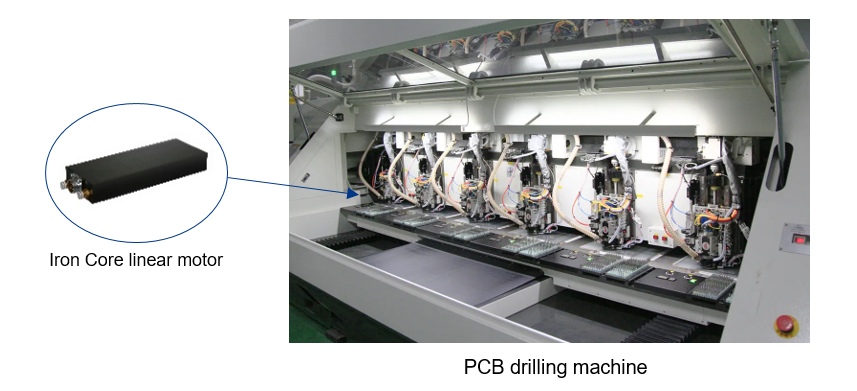

Application case：
PCB industry: Smooth thrust, small inertia, large acceleration, strong overload capacity etc.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
