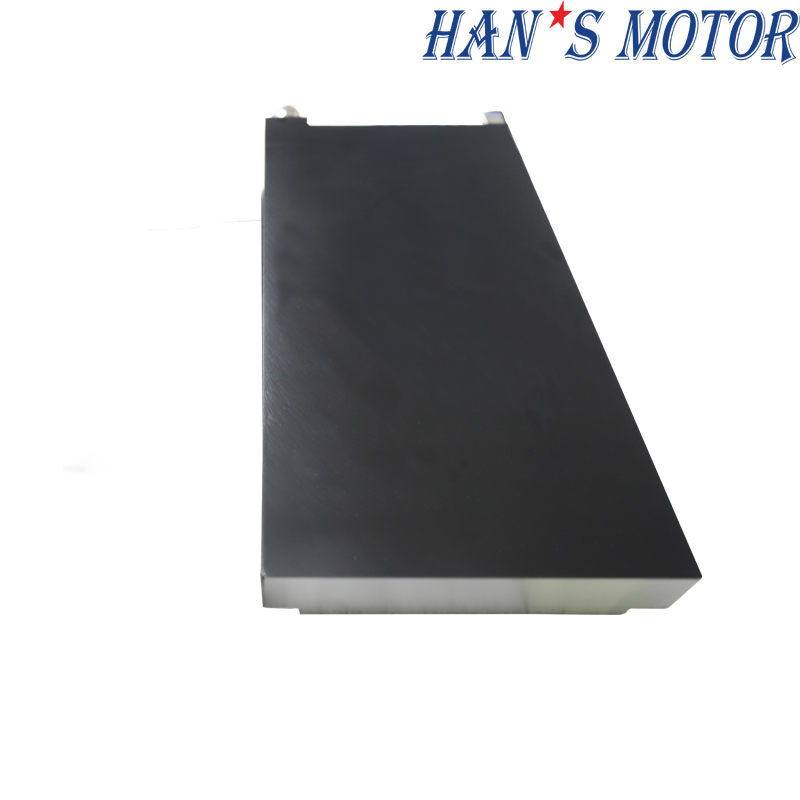

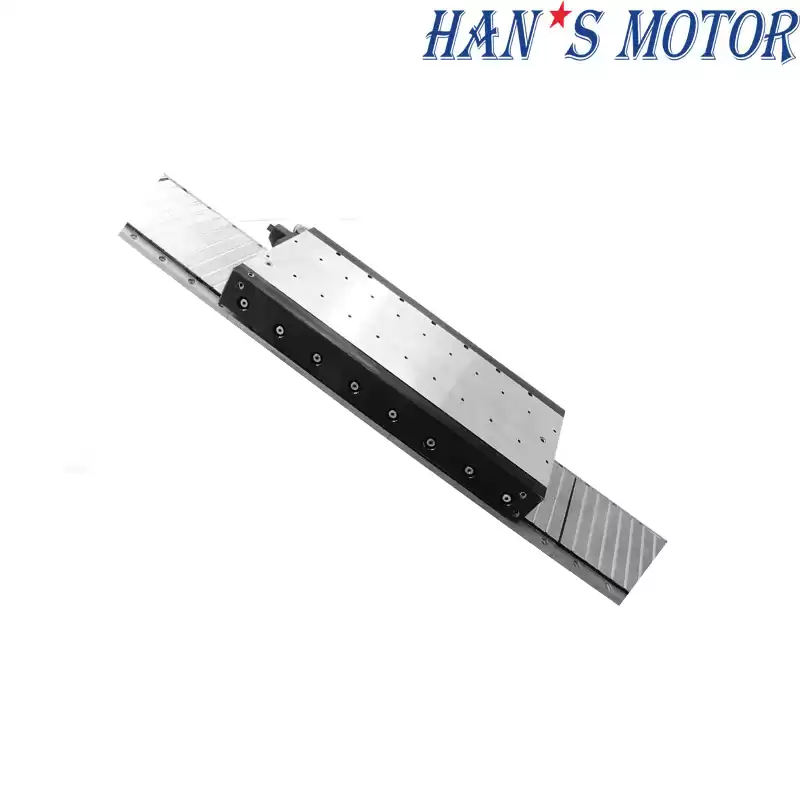

Product name：High thrust linear motor iron core with water cooling applied to cnc machining center
Specifications
Mover Spec.：LSMF610xxxx-x-H-WC
|
201B-S
|
401C-P
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
|
|
Continuous Force (Tmax）
|
Fc
|
N
|
1000
|
2000
|
Peak Force
|
Fp
|
N
|
2600
|
5100
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
54.7
|
73.8
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
459
|
1009
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
7.2
|
9.9
|
Peak Current (1S)
|
Ip
|
Arms
|
18.5
|
26.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
143.0
|
208.0
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
47.7
|
69.3
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
4.3
|
5.0
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
52.5
|
57.0
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
47.6
|
47.6
|
Minimum flow of cold water
|
Wmin
|
L/min
|
4.5
|
4.5
|
Temperature difference between inlet and outlet
|
△T
|
℃
|
5.1
|
5.1
|
Pressure drop (stator loop series)
|
△P
|
Bar
|
0.7
|
0.7
|
Magnetic Attraction
|
Fa
|
kN
|
4.7
|
9.4
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
3.6
|
2.3
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
2.2
|
1.2
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
4.5
|
3.1
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
2.2
|
1.4
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
1.2
|
0.5
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
2.9
|
2.0
|
Mover Mass
|
Mp
|
Kg
|
9.5
|
18.0
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
14.0
|
14.0
|

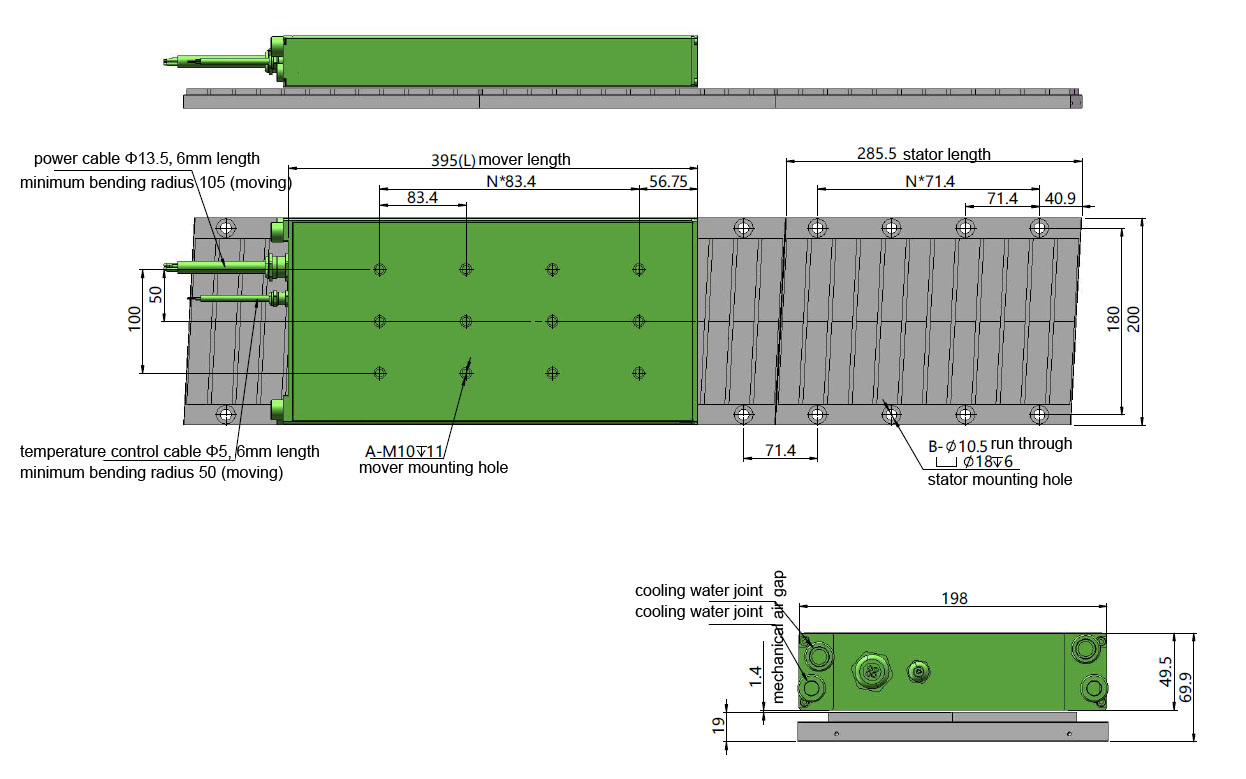

Dimension
Mover Length
|
Mover model
|
Mover length L
|
C
|
D
|
Mover mounting hole A
|
LSMF510201C-S-H-WC
|
228
|
0
|
0
|
4
|
LSMF510401C-S-H-WC
|
407
|
95.3
|
83.4
|
8
|
Remarks: 1. Standard cable length is 6m, maximum outer diameter(d) of motor(201B) cable is d= 11.5mm, minimum bending radius within chain is 115mm; maximum outer diameter(d) of motor(401C) cable is d= 13.5mm, minimum bending radius within chain is 101.25mm. the length can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
LSMF5201A
|
285.5
|
3
|
8
|
LSMF5203A
|
142.8
|
1
|
4
|
Suitable for any mover of this series.
Advantages：
1. High efficiency: fast moving speed is more than 1 times higher than rotary servo motor.
2. Isolated cooling: proprietary cooling structure design, low temperature rise < 3K (degrees Celsius).
3. High protection grade: IP65 high protection grade, suitable for harsh environment.
4. High precision: ultra-high positioning accuracy, bidirectional repeatable positioning accuracy up to 1μm.
