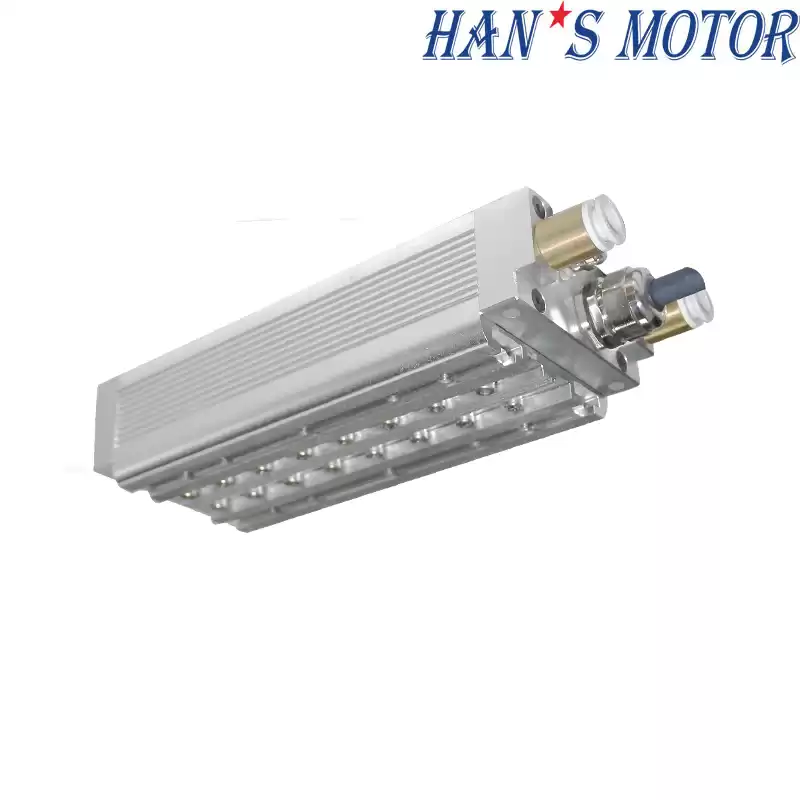

Product name: Iron core linear motor thrust range 1030~2100N with water cooling for CNC machine tool
Specifications
Mover Spec.：LSMF510xxxx-x-H-WC
|
201C-S
|
401C-S
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
|
|
Continuous Force (Tmax）
|
Fc
|
N
|
505
|
1030
|
Peak Force
|
Fp
|
N
|
1200
|
2100
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
29.1
|
42.5
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
302
|
586
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
7.3
|
7.3
|
Peak Current (1S)
|
Ip
|
Arms
|
14.6
|
14.6
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
71.0
|
141.0
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
23.7
|
47.0
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
2.7
|
5.2
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
30.0
|
57.0
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
47.6
|
47.6
|
Minimum flow of cold water
|
Wmin
|
L/min
|
4.0
|
4.0
|
Temperature difference between inlet and outlet
|
△T
|
℃
|
2.1
|
2.1
|
Pressure drop (stator loop series)
|
△P
|
Bar
|
0.2
|
0.2
|
Magnetic Attraction
|
Fa
|
kN
|
2.5
|
5.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
7.4
|
3.5
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
5.3
|
2.4
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
9.2
|
4.6
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
4.6
|
2.1
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
3.2
|
1.4
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
5.9
|
3.0
|
Mover Mass
|
Mp
|
Kg
|
8.0
|
14.5
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
10.5
|
10.5
|

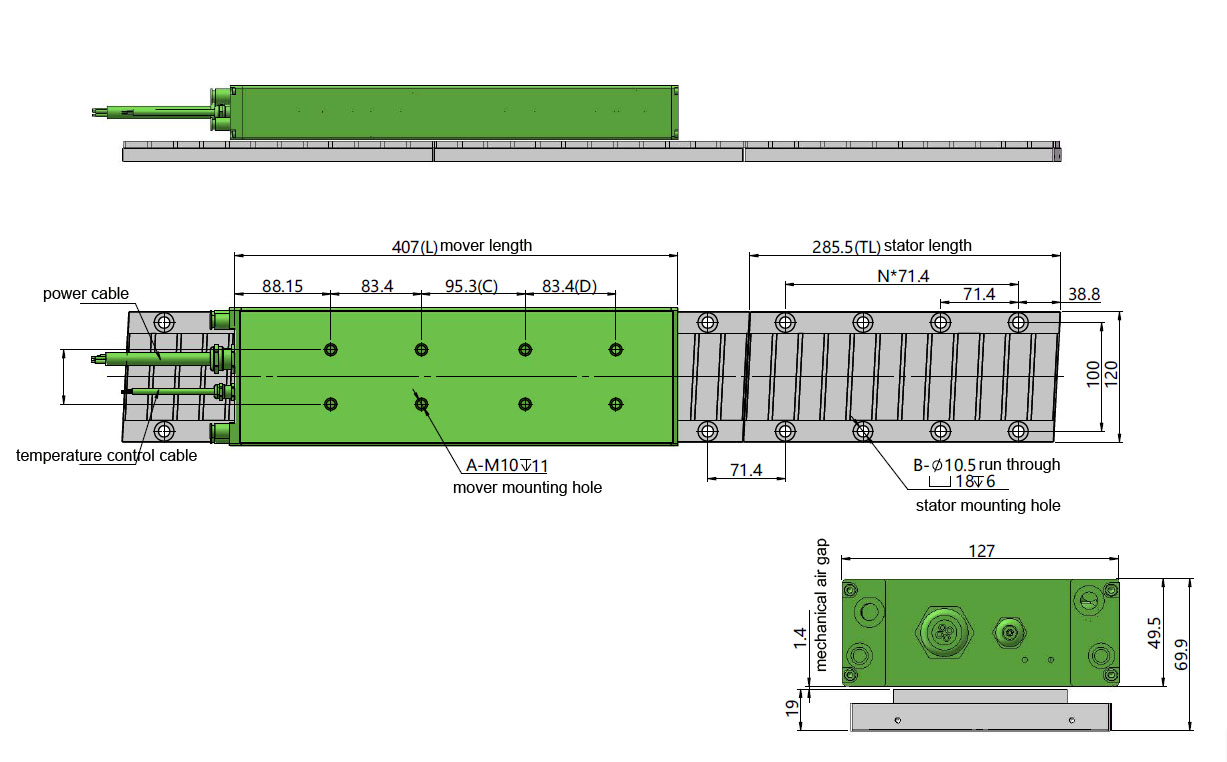

Dimension
Mover Length
|
Mover model
|
Mover length L
|
C
|
D
|
Mover mounting hole A
|
LSMF510201C-S-H-WC
|
228
|
0
|
0
|
4
|
LSMF510401C-S-H-WC
|
407
|
95.3
|
83.4
|
8
|
Remarks: 1. Standard cable length is 5m, maximum outer diameter(d) of motor cable is d= 12mm, minimum bending radius within chain is 90mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
LSMF5201A
|
285.5
|
3
|
8
|
LSMF5203A
|
142.8
|
1
|
4
|
Suitable for any mover of this series.

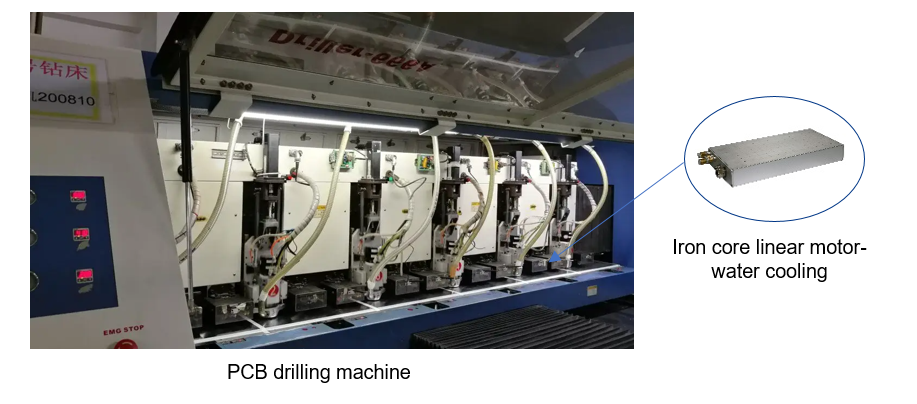

Application Case：PCB Drilling industry
Advantages: large thrust, excellent acceleration performance, unique water-cooling technology, built-in overheat protection.
Cumulative usage of iron core linear motors exceeds 100,000 axes. The customer's market share of drilling machine is No. 1 in the world.
Industry Applications:
it is widely used in wafer cutting, glass scribing, UV printingmachine and measurement system,six-axis drilling machine, single-axis drilling machine, two-axis drilling machine, forming machine, laser direct imaging machine (LDI), automatic optical inspection machine (AOI), reinforcement machine (FPC).
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
