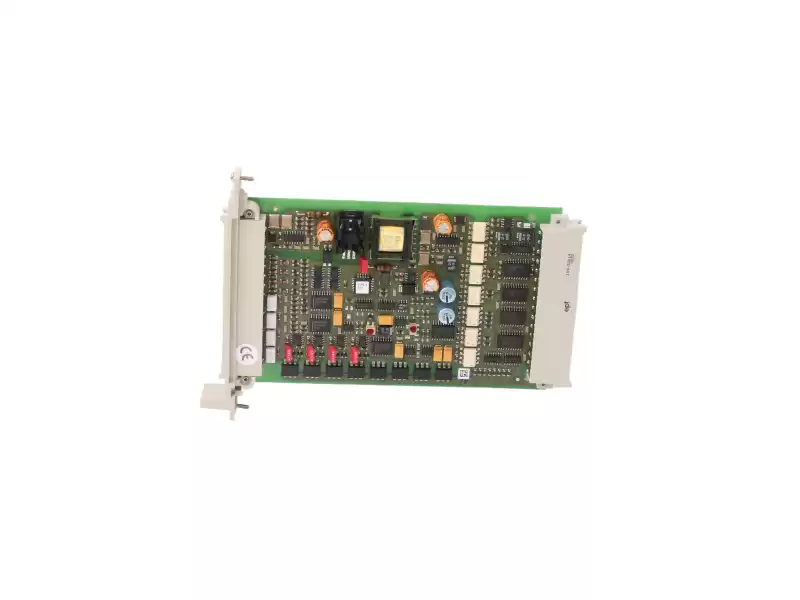

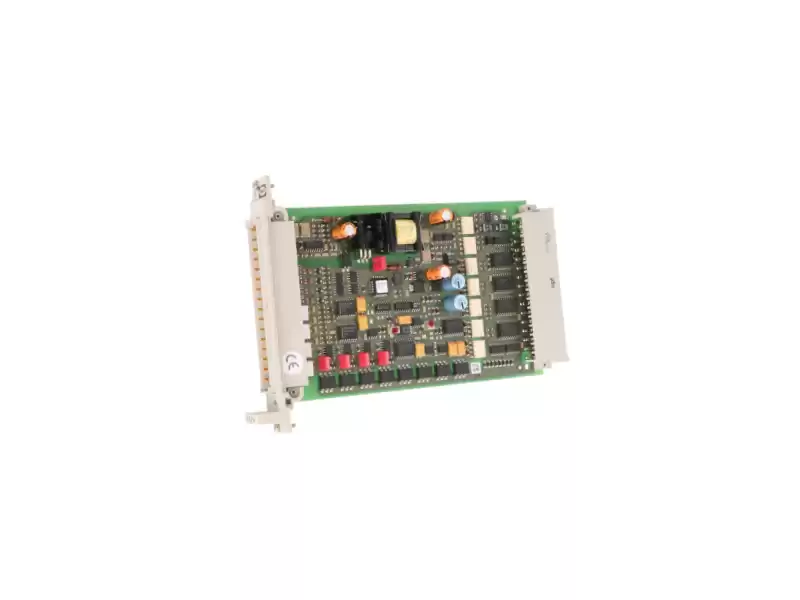

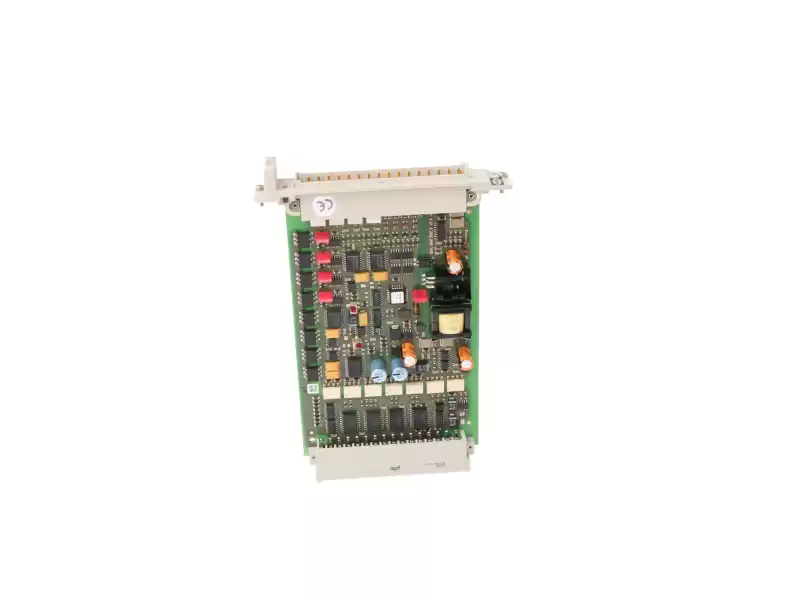

HIMA F6214 – Quad Relay Card – 8-Channel Analog Input Module
➯What it is
F6214 is a DIN-rail relay module with four force-guided SPDT contacts. It switches 24 V loads up to 6 A per contact and is certified for SIL-3 loops.
Plain-English Specs
• 8 universal inputs (AI) – current, voltage, or temperature
• 24-bit ADC, 12-bit effective resolution, 5 ms scan per channel
• 24 V DC loop supply (max 30 mA per channel)
• –25 °C … +70 °C operating, IP20
• Fault-safe: open-circuit, short-circuit, over-range diagnostics
• Hot-swap enabled – swap online without rack shutdown
➯Safety & Approvals
• SIL 3 (IEC 61508), AK6 (DIN V 19250)
• ATEX Zone 2, IECEx, CSA Class I Div 2
• QMR (quad-redundant) CPU interface
➯FAQ
Q: Can I mix RTD and 4–20 mA on the same card?
A: Yes – each channel is software-configurable.
Q: How is redundancy achieved?
A: F6214 talks to the 2004D CPU pair (two dual-CPU boards) for fault-tolerant operation .
Q: What if one channel fails?
A: Module isolates the fault; remaining 7 channels stay live.
Q: Do I need external excitation?
A: No – 24 V loop supply is on-board.
➯Flash-Box Bundle
|
Item
|
Part No.
|
Purpose
|
|
F6214 Relay Module
|
F6214
|
Core quad-relay card
|
|
F6215 Spare Relay
|
F6215
|
Drop-in replacement relay pack
|
|
F8621A CPU
|
F8621A
|
HIMatrix SIL-3 CPU
|
|
F8641 I/O Rack
|
F8641
|
8-slot DIN-rail housing
|
|
F8650X Safety CPU
|
F8650X
|
Redundant pair kit
|
|
F8645 Power
|
F8645
|
24 V DC 10 A supply
|
All factory-sealed, same-day from PLC Autocontroller.
