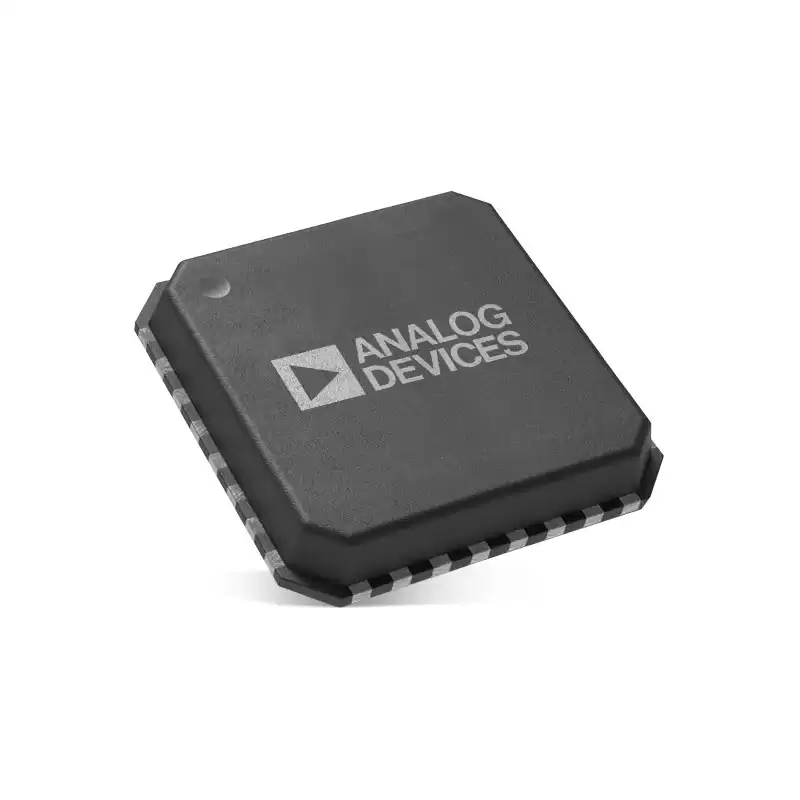

HMC441LP3 ADI RF Amplifier
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Amplifier |
| Series |
HMC441G |
| Mounting Style |
SMD/SMT |
| Operating Frequency |
6.5 GHz to 13.5 GHz |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.002014 oz
|
Introduction
The HMC441LP3 is a chip manufactured by Analog Devices Inc. It is a high-performance, wideband digital attenuator designed for various RF and microwave applications.
The HMC441LP3 chip offers a wide frequency range and precise attenuation control, making it suitable for applications that require accurate signal level adjustment in RF and microwave systems.
This chip features a digital attenuator with a wide dynamic range and fine resolution, allowing for precise and flexible attenuation settings. It provides high linearity and low insertion loss, ensuring minimal signal distortion and improved system performance.
The HMC441LP3 chip operates with a single positive power supply, typically ranging from 3.3V to 5V. It incorporates internal control logic and requires minimal external components, simplifying the overall circuit design.
With its compact LP3 package and industry-standard pinout, the HMC441LP3 chip facilitates ease of integration into RF and microwave systems. It is suitable for applications such as wireless infrastructure, test and measurement equipment, radar systems, and communications systems that require precise signal level adjustment.
Application
The HMC441LP3 chip is widely used in various industries for accurate signal level adjustment in RF and microwave applications. It finds applications in wireless infrastructure, test and measurement equipment, radar systems, and communications systems. With its wide frequency range, precise attenuation control, and low distortion characteristics, the chip enables precise signal level adjustment. Its high-performance features ensure minimal signal distortion and improved system performance. The HMC441LP3 chip operates with a single power supply, simplifying system design. Its compact LP3 package and industry-standard pinout facilitate easy integration into diverse system designs. It is a trusted solution for industries seeking accurate signal level adjustment in demanding RF and microwave applications.
