Product Name
Home Battery System 48V 200Ah 10kWh Home Energy Storage Battery with Hybrid Inverter
Highlights
-
High energy cell. Advanced high capacity and long life span
-
Easy installation by simple module structure
-
Standard Module for various customer needs
-
Scalable. Easy to expand capacity.
-
Intelligent BMS management system. Super active/passive equalization manager.High resolution thermal management function(RS485/232/CAN/SNMP available)
-
Compatibility. Compatible with various standard inverters

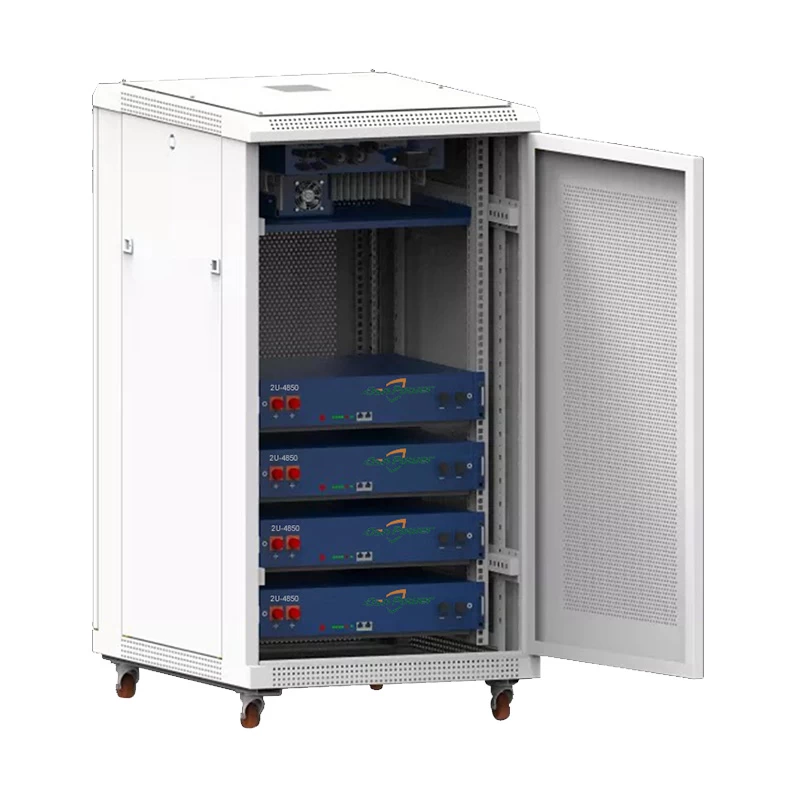

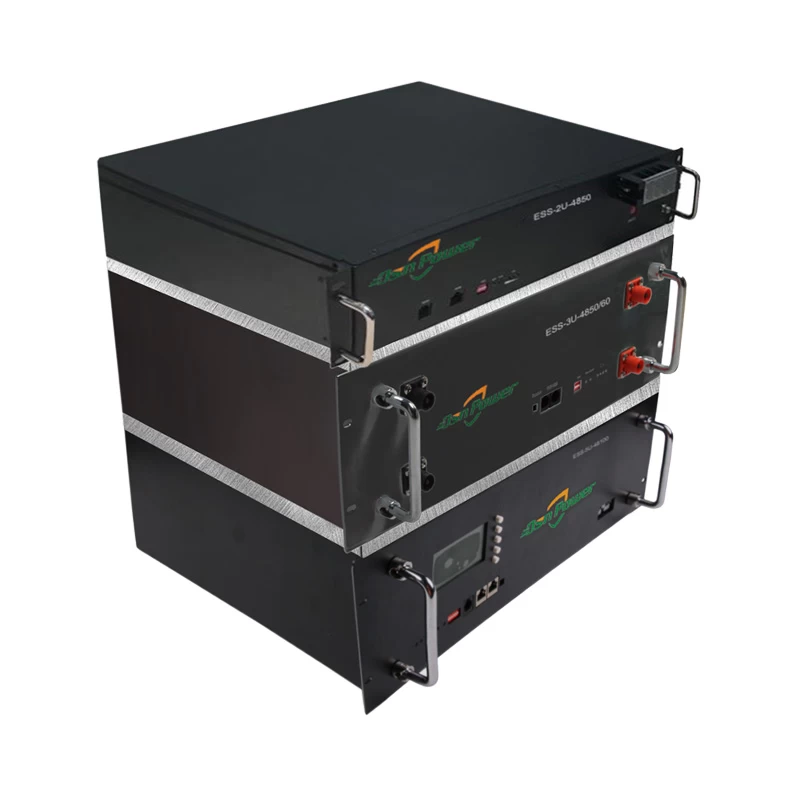

48V 200Ah 10KWh ESS Solar Systems Picture as Below
Standard RS485 protocol port, can meet the requirement of several packages to connect in parallel. Master & Slave relationship, Monitor and and other prolongation functions.
Specification for LiFePO4 solar 48v 50Ah 2.5KWH System
|
MODEL
|
OSN-ESS-48200L
|
|
PERFORMANCE
|
|
Rated Capacity (5hr)
|
200 Ah
|
|
Nominal Voltage
|
51.2 V
|
|
Discharge Ending Voltage
|
43.2 V
|
|
Charging Limited Voltage
|
57.6 V
|
|
Max. Charging Current
|
100.0 A
|
|
Max. Continuous Discharging Current
|
100.0 A
|
|
Parallel Connection
|
Optional (up to 16P). When paralleling Max. charging current = 20A
|
|
Containing Cell
|
3.2V 50AH
|
|
Design Life
|
More than 10 years
|
|
Cycle Life
|
6000 cycles @85% DOD (dependant on actual DOD, usage & temp.)
|
|
Discharge Rate
|
1C
|
|
Response Time
|
> 1ms
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
Customized
|
|
Weight
|
150 Kg
|
|
Enclosure
|
3U steel enclosure with protection handles inside the container
|
|
Communication Ports (LFP-48-50S only)
|
RS485
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Warranty
|
5 years
|
Other Features
-Safe and scalable
OSN LFP battery modules are a practical and economical battery system based on Lithium-iron-phosphate technology (LFP or LiFePO4).
Available in standard 2.5kWh modules, the LFP battery modules can be easily scaled in multiples up to 200kWh in a single installation, making them suitable for a range of applications.
-Efficient
OSN's LFP battery modules feature a round-trip efficiency of 92%, low self discharge rate of 3+ years, and unlike traditional lead acid battery.
-Smart battery management system with RS485
Our ess solar storage has additional communication options that allow comprehensive access to the smart BMS using the RS485 communication protocol
Application:
